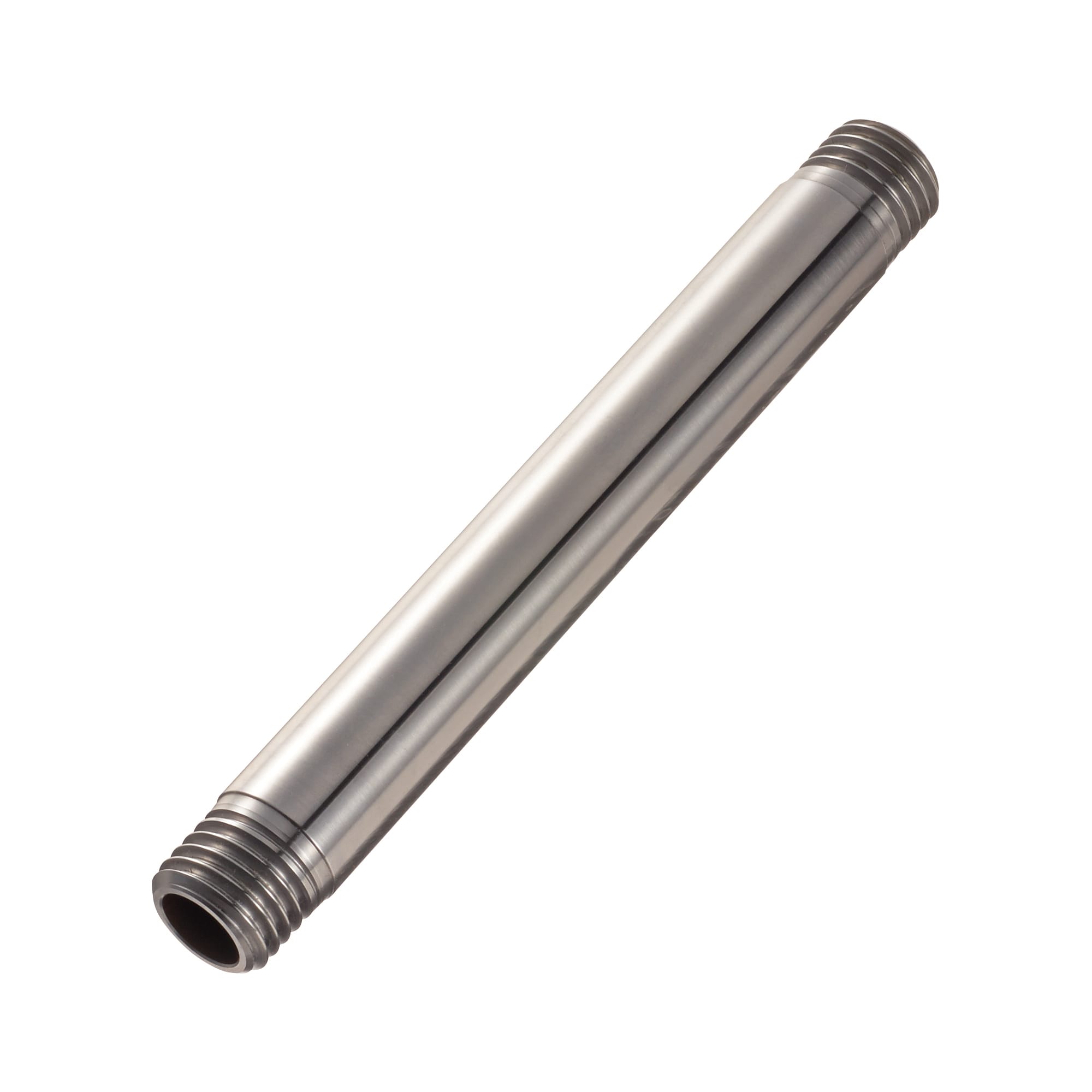

        Linear shafts / hollow / two-sided external thread

        Linear shafts / hollow / two-sided external thread

        Passe o rato sobre a imagem para a aumentar

        Número da peça:

        Indefinido. 34 candidatos encontrados.
        Quantidade:

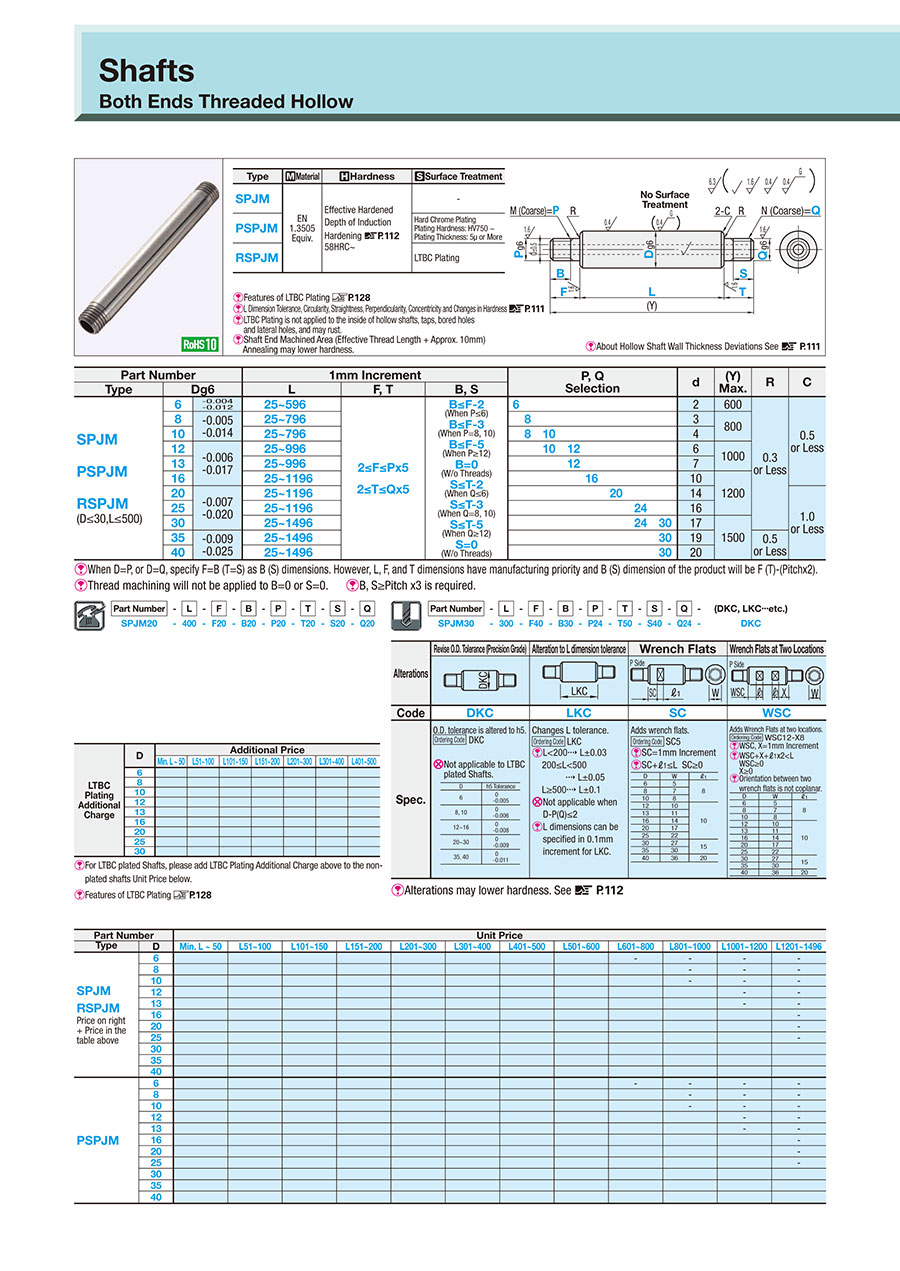

        Desenho de contorno e tabela de especificações

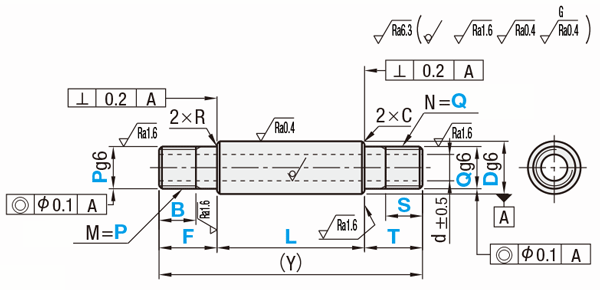

        Dimensional Drawing



        Hollow Shaft - Both Ends Threaded Hollow: Related Image
        L、F、T dimension tolerance
        Dimension RangeTolerance
        (㎜)
        Overor less
        0.56±0.1
        630±0.2
        30120±0.3
        120400±0.5
        4001000±0.8
        10002000±1.2
        [ ! ]Compliant with JIS B 0405 Class m (intermediate).
        [ ! ]For plated products, the surface roughness of D part is {{{attr4}}}; and for unplated products, it is {{{attr5}}}.
        [ ! ] The dimension tolerances for L, F, and T conform to JIS B 0405 Class m. However, threaded chamfer tolerances are excluded.
        Type[M] Material[H] Hardness[S]Surface Treatment
        SPJMEN 1.3505 Equiv.Induction Hardened
        58HRC or more
        PSPJMHard Chrome Plating
        Plating Hardness: HV750 or more
        Plating Thickness: 5µ or More
        RSPJMLow Temperature Black Chrome Plating
        [ ! ] L Dimension Tolerance, Circularity, Straightness, Perpendicularity, Concentricity and Changes in Hardness
        [ ! ] Low temperature black chrome plating is not applied to the inside of hollow shafts, taps, bored holes and lateral holes, etc. Therefore, they may rust.
        [ ! ] Annealing required for wrench flats machining and shaft end threading (effective thread length + approx. 10 mm) may lower hardness.
        [ ! ] About Hollow Shaft Wall Thickness Deviations
        [ ! ] Machined areas may be out of O.D. tolerances due to annealing-induced deformation.
        [ ! ] Hard chrome plating is applied after surface treatment of the base material, so there is no plating on the processed parts.

        Specification Table

        Part NumberLFBPTSQ
        SPJM20400F20B20P20T20S20Q20
        Part Number1 mm IncrementsP (Coarse), Q (Coarse)
        Selection
        d(Y)
        Max.
        RC
        TypeDg6LF·TB·S
        SPJM

        PSPJM

        RSPJM
        (D ≤ 30, L ≤ 500)
        6−0.004
        −0.012
        25 to 5962 ≤ F ≤ P × 5
        2 ≤ T ≤ Q × 5
        B ≤ F−2
        (When P ≤ 6)
        B ≤ F−3
        (When P = 8, 10)
        B ≤ F−5
        (When P ≥ 12)
        B = 0
        (W/o Threads)
        S ≤ T−2
        (When Q ≤ 6)
        S ≤ T−3
        (When Q = 8, 10)
        S ≤ T−5
        (When Q ≥ 12)
        S = 0
        (W/o Threads)
        626000.3
        or Less
        0.5
        or Less
        8−0.005
        −0.014
        25 to 796 83800
        1025 to 796 8 104
        12−0.006
        −0.017
        25 to 996   10 1261000
        1325 to 996     127
        1625 to 1196       16101200
        20−0.007
        −0.020
        25 to 1196         20141.0
        or Less
        2525 to 1196           2416
        3025 to 1496           24 30171500
        35−0.009
        −0.025
        25 to 1496            30190.5
        or Less
        4025 to 1496            3020
        [!] When D = P, or D = Q, specify F = B (T = S) as B (S) dimensions. However, since L, F and T dimensions have priority, B (S) dimensions of the product should be F (T) - (Pitch × 2).
        [!] Thread machining will not be applied to B = 0 or S = 0. [!] B, S ≥ Pitch × 3 is required.

        ■Details of Thread Section C Chamfering

        Thread
        Nominal M
        Pitch
        P
        Chamfering C
        (Reference Value)
        30.500.50
        40.700.75
        50.800.75
        61.001.00
        81.251.25
        101.501.50
        121.751.75
        162.002.00
        202.502.50
        243.003.00
        303.503.50
        C chamfering at Thread Tip

        Alteration Details

        ·See below for alteration.
         * When selecting multiple alterations, the distance between machined areas should be 2 mm or more.
         * Alteration may lower hardness.

        Alteration CodeAlteration Details Fixed DimensionApplicable Conditions Ordering Example
        DKC

        Changes O.D. tolerance to h5



        Hollow Shaft - Both Ends Threaded Hollow   Related Image 1_Alterations Details

        Dh5 Tolerance
        60
        -0.005
        8·100
        -0.006
        12 to 160
        -0.008
        20 to 300
        -0.009
        35·400
        -0.011
        [NG] Not applicable to low temperature chrome plated productsSPJM30-300-F40-B30-P24-T50-S40-Q24-DKC
        LKC

        Change L tolerance to a higher precision level



        Hollow Shaft - Both Ends Threaded Hollow   Related Image 2_Alterations Details

        ·L < 200→L±0.03
        ·200 ≤ L < 500→L±0.05
        ·L ≥ 500→L±0.1
        [ ! ]L Dimension can be specified in 0.1 mm increments

        [NG] Not applicable when D - P ≤ 2
        SPJM30-300.5-F40-B30-P24-T50-S40-Q24-LKC
        SC

        Wrench Flat at One Location

        Hollow Shaft - Both Ends Threaded Hollow   Related Image 3_Alterations Details

        DWℓ1
        658
        87
        108
        121010
        1311
        1614
        2017
        2522
        302715
        3530
        403620
        [ ! ]SC = 1 mm Increments
        [ ! ]SC+ℓ1 ≤ L
        [ ! ]SC ≥ 0
        SPJM30-300-F40-B30-P24-T50-S40-Q24-SC5



        WSC

        Wrench Flats at Two Locations

        Hollow Shaft - Both Ends Threaded Hollow   Related Image 4_Alterations Details

        [ ! ] WSC, X = 1 mm Increments
        [ ! ]WSC+X+ℓ1 × 2 < L
        [ ! ]WSC ≥ 0, X ≥ 0
        [NG] Due to deviation in the angle of alterations, it will not be on the same plane.

        SPJM30-300-F40-B30-P24-T50-S40-Q24-WSC12-X8

        Circularity (M), Straightness (K), L Dimension Tolerance, Perpendicularity Back to Drawing

        Hollow Shaft - Both Ends Threaded Hollow   Related Image 1_Circularity
        ■Straightness Measurement Method
        Hollow Shaft - Both Ends Threaded Hollow   Related Image 2_Circularity
        Shaft ends are supported on V-blocks and turned 360 degrees to measure shaft runout using a dial indicator.
        1/2 of measured runout is defined as the straightness.
        ■Circularity M
        Shaft Outer Dia. g6 (Hardening)
        DCircularity M
        Overor Less
        5130.004
        13200.005
        20400.006
        Unit: mm
        ■Straightness K
        Shaft Outer Dia. g6 (Hardening)
        DLStraightness K
        6 to 40L ≤ 1000.01 or Less
        L > 100(L/100) × 0.01 or Less
        Unit: mm



        ■L Dimension Tolerance
        Shaft Outer Dia. g6 (Hardening)
        LL Dimension
        Tolerance
        Overor Less
        2430±0.2
        30120±0.3
        120400±0.5
        4001000±0.8
        10001500±1.2
        Unit: mm

        ■About hollow shaft wall thickness deviations and internal diameters

        Depending on the material, hollow shafts will vary in wall thickness deviation (A–B) and internal diameter (d).

        O.D.
        (D)
        EN 1.3505 Equiv.EN 1.4125 Equiv.
        Wall Thickness DeviationI.D.Wall Thickness DeviationI.D.
        6R0.3 or Less2
        80.4 or Less31.5 or Less3
        1044.0 or Less4
        1265
        1375
        16106
        20148
        250.6 or Less1610
        301.0 or less1712
        3519
        401.5 or Less20
        5026
        Unit: mm
        Hollow Shaft - Both Ends Threaded Hollow: Related Image
         Deviation Value = A - B
         I.D. = d



        * Hollow shaft interior surfaces are not plated. Therefore, they may rust.

        Notes on Hardening and Surface Treating

        ■Reduced Hardness around Machined Areas

        ·Although processing is performed after the base material is hardened, annealing may lower hardness of the machined area.
        * Reduced Hardness: Approximately 10 to 40 HRC

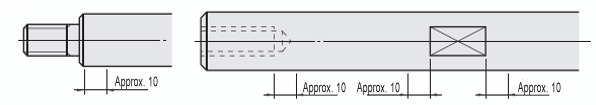

        ■Reduced Hardness Range

        ·Approximately 10 mm from the machined area



        (Example)

        Hollow Shaft - Both Ends Threaded Hollow   Related Image 1_Reduced Hardness Range


        ■Machining area where hardness has lowered due to annealing

        ·Threaded, Wrench Flats



        ■Effective Hardened Layer Depth of Hardening

        The effective hardened layer depth varies depending on the external dimensions and materials.

        O.D. DEffective Hardened Layer Depth
        EN 1.3505 Equiv.EN 1.4125 Equiv.
        6 to 100.5 or More0.5 or More
        12·130.7 or More
        16·200.7 or More
        25 to 401.0 or More


        ■About hard chrome plating and plating layer of processed part

        • Hard chrome plating is applied after surface treatment of the base material, so there is no plating on the processed parts.
        • In the example below, only "///" area is treated with hard chrome plating.

        * Hollow shaft interior surfaces are not plated. Therefore, they may rust.



        Ex. Plating Remains: Stepped, Threaded Shaft, Set Screw Flat

        /// Part: Plating Remains

        Shafts - Surface Treatment Fully Plated   Related Image 1_Plating Layer


        Difference Between Shaft and Rotary Shaft

        ■ Basic Specifications

        SpecificationsShaftsRotary Shaft
        MaterialEN 1.3505 Equiv.
        EN 1.4125 Equiv.
        EN 1.1191 Equiv.
        EN 1.4301 Equiv.
        EN 1.1191 Equiv.
        EN 1.4301 Equiv.
        EN 1.7220 Equiv.
        HardeningInduction HardenedHardness: 30 to 35 HRC
        O.D. Tolerance g6/h5f8g6/h9/h7g6
        Surface TreatmentNo Plating
        Hard Chrome Plating
        Low Temperature Black Chrome Plating
        Electroless Nickel Plating (Surface Treatment Fully Plated Type)
        Hard Chrome PlatingNo Plating
        Black Oxide
        Electroless Nickel Plating
        Black Oxide
        Electroless Nickel Plating

        * Hard chrome plating leaves no plating layer on the machined part.



        ■ Alteration

        AlterationsShaftsRotary Shaft
        L Dimension Tolerance L < 200⇒L±0.03
        200 ≤ L < 500⇒L±0.05
        L ≥ 500⇒L±0.1
        L < 500⇒L±0.05
        L ≥ 500⇒L±0.1
        Not applicable when L ≥ 800
        Wrench FlatsCan be specified up to 2 LocationsCan be specified up to 1 Location
        Set Screw Flat Can be specified up to 2 LocationsCan be specified up to 3 Locations
        2 Set Screw FlatsCan be specified up to 2 Locations
        Angle Specified: Fixed
        Can be specified up to 1 Location
        Angle Specified: Configurable in 15 degree Increments
        V Groove Can be specified up to 2 Locations
        KeywayCan be specified up to 2 Locations
        Processing of Stepped Part: Not Possible
        Can be specified up to 4 Locations
        Processing of Stepped Part: Possible
        UndercutM6 to M30M3 to M30
        Tapped DepthPossiblePossible
        Retaining Ring GrooveCan be specified 2 Locations
        (It will be a retaining ring type instead of alterations)
        2 locations on D part, 1 location each on stepped part can be combined
        Slit Cam Groove Can be specified up to 1 Location
        Concentricity Possible
        Left-hand Thread / Thread Possible
        Slit AddedCan be specified up to 1 Location
        C Chamfering WidthPossible

        Lista de números de peça

        Número de itens
        Número da peça

        [D] Diameter (Shaft)

        (mm)

        [L] Length (Shaft)

        (mm)

        Surface Treatment

        [B] Length (thread)

        (mm)

        [F] Length (stud - offset - front side)

        (mm)

        [P] Diameter (stepped - front side)

        (mm)

        [Q]

        (mm)

        [S] Length (thread)

        (mm)

        [T] Length (stud - stepped - back side)

        (mm)

        RoHS?Quantidade mínima de encomenda
        6
        25 - 596
        Hard Chrome Plating
        0 - 28
        0 - 30
        6
        6
        0 - 28
        0 - 30
        10
        1 unidades
        8
        25 - 796
        Hard Chrome Plating
        0 - 37
        0 - 40
        8
        8
        0 - 37
        0 - 40
        10
        1 unidades
        10
        25 - 796
        Hard Chrome Plating
        50
        0 - 50
        8 - 10
        8 - 10
        50
        0 - 50
        10
        1 unidades
        10
        25 - 796
        Hard Chrome Plating
        50
        0 - 50
        8 - 10
        8 - 10
        0 - 47
        0 - 50
        10
        1 unidades
        10
        25 - 796
        Hard Chrome Plating
        0 - 47
        0 - 50
        8 - 10
        8 - 10
        50
        0 - 50
        10
        1 unidades
        10
        25 - 796
        Hard Chrome Plating
        0 - 47
        0 - 50
        8 - 10
        8 - 10
        0 - 47
        0 - 50
        10
        1 unidades
        12
        25 - 996
        Hard Chrome Plating
        0 - 60
        0 - 60
        10 - 12
        10 - 12
        0 - 60
        0 - 60
        10
        1 unidades
        13
        25 - 996
        Hard Chrome Plating
        0 - 55
        0 - 60
        12
        12
        0 - 55
        0 - 60
        10
        1 unidades
        16
        25 - 1196
        Hard Chrome Plating
        0 - 75
        0 - 80
        16
        16
        0 - 75
        0 - 80
        10
        1 unidades
        20
        25 - 1196
        Hard Chrome Plating
        0 - 95
        0 - 100
        20
        20
        0 - 95
        0 - 100
        10
        1 unidades
        25
        25 - 1196
        Hard Chrome Plating
        0 - 115
        0 - 120
        24
        24
        0 - 115
        0 - 120
        10
        1 unidades
        30
        25 - 1496
        Hard Chrome Plating
        0 - 145
        0 - 150
        24 - 30
        24 - 30
        0 - 145
        0 - 150
        10
        1 unidades
        35
        25 - 1496
        Hard Chrome Plating
        0 - 145
        0 - 150
        30
        30
        0 - 145
        0 - 150
        10
        1 unidades
        40
        25 - 1496
        Hard Chrome Plating
        0 - 145
        0 - 150
        30
        30
        0 - 145
        0 - 150
        10
        1 unidades
        6
        25 - 500
        LTBC Plating
        0 - 30
        0 - 30
        6
        6
        0 - 30
        0 - 30
        10
        1 unidades
        8
        25 - 500
        LTBC Plating
        0 - 40
        0 - 40
        8
        8
        0 - 40
        0 - 40
        10
        1 unidades
        10
        25 - 500
        LTBC Plating
        0 - 50
        0 - 50
        8 - 10
        8 - 10
        0 - 50
        0 - 50
        10
        1 unidades
        12
        25 - 500
        LTBC Plating
        0 - 60
        0 - 60
        10 - 12
        10 - 12
        0 - 60
        0 - 60
        10
        1 unidades
        13
        25 - 500
        LTBC Plating
        0 - 60
        0 - 60
        12
        12
        0 - 60
        0 - 60
        10
        1 unidades
        16
        25 - 500
        LTBC Plating
        0 - 80
        0 - 80
        16
        16
        0 - 80
        0 - 80
        10
        1 unidades
        20
        25 - 500
        LTBC Plating
        0 - 100
        0 - 100
        20
        20
        0 - 100
        0 - 100
        10
        1 unidades
        25
        25 - 500
        LTBC Plating
        0 - 120
        0 - 120
        24
        24
        0 - 120
        0 - 120
        10
        1 unidades
        30
        25 - 500
        LTBC Plating
        0 - 150
        0 - 150
        24 - 30
        24 - 30
        0 - 150
        0 - 150
        10
        1 unidades
        6
        25 - 596
        No Treatment
        0 - 30
        0 - 30
        6
        6
        0 - 30
        0 - 30
        10
        1 unidades
        8
        25 - 796
        No Treatment
        0 - 40
        0 - 40
        8
        8
        0 - 40
        0 - 40
        10
        1 unidades
        10
        25 - 796
        No Treatment
        0 - 50
        0 - 50
        8 - 10
        8 - 10
        0 - 50
        0 - 50
        10
        1 unidades
        12
        25 - 996
        No Treatment
        0 - 60
        0 - 60
        10 - 12
        10 - 12
        0 - 60
        0 - 60
        10
        1 unidades
        13
        25 - 996
        No Treatment
        0 - 60
        0 - 60
        12
        12
        0 - 60
        0 - 60
        10
        1 unidades
        16
        25 - 1196
        No Treatment
        0 - 80
        0 - 80
        16
        16
        0 - 80
        0 - 80
        10
        1 unidades
        20
        25 - 1196
        No Treatment
        0 - 100
        0 - 100
        20
        20
        0 - 100
        0 - 100
        10
        1 unidades
        25
        25 - 1196
        No Treatment
        0 - 120
        0 - 120
        24
        24
        0 - 120
        0 - 120
        10
        1 unidades
        30
        25 - 1496
        No Treatment
        0 - 150
        0 - 150
        24 - 30
        24 - 30
        0 - 150
        0 - 150
        10
        1 unidades
        35
        25 - 1496
        No Treatment
        0 - 150
        0 - 150
        30
        30
        0 - 150
        0 - 150
        10
        1 unidades
        40
        25 - 1496
        No Treatment
        0 - 150
        0 - 150
        30
        30
        0 - 150
        0 - 150
        10
        1 unidades
        Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)
        Data de envio standard
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        12 dias úteis
        -
        (
        -
        )
        12 dias úteis
        -
        (
        -
        )
        12 dias úteis
        -
        (
        -
        )
        12 dias úteis
        -
        (
        -
        )
        12 dias úteis
        -
        (
        -
        )
        12 dias úteis
        -
        (
        -
        )
        12 dias úteis
        -
        (
        -
        )
        12 dias úteis
        -
        (
        -
        )
        12 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis
        -
        (
        -
        )
        7 dias úteis

        Informações detalhadas

        Informações básicas

        Contorno e especificações

        Surface Limits / Hardness - Linear Shafts



        Limits of hardness and hardening depth

        The linear shafts are processed after the base material has undergone inductive hardening. Therefore, the processed surfaces may result in a deviating hardness.
        In the following example, you can view the affected areas of the linear shaft, which may be affected after processing by e.g. threads, level surfaces, key surfaces and transverse bores.



        Limitation of linear shaft induction hardening



        Cause for deviating hardness

        The raw material of the linear shaft is treated via thermal induction before grinding. Thus, a configured linear shaft can be custom-made not only cost-effectively, but also with short delivery times. The linear shaft is hardened at the boundary layer (boundary layer hardening) of the liner shaft. The depth of the hardened boundary layer depends on the material used and the diameter of the linear shaft. The following table shows the hardening depth of linear shafts.
        Coatings and plating are applied to the raw material after hardening and grinding. For more information, see Coatings of the Linear Shaft.



        Boundary layer hardening of a linear shaft

        Figure of boundary layer hardening: hardened boundary layer in light gray



        Effective hardening depth of linear shafts

        Outside diameter (D)Effective hardening depth
        EN 1.1191 equiv.EN 1.3505 equiv.EN 1.4125 equiv.EN 1.4301 equiv.
        3-+0.5+0.5Without induction hardening
        4-
        5-
        6 - 10+0.3
        12 - 13+0.5+0.7+0.5
        15 - 20+0.7
        25 - 50+0.8+1

        Overview of the effective hardening depth as PDF



        Coatings of the linear shaft

        The surface coating is applied to the raw material before machining the linear shaft. Thanks to their coating, the usable surface or work surface of the linear shaft is not only protected against corrosion but also against wear.
        Machined positions of the linear shafts, such as plane surfaces or threads, may be uncoated, as they are added afterwards. This can lead to the machined surfaces being corroded in a linear shaft made of steel. If the linear shaft is used in a corrosive environment, it is recommended to use a stainless steel linear shaft.
        The following figure shows the areas of the linear shaft that are coated (crosshatched).



        Surface coating after processing the linear shaft

        Figure: Coating of linear shafts



        You can find further information on surface treatment and hardness in this PDF .



        General Information - Linear Shafts



        Linear Shaft Selection Details

        - Material: steel, stainless steel

        - Coating/plating: uncoated, hard chrome plated, LTBC coated, chemically nickel-plated

        - Heat treatment: untreated, inductively hardened

        - ISO tolerances: h5, k5, g6, h6, h7, f8

        - Precision classes: perpendicularity 0.03, concentricity (with thread and increments) Ø0.02, perpendicularity 0.20, concentricity (thread and stepper) Ø0.10

        - Linearity/roundness: depends on diameter, here for the PDF





        Description / basics of the linear shaft

        Linear shafts are steel shafts that perform guiding tasks in combination with linear bearings, such as plain bearing bushings or linear ball bushings. Linear shaft holding functions can be adopted from shaft holders or linear ball bearing adapters. Most linear shafts are heat-treated (induction hardened) solid shafts. A special design of linear shafts is the hollow shaft, which is also called tubular shaft. Inductively hardened linear shafts have a high surface hardness and a tough core. The achievable surface hardness is approx. 55-58 HRC (see information on hardening depth). Linear shafts made of stainless steels can generally not be hardened. Therefore, these steel shafts should be chrome plated to protect them from wear.



        Materials

        Linear shafts are mainly hardened steel shafts. In addition to the selected heat treatment, the steel used in particular imparts its properties to the linear shaft, although it is a hollow shaft or a solid shaft. Therefore, special aspects such as hardness, corrosion and wear must be considered when selecting the shaft steel.



        Coatings

        To protect linear shafts from corrosion, the surface can be chemically nickel-plated. As an alternative to chemical nickel-plating, steel shafts can also be coated with LTBC. The LTBC coating is an anti-corrosive surface coating and it is a low-reflection coating, made of a 5 μm thick film of fluoropolymer, which in essence is a black film. In addition, the LTBC coating is resistant to bursting pressure by extreme or repeated bending. LTBC-coated linear shafts are thus particularly suitable for locations where corrosion or light reflections are undesirable. Linear shafts that require particularly high surface hardness and wear resistance can be hard chrome plated.



        Function

        The form and function of linear shafts differ from linear guiderails. Linear guiderails are square rails that work in combination with carriers (rotary elements, carriages) according to the rolling or sliding principle. Linear shafts on the other hand are precision-ground round steel shafts that take on a linear guide function in conjunction with linear ball bushings or plain bearing bushings (maintenance-free bushings).



        Areas of Application

        Linear shafts are intended for axial motion. Whether horizontal or vertical linear motion, all linear motions can be implemented with linear shafts. Common applications are stroke mechanisms and other applications with high demands on smoothness, precision and service life. Linear shafts can therefore be used in almost all industries of plant construction and mechanical engineering. Linear shafts are often found in 3D printers, metering equipment, measuring devices, positioning devices, alignment devices, bending devices and sorting equipment.



        Instructions for Use / Installation  - Linear Shafts



        For product selection, please observe the linear shaft tolerances (e.g. h5, k5, g6, h6, h7, f8) in conjunction with the diameter tolerance of the plain bearing bushing (sliding bearing) after pressing in or the running circle diameter of the linear ball bearing (ball bushing).



        Diameter change of linear ball bushings after pressing  Inner diameter of linear ball bushings or ball bushings



        Shaft Fasteners



        Application Example of a Linear Shaft - Linear Shafts with Linear Ball Bushings - Linear Shafts with Shaft Holder
        Application Example of a Linear Shaft Application Example - Linear Shaft with Linear Ball Bearings - Linear Ball Bearings with an Adjusting Ring
        Application Example of a Linear Shaft - Linear Shaft with Shaft Holder
        Application Example of a Linear Shaft - Linear Shaft with Circlip Groove - Linear Shaft with Circlip
        Application Example of a Linear Shaft - Linear Shaft with Holding Washer
        Application Example of a Linear Shaft - Linear Thread - Outer Threaded Linear Shaft - Linear Threaded with inner and outer threads
        Application Example of a Linear Shaft - Cross Bore Linear Shaft - Inner Thread Linear Shaft
        Application Example of a Linear Shaft - Cross Bore Linear Shaft - Outer Thread Linear Shaft



        Supplementary Article



        Shaft holder

        Product range of shaft holders



        Adjusting rings/clamping rings

        Product range of adjusting rings - product range of clamping rings



        Linear ball bearing

        Product range of linear ball bearings - product range of ball sleeves - linear ball bearing with housing



        Plain bearing bushings

        Product range of sliding bearing bushings - plain bearing with housing



        Ball guides

        Ball guide product range



        Industrial Applications



        3D printer industry
        3D printer industry
        Automotive industry
        Automotive industry
        Pharmaceutical industry
        Pharmaceutical industry
        Packaging industry
        Packaging industry
