      MISUMI

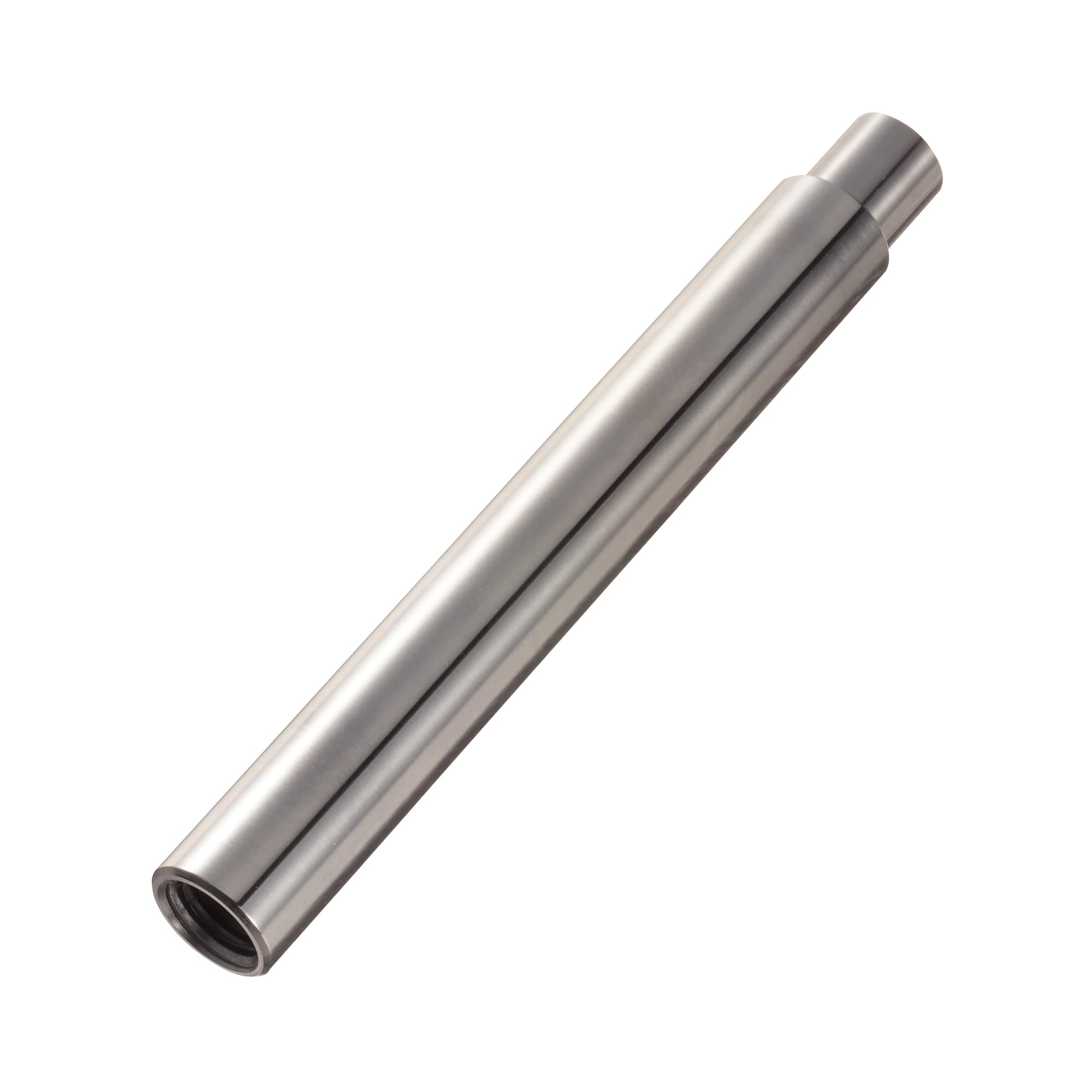

      Linear shafts / hollow / stepped on one side / internal thread

      Linear shafts / hollow / stepped on one side / internal thread

      Passe o rato sobre a imagem para a aumentar

      Número da peça:

      Indefinido. 45 candidatos encontrados.
      Quantidade:

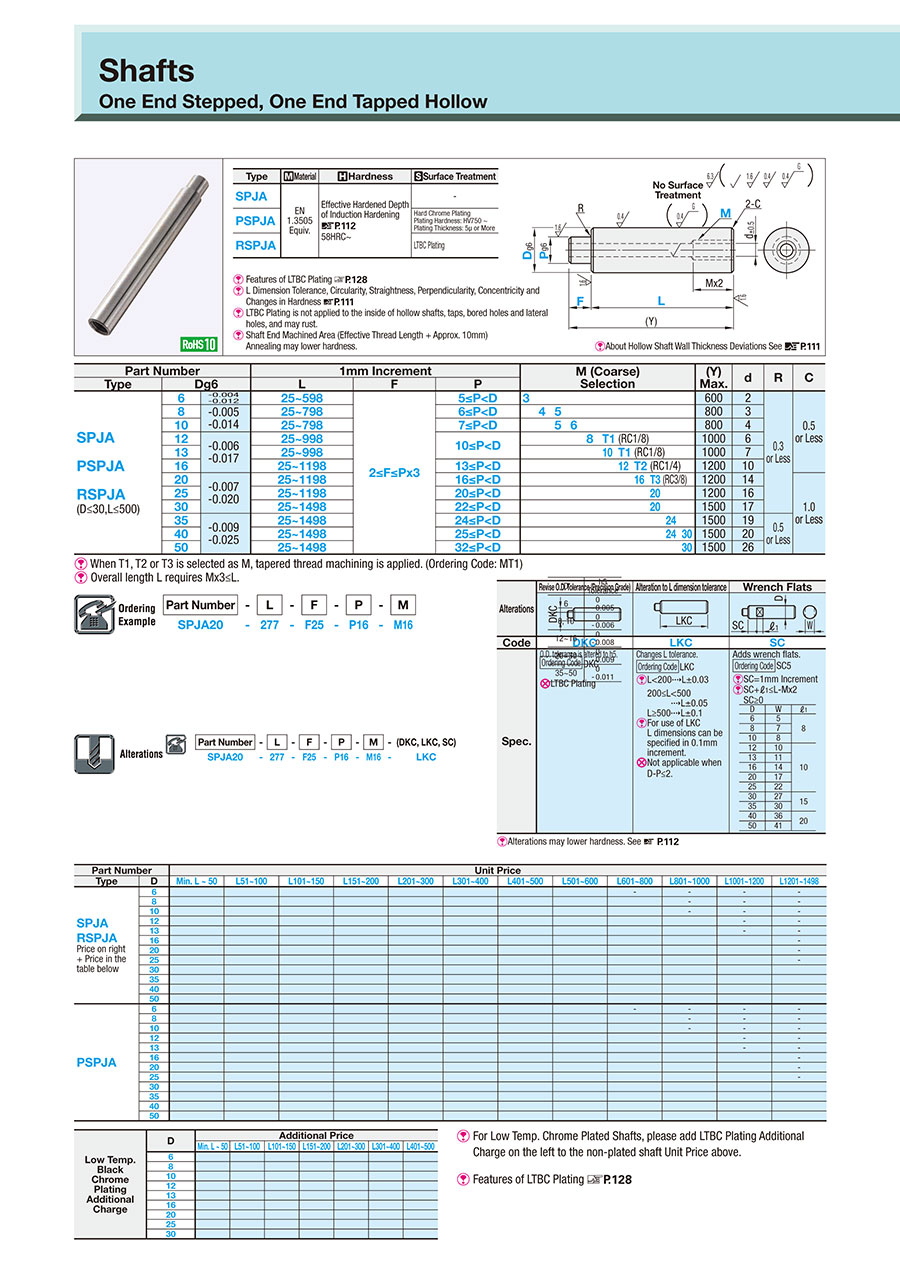

      Desenho de contorno e tabela de especificações

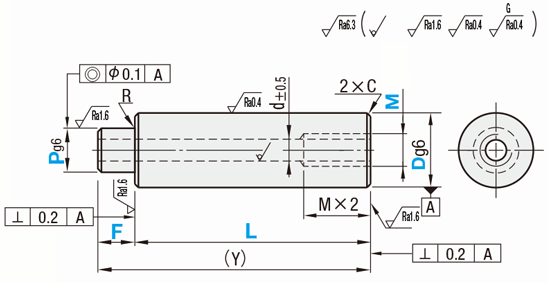

      Dimensional Drawing

      Hollow Shaft - One End Stepped, One End Tapped Hollow: Related Image
      [ ! ]For plated products, the surface roughness of D part is {{{attr4}}}; and for unplated products, it is {{{attr5}}}.
      [ ! ] The dimension tolerances for L and F conform to JIS B 0405 Class m.
      Type[M] Material[H] Hardness[S]Surface Treatment
      SPJAEN 1.3505 Equiv.Induction Hardened
      58HRC or more      		—
      PSPJAHard Chrome Plating
      Plating Hardness: HV750 or more
      Plating Thickness: 5µ or More
      RSPJALow Temperature Black Chrome Plating
      [!] Low temperature black chrome plating is not applied to the inside of hollow shafts, taps, bored holes and lateral holes, etc. Therefore, they may rust.
      [ ! ] Annealing required for wrench flats machining and shaft end threading (effective thread length + approx. 10 mm) may lower hardness.
      [ ! ] Machined areas may be out of O.D. tolerances due to annealing-induced deformation.

      Specification Table

      Part Number—L—F—P—M
      SPJA20—277—F25—P16—M16
      Part Number1 mm IncrementsM (Coarse)
      Selection      		(Y)
      Max.      		dRC
      TypeDg6LFP
      SPJA

      PSPJA

      RSPJA
      (D ≤ 30, L ≤ 500)      		6−0.004
      −0.012      		25 to 5982 ≤ F ≤ P × 35 ≤ P < D3          60020.3
      or Less      		0.5
      or Less
      8−0.005
      −0.014      		25 to 7986 ≤ P < D 45        8003
      1025 to 7987 ≤ P < D  56       8004
      12−0.006
      −0.017      		25 to 99810 ≤ P < D    8T1 (RC1/8)  10006
      1325 to 998     10T1 (RC1/8) 10007
      1625 to 119813 ≤ P < D      12T2 (RC1/4)120010
      20−0.007
      −0.020      		25 to 119816 ≤ P < D       16T3 (RC3/8)1200141.0
      or Less
      2525 to 119820 ≤ P < D        20  120016
      3025 to 149822 ≤ P < D        20  150017
      35−0.009
      −0.025      		25 to 149824 ≤ P < D         24 1500190.5
      or Less
      4025 to 149825 ≤ P < D         2430150020
      5025 to 149832 ≤ P < D          30150026
      [!] When T1, T2 or T3 is selected as M, tapered thread machining is applied. (Ordering Code: MT1)
      [ ! ] The overall length L requires M × 3 ≤ L.

      Alteration Details

      ·See below for alteration.
       * Alteration may lower hardness.
      Alteration CodeAlteration Details Fixed DimensionApplicable Conditions Ordering Example
      DKC

      O.D. Tolerance Change to h5

      Hollow Shaft - One End Stepped, One End Tapped Hollow Related Image 1_Alteration Details

      Dh5 Tolerance
      60
      -0.005
      8·100
      -0.006
      12 to 160
      -0.008
      20 to 300
      -0.009
      35 to 500
      -0.011
      		[NG] Not applicable to low temperature chrome plated productsSPJA20-277-F25-P16-M16-DKC
      LKC

      Precisely change L dimension and tolerance

      Hollow Shaft - One End Stepped, One End Tapped Hollow Related Image 2_Alteration Details

      		·L < 200→L±0.03
      ·200 ≤ L < 500→L±0.05
      ·L ≥ 500→L±0.1      		[ ! ]L Dimension can be specified in 0.1 mm increments

      [NG] Not applicable when D - P ≤ 2      		SPJA20-277-F25-P16-M16-LKC
      SC

      Wrench Flat at One Location
      Hollow Shaft - One End Stepped, One End Tapped Hollow Related Image 3_Alteration Details

      DWℓ1 DWℓ1
      658 201710
      87 2522
      108 302715
      121010 3530
      1311 403620
      1614 5041
      		[ ! ]SC = 1 mm Increments
      [ ! ]SC+ℓ1 ≤ L-M × 2
      [ ! ]SC ≥ 0      		SPJA20-277-F25-P16-M16-SC5

      Circularity (M), Straightness (K), L Dimension Tolerance, Perpendicularity

      Hollow Shaft - One End Stepped, One End Tapped Hollow Related Image 1_Circularity
      ■Straightness Measurement Method
      Hollow Shaft - One End Stepped, One End Tapped Hollow Related Image 2_Circularity
      Shaft ends are supported on V-blocks and turned 360 degrees to measure shaft runout using a dial indicator.
      1/2 of measured runout is defined as the straightness.
      ■Circularity M
      Shaft Outer Dia. g6 (Hardening)
      DCircularity M
      Overor Less
      5130.004
      13200.005
      20400.006
      40500.007
      Unit: mm
      ■Straightness K
      Shaft Outer Dia. g6 (Hardening)
      DLStraightness K
      6 to 50L ≤ 1000.01 or Less
      L > 100(L/100) × 0.01 or Less
      Unit: mm
      ■L Dimension Tolerance
      Shaft Outer Dia. g6 (Hardening)
      LL Dimension
      Tolerance
      Overor Less
      2430±0.2
      30120±0.3
      120400±0.5
      4001000±0.8
      10001500±1.2
      Unit: mm

      ■About hollow shaft wall thickness deviations and internal diameters

      Depending on the material, hollow shafts will vary in wall thickness deviation (A–B) and internal diameter (d).

      O.D.
      (D)      		EN 1.3505 Equiv.EN 1.4125 Equiv.
      Wall Thickness DeviationI.D.Wall Thickness DeviationI.D.
      6R0.3 or Less2——
      80.4 or Less31.5 or Less3
      1044.0 or Less4
      1265
      1375
      16106
      20148
      250.6 or Less1610
      301.0 or less1712
      3519——
      401.5 or Less20——
      5026——
      Unit: mm
      Hollow Shaft - One End Stepped, One End Tapped Hollow: Related Image
       Deviation Value = A - B
       I.D. = d

      * Hollow shaft interior surfaces are not plated. Therefore, they may rust.

      Notes on Hardening and Surface Treating

      ■Reduced Hardness around Machined Areas

      ·Although processing is performed after the base material is hardened, annealing may lower hardness of the machined area.
      * Reduced Hardness: Approximately 10 to 40 HRC



      ■Reduced Hardness Range

      ·Approximately 10 mm from the machined area

      (Example)
      Hollow Shaft - One End Stepped, One End Tapped Hollow Related Image 1_Reduced Hardness Range


      ■Machining area where hardness has lowered due to annealing

      ·Stepped, Wrench Flats



      ■Effective Hardened Layer Depth of Hardening

      The effective hardened layer depth varies depending on the external dimensions and materials.

      O.D. DEffective Hardened Layer Depth
      EN 1.3505 Equiv.EN 1.4125 Equiv.
      6 to 100.5 or More0.5 or More
      12·130.7 or More
      16·200.7 or More
      25 to 501.0 or More


      ■About hard chrome plating and plating layer of processed part

      • Hard chrome plating is applied after surface treatment of the base material, so there is no plating on the processed parts.
      • In the example below, only "///" area is treated with hard chrome plating.

      * Hollow shaft interior surfaces are not plated. Therefore, they may rust.

      Ex. Plating Remains: Stepped, Threaded Shaft, Set Screw Flat

      /// Part: Plating Remains

      Hollow Shaft - One End Stepped, One End Tapped Hollow Related Image 1_Plating Layer


      Difference Between Shaft and Rotary Shaft

      ■ Basic Specifications

      SpecificationsShaftsRotary Shaft
      MaterialEN 1.3505 Equiv.
      EN 1.4125 Equiv.      		EN 1.1191 Equiv.
      EN 1.4301 Equiv.      		EN 1.1191 Equiv.
      EN 1.4301 Equiv.      		EN 1.7220 Equiv.
      HardeningInduction Hardened——Hardness: 30 to 35 HRC
      O.D. Tolerance g6/h5f8g6/h9/h7g6
      Surface TreatmentNo Plating
      Hard Chrome Plating
      Low Temperature Black Chrome Plating
      Electroless Nickel Plating (Surface Treatment Fully Plated Type)      		Hard Chrome PlatingNo Plating
      Black Oxide
      Electroless Nickel Plating      		Black Oxide
      Electroless Nickel Plating

      * Hard chrome plating leaves no plating layer on the machined part.



      ■ Alteration

      AlterationsShaftsRotary Shaft
      L Dimension Tolerance L < 200⇒L±0.03
      200 ≤ L < 500⇒L±0.05
      L ≥ 500⇒L±0.1      		L < 500⇒L±0.05
      L ≥ 500⇒L±0.1
      Not applicable when L ≥ 800
      Wrench FlatsCan be specified up to 2 LocationsCan be specified up to 1 Location
      Set Screw Flat Can be specified up to 2 LocationsCan be specified up to 3 Locations
      2 Set Screw FlatsCan be specified up to 2 Locations
      Angle Specified: Fixed      		Can be specified up to 1 Location
      Angle Specified: Configurable in 15 degree Increments
      V Groove Can be specified up to 2 Locations—
      KeywayCan be specified up to 2 Locations
      Processing of Stepped Part: Not Possible      		Can be specified up to 4 Locations
      Processing of Stepped Part: Possible
      UndercutM6 to M30M3 to M30
      Tapped DepthPossiblePossible
      Retaining Ring GrooveCan be specified 2 Locations
      (It will be a retaining ring type instead of alterations)      		2 locations on D part, 1 location each on stepped part can be combined
      Slit Cam Groove —Can be specified up to 1 Location
      Concentricity —Possible
      Left-hand Thread / Thread —Possible
      Slit Added—Can be specified up to 1 Location
      C Chamfering Width—Possible

      Lista de números de peça

      Número de itens
    • 1
      • Número da peça
      PSPJA6-[25-598/1]-F[2-15/1]-P5-M3
      PSPJA8-[25-798/1]-F[2-21/1]-P[6-7/1]-M[4,5]
      PSPJA10-[25-798/1]-F[2-27/1]-P[7-9/1]-M[5,6]
      PSPJA12-[25-998/1]-F[2-33/1]-P[10-11/1]-M8
      PSPJA12-[25-998/1]-F[2-33/1]-P[10-11/1]-MT1
      PSPJA13-[25-998/1]-F[2-36/1]-P[10-12/1]-M10
      PSPJA13-[25-998/1]-F[2-36/1]-P[10-12/1]-MT1
      PSPJA16-[25-1198/1]-F[2-45/1]-P[13-15/1]-M12
      PSPJA16-[25-1198/1]-F[2-45/1]-P[13-15/1]-MT2
      PSPJA20-[25-1198/1]-F[2-57/1]-P[16-19/1]-M16
      PSPJA20-[25-1198/1]-F[2-57/1]-P[16-19/1]-MT3
      PSPJA25-[25-1198/1]-F[2-72/1]-P[20-24/1]-M20
      PSPJA30-[25-1498/1]-F[2-87/1]-P[22-29/1]-M20
      PSPJA35-[25-1498/1]-F[2-102/1]-P[24-34/1]-M24
      PSPJA40-[25-1498/1]-F[2-117/1]-P[25-39/1]-M[24,30]
      PSPJA50-[25-1498/1]-F[2-147/1]-P[32-49/1]-M30
      RSPJA6-[25-500/1]-F[2-15/1]-P5-M3
      RSPJA8-[25-500/1]-F[2-21/1]-P[6-7/1]-M[4,5]
      RSPJA10-[25-500/1]-F[2-27/1]-P[7-9/1]-M[5,6]
      RSPJA12-[25-500/1]-F[2-33/1]-P[10-11/1]-M8
      RSPJA12-[25-500/1]-F[2-33/1]-P[10-11/1]-MT1
      RSPJA13-[25-500/1]-F[2-36/1]-P[10-12/1]-M10
      RSPJA13-[25-500/1]-F[2-36/1]-P[10-12/1]-MT1
      RSPJA16-[25-500/1]-F[2-45/1]-P[13-15/1]-M12
      RSPJA16-[25-500/1]-F[2-45/1]-P[13-15/1]-MT2
      RSPJA20-[25-500/1]-F[2-57/1]-P[16-19/1]-M16
      RSPJA20-[25-500/1]-F[2-57/1]-P[16-19/1]-MT3
      RSPJA25-[25-500/1]-F[2-72/1]-P[20-24/1]-M20
      RSPJA30-[25-500/1]-F[2-87/1]-P[22-29/1]-M20
      SPJA6-[25-598/1]-F[2-15/1]-P5-M3
      SPJA8-[25-798/1]-F[2-21/1]-P[6-7/1]-M[4,5]
      SPJA10-[25-798/1]-F[2-27/1]-P[7-9/1]-M[5,6]
      SPJA12-[25-998/1]-F[2-33/1]-P[10-11/1]-M8
      SPJA12-[25-998/1]-F[2-33/1]-P[10-11/1]-MT1
      SPJA13-[25-998/1]-F[2-36/1]-P[10-12/1]-M10
      SPJA13-[25-998/1]-F[2-36/1]-P[10-12/1]-MT1
      SPJA16-[25-1198/1]-F[2-45/1]-P[13-15/1]-M12
      SPJA16-[25-1198/1]-F[2-45/1]-P[13-15/1]-MT2
      SPJA20-[25-1198/1]-F[2-57/1]-P[16-19/1]-M16
      SPJA20-[25-1198/1]-F[2-57/1]-P[16-19/1]-MT3
      SPJA25-[25-1198/1]-F[2-72/1]-P[20-24/1]-M20
      SPJA30-[25-1498/1]-F[2-87/1]-P[22-29/1]-M20
      SPJA35-[25-1498/1]-F[2-102/1]-P[24-34/1]-M24
      SPJA40-[25-1498/1]-F[2-117/1]-P[25-39/1]-M[24,30]
      SPJA50-[25-1498/1]-F[2-147/1]-P[32-49/1]-M30

      [D] Diameter (Shaft)

      (mm)

      [L] Length (Shaft)

      (mm)

      Surface Treatment

      [MT] Size (thread - cone)

      [F] Length (stud - offset - front side)

      (mm)

      [P] Diameter (stepped - front side)

      (mm)

      [M] Size (thread - depth 2xM)

      (mm)

      		RoHS?Quantidade mínima de encomenda
      6
      25 - 598
      Hard Chrome Plating
      -
      2 - 15
      5
      3
      10
      1 unidades
      8
      25 - 798
      Hard Chrome Plating
      -
      2 - 21
      6 - 7
      4 - 5
      10
      1 unidades
      10
      25 - 798
      Hard Chrome Plating
      -
      2 - 27
      7 - 9
      5 - 6
      10
      1 unidades
      12
      25 - 998
      Hard Chrome Plating
      -
      2 - 33
      10 - 11
      8
      10
      1 unidades
      12
      25 - 998
      Hard Chrome Plating
      1
      2 - 33
      10 - 11
      -
      10
      1 unidades
      13
      25 - 998
      Hard Chrome Plating
      -
      2 - 36
      10 - 12
      10
      10
      1 unidades
      13
      25 - 998
      Hard Chrome Plating
      1
      2 - 36
      10 - 12
      -
      10
      1 unidades
      16
      25 - 1198
      Hard Chrome Plating
      -
      2 - 45
      13 - 15
      12
      10
      1 unidades
      16
      25 - 1198
      Hard Chrome Plating
      2
      2 - 45
      13 - 15
      -
      10
      1 unidades
      20
      25 - 1198
      Hard Chrome Plating
      -
      2 - 57
      16 - 19
      16
      10
      1 unidades
      20
      25 - 1198
      Hard Chrome Plating
      3
      2 - 57
      16 - 19
      -
      10
      1 unidades
      25
      25 - 1198
      Hard Chrome Plating
      -
      2 - 72
      20 - 24
      20
      10
      1 unidades
      30
      25 - 1498
      Hard Chrome Plating
      -
      2 - 87
      22 - 29
      20
      10
      1 unidades
      35
      25 - 1498
      Hard Chrome Plating
      -
      2 - 102
      24 - 34
      24
      10
      1 unidades
      40
      25 - 1498
      Hard Chrome Plating
      -
      2 - 117
      25 - 39
      24 - 30
      10
      1 unidades
      50
      25 - 1498
      Hard Chrome Plating
      -
      2 - 147
      32 - 49
      30
      10
      1 unidades
      6
      25 - 500
      LTBC Plating
      -
      2 - 15
      5
      3
      10
      1 unidades
      8
      25 - 500
      LTBC Plating
      -
      2 - 21
      6 - 7
      4 - 5
      10
      1 unidades
      10
      25 - 500
      LTBC Plating
      -
      2 - 27
      7 - 9
      5 - 6
      10
      1 unidades
      12
      25 - 500
      LTBC Plating
      -
      2 - 33
      10 - 11
      8
      10
      1 unidades
      12
      25 - 500
      LTBC Plating
      1
      2 - 33
      10 - 11
      -
      10
      1 unidades
      13
      25 - 500
      LTBC Plating
      -
      2 - 36
      10 - 12
      10
      10
      1 unidades
      13
      25 - 500
      LTBC Plating
      1
      2 - 36
      10 - 12
      -
      10
      1 unidades
      16
      25 - 500
      LTBC Plating
      -
      2 - 45
      13 - 15
      12
      10
      1 unidades
      16
      25 - 500
      LTBC Plating
      2
      2 - 45
      13 - 15
      -
      10
      1 unidades
      20
      25 - 500
      LTBC Plating
      -
      2 - 57
      16 - 19
      16
      10
      1 unidades
      20
      25 - 500
      LTBC Plating
      3
      2 - 57
      16 - 19
      -
      10
      1 unidades
      25
      25 - 500
      LTBC Plating
      -
      2 - 72
      20 - 24
      20
      10
      1 unidades
      30
      25 - 500
      LTBC Plating
      -
      2 - 87
      22 - 29
      20
      10
      1 unidades
      6
      25 - 598
      No Treatment
      -
      2 - 15
      5
      3
      10
      1 unidades
      8
      25 - 798
      No Treatment
      -
      2 - 21
      6 - 7
      4 - 5
      10
      1 unidades
      10
      25 - 798
      No Treatment
      -
      2 - 27
      7 - 9
      5 - 6
      10
      1 unidades
      12
      25 - 998
      No Treatment
      -
      2 - 33
      10 - 11
      8
      10
      1 unidades
      12
      25 - 998
      No Treatment
      1
      2 - 33
      10 - 11
      -
      10
      1 unidades
      13
      25 - 998
      No Treatment
      -
      2 - 36
      10 - 12
      10
      10
      1 unidades
      13
      25 - 998
      No Treatment
      1
      2 - 36
      10 - 12
      -
      10
      1 unidades
      16
      25 - 1198
      No Treatment
      -
      2 - 45
      13 - 15
      12
      10
      1 unidades
      16
      25 - 1198
      No Treatment
      2
      2 - 45
      13 - 15
      -
      10
      1 unidades
      20
      25 - 1198
      No Treatment
      -
      2 - 57
      16 - 19
      16
      10
      1 unidades
      20
      25 - 1198
      No Treatment
      3
      2 - 57
      16 - 19
      -
      10
      1 unidades
      25
      25 - 1198
      No Treatment
      -
      2 - 72
      20 - 24
      20
      10
      1 unidades
      30
      25 - 1498
      No Treatment
      -
      2 - 87
      22 - 29
      20
      10
      1 unidades
      35
      25 - 1498
      No Treatment
      -
      2 - 102
      24 - 34
      24
      10
      1 unidades
      40
      25 - 1498
      No Treatment
      -
      2 - 117
      25 - 39
      24 - 30
      10
      1 unidades
      50
      25 - 1498
      No Treatment
      -
      2 - 147
      32 - 49
      30
      10
      1 unidades
      Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)
      Data de envio standard
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      12 dias úteis
      -
      (
      -
      )
      12 dias úteis
      -
      (
      -
      )
      12 dias úteis
      -
      (
      -
      )
      12 dias úteis
      -
      (
      -
      )
      12 dias úteis
      -
      (
      -
      )
      12 dias úteis
      -
      (
      -
      )
      12 dias úteis
      -
      (
      -
      )
      12 dias úteis
      -
      (
      -
      )
      12 dias úteis
      -
      (
      -
      )
      12 dias úteis
      -
      (
      -
      )
      12 dias úteis
      -
      (
      -
      )
      12 dias úteis
      -
      (
      -
      )
      12 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
      -
      (
      -
      )
      7 dias úteis
    • 1

      • Informações detalhadas

      Informações básicas

      Informações técnicas

      Contorno e especificações

      Surface Limits / Hardness - Linear Shafts



      Limits of hardness and hardening depth

      The linear shafts are processed after the base material has undergone inductive hardening. Therefore, the processed surfaces may result in a deviating hardness.
      In the following example, you can view the affected areas of the linear shaft, which may be affected after processing by e.g. threads, level surfaces, key surfaces and transverse bores.



      Limitation of linear shaft induction hardening



      Cause for deviating hardness

      The raw material of the linear shaft is treated via thermal induction before grinding. Thus, a configured linear shaft can be custom-made not only cost-effectively, but also with short delivery times. The linear shaft is hardened at the boundary layer (boundary layer hardening) of the liner shaft. The depth of the hardened boundary layer depends on the material used and the diameter of the linear shaft. The following table shows the hardening depth of linear shafts.
      Coatings and plating are applied to the raw material after hardening and grinding. For more information, see Coatings of the Linear Shaft.



      Boundary layer hardening of a linear shaft

      Figure of boundary layer hardening: hardened boundary layer in light gray



      Effective hardening depth of linear shafts

      Outside diameter (D)Effective hardening depth
      EN 1.1191 equiv.EN 1.3505 equiv.EN 1.4125 equiv.EN 1.4301 equiv.
      3-+0.5+0.5Without induction hardening
      4-
      5-
      6 - 10+0.3
      12 - 13+0.5+0.7+0.5
      15 - 20+0.7
      25 - 50+0.8+1

      Overview of the effective hardening depth as PDF



      Coatings of the linear shaft

      The surface coating is applied to the raw material before machining the linear shaft. Thanks to their coating, the usable surface or work surface of the linear shaft is not only protected against corrosion but also against wear.
      Machined positions of the linear shafts, such as plane surfaces or threads, may be uncoated, as they are added afterwards. This can lead to the machined surfaces being corroded in a linear shaft made of steel. If the linear shaft is used in a corrosive environment, it is recommended to use a stainless steel linear shaft.
      The following figure shows the areas of the linear shaft that are coated (crosshatched).



      Surface coating after processing the linear shaft

      Figure: Coating of linear shafts



      You can find further information on surface treatment and hardness in this PDF .



      General Information - Linear Shafts



      Linear Shaft Selection Details

      - Material: steel, stainless steel

      - Coating/plating: uncoated, hard chrome plated, LTBC coated, chemically nickel-plated

      - Heat treatment: untreated, inductively hardened

      - ISO tolerances: h5, k5, g6, h6, h7, f8

      - Precision classes: perpendicularity 0.03, concentricity (with thread and increments) Ø0.02, perpendicularity 0.20, concentricity (thread and stepper) Ø0.10

      - Linearity/roundness: depends on diameter, here for the PDF





      Description / basics of the linear shaft

      Linear shafts are steel shafts that perform guiding tasks in combination with linear bearings, such as plain bearing bushings or linear ball bushings. Linear shaft holding functions can be adopted from shaft holders or linear ball bearing adapters. Most linear shafts are heat-treated (induction hardened) solid shafts. A special design of linear shafts is the hollow shaft, which is also called tubular shaft. Inductively hardened linear shafts have a high surface hardness and a tough core. The achievable surface hardness is approx. 55-58 HRC (see information on hardening depth). Linear shafts made of stainless steels can generally not be hardened. Therefore, these steel shafts should be chrome plated to protect them from wear.



      Materials

      Linear shafts are mainly hardened steel shafts. In addition to the selected heat treatment, the steel used in particular imparts its properties to the linear shaft, although it is a hollow shaft or a solid shaft. Therefore, special aspects such as hardness, corrosion and wear must be considered when selecting the shaft steel.



      Coatings

      To protect linear shafts from corrosion, the surface can be chemically nickel-plated. As an alternative to chemical nickel-plating, steel shafts can also be coated with LTBC. The LTBC coating is an anti-corrosive surface coating and it is a low-reflection coating, made of a 5 μm thick film of fluoropolymer, which in essence is a black film. In addition, the LTBC coating is resistant to bursting pressure by extreme or repeated bending. LTBC-coated linear shafts are thus particularly suitable for locations where corrosion or light reflections are undesirable. Linear shafts that require particularly high surface hardness and wear resistance can be hard chrome plated.



      Function

      The form and function of linear shafts differ from linear guiderails. Linear guiderails are square rails that work in combination with carriers (rotary elements, carriages) according to the rolling or sliding principle. Linear shafts on the other hand are precision-ground round steel shafts that take on a linear guide function in conjunction with linear ball bushings or plain bearing bushings (maintenance-free bushings).



      Areas of Application

      Linear shafts are intended for axial motion. Whether horizontal or vertical linear motion, all linear motions can be implemented with linear shafts. Common applications are stroke mechanisms and other applications with high demands on smoothness, precision and service life. Linear shafts can therefore be used in almost all industries of plant construction and mechanical engineering. Linear shafts are often found in 3D printers, metering equipment, measuring devices, positioning devices, alignment devices, bending devices and sorting equipment.



      Instructions for Use / Installation  - Linear Shafts



      For product selection, please observe the linear shaft tolerances (e.g. h5, k5, g6, h6, h7, f8) in conjunction with the diameter tolerance of the plain bearing bushing (sliding bearing) after pressing in or the running circle diameter of the linear ball bearing (ball bushing).



      Diameter change of linear ball bushings after pressing  Inner diameter of linear ball bushings or ball bushings



      Shaft Fasteners



      Application Example of a Linear Shaft - Linear Shafts with Linear Ball Bushings - Linear Shafts with Shaft Holder
      Application Example of a Linear Shaft Application Example - Linear Shaft with Linear Ball Bearings - Linear Ball Bearings with an Adjusting Ring
      Application Example of a Linear Shaft - Linear Shaft with Shaft Holder
      Application Example of a Linear Shaft - Linear Shaft with Circlip Groove - Linear Shaft with Circlip
      Application Example of a Linear Shaft - Linear Shaft with Holding Washer
      Application Example of a Linear Shaft - Linear Thread - Outer Threaded Linear Shaft - Linear Threaded with inner and outer threads
      Application Example of a Linear Shaft - Cross Bore Linear Shaft - Inner Thread Linear Shaft
      Application Example of a Linear Shaft - Cross Bore Linear Shaft - Outer Thread Linear Shaft



      Supplementary Article



      Shaft holder

      Product range of shaft holders



      Adjusting rings/clamping rings

      Product range of adjusting rings - product range of clamping rings



      Linear ball bearing

      Product range of linear ball bearings - product range of ball sleeves - linear ball bearing with housing



      Plain bearing bushings

      Product range of sliding bearing bushings - plain bearing with housing



      Ball guides

      Ball guide product range



      Industrial Applications



      3D printer industry
      3D printer industry
      Automotive industry
      Automotive industry
      Pharmaceutical industry
      Pharmaceutical industry
      Packaging industry
      Packaging industry
