Telescopic Slide Rails / Light Load / Three Step Slide
Número da peça:
candidatos encontrados.Desenho de contorno e tabela de especificações

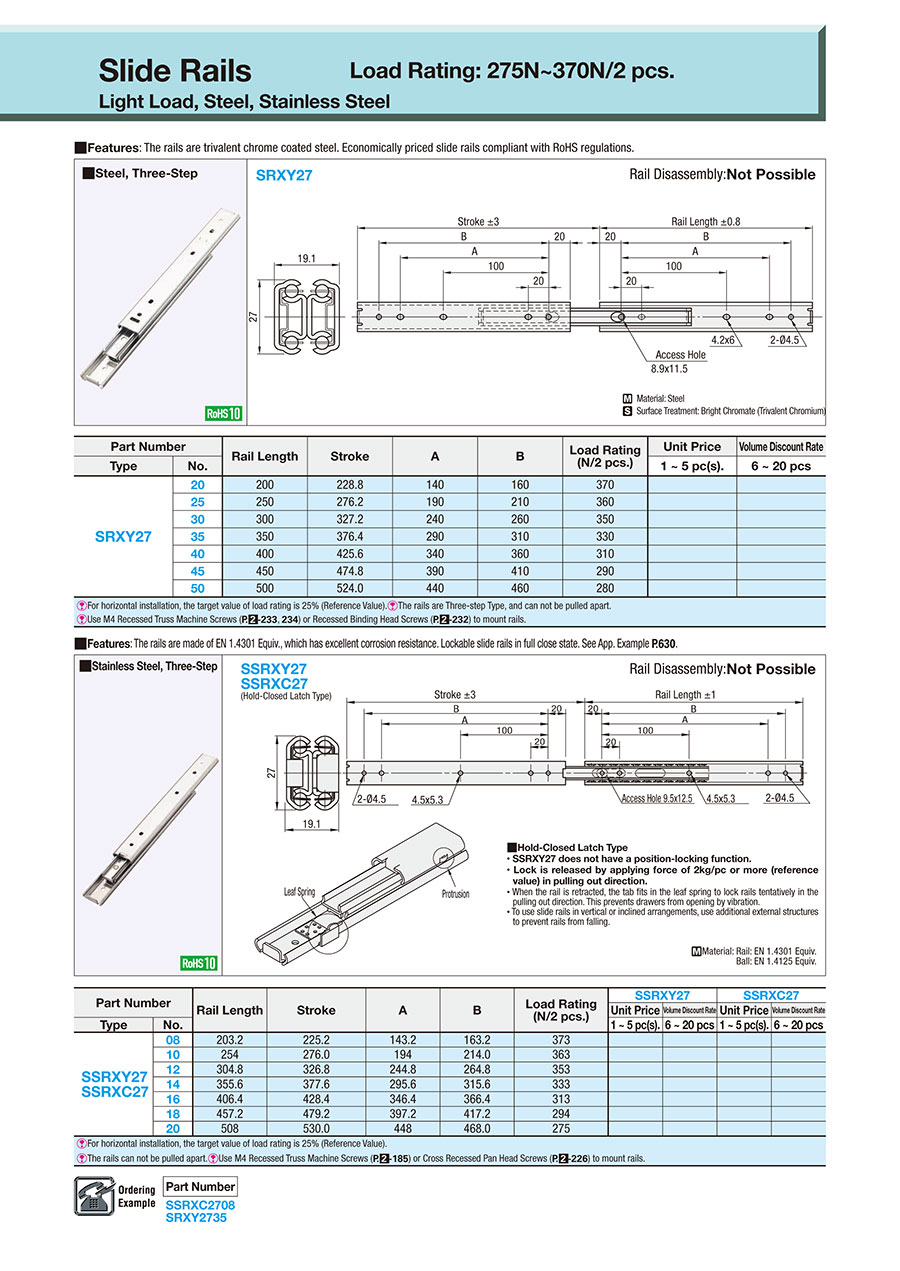

Dimensional Drawings
| SRXY27 Rail Disassembly: Not Possible |
 |
[M]Material: Steel
[S]Surface Treatment: Bright Chromate (Trivalent Chromium)
[!] 1 pc. will be delivered per order quantity of 1.
Specification Table
| Part Number |
| SRXY2735 |
| Part Number | Rail Length | Stroke | A | B | Load Rating (N / 2 pcs.) | Mass g | |
| Type | No. | ||||||
| SRXY27 | 20 | 200 | 228.8 | 140 | 160 | 370 | 311 |
| 25 | 250 | 276.2 | 190 | 210 | 360 | 800 | |
| 30 | 300 | 327.2 | 240 | 260 | 350 | 960 | |
| 35 | 350 | 376.4 | 290 | 310 | 330 | 1120 | |
| 40 | 400 | 425.6 | 340 | 360 | 310 | 1280 | |
| 45 | 450 | 474.8 | 390 | 410 | 290 | 1460 | |
| 50 | 500 | 524.0 | 440 | 460 | 280 | 1600 | |
| [!] For horizontal installation, the target value of load rating is 25% (reference value). [!] Three-StepThe rails can not be pulled apart. [ ! ] Use M3 Recessed Truss Machine Screws or Recessed Binding Head Screws to mount rails. | |||||||
Technical Information
Load Rating
Load Rating Definition
Rated load is a static load at the center of 2 extended rails on drawer side. (N / 2 pcs.)
Mounting Orientation
- Install the left side and right side slide rails in parallel, while fixing them vertically to the ground.
- Some installation posture may degrade load resistance performance sharply. For horizontal installation, the target value of load rating is 25% (load rating × 0.25).
- For horizontal installation, if load more than the above reference value is applied, or if center of gravity is put over positions separated from rail center,
inner rails may fall off outer rails. Please test and confirm this issue before using the product.
Mounting Orientation Examples
Slide rails are installed vertically and in parallel. | Slide rails are not vertically installed. | Slide rails are not horizontally aligned. | Applying loads on ends when mounted horizontally |
Rail Disassembly
- For some types, the outer and inner rails can be pulled apart and for the other types, this cannot be done.
For a product is marked as Rail Disassembly Possible, the drawers can be pulled out if used as a drawer.
For a product is marked as Rails Nondetachable, the drawers cannot be pulled out. - On areas containing conflict between rails and mounting holes, move access holes over mounting holes before mounting screws, if rails are nondetachable.
Lista de números de peça
Número de itens
Preço unitário (excluindo IVA)(Preço unitário incluindo IVA) | Data de envio standard |
|---|
21.66 € ( 25.78 € ) | Item em stock: 1 dia útilDisponível para envio no próprio dia |
22.30 € ( 26.54 € ) | Item em stock: 1 dia útilDisponível para envio no próprio dia |
25.43 € ( 30.26 € ) | Item em stock: 1 dia útilDisponível para envio no próprio dia |
28.46 € ( 33.87 € ) | Item em stock: 1 dia útilDisponível para envio no próprio dia |
31.61 € ( 37.62 € ) | Item em stock: 1 dia útilDisponível para envio no próprio dia |
35.39 € ( 42.11 € ) | 5 dias úteis |
39.04 € ( 46.46 € ) | 5 dias úteis |
Informações detalhadas
Informações básicas
[Features] Steel is used for the rail body and trivalent chrome is used for the surface treatment. -If you order a quantity of 1, 1 pcs. will be supplied.
