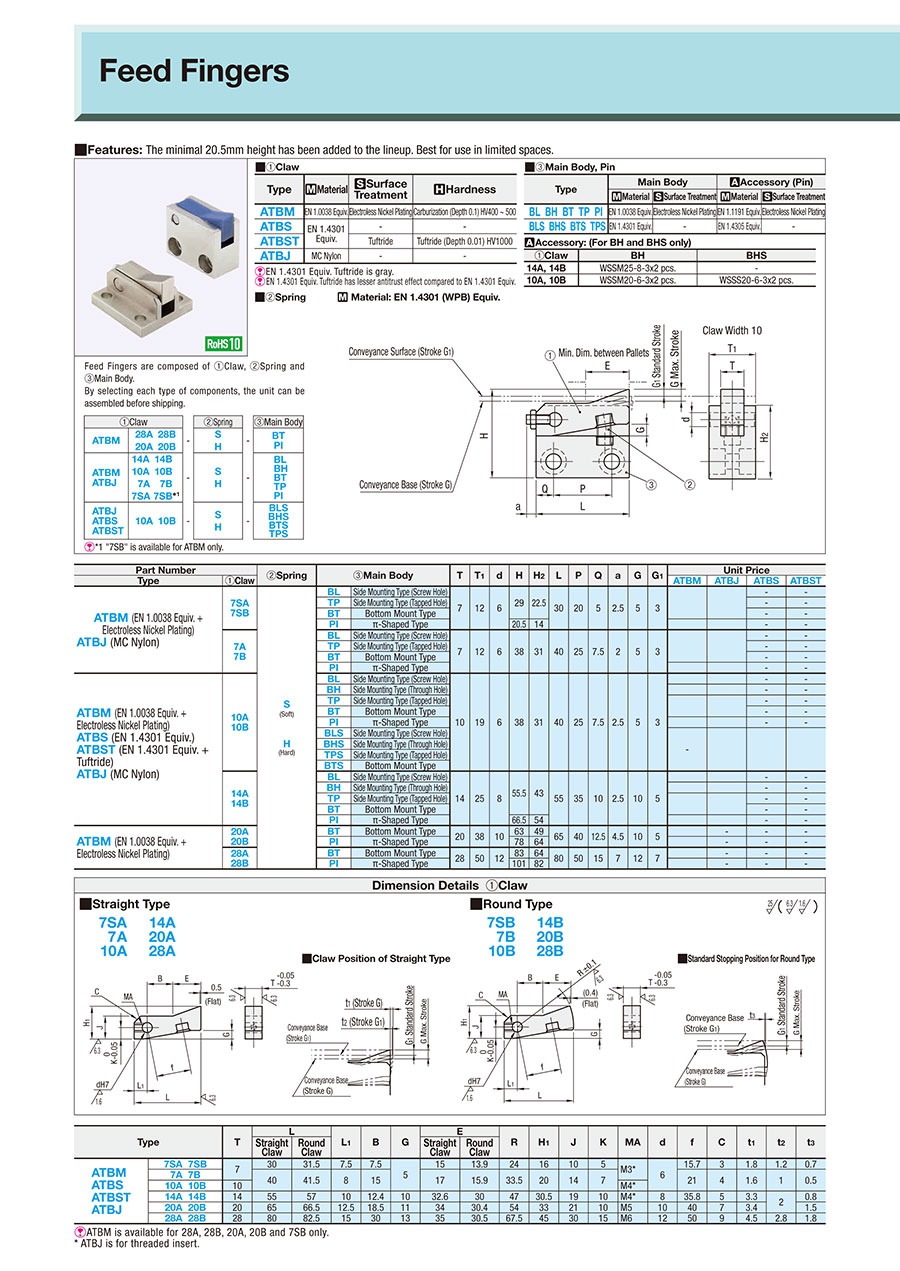

CatálogoP. 1-1757

Número da peça:

Indefinido. 204 candidatos encontrados.

Desenho de contorno e tabela de especificações
Lista de números de peça
Informações detalhadas
Catálogo

Desenho de contorno e tabela de especificações

Dimensional Drawing

Claw Width 10

Feed Fingers are composed of (1) Claw, (2) Spring and (3) Main Body.
By selecting each type of components, the unit can be assembled before shipping.

(1) Claw			(2) Spring		(3) Main Body
ATBM	28 A 28B 20 A 20B	—	S H	—	BT PI
ATBM ATBJ	14 A 14B 10 A 10B 7 A 7B 7SA 7SB^{* 1}	—	S H	—	BL BH BT TP PI
ATBJ ATBS ATBST	10 A 10B	—	S H	—	BLS BHS BTS TPS

[ ! ] *1 "7SB" is available for ATBM only
[ ! ] Allowable load data is not available.
Furthermore, it is not intended to be used in any way that involves impact.
[ ! ] Single item is not available as a standard item.

■ (1) Claw
Type	[M] Material	[S] Surface treatment	[ H ] Hardness
ATBM	EN 1.0038 Equiv.	Electroless nickel plating	Carburization (Depth 0.1) HV400 to 500
ATBS	EN 1.4301 Equiv.	—	—
ATBST	EN 1.4301 Equiv.	Tuftride	Tuftride (Depth 0.01) HV1000
ATBJ	MC Nylon	—	—

[ ! ] EN 1.4301 Equiv. Tuftride is gray.
[ ! ] EN 1.4301 Equiv. Tuftride has lesser antitrust effect compared to EN 1.4301 Equiv.

■ (3) Main Body, Pin
Type	Main Body		[A]Accessory (Pin)
Type	[M] Material	[S] Surface treatment	[M] Material	[S] Surface treatment
BL BH BT TP PI	EN 1.0038 Equiv.	Electroless nickel plating	EN 1.1191 Equiv.	Electroless nickel plating
BLS BHS BTS TPS	EN 1.4301 Equiv.	—	EN 1.4305 Equiv.	—

■ (2) Spring
[M]Material: EN 1.4301 Equiv. (WPB)

[A]Accessory: (BH and BHS only)

(1) Claw	BH	BHS
14 A·14B	WSSM25−8−3 × 2 pcs.	—
10 A·10B	WSSM20−6−3 × 2 pcs.	WSSS20−6−3 × 2 pcs.

Specification Table

Part number	—	(2) Spring	—	(3) Main Body
ATBM10A	—	S	—	BL

Part number	—	(2) Spring	—	(3) Main Body
ATBJ7A	—	H	—	PI

Part number		(2) Spring	(3) Main Body		T	T₁	d	H	H₂	L	P	Q	a	G	G₁
Type	(1) Claw
ATBM (EN 1.0038 Equiv. + Electroless nickel plating) ATBJ (MC nylon)	7SA 7SB	S (Soft) H (Hard)	BL	Side Mounting Type (Screw Hole)	7	12	6	29	22.5	30	20	5	2.5	5	3
			TP	Side Mounting Type (Tapped Hole)
			BT	Bottom Mount Type
			PI	π-Shaped Type				20.5	14
	7 A 7B		BL	Side Mounting Type (Screw Hole)	7	12	6	38	31	40	25	7.5	2	5	3
			TP	Side Mounting Type (Tapped Hole)
			BT	Bottom Mount Type
			PI	π-Shaped Type
ATBM (EN 1.0038 Equiv. + Electroless nickel plating) ATBS (EN 1.4301 Equiv.) ATBST (EN 1.4301 Equiv. + Tuftride) ATBJ (MC nylon)	10 A 10B		BL	Side Mounting Type (Screw Hole)	10	19	6	38	31	40	25	7.5	2.5	5	3
			BH	Side Mounting Type (Through Hole)
			TP	Side Mounting Type (Tapped Hole)
			BT	Bottom Mount Type
			PI	π-Shaped Type
			BLS	Side Mounting Type (Screw Hole)
			BHS	Side Mounting Type (Through Hole)
			TPS	Side Mounting Type (Tapped Hole)
			BTS	Bottom Mount Type
	14 A 14B		BL	Side Mounting Type (Screw Hole)	14	25	8	55.5	43	55	35	10	2.5	10	5
			BH	Side Mounting Type (Through Hole)
			TP	Side Mounting Type (Tapped Hole)
			BT	Bottom Mount Type
			PI	π-Shaped Type				66.5	54
ATBM (EN 1.0038 Equiv. + Electroless nickel plating)	20 A 20B		BT	Bottom Mount Type	20	38	10	63	49	65	40	12.5	4.5	10	5
			PI	π-Shaped Type				78	64
	28 A 28B		BT	Bottom Mount Type	28	50	12	83	64	80	50	15	7	12	7
			PI	π-Shaped Type				101	82

Detailed dimensions (1) Claw
■ Straight	■Claw Position of Straight Type	■Round Type	■Standard Stopping Position for Round Type
7SA 14 A 7 A 20 A 10 A 28 A		7SB 14B 7B 20B 10B 28B

Type		T	L		L₁	B	G	E		R	H₁	J	K	MA	d	f	C	t₁	t₂	t₃
			Claw shape Straight	Claw shape Round				Claw shape Straight	Claw shape Round
ATBM ATBS ATBST ATBJ	7SA 7SB	7	30	31.5	7.5	7.5	5	15	13.9	24	16	10	5	M3*	6	15.7	3	1.8	1.2	0.7
	7 A 7B		40	41.5	8	15		17	15.9	33.5	20	14	7			21	4	1.6	1	0.5
	10 A 10B	10												M4*
	14 A 14B	14	55	57	10	12.4	10	32.6	30	47	30.5	19	10	M4*	8	35.8	5	3.3	2	0.8
	20 A 20B	20	65	66.5	12.5	18.5	11	34	30.4	54	33	21	10	M5	10	40	7	3.4		1.5
	28 A 28B	28	80	82.5	15	30	13	35	30.5	67.5	45	30	15	M6	12	50	9	4.5	2.8	1.8

[ ! ] ATBM is available for 28 A, 28 B, 20 A, 20 B, and 7SB only
* ATBJ is for threaded insert.

Detailed load (2) Spring
Type			Load (calculated value) N
			Set		Stroke 3		Stroke 5 (7)		Stroke 10 (12)
			Spring Upper Part	Claw Tip	Spring Upper Part	Claw Tip	Spring Upper Part	Claw Tip	Spring Upper Part	Claw Tip
7SA 7SB	Soft	S	0.4	0.3	1.1	0.7	1.5	1.0	—	—
7SA 7SB	Hard	H	1.4	1.0	2.4	1.6	2.9	2.0	—	—
7 A 7B	Soft	S	0.3	0.2	1.0	0.7	1.5	1.0	—	—
7 A 7B	Hard	H	1.7	1.1	2.6	1.7	3.1	2.1	—	—
10 A 10B	Soft	S	0.3	0.2	1.0	0.7	1.5	1.0	—	—
10 A 10B	Hard	H	1.8	1.2	2.6	1.7	3.2	2.1	—	—
14 A 14B	Soft	S	0.9	0.7	1.3	1.1	1.7	1.3	2.4	1.9
14 A 14B	Hard	H	2.6	2.1	3.1	2.5	3.5	2.8	4.3	3.5
20 A 20B	Soft	S	2.3	1.8	—	—	3.0	2.4	3.8	3.0
20 A 20B	Hard	H	3.6	2.8	—	—	4.5	3.5	5.5	4.3
28 A 28B	Soft	S	3.7	2.6	—	—	5.2	4.0	6.3	4.8
28 A 28B	Hard	H	4.9	3.4	—	—	6.7	5.2	8.0	6.2

[ ! ] The value of Stroke 5 and 10 for 28 A and 28 B are of when Stroke 7 and 12.

Detailed dimensions (3) Body
■Side Mounting Type		Screw Hole	Through Hole	Tapped Hole
		BL (EN 1.0038 Equiv.) BLS (EN 1.4301 Equiv.)	BH (EN 1.0038 Equiv.) BHS (EN 1.4301 Equiv.)	TP (EN 1.0038 Equiv.) TPS (EN 1.4301 Equiv.)

		* No counterbored holes for claw 7 A, 7 B, 7SA, and 7SB.
■Bottom Mount	■π-Shaped Type
BT (EN 1.0038 Equiv.) BTS (EN 1.4301 Equiv.)	PI	[ ! ] For PI of claw width 14, 20, and 28, flange is screwed on BT.

Type		T	T₁	L	P	Q	L₁	B₁	H₂	J₁	K₁	d	Ca	Side Mounting Type						Bottom Mount Type		π-Shaped Type
Applicable Claw	Main Body													Y	d₁	d₂	h	d₃	M₁	M₂	ℓ	d₄	F	T₂	T₃
7SA 7SB	BL	7	12	30	20	5	7.5	16	22.5	18	5	6	3	7	5.5	—	—	—	—	—	—	—	—	—	—
	TP												2.5		—				M5		—
	BT													—					—	M5	6
	PI								14	9.5	5									—	—	4.5	20	28	5
7 A 7B	BL	7	12	40	25	7.5	8	21.5	31	25	7	6	3	7	6.6	—	—	—	—	—	—	—	—	—	—
	TP														—				M6		—
	BT													—					—	M6	9
	PI																			—	—	5.5	22	32	6
10 A 10B	BL BLS	10	19	40	25	7.5	8	21.5	31	25	7	6	3	7	6.6	11	7	—	—	—	—	—	—	—	—
	BH BHS														—	—	—	9
	TP TPS																	—	M6
	BT BTS													—					—	M6	9
	PI																			—	—	5.5	30	40	6
14 A 14B	BL	14	25	55	35	10	10	36.5	43	35	10	8	4	10	9	14	8.5	—	—	—	—	—	—	—	—
	BH														—	—	—	12
	TP																	—	M8
	BT													—					—	M8	12
	PI								54	46										—	—	9	42	60	12
20 A 20B	BT	20	38	65	40	12.5	12.5	40.7	49	40	10	10	5	—	—	—	—	—	—	M10	15	—	—	—	—
	PI								64	55										—	—	9	58	75	16

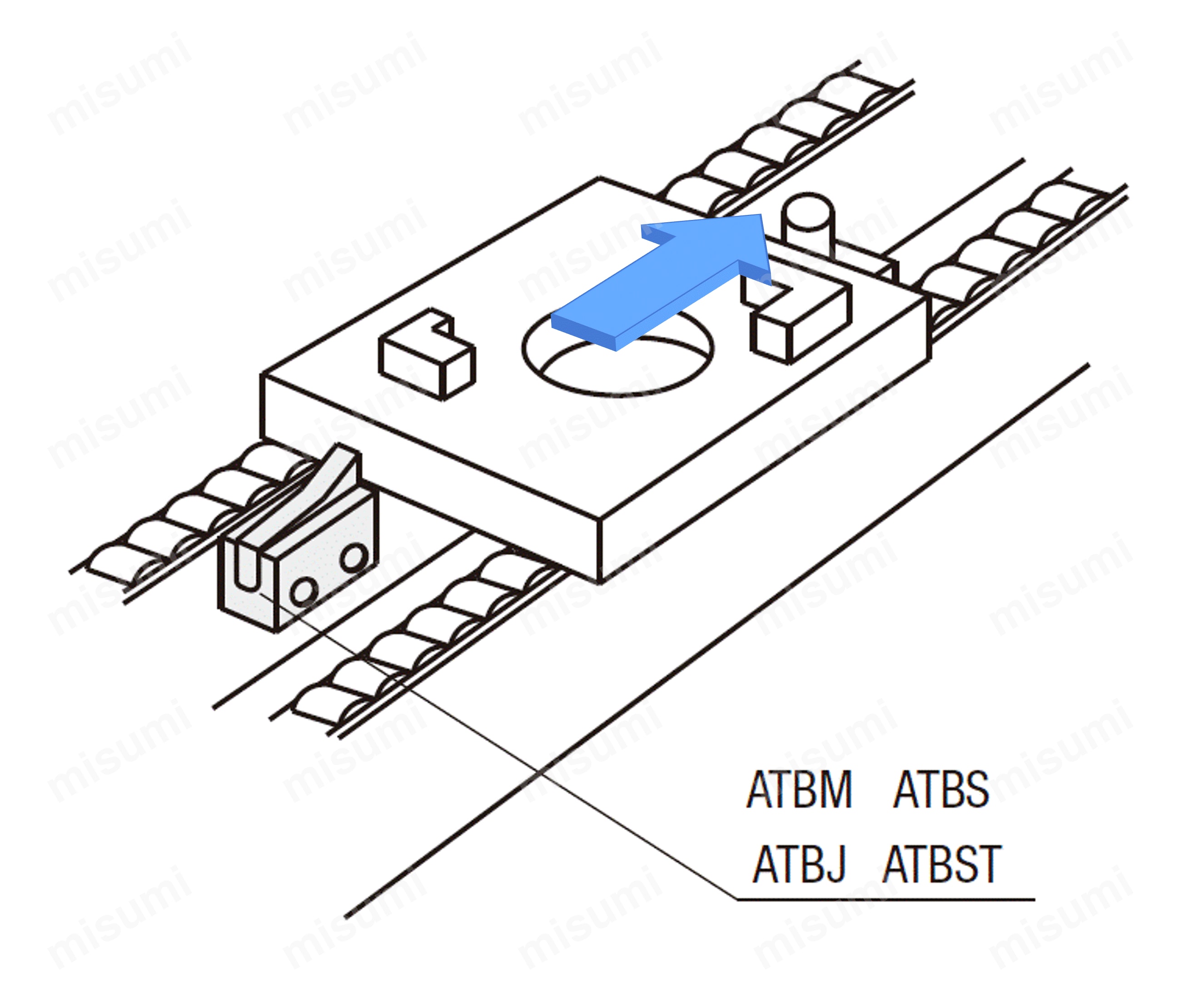

App. Example

Fine adjustment for the mounting position of BH and BHS (Through Hole) can be made by combining with the included washer.

Claw	Applicable Screw
14 A·14B	M8
10 A·10B	M6
