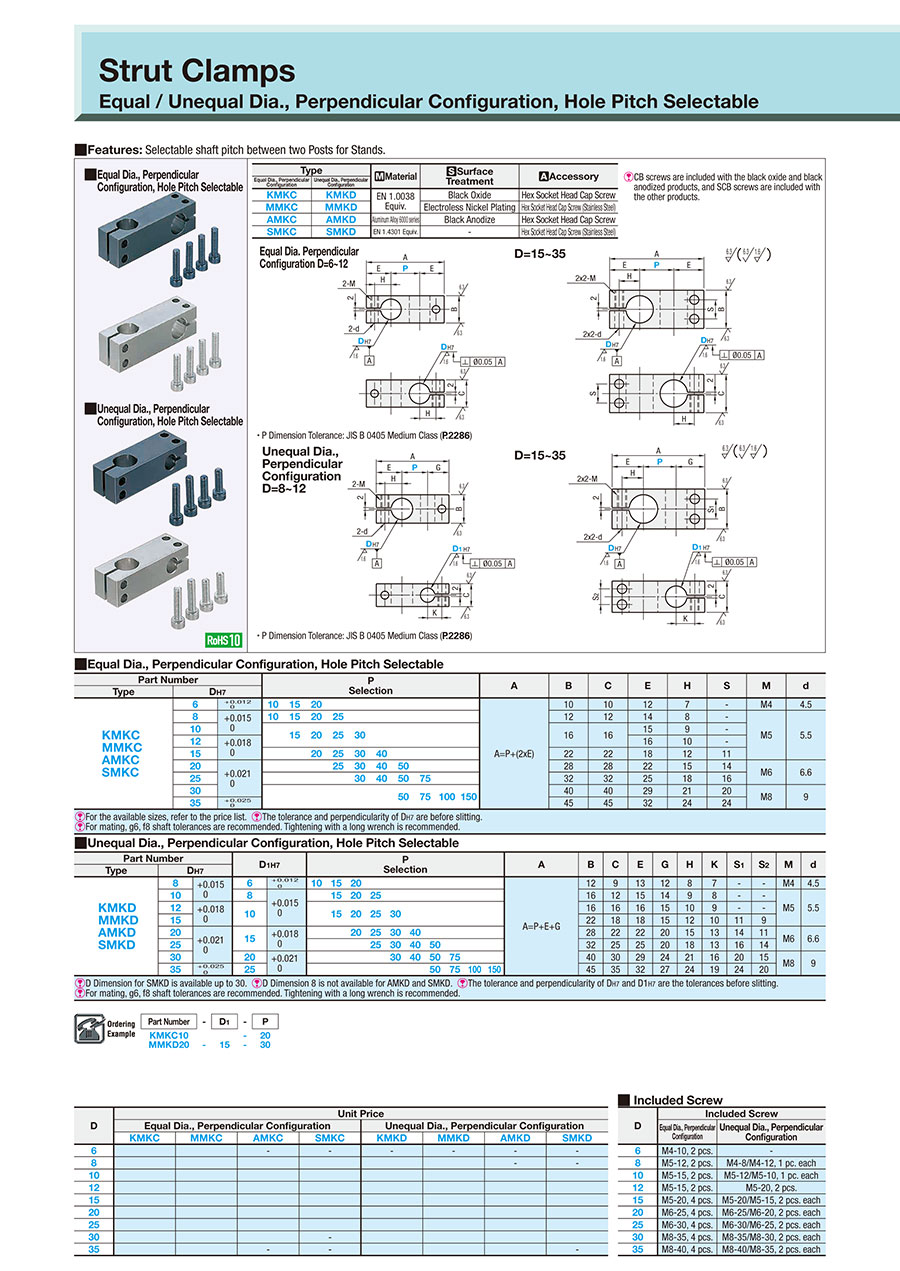

Perpendicular Configuration / Same Diameter / Selectable Pitch (MMKC12-30)

Type		Material	Surface Treatment	Accessory
Equal Dia., Perpendicular Configuration	Unequal Dia., Perpendicular Configuration
KMKC	KMKD	EN 1.0038 Equiv.	Black Oxide	Hex Socket Head Cap Screw
MMKC	MMKD		Electroless Nickel Plating	Hex Socket Head Cap Screw (Stainless Steel)
AMKC	AMKD	Aluminum Alloy 6000 series	Black Anodize	Hex Socket Head Cap Screw
SMKC	SMKD	EN 1.4301 Equiv.	-	Hex Socket Head Cap Screw (Stainless Steel)

CB screws are included with the black oxide and black anodized products, and SCB screws are included with the other products.

■ Included Screw

D	Included Screw
	Equal Dia., Perpendicular Configuration	Unequal Dia., Perpendicular Configuration
6	M4-10, 2 pcs.	-
8	M5-12, 2 pcs.	M4-8/M4-12, 1 pc. each
10	M5-15, 2 pcs.	M5-12/M5-10, 1 pc. each
12	M5-15, 2 pcs.	M5-20, 2 pcs.
15	M5-20, 4 pcs.	M5-20/M5-15, 2 pcs. each
20	M6-25, 4 pcs.	M6-25/M6-20, 2 pcs. each
25	M6-30, 4 pcs.	M6-30/M6-25, 2 pcs. each
30	M8-35, 4 pcs.	M8-35/M8-30, 2 pcs. each
35	M8-40, 4 pcs.	M8-40/M8-35, 2 pcs. each

■Equal Dia., Perpendicular Configuration, Hole Pitch Selectable

Part Number			P Selection										A	B	C	E	H	S	M	d
Type	DH7
KMKC MMKC AMKC SMKC	6	+0.012 0	10	15	20								A=P+(2xE)	10	10	12	7	-	M4	4.5
	8	+0.015 0	10	15	20	25								12	12	14	8	-	M5	5.5
	10			15	20	25	30							16	16	15	9	-
	12	+0.018 0														16	10	-
	15				20	25	30	40						22	22	18	12	11
	20	+0.021 0				25	30	40	50					28	28	22	15	14	M6	6.6
	25						30	40	50	75				32	32	25	18	16
	30								50	75	100	150		40	40	29	21	20	M8	9
	35	+0.025 0												45	45	32	24	24
For the available sizes, refer to the price list. The tolerance and perpendicularity of DH7 are before slitting. For mating, g6, f8 shaft tolerances are recommended. Tightening with a long wrench is recommended.

■Unequal Dia., Perpendicular Configuration, Hole Pitch Selectable

Part Number			D1H7		P Selection										A	B	C	E	G	H	K	S1	S2	M	d
Type	DH7
KMKD MMKD AMKD SMKD	8	+0.015 0	6	+0.012 0	10	15	20								A=P+E+G	12	9	13	12	8	7	-	-	M4	4.5
	10		8	+0.015 0		15	20	25								16	12	15	14	9	8	-	-	M5	5.5
	12	+0.018 0	10			15	20	25	30							16	16	16	15	10	9	-	-
	15															22	18	18	15	12	10	11	9
	20	+0.021 0	15	+0.018 0			20	25	30	40						28	22	22	20	15	13	14	11	M6	6.6
	25							25	30	40	50					32	25	25	20	18	13	16	14
	30		20	+0.021 0					30	40	50	75				40	30	29	24	21	16	20	15	M8	9
	35	+0.025 0	25								50	75	100	150		45	35	32	27	24	19	24	20
D Dimension for SMKD is available up to 30. D Dimension 8 is not available for AMKD and SMKD. The tolerance and perpendicularity of DH7 and D1H7 are the tolerances before slitting. For mating, g6, f8 shaft tolerances are recommended. Tightening with a long wrench is recommended.
