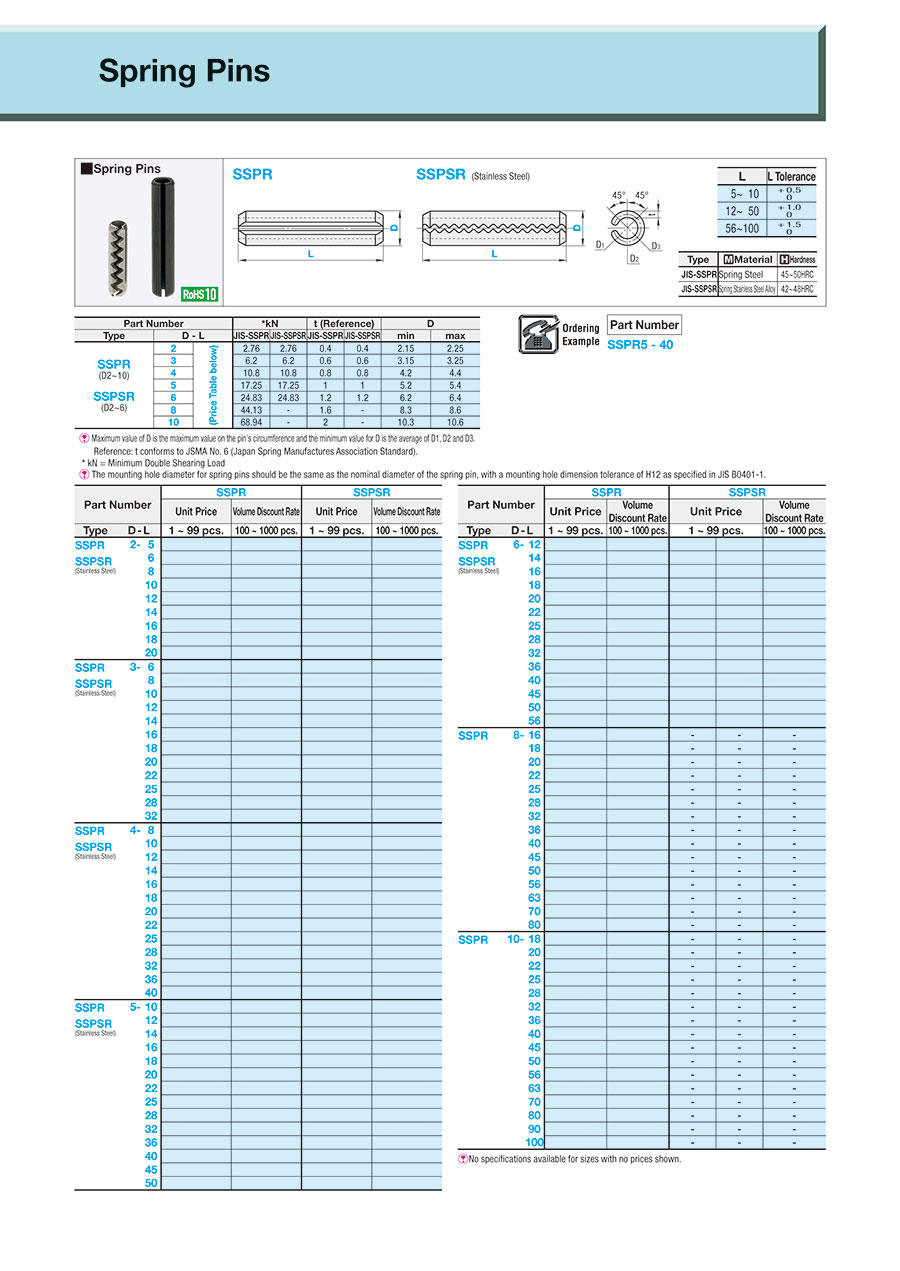

Spring Pins(Lista de números de peça: página 2)

L	L Tolerance
5~ 10	+ 0.5 0
12~ 50	+ 1.0 0
56~100	+ 1.5 0



Part Number			*kN		t (Reference)		D
Type	D - L		JIS-SSPR	JIS-SSPSR	JIS-SSPR	JIS-SSPSR	min	max
SSPR (D2~10) SSPSR (D2~6)	2	(Price Table below)	2.76	2.76	0.4	0.4	2.15	2.25
	3		6.2	6.2	0.6	0.6	3.15	3.25
	4		10.8	10.8	0.8	0.8	4.2	4.4
	5		17.25	17.25	1	1	5.2	5.4
	6		24.83	24.83	1.2	1.2	6.2	6.4
	8		44.13	-	1.6	-	8.3	8.6
	10		68.94	-	2	-	10.3	10.6

   Maximum value of D is the maximum value on the pin's circumference and the minimum value for D is the average of D1, D2 and D3.
Reference: t conforms to JSMA No. 6 (Japan Spring Manufactures Association Standard).
* kN = Minimum Double Shearing Load
   The mounting hole diameter for spring pins should be the same as the nominal diameter of the spring pin, with a mounting hole dimension tolerance of H12 as specified in JIS B0401-1.
