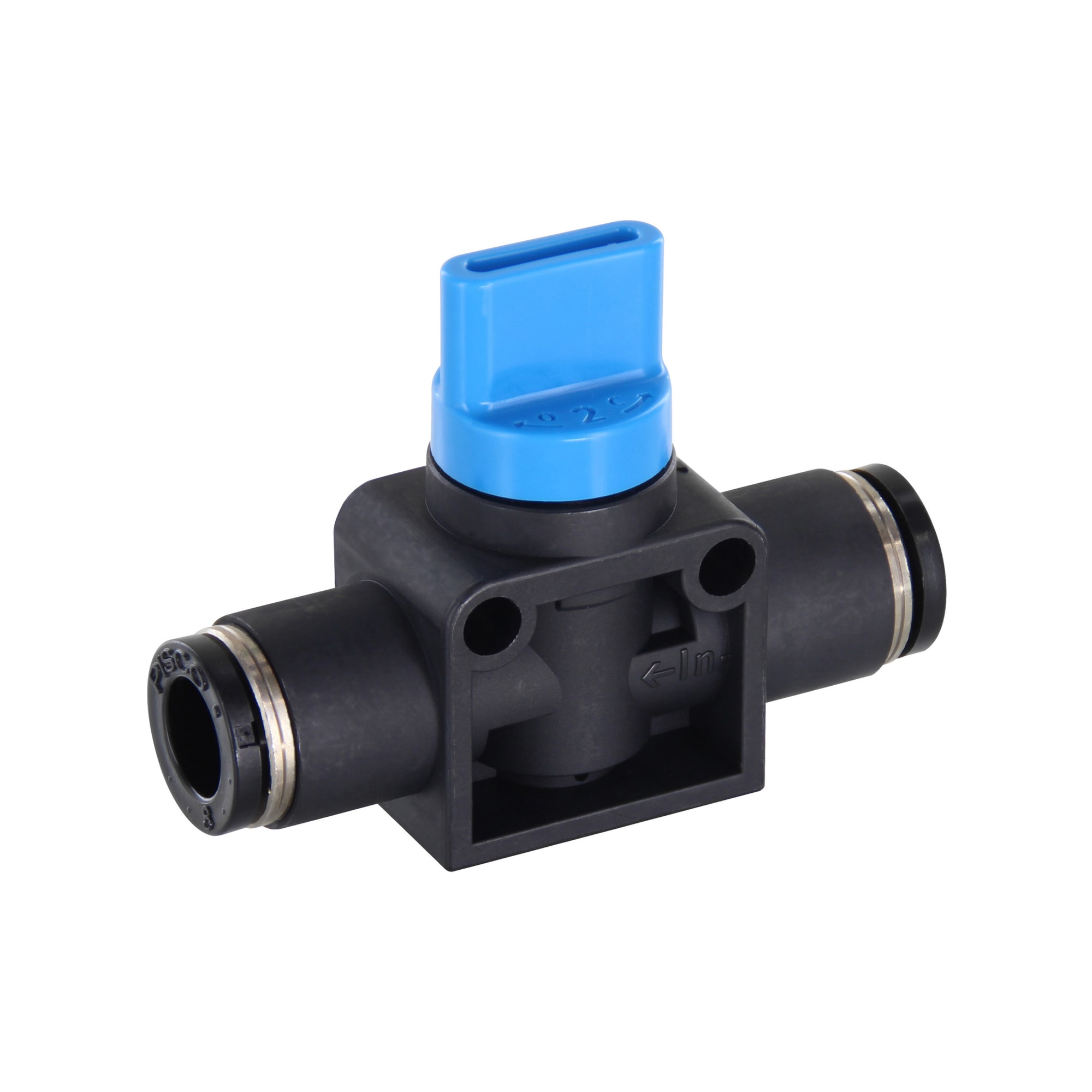

    Hand Valve, BVHVU

    Hand Valve, BVHVU

    Passe o rato sobre a imagem para a aumentar

    • Hand Valve, BVHVU
    • Hand Valve, BVHVU

    Cuidado

    • Please check the content on our website as the PDF does not contain the most up-to-date information.

    Número da peça:

    Indefinido. 20 candidatos encontrados.
    Quantidade:

    Desenho de contorno e tabela de especificações

    BVHVU
    [ ! ] Marked inside body.

    Specification Table

    Part Number—2-Way/3-Way Selection / R (PT) Selection—Handle Color / 2-Way/3-Way Selection
    BVHVU6—2—R
    Part Number2-Way
    3-Way
    Selection    		Handle Part
    Color Selection    		E1E2PP1BF1F2Effective Sectional Area
    (mm2)    		Mass
    (g)
    TypeTube O.D. (mm)
    D
    BVHVU42 (2-Way Valve)
    3 (3-Way Valve)    		Not Specified
    (Blue)

    R
    (Red)    		1740.51016.525.81883.522
    61740.512.516.526.41887.223
    81740.51516.527.71889.826
    1021.74117.519.532.2241116.741
    1221.7412119.534.9241117.248

    Lista de números de peça

    Número de itens
  • 1
    • Número da peça
    BVHVU4-2
    BVHVU4-2-R
    BVHVU4-3
    BVHVU4-3-R
    BVHVU6-2
    BVHVU6-2-R
    BVHVU6-3
    BVHVU6-3-R
    BVHVU8-2
    BVHVU8-2-R
    BVHVU8-3
    BVHVU8-3-R
    BVHVU10-2
    BVHVU10-2-R
    BVHVU10-3
    BVHVU10-3-R
    BVHVU12-2
    BVHVU12-2-R
    BVHVU12-3
    BVHVU12-3-R

    Number of Positions

    Tube Outer Dia. D (or D1)

    Effective Sectional Area

    (mm2)

    2-Way Valve, 3-Way Valve

    Handle Color

    		RoHS?Quantidade mínima de encomenda
    [2-Position Normally Closed] 2-Position Normally Closed
    4
    3.4
    2 (2-Way Valve)
    Blue
    10
    1 unidades
    [2-Position Normally Closed] 2-Position Normally Closed
    4
    3.4
    2 (2-Way Valve)
    Red
    10
    1 unidades
    2-Position Exhaust
    4
    3.4
    3 (3-Way Valve)
    Blue
    10
    1 unidades
    2-Position Exhaust
    4
    3.4
    3 (3-Way Valve)
    Red
    10
    1 unidades
    [2-Position Normally Closed] 2-Position Normally Closed
    6
    7.2
    2 (2-Way Valve)
    Blue
    10
    1 unidades
    [2-Position Normally Closed] 2-Position Normally Closed
    6
    7.2
    2 (2-Way Valve)
    Red
    10
    1 unidades
    2-Position Exhaust
    6
    7.2
    3 (3-Way Valve)
    Blue
    10
    1 unidades
    2-Position Exhaust
    6
    7.2
    3 (3-Way Valve)
    Red
    10
    1 unidades
    [2-Position Normally Closed] 2-Position Normally Closed
    8
    8.7
    2 (2-Way Valve)
    Blue
    10
    1 unidades
    [2-Position Normally Closed] 2-Position Normally Closed
    8
    8.7
    2 (2-Way Valve)
    Red
    10
    1 unidades
    2-Position Exhaust
    8
    8.7
    3 (3-Way Valve)
    Blue
    10
    1 unidades
    2-Position Exhaust
    8
    8.7
    3 (3-Way Valve)
    Red
    10
    1 unidades
    [2-Position Normally Closed] 2-Position Normally Closed
    10
    17.4
    2 (2-Way Valve)
    Blue
    10
    1 unidades
    [2-Position Normally Closed] 2-Position Normally Closed
    10
    17.4
    2 (2-Way Valve)
    Red
    10
    1 unidades
    2-Position Exhaust
    10
    17.4
    3 (3-Way Valve)
    Blue
    10
    1 unidades
    2-Position Exhaust
    10
    17.4
    3 (3-Way Valve)
    Red
    10
    1 unidades
    [2-Position Normally Closed] 2-Position Normally Closed
    12
    18.1
    2 (2-Way Valve)
    Blue
    10
    1 unidades
    [2-Position Normally Closed] 2-Position Normally Closed
    12
    18.1
    2 (2-Way Valve)
    Red
    10
    1 unidades
    2-Position Exhaust
    12
    18.1
    3 (3-Way Valve)
    Blue
    10
    1 unidades
    2-Position Exhaust
    12
    18.1
    3 (3-Way Valve)
    Red
    10
    1 unidades
    Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)
    Data de envio standard
    9.70 €3.49 €
    ( 4.15 € )
    Item em stock: 1 dia útilDisponível para envio no próprio dia
    9.70 €
    ( 11.54 € )
    5 dias úteis
    9.70 €
    ( 11.54 € )
    5 dias úteis
    9.70 €
    ( 11.54 € )
    5 dias úteis
    9.83 €
    ( 11.70 € )
    Item em stock: 1 dia útilDisponível para envio no próprio dia
    9.83 €
    ( 11.70 € )
    5 dias úteis
    9.83 €3.54 €
    ( 4.21 € )
    Item em stock: 1 dia útilDisponível para envio no próprio dia
    9.83 €3.83 €
    ( 4.56 € )
    Item em stock: 1 dia útilDisponível para envio no próprio dia
    10.71 €
    ( 12.74 € )
    5 dias úteis
    10.71 €4.39 €
    ( 5.22 € )
    Item em stock: 1 dia útilDisponível para envio no próprio dia
    10.71 €
    ( 12.74 € )
    5 dias úteis
    10.71 €
    ( 12.74 € )
    5 dias úteis
    11.46 €
    ( 13.64 € )
    5 dias úteis
    11.46 €
    ( 13.64 € )
    5 dias úteis
    11.46 €
    ( 13.64 € )
    5 dias úteis
    11.46 €
    ( 13.64 € )
    5 dias úteis
    12.35 €
    ( 14.70 € )
    5 dias úteis
    12.35 €
    ( 14.70 € )
    5 dias úteis
    12.35 €
    ( 14.70 € )
    5 dias úteis
    12.35 €
    ( 14.70 € )
    5 dias úteis
  • 1

    • Informações detalhadas

    Informações básicas

    [Features] Valve that opens and closes compressed air. -You can choose the colour of the cap lever.

    Cuidado

    • Please check the content on our website as the PDF does not contain the most up-to-date information.

    Contorno e especificações

    Specifications / Overview

    Structure Diagram (BVHV, 3-Way Valve, Flow Direction B, Closed State)
    3-Way Valve and 2-Way Valve
    Graphic Symbol for 2-Way Valve
    		Graphic Symbol for 3-Way Valve

    ·3-Way Valve exhausts residual pressure from outlet side (equipment) when air is shut off
    and ensures safety during adjustment and repair of equipment.
    ·2-Way Valve has no function to exhaust residual pressure and is suitable for use with air supply lines of equipment
    where residual pressure release is not desired, such as a tank, etc. Also suitable for vacuum plumbing.
