Compact Cylinder Brackets / Foot Brackets (CFKPB20)
- Promotional pricing ends 31/12/2024
- Volume Discount
Product Details:
Manufacturer part number: CFKPB20
Brand: MISUMI
Price: 19.64 €
Delivery time: Same day
Technical Data:
Surface Treatment: Black Oxide
Tube I.D.: 20 mm
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
CFKPB20
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers

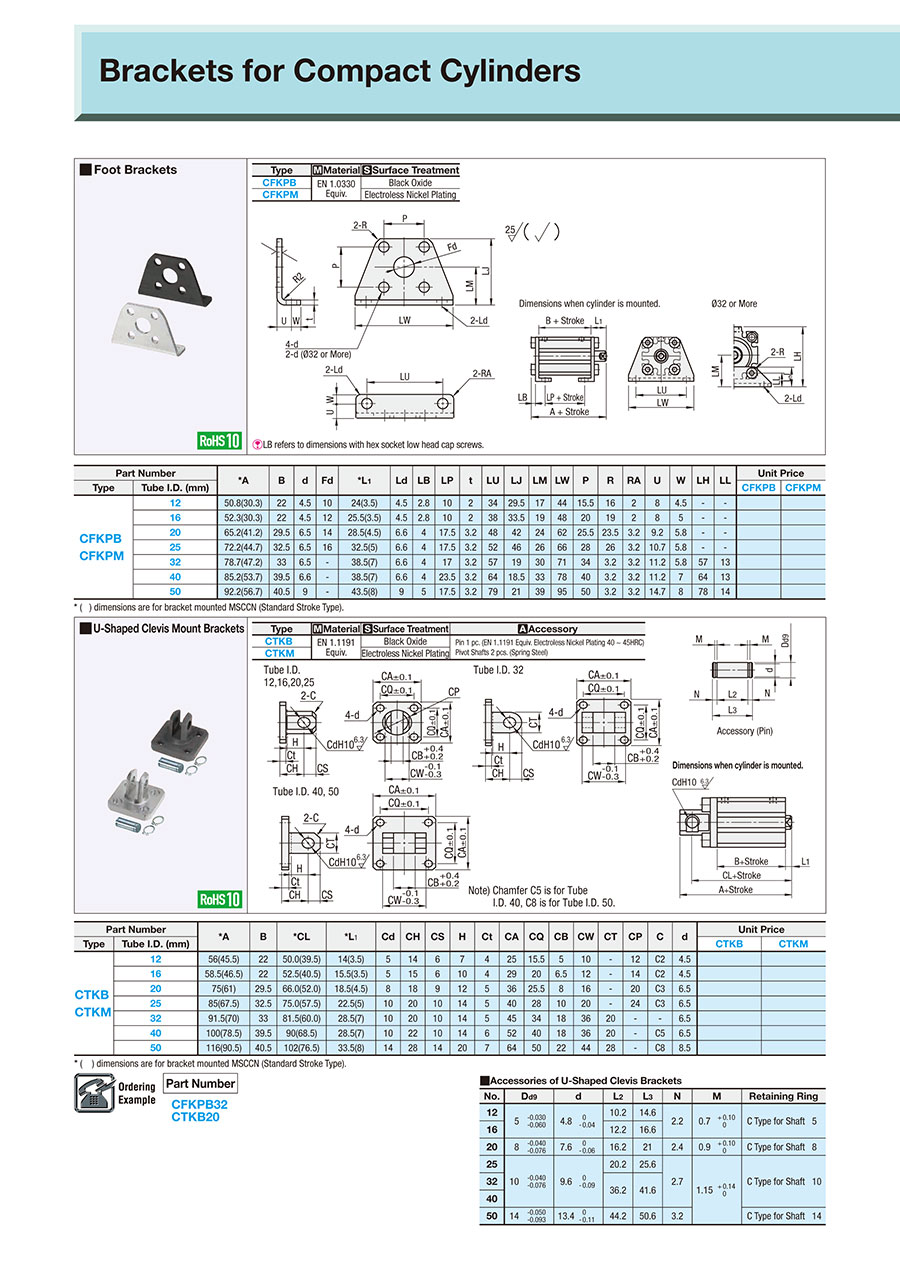

- Catalog
| Type | Material | Surface Treatment |
| CFKPB | EN 1.0330 Equiv. | Black Oxide |
| CFKPM | Electroless Nickel Plating |
Specifications
| Part Number |
| CFKPB32 CTKB20 |
| Part Number | *A | B | d | Fd | *L1 | Ld | LB | LP | t | LU | LJ | LM | LW | P | R | RA | U | W | LH | LL | Unit Price | ||
| Type | Tube I.D. (mm) | CFKPB | CFKPM | ||||||||||||||||||||
| CFKPB CFKPM | 12 | 50.8(30.3) | 22 | 4.5 | 10 | 24(3.5) | 4.5 | 2.8 | 10 | 2 | 34 | 29.5 | 17 | 44 | 15.5 | 16 | 2 | 8 | 4.5 | - | - | ||
| 16 | 52.3(30.3) | 22 | 4.5 | 12 | 25.5(3.5) | 4.5 | 2.8 | 10 | 2 | 38 | 33.5 | 19 | 48 | 20 | 19 | 2 | 8 | 5 | - | - | |||
| 20 | 65.2(41.2) | 29.5 | 6.5 | 14 | 28.5(4.5) | 6.6 | 4 | 17.5 | 3.2 | 48 | 42 | 24 | 62 | 25.5 | 23.5 | 3.2 | 9.2 | 5.8 | - | - | |||
| 25 | 72.2(44.7) | 32.5 | 6.5 | 16 | 32.5(5) | 6.6 | 4 | 17.5 | 3.2 | 52 | 46 | 26 | 66 | 28 | 26 | 3.2 | 10.7 | 5.8 | - | - | |||
| 32 | 78.7(47.2) | 33 | 6.5 | - | 38.5(7) | 6.6 | 4 | 17 | 3.2 | 57 | 19 | 30 | 71 | 34 | 3.2 | 3.2 | 11.2 | 5.8 | 57 | 13 | |||
| 40 | 85.2(53.7) | 39.5 | 6.6 | - | 38.5(7) | 6.6 | 4 | 23.5 | 3.2 | 64 | 18.5 | 33 | 78 | 40 | 3.2 | 3.2 | 11.2 | 7 | 64 | 13 | |||
| 50 | 92.2(56.7) | 40.5 | 9 | - | 43.5(8) | 9 | 5 | 17.5 | 3.2 | 79 | 21 | 39 | 95 | 50 | 3.2 | 3.2 | 14.7 | 8 | 78 | 14 | |||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| CFKPB20 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Surface Treatment | Tube I.D. (mm) | |
|---|---|---|---|---|---|---|---|
19.64 € 8.05 € | 1 | Available |
Same day
Stock | 10 | Black Oxide | 20 |
Loading...
Basic information
| Type | Foot | Material | EN 1.0330 Equiv. | Type | Foot Brackets |
|---|
This page is Compact Cylinder Brackets / Foot Brackets, part number CFKPB20.
You can find the detail information about specifications and dimensions on part number CFKPB20.
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Type
- CFKPB
- CFKPM
-
Surface Treatment
- Black Oxide
- Electroless Nickel Plating
-
Tube I.D.(mm)
- 12
- 16
- 20
- 25
- 32
- 40
- 50
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Variation of this product
| Part Number |
|---|
| CFKPB12 |
| CFKPB16 |
| CFKPB25 |
| CFKPB32 |
| CFKPB40 |
| CFKPB50 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Standard Shipping Days ? | RoHS | Surface Treatment | Tube I.D. (mm) |
|---|---|---|---|---|---|---|---|
18.63 € | 1 | Available | 5 Days | 10 | Black Oxide | 12 | |
19.01 € | 1 | Available | 5 Days | 10 | Black Oxide | 16 | |
20.16 € | 1 | Available | 5 Days | 10 | Black Oxide | 25 | |
17.51 € | 1 | Available | 5 Days | 10 | Black Oxide | 32 | |
19.27 € | 1 | Available | 5 Days | 10 | Black Oxide | 40 | |
22.79 € | 1 | Available | 5 Days | 10 | Black Oxide | 50 |
