Confirmado
- Type
- Min. Mounting Pitch(mm)
- 4.5
- Plunger Tip Shape
- Waffle
- Waffle A
- Full Stroke (Range)(mm)
- Full Stroke(mm)
- 6.4
- 2/3 Stroke Spring Pressure (Range)(gf)
- Plunger Material
- Copper Alloy
- EN CW101C Equiv.
- Plunger O.D.(Ø)
- 4.0
- Plunger Surface Treatment
- Plunger Length L1 (Range)(mm)
- Barrel, Receptacle Material
- Copper Alloy
- Copper Alloy
- Barrel, Receptacle O.D.(Ø)
- 2.33
- Barrel, Receptacle Length L2 (Range)(mm)
- Initial Spring Pressure (Range)(gf)
- Allowable Current(A)
- 1.5
- Resistance(mΩ)
- 80
- Plunger Length(mm)
- 9.0
- Barrel, Receptacle Length(mm)
- 24.5
- Initial Spring Pressure(gf)
- 40
- 2/3 Stroke Spring Pressure(gf)
- 150
- Type
- CAD
- 2D
- 3D
- Dias de envio estimados
- Tudo
- Envio possível no próprio dia

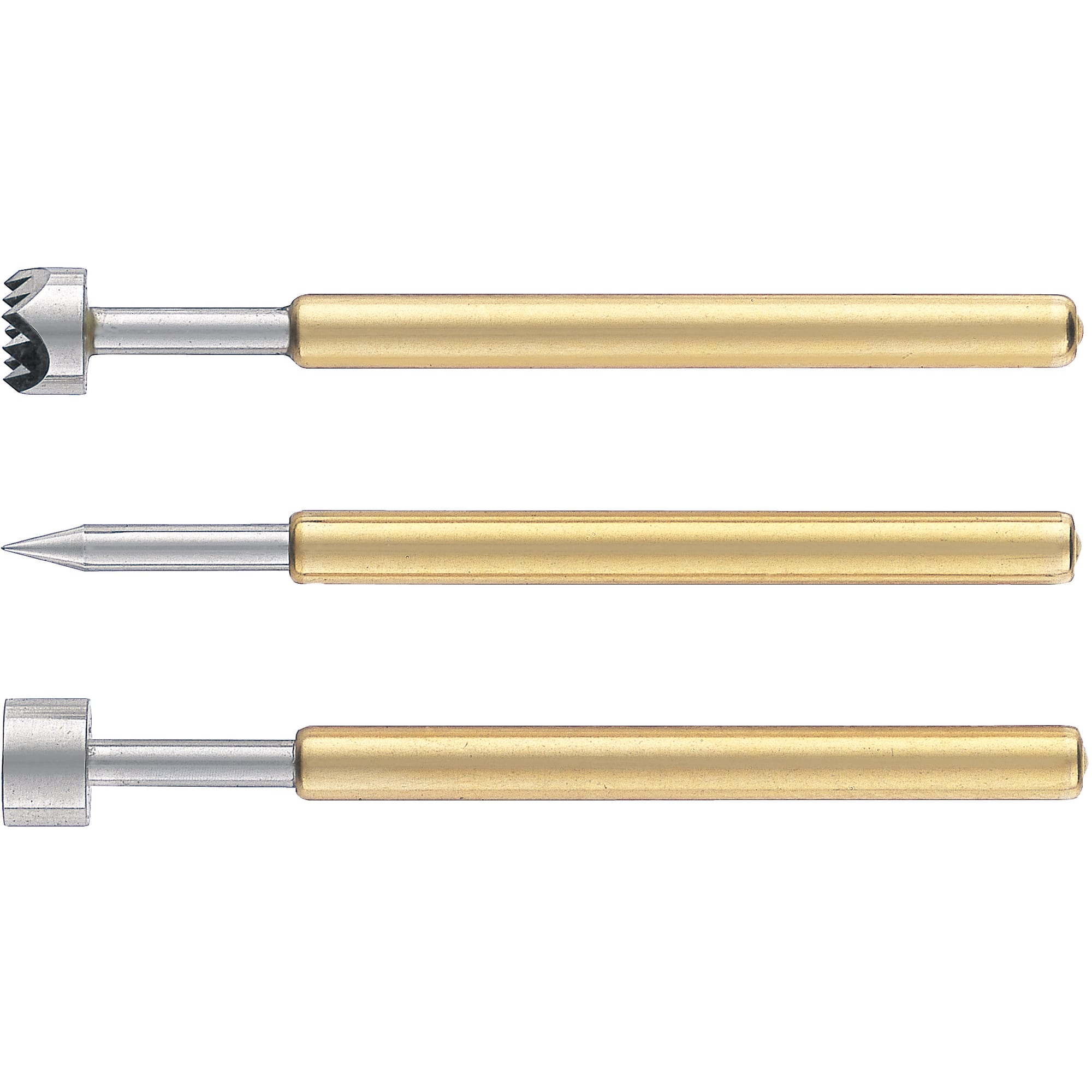

Contact Probes / NP90SF / NP90 Series (NP90-A)
Passe o rato sobre a imagem para a aumentar
Cuidado
- [Specification Change] The material of the barrel will be changed from brass to copper alloy (phosphor bronze) as soon as current stock runs out.
- Please check the content on our website as the PDF does not contain the most up-to-date information.

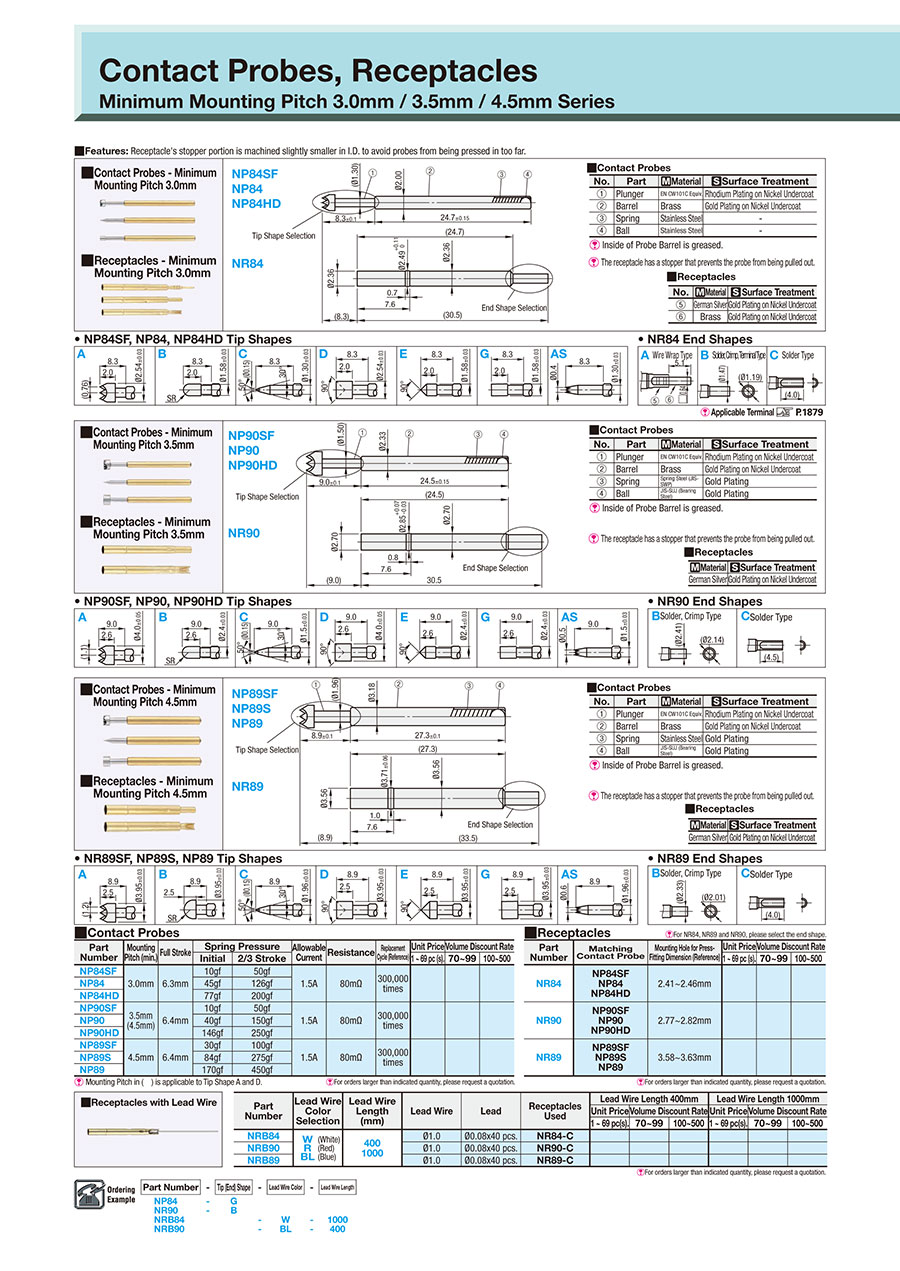

Desenho de contorno e tabela de especificações
NP90SF
NP90
NP90HD
Matching
Contact Probe
NR90
Receptacle
[ ! ] Inside of Probe Barrel is greased.
[ ! ] The receptacle has a stopper that prevents the probe from being pulled out.
● NP90SF, NP90, NP90HD Tip Shapes
● NR90 End Shapes
■Contact Probes
■Receptacle
| No. | Parts | [M] Material | [S] Surface Treatment |
| (1) | Plunger | EN CW101C Equiv. | Rhodium Plating on Nickel Undercoat |
| (2) | Barrel | Copper Alloy | Gold Plating on Nickel Undercoat |
| (3) | Spring | Spring Steel (JIS−SWP) | Gold Plating |
| (4) | Ball | JIS−SUJ (Bearing Steel) | Gold Plating |
| [M] Material | [S] Surface Treatment |
| German Silver | Gold Plating on Nickel Undercoat |
Specification Table
| Part Number | — | Tip (End) Shape | — | Lead Wire Color | — | Lead Wire Length |
| NR90 NRB90 | — | B | — | BL | — | 400 |
■Contact Probes
[ ! ] Mounting Pitch in ( ) is applicable to Tip Shape A and D.
* Minimum center-to-center spacing between adjacent contact probes.
■Receptacle
[ ! ] For NR84, NR89, and NR90, please select the end shape.
| Part Number | Minimum mounting pitch＊ | Full Stroke | Spring Pressure | Allowable Current | Resistance | Replacement Cycle | |
| Initial | 2/3 Stroke | ||||||
| NP90SF | 3.5 mm (4.5 mm) | 6.4 mm | 10gf | 50gf | 3 A | 50mΩ | 300,000 times |
| NP90 | 40gf | 150gf | |||||
| NP90HD | 146gf | 250gf | |||||
* Minimum center-to-center spacing between adjacent contact probes.
■Receptacle
[ ! ] For NR84, NR89, and NR90, please select the end shape.
| Part Number | Matching Contact Probe | Mounting Hole for Press Fitting Dimension (Reference) |
| NR90 | NP90SF NP90 NP90HD | 2.77 to 2.82 mm |
Informações detalhadas
Informações básicas
Cuidado
- [Specification Change] The material of the barrel will be changed from brass to copper alloy (phosphor bronze) as soon as current stock runs out.
- Please check the content on our website as the PDF does not contain the most up-to-date information.
