6 Series / Thick 2 Slots

Número da peça:

Indefinido. 68 candidatos encontrados.
Quantidade:

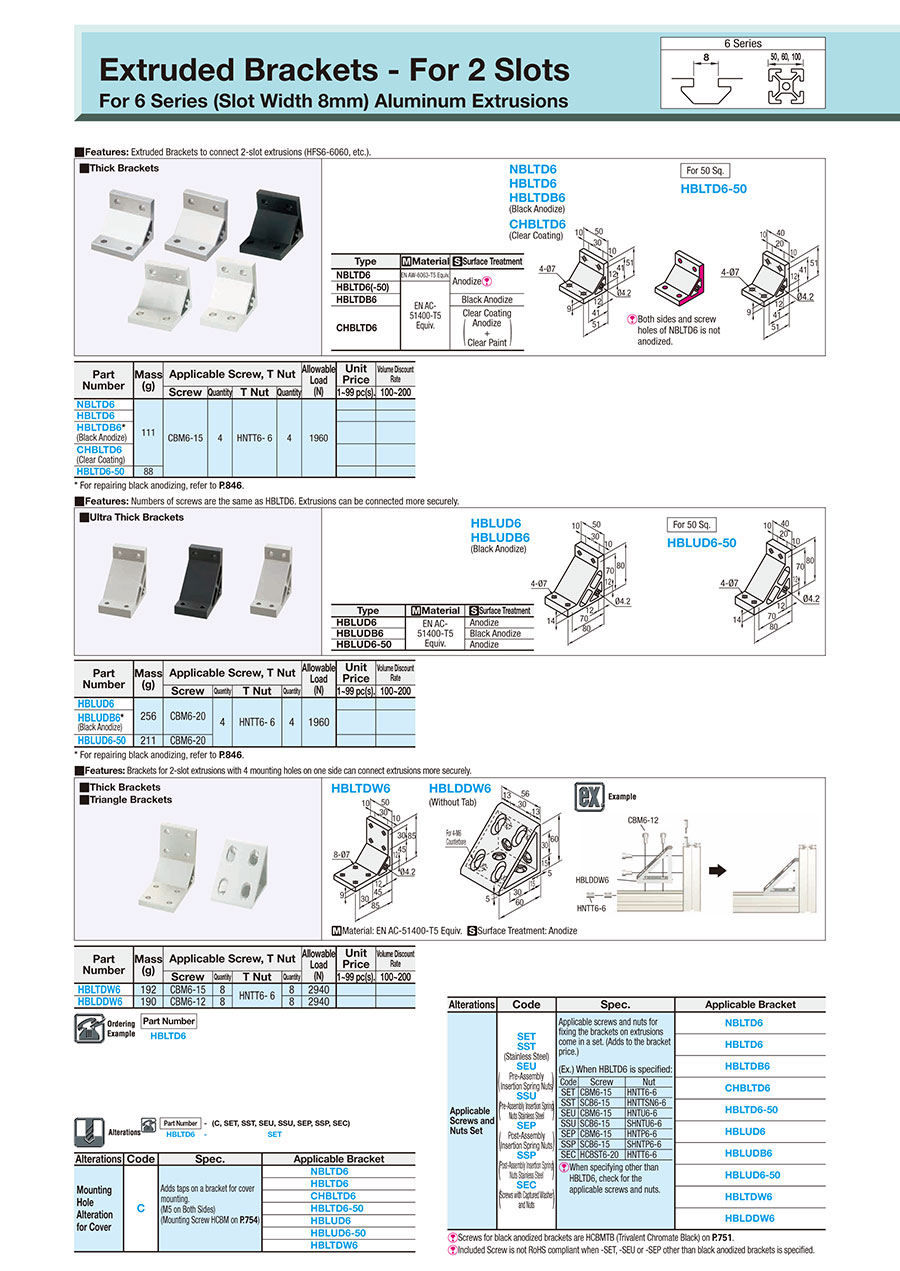

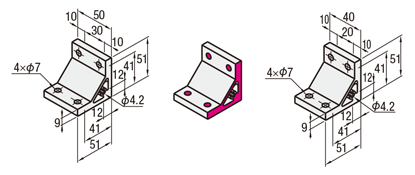

Desenho de contorno e tabela de especificações

NBLTD6
HBLTD6
HBLTDB6
(Black Anodize)
CHBLTD6
(Clear Coating)

For 50 Square
HBLTD6—50

6 Series (Slot Width 8 mm) - For 2 Slots, Extruded Thick Brackets: Related Image


[ ! ] Both sides and screw holes of NBLTD6 are
not anodized.

Type[M] Material[S] Surface Treatment
NBLTD6EN AW-6063-T5 Equiv.Anodize [ ! ]
HBLTD6 (−50)EN AW-6061-T5 Equiv.
HBLTDB6Black Anodize
CHBLTD6Clear Coating
(Anodize
+
Transparent Coating)

Specification Table

Part Number
HBLTD6
Part NumberMass
(g)
Applicable Screw, T NutAllowable Load
(N)
ScrewsQuantityT NutQuantity
NBLTD6111CBM6−154HNTT6− 641960
HBLTD6
HBLTDB6*
(Black Anodize)
CHBLTD6
(Clear Coating)
HBLTD6−5088

Alterations

Part Number(C·SET·SST·SEU·SSU·SEP·SSP·SEC)
HBLTD6SET
HBLTD6C−SET
AlterationsCodeSpec.Applicable Bracket
Mounting Hole
Alteration for Cover
CAdds taps on
a bracket for cover mounting.
(M5 on Both Sides)
(Mounting Screw HCBM)
NBLTD6
HBLTD6
CHBLTD6
HBLTD6−50
HBLUD6
HBLUD6−50
HBLTDW6
AlterationsCodeSpec.Applicable Bracket
Applicable Screws and Nuts Set
Nuts Set
SET
SST

(Stainless Steel)
SEU
(Pre-Assembly Insertion
Spring Nuts)
SSU
(Pre-Assembly Insertion
Spring Nuts
Stainless steel)
SEP
(Post-Assembly Insertion
Spring Nuts)
SSP
(Post-Assembly
Spring Nut
Stainless steel)
SEC
(Captured Washer
Screw, Nut)
Applicable screws and nuts for fixing the brackets on extrusions come in a set.

Example: When HBLTD6 is specified
 ScrewsNut
CodePart NumberQuantityPart NumberQuantity
SETCBM6-154HNTT6-64
SSTSCB6-15HNTTSN6-6
SEUCBM6-15HNTU6-6
SSUSCB6-15SHNTU6-6
SEPCBM6-15HNTP6-6
SSPSCB6-15SHNTP6-6
SECHCBST6-20HNTT6-6

[ ! ] When specifying other than HBLTD6, check for the applicable screws and nuts.
·

NBLTD6
HBLTD6
HBLTDB6
CHBLTD6
HBLTD6−50
HBLUD6
HBLUDB6
HBLUD6−50
HBLTDW6
HBLDDW6
[ ! ] Screws for black anodized brackets are made of HCBMTB (Trivalent Chromate Black).
[ ! ] Included Screw is not RoHS compliant when -SET, -SEU or -SEP is specified for any bracket other than black anodized ones.

Alteration Details

■Mounting Hole Alteration for Cover (-C)

M5 tapped holes can be added on both sides.
Alteration part number example: HBLTD6-C



■Set of applicable Screws and Nuts Details

Alteration Part NumberScrewsNut
Part NumberMaterialTypePart NumberMaterialStopper
SETCBM6-15SteelPre-AssemblyHNTT6-6SteelNot Provided
SSTSCB6-15Stainless SteelPre-AssemblyHNTTSN6-6Stainless SteelNot Provided
SEUCBM6-15SteelPre-AssemblyHNTU6-6SteelProvided
SSUSCB6-15Stainless SteelPre-AssemblySHNTU6-6Stainless SteelProvided
SEPCBM6-15SteelPost-AssemblyHNTP6-6SteelProvided
SSPSCB6-15Stainless SteelPost-AssemblySHNTP6-6Stainless SteelProvided
SECHCBST6-20Steel (With Washers)Pre-AssemblyHNTT6-6SteelNot Provided

Similar Products

■6 Series (Slot Width 8 mm) - For Multiple Slots - Extruded Brackets

Product NameExtruded Thick BracketsExtruded Ultra Thick BracketsThick / Triangle BracketThin Brackets
Product Photo

6 Series (Slot Width 8 mm) - For 2 Slots, Extruded Thick Brackets, Related Image 1_Similar Products

6 Series (Slot Width 8 mm) - For 2 Slots, Extruded Thick Brackets, Related Image 2_Similar Products

6 Series (Slot Width 8 mm) - For 2 Slots, Extruded Thick Brackets, Related Image 3_Similar Products

6 Series (Slot Width 8 mm) - For 2 Slots, Extruded Thick Brackets, Related Image 4_Similar Products

FeaturesMade of the same material as aluminum extrusions with anodizing. Suitable when appearance well balanced with the extrusions is desired.Numbers of screws are the same as those of thick brackets. Extrusions can be connected more securely.4 mounting holes are provided on one side. Extrusions can be connected more securely with 8 screws.The brackets do not protrude from extrusion widths when used to cross connect extrusions. Suitable for use in limited space.
Allowable Load (N)1,960 (2 Slots), 2,744 (3 Slots)1,960 (2 Slots), 2,744 (3 Slots)2,940 (2 Slots), 4,116 (3 Slots)1,568 (2 Slots), 2,352 (3 Slots)
For 2 SlotsThis ProductFor 30, 60 Square/50 SquareFor 30, 60 SquareFor 30, 50, 60, 90 Square
For 3 Slots and 4 SlotsFor 90 SquareFor 90 Square/100 SquareFor 90 Square/100 Square


■Difference between extruded brackets and tabbed brackets

[This Product]Extruded Brackets

6 Series (Slot Width 8 mm) - For 2 Slots, Extruded Thick Brackets, Related Image 1_Differences in Brackets

·The extruded brackets are made of EN AW-6061-T5 Equiv., manufactured by aluminum extrusion. Surfaces are anodized.
·Suitable when appearance well balanced with the extrusions is desired. Designed to prevent dust from building up.
·With more strength than tabbed brackets, it is ideal for areas that require strength.
For 2 Slots
Tabbed Brackets

6 Series (Slot Width 8 mm) - For 2 Slots, Extruded Thick Brackets, Related Image 2_Differences in Brackets

·The tabbed brackets are molded brackets made of EN AC-46100 Equiv. material. With no anodize treatment as a rule, the prices are economical compared to extruded brackets of the same size.
·Since the tabs stop rotating the brackets when tightening, work efficiency is improved.
·Various types of brackets with additional functions are available.

Technical Information

■Perpendicularity

Perpendicularity of Extruded Brackets is manufactured within ±1° tolerance based on JIS Standard H4100 Special Grade.
(For 6 series: Squareness 0.03 and 0.06 are available.)



■How to Specify Allowable Load of Bracket


6 Series (Slot Width 8 mm) - For 2 Slots, Extruded Thick Brackets, Related Image 1_Technical Information
This represents the allowable load per bracket for the extrusion assembly structured by bridging a beam extrusion between two vertical extrusions and then, attaching a bracket just below the bottom face of each end of the beam extrusion.
Allowable Load here means the load under which the bracket can stays at its position (without fracturing or sliding), after all of its mounting holes are fixed with screws.


■Mechanical Properties of Aluminum Extrusions (JIS standard as reference)

Material (JIS Symbol)EN AW-6063-T5 Equiv.EN AW-6061-T5 Equiv.
Tensile Strength (N/mm2)155 or more245 or more
Yield Stress (N/mm2)110 or more205 or more
Young's Modulus (N/mm2)6997269972
Brinell Hardness (HB)8888
Surface TreatmentAnodize 9 µm or moreAnodize 9 µm or more

Lista de números de peça

Número de itens

Material

Surface Treatment

Extrusion Size

Cover Mounting Hole Addition Work

Accessories

RoHS?Quantidade mínima de encomenda
EN AC-51400-T5 Equiv.
Clear Coating
For 30 and 60
Not Provided
Not Provided
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Coating
For 30 and 60
C (Tap for Cover Mounting)
Not Provided
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Coating
For 30 and 60
C (Tap for Cover Mounting)
SEC (Washer Integrated Screw and Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Coating
For 30 and 60
C (Tap for Cover Mounting)
SEP (Screw, Post-Assembly Insertion Spring Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Coating
For 30 and 60
C (Tap for Cover Mounting)
SET (Screw, Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Coating
For 30 and 60
C (Tap for Cover Mounting)
SEU (Screw, Pre-Assembly Insertion Spring Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Coating
For 30 and 60
C (Tap for Cover Mounting)
SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Coating
For 30 and 60
C (Tap for Cover Mounting)
SST (Stainless Steel Screw and Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Coating
For 30 and 60
C (Tap for Cover Mounting)
SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Coating
For 30 and 60
Not Provided
SEC (Washer Integrated Screw and Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Coating
For 30 and 60
Not Provided
SEP (Screw, Post-Assembly Insertion Spring Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Coating
For 30 and 60
Not Provided
SET (Screw, Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Coating
For 30 and 60
Not Provided
SEU (Screw, Pre-Assembly Insertion Spring Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Coating
For 30 and 60
Not Provided
SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Coating
For 30 and 60
Not Provided
SST (Stainless Steel Screw and Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Coating
For 30 and 60
Not Provided
SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
Not Provided
Not Provided
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For both 50 and 100
Not Provided
Not Provided
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For both 50 and 100
C (Tap for Cover Mounting)
Not Provided
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For both 50 and 100
C (Tap for Cover Mounting)
SEC (Washer Integrated Screw and Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For both 50 and 100
C (Tap for Cover Mounting)
SEP (Screw, Post-Assembly Insertion Spring Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For both 50 and 100
C (Tap for Cover Mounting)
SET (Screw, Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For both 50 and 100
C (Tap for Cover Mounting)
SEU (Screw, Pre-Assembly Insertion Spring Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For both 50 and 100
C (Tap for Cover Mounting)
SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For both 50 and 100
C (Tap for Cover Mounting)
SST (Stainless Steel Screw and Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For both 50 and 100
C (Tap for Cover Mounting)
SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For both 50 and 100
Not Provided
SEC (Washer Integrated Screw and Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For both 50 and 100
Not Provided
SEP (Screw, Post-Assembly Insertion Spring Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For both 50 and 100
Not Provided
SET (Screw, Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For both 50 and 100
Not Provided
SEU (Screw, Pre-Assembly Insertion Spring Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For both 50 and 100
Not Provided
SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For both 50 and 100
Not Provided
SST (Stainless Steel Screw and Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For both 50 and 100
Not Provided
SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
C (Tap for Cover Mounting)
Not Provided
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
C (Tap for Cover Mounting)
SEC (Washer Integrated Screw and Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
C (Tap for Cover Mounting)
SEP (Screw, Post-Assembly Insertion Spring Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
C (Tap for Cover Mounting)
SET (Screw, Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
C (Tap for Cover Mounting)
SEU (Screw, Pre-Assembly Insertion Spring Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
C (Tap for Cover Mounting)
SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
C (Tap for Cover Mounting)
SST (Stainless Steel Screw and Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
C (Tap for Cover Mounting)
SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
Not Provided
SEC (Washer Integrated Screw and Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
Not Provided
SEP (Screw, Post-Assembly Insertion Spring Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
Not Provided
SET (Screw, Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
Not Provided
SEU (Screw, Pre-Assembly Insertion Spring Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
Not Provided
SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
Not Provided
SST (Stainless Steel Screw and Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
Not Provided
SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set)
-
1 unidades
EN AC-51400-T5 Equiv.
Black Anodized Aluminum
For 30 and 60
Not Provided
Not Provided
10
1 unidades
EN AC-51400-T5 Equiv.
Black Anodized Aluminum
For 30 and 60
Not Provided
SEP (Screw, Post-Assembly Insertion Spring Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Black Anodized Aluminum
For 30 and 60
Not Provided
SET (Screw, Nut Set)
10
1 unidades
EN AC-51400-T5 Equiv.
Black Anodized Aluminum
For 30 and 60
Not Provided
SEU (Screw, Pre-Assembly Insertion Spring Nut Set)
10
1 unidades
EN AW-6063-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
Not Provided
Not Provided
10
1 unidades
EN AW-6063-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
C (Tap for Cover Mounting)
Not Provided
10
1 unidades
EN AW-6063-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
C (Tap for Cover Mounting)
SEC (Washer Integrated Screw and Nut Set)
10
1 unidades
EN AW-6063-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
C (Tap for Cover Mounting)
SEP (Screw, Post-Assembly Insertion Spring Nut Set)
-
1 unidades
EN AW-6063-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
C (Tap for Cover Mounting)
SET (Screw, Nut Set)
-
1 unidades
EN AW-6063-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
C (Tap for Cover Mounting)
SEU (Screw, Pre-Assembly Insertion Spring Nut Set)
-
1 unidades
EN AW-6063-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
C (Tap for Cover Mounting)
SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set)
10
1 unidades
EN AW-6063-T5 Equiv.
Clear Anodized Aluminum
For 30 and 60
C (Tap for Cover Mounting)
SST (Stainless Steel Screw and Nut Set)
10
1 unidades
Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)
Data de envio standard
3.27 €
( 3.89 € )
5 dias úteis
3.90 €
( 4.64 € )
5 dias úteis
7.58 €
( 9.02 € )
5 dias úteis
6.78 €
( 8.07 € )
5 dias úteis
6.12 €
( 7.28 € )
5 dias úteis
6.78 €
( 8.07 € )
5 dias úteis
7.33 €
( 8.72 € )
5 dias úteis
6.32 €
( 7.52 € )
5 dias úteis
8.48 €
( 10.09 € )
5 dias úteis
6.95 €
( 8.27 € )
5 dias úteis
6.15 €
( 7.32 € )
5 dias úteis
5.48 €
( 6.52 € )
5 dias úteis
6.15 €
( 7.32 € )
5 dias úteis
6.71 €
( 7.98 € )
5 dias úteis
5.70 €
( 6.78 € )
5 dias úteis
7.85 €
( 9.34 € )
5 dias úteis
2.36 €
( 2.81 € )
Item em stock: 1 dia útilDisponível para envio no próprio dia
2.41 €0.72 €
( 0.86 € )
Item em stock: 1 dia útilDisponível para envio no próprio dia
2.80 €0.95 €
( 1.13 € )
Item em stock: 1 dia útilDisponível para envio no próprio dia
7.94 €
( 9.45 € )
5 dias úteis
5.65 €
( 6.72 € )
5 dias úteis
5.02 €
( 5.97 € )
5 dias úteis
5.65 €
( 6.72 € )
5 dias úteis
6.03 €
( 7.18 € )
5 dias úteis
5.02 €
( 5.97 € )
5 dias úteis
7.18 €
( 8.54 € )
5 dias úteis
7.56 €
( 9.00 € )
5 dias úteis
5.28 €
( 6.28 € )
5 dias úteis
4.62 €
( 5.50 € )
5 dias úteis
5.28 €
( 6.28 € )
5 dias úteis
5.63 €
( 6.70 € )
5 dias úteis
4.62 €
( 5.50 € )
5 dias úteis
6.80 €
( 8.09 € )
5 dias úteis
2.74 €
( 3.26 € )
Item em stock: 1 dia útilDisponível para envio no próprio dia
6.41 €
( 7.63 € )
5 dias úteis
5.60 €
( 6.66 € )
5 dias úteis
4.95 €
( 5.89 € )
5 dias úteis
5.60 €
( 6.66 € )
5 dias úteis
5.95 €
( 7.08 € )
5 dias úteis
4.95 €
( 5.89 € )
5 dias úteis
7.12 €
( 8.47 € )
5 dias úteis
6.04 €
( 7.19 € )
5 dias úteis
5.22 €
( 6.21 € )
5 dias úteis
4.57 €
( 5.44 € )
5 dias úteis
5.22 €
( 6.21 € )
5 dias úteis
5.58 €
( 6.64 € )
5 dias úteis
4.57 €
( 5.44 € )
5 dias úteis
6.75 €
( 8.03 € )
5 dias úteis
3.48 €
( 4.14 € )
5 dias úteis
6.95 €
( 8.27 € )
5 dias úteis
5.70 €
( 6.78 € )
5 dias úteis
6.95 €
( 8.27 € )
5 dias úteis
2.02 €
( 2.40 € )
5 dias úteis
2.39 €
( 2.84 € )
5 dias úteis
6.07 €
( 7.22 € )
5 dias úteis
5.26 €
( 6.26 € )
5 dias úteis
4.60 €
( 5.47 € )
5 dias úteis
5.26 €
( 6.26 € )
5 dias úteis
5.61 €
( 6.68 € )
5 dias úteis
4.60 €
( 5.47 € )
5 dias úteis

Informações detalhadas

Informações básicas


A 2-row grooved frame can be connected with a single bracket. This type is made of the same material as the anodised aluminium profiles. It is suitable if you want to unify the outer appearance with the frame.
