Bakelite Plates / Paper Based

Número da peça:

Indefinido. 57 candidatos encontrados.
Quantidade:

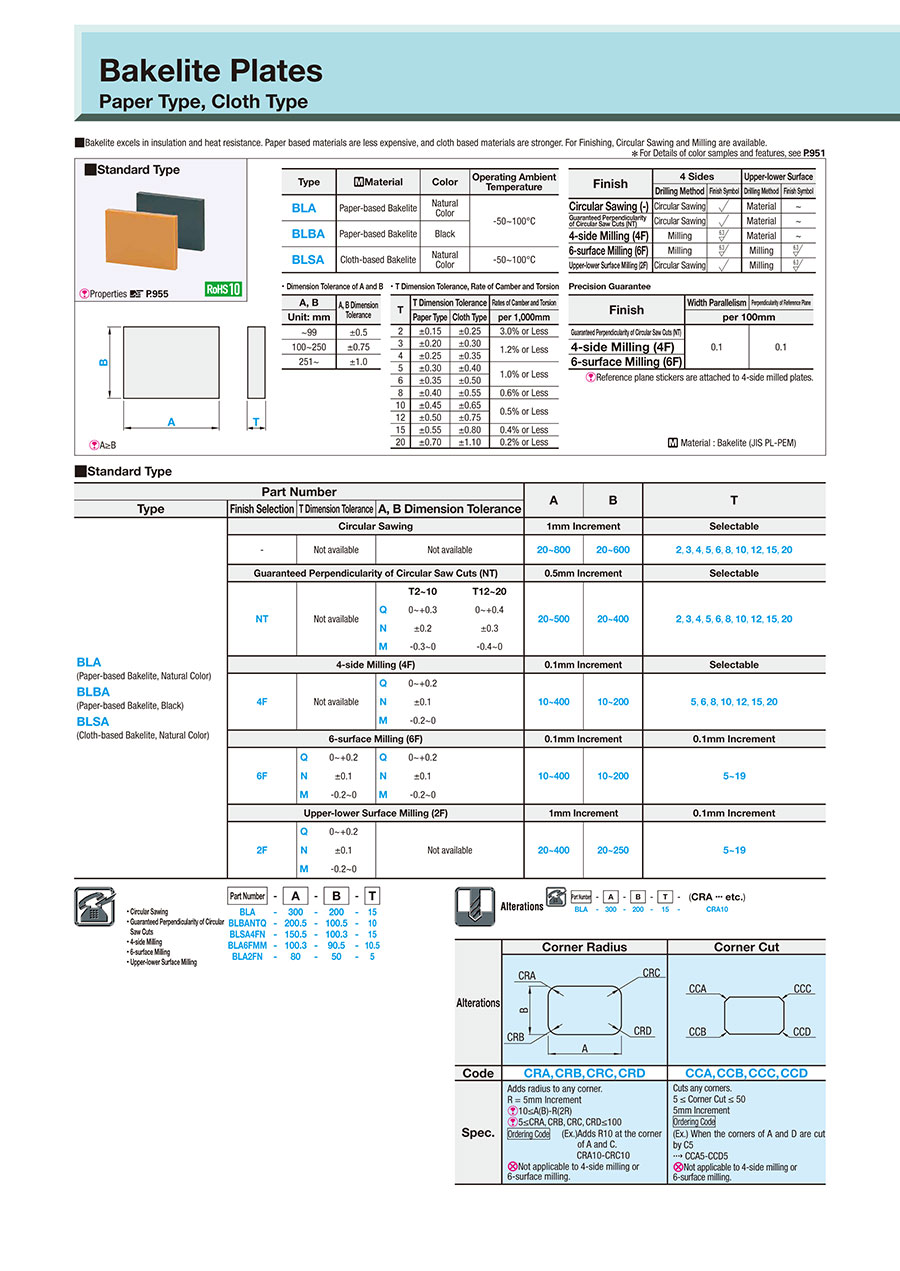

Desenho de contorno e tabela de especificações

Bakelite Plates/Paper Based:Related Image

Type MaterialColorOperating Ambient Temperature
BLAPaper-based BakeliteNatural Color-50~100°C
BLBAPaper-based BakeliteBlack
BLSACloth-based BakeliteNatural Color-50~100°C
  Material : Bakelite (JIS PL-PEM)

Specifications

  Part Number-A-B-T
• Circular Sawing
• Guaranteed Perpendicularity of Circular Saw Cuts
• 4-side Milling
• 6-surface Milling
• Upper-lower Surface Milling
BLA
BLBANTQ
BLSA4FN
BLA6FMM
BLA2FN
-
-
-
-
-
300
200.5
150.5
100.3
80
-
-
-
-
-
200
100.5
100.3
90.5
50
-
-
-
-
-
15
10
15
10.5
5
 ■ Standard Type
Part NumberABT
TypeFinish SelectionT Dimension ToleranceA, B Dimension Tolerance
BLA
(Paper-based Bakelite, Natural Color)
BLBA
(Paper-based Bakelite, Black)
BLSA
(Cloth-based Bakelite, Natural Color)
Circular Sawing1mm IncrementSelectable
-Not availableNot available20~80020~6002, 3, 4, 5, 6, 8, 10, 12, 15, 20
Guaranteed Perpendicularity of Circular Saw Cuts (NT)0.5mm IncrementSelectable
NTNot availableT2~10T12~2020~50020~4002, 3, 4, 5, 6, 8, 10, 12, 15, 20
Q0~+0.30~+0.4
N±0.2±0.3
M-0.3~0-0.4~0
4-side Milling (4F)0.1mm IncrementSelectable
4FNot availableQ0~+0.210~40010~2005, 6, 8, 10, 12, 15, 20
N±0.1
M-0.2~0
6-surface Milling (6F)0.1mm Increment0.1mm Increment
6FQ0~+0.2Q0~+0.210~40010~200 5~19
N±0.1N±0.1
M-0.2~0M-0.2~0
Upper-lower Surface Milling (2F)1mm Increment0.1mm Increment
2FQ0~+0.2Not available20~40020~250 5~19
N±0.1
M-0.2~0
 ■ Pre-drilled Type
Part NumberABTFG
TypeT Dimension ToleranceNumber of Holes
BLA
(Paper-based Bakelite, Natural Color)
BLBA
(Paper-based Bakelite, Black)
BLSA
(Cloth-based Bakelite, Natural Color)
Circular Sawing1mm IncrementDimension Selection0.5mm Increment
Not available2H (Horizontal)
2HL (Vertical)
4H
6H
20~80020~6002, 3, 4, 5, 6, 8, 10, 12, 15, 20
(Selectable)
6~791.5
(2H, 4H)
4.5~595.5
(2HL)
6~395.5
(6H)
4.5~595.5
(2H)
6~591.5
(2HL, 4H, 6H)
Upper-lower Surface Milling (2F)
1mm Increment0.1mm Increment0.5mm Increment
2FQ 0~+0.2
2FN ±0.1
2FM -0.2~0
2H (Horizontal)
2HL
(Vertical)
4H
6H
20~40020~2505~19
(0.1mm Increment)
6~391.5
(2H, 4H)
4.5~395.5
(2HL)
6~195.5
(6H)
4.5~245.5
(2H)
6~241.5
(2HL, 4H, 6H)

T DimensionPre-drilled Hole Nominal Dia.
N (Through)Z (Counterbore Hole)M (Threaded Insert)L (Insert Length)
2~43
4
5
6
8
10
---
5-34Select from Table 1
6, 733456
8, 934534568
10~144563456810
15~2045683456810
Dimension F Specification Range: For 2H and 4H, d(d1)+2.5≤F≤A-d(d1)-5; for 2HL, d(d1)/2+2.5≤F≤A-d(d1)/2-2.5; for 6H, d(d1)+2.5≤F≤(A-d(d1)-5)/2.
Dimension G Specification Range: For 2H, d(d1)/2+2.5≤G≤B-d(d1)/2-2.5; for 2HL, 4H and 6H, d(d1)+2.5≤G≤B-d(d1)-5.
(d for through hole and threaded insert, d1 for counterbore)
For Pre-drilled Type, select N (through hole) or Z (counterbore hole); for Threaded Insert Type, select M (threaded insert) or L (insertion length).

Alterations

Bakelite Plates/Paper Based:Related Image

Lista de números de peça

Número de itens
Número da peça

Grade

Color

Finishing Method

T Dimension Tolerance

AB Dimension Tolerance

Material Name

A

(mm)

B

(mm)

T

(mm)

RoHS?Quantidade mínima de encomenda
Paper
Natural Color
Upper-lower Surface Milled
M (0/-0.2)
-
Paper-based Bakelite
20 ~ 400
20 ~ 250
5 ~ 19
10
1 unidades
Paper
Natural Color
Upper-lower Surface Milled
N (±0.1)
-
Paper-based Bakelite
20 ~ 400
20 ~ 250
5 ~ 19
10
1 unidades
Paper
Natural Color
Upper-lower Surface Milled
Q (+0.2/0)
-
Paper-based Bakelite
20 ~ 400
20 ~ 250
5 ~ 19
10
1 unidades
Paper
Natural Color
4-Side Milled
-
M (0/-0.2)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 30
10
1 unidades
Paper
Natural Color
4-Side Milled
-
N (±0.1)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 30
10
1 unidades
Paper
Natural Color
4-Side Milled
-
Q (+0.2/0)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 30
10
1 unidades
Paper
Natural Color
6-surface Milled
M (0/-0.2)
M (0/-0.2)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Paper
Natural Color
6-surface Milled
M (0/-0.2)
N (±0.1)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Paper
Natural Color
6-surface Milled
M (0/-0.2)
Q (+0.2/0)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Paper
Natural Color
6-surface Milled
N (±0.1)
M (0/-0.2)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Paper
Natural Color
6-surface Milled
N (±0.1)
N (±0.1)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Paper
Natural Color
6-surface Milled
N (±0.1)
Q (+0.2/0)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Paper
Natural Color
6-surface Milled
Q (+0.2/0)
M (0/-0.2)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Paper
Natural Color
6-surface Milled
Q (+0.2/0)
N (±0.1)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Paper
Natural Color
6-surface Milled
Q (+0.2/0)
Q (+0.2/0)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Paper
Natural Color
Circular Sawing
-
-
Paper-based Bakelite
20 ~ 1000
20 ~ 1000
2 ~ 30
10
1 unidades
Paper
Natural Color
Guaranteed Perpendicularity of Circular Sawing
-
-
Paper-based Bakelite
20 ~ 500
20 ~ 400
2 ~ 30
10
1 unidades
Paper
Natural Color
Guaranteed Perpendicularity of Circular Sawing
-
-
Paper-based Bakelite
20 ~ 500
20 ~ 400
2 ~ 30
10
1 unidades
Paper
Natural Color
Guaranteed Perpendicularity of Circular Sawing
-
-
Paper-based Bakelite
20 ~ 500
20 ~ 400
2 ~ 30
10
1 unidades
Paper
Black
Upper-lower Surface Milled
M (0/-0.2)
-
Paper-based Bakelite
20 ~ 400
20 ~ 250
5 ~ 19
10
1 unidades
Paper
Black
Upper-lower Surface Milled
N (±0.1)
-
Paper-based Bakelite
20 ~ 400
20 ~ 250
5 ~ 19
10
1 unidades
Paper
Black
Upper-lower Surface Milled
Q (+0.2/0)
-
Paper-based Bakelite
20 ~ 400
20 ~ 250
5 ~ 19
10
1 unidades
Paper
Black
4-Side Milled
-
M (0/-0.2)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 20
10
1 unidades
Paper
Black
4-Side Milled
-
N (±0.1)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 20
10
1 unidades
Paper
Black
4-Side Milled
-
Q (+0.2/0)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 20
10
1 unidades
Paper
Black
6-surface Milled
M (0/-0.2)
M (0/-0.2)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Paper
Black
6-surface Milled
M (0/-0.2)
N (±0.1)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Paper
Black
6-surface Milled
M (0/-0.2)
Q (+0.2/0)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Paper
Black
6-surface Milled
N (±0.1)
M (0/-0.2)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Paper
Black
6-surface Milled
N (±0.1)
N (±0.1)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Paper
Black
6-surface Milled
N (±0.1)
Q (+0.2/0)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Paper
Black
6-surface Milled
Q (+0.2/0)
M (0/-0.2)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Paper
Black
6-surface Milled
Q (+0.2/0)
N (±0.1)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Paper
Black
6-surface Milled
Q (+0.2/0)
Q (+0.2/0)
Paper-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Paper
Black
Circular Sawing
-
-
Paper-based Bakelite
20 ~ 1000
20 ~ 1000
2 ~ 20
10
1 unidades
Paper
Black
Guaranteed Perpendicularity of Circular Sawing
-
-
Paper-based Bakelite
20 ~ 500
20 ~ 400
2 ~ 20
10
1 unidades
Paper
Black
Guaranteed Perpendicularity of Circular Sawing
-
-
Paper-based Bakelite
20 ~ 500
20 ~ 400
2 ~ 20
10
1 unidades
Paper
Black
Guaranteed Perpendicularity of Circular Sawing
-
-
Paper-based Bakelite
20 ~ 500
20 ~ 400
2 ~ 20
10
1 unidades
Cloth
Natural Color
Upper-lower Surface Milled
M (0/-0.2)
-
Fabric-based Bakelite
20 ~ 400
20 ~ 250
5 ~ 19
10
1 unidades
Cloth
Natural Color
Upper-lower Surface Milled
N (±0.1)
-
Fabric-based Bakelite
20 ~ 400
20 ~ 250
5 ~ 19
10
1 unidades
Cloth
Natural Color
Upper-lower Surface Milled
Q (+0.2/0)
-
Fabric-based Bakelite
20 ~ 400
20 ~ 250
5 ~ 19
10
1 unidades
Cloth
Natural Color
4-Side Milled
-
M (0/-0.2)
Fabric-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 30
10
1 unidades
Cloth
Natural Color
4-Side Milled
-
N (±0.1)
Fabric-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 30
10
1 unidades
Cloth
Natural Color
4-Side Milled
-
Q (+0.2/0)
Fabric-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 30
10
1 unidades
Cloth
Natural Color
6-surface Milled
M (0/-0.2)
M (0/-0.2)
Fabric-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Cloth
Natural Color
6-surface Milled
M (0/-0.2)
N (±0.1)
Fabric-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Cloth
Natural Color
6-surface Milled
M (0/-0.2)
Q (+0.2/0)
Fabric-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Cloth
Natural Color
6-surface Milled
N (±0.1)
M (0/-0.2)
Fabric-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Cloth
Natural Color
6-surface Milled
N (±0.1)
N (±0.1)
Fabric-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Cloth
Natural Color
6-surface Milled
N (±0.1)
Q (+0.2/0)
Fabric-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Cloth
Natural Color
6-surface Milled
Q (+0.2/0)
M (0/-0.2)
Fabric-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Cloth
Natural Color
6-surface Milled
Q (+0.2/0)
N (±0.1)
Fabric-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Cloth
Natural Color
6-surface Milled
Q (+0.2/0)
Q (+0.2/0)
Fabric-based Bakelite
10 ~ 400
10 ~ 200
5 ~ 19
10
1 unidades
Cloth
Natural Color
Circular Sawing
-
-
Fabric-based Bakelite
20 ~ 1000
20 ~ 1000
2 ~ 30
10
1 unidades
Cloth
Natural Color
Guaranteed Perpendicularity of Circular Sawing
-
-
Fabric-based Bakelite
20 ~ 500
20 ~ 400
2 ~ 30
10
1 unidades
Cloth
Natural Color
Guaranteed Perpendicularity of Circular Sawing
-
-
Fabric-based Bakelite
20 ~ 500
20 ~ 400
2 ~ 30
10
1 unidades
Cloth
Natural Color
Guaranteed Perpendicularity of Circular Sawing
-
-
Fabric-based Bakelite
20 ~ 500
20 ~ 400
2 ~ 30
10
1 unidades
Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)
Data de envio standard
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
5 dias úteis
-
( - )
5 dias úteis
-
( - )
5 dias úteis
-
( - )
5 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
5 dias úteis
-
( - )
5 dias úteis
-
( - )
5 dias úteis
-
( - )
5 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
7 dias úteis
-
( - )
5 dias úteis
-
( - )
5 dias úteis
-
( - )
5 dias úteis
-
( - )
5 dias úteis

Informações detalhadas

Informações básicas
