Locating pins / round / chamfered flat head / internal thread

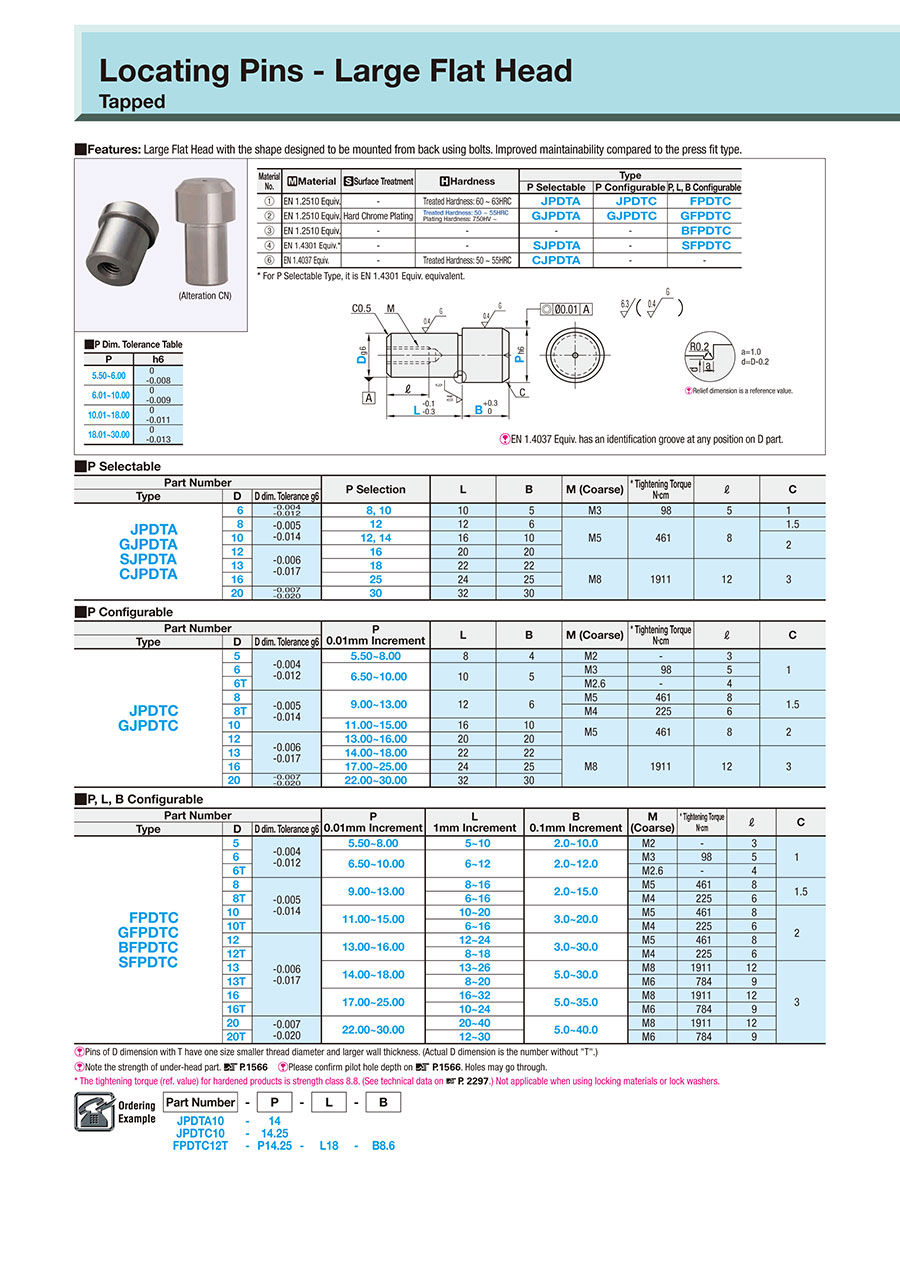

CatálogoP. 1-1595

Número da peça:

Indefinido. 112 candidatos encontrados.

Desenho de contorno e tabela de especificações
Lista de números de peça
Informações detalhadas
Catálogo

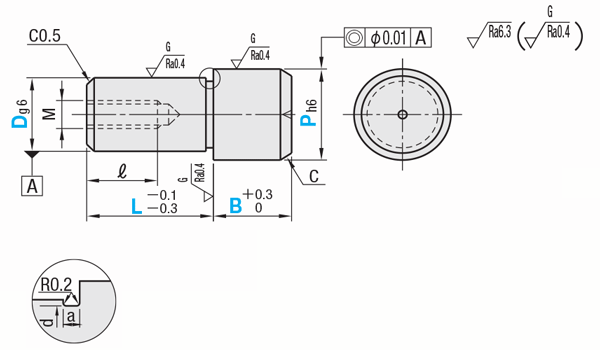

Desenho de contorno e tabela de especificações

a = 1.0
d = D - 0.2
[ ! ] Relief dimensions are reference values.

Locating Pin - Large Flat Head, Tapped: Related Image

[ ! ] EN 1.4301 Equiv. products may not be polished and have no centering hole.
[ ! ] For EN 1.4125 Equiv., an identification groove is provided at any position on D part.

Material	[M] Material	[S] Surface Treatment	[H] Hardness	Type
No.	[M] Material	[S] Surface Treatment	[H] Hardness	P Fixed	P Configurable	P, L, B Configurable
(1)	EN 1.2510 Equiv.	—	Treated Hardness: 60 to 63 HRC	JPDTA	JPDTC	FPDTC
(2)	EN 1.2510 Equiv.	Hard Chrome Plating	Treated Hardness: 50 to 55 HRC	GJPDTA	GJPDTC	GFPDTC
(2)	EN 1.2510 Equiv.	Hard Chrome Plating	Plating Hardness: 750 HV or more	GJPDTA	GJPDTC	GFPDTC
(3)	EN 1.2510 Equiv.	—	—	—	BFPDTC
(4)	EN 1.4301 Equiv.^*	—	—	SJPDTA	—	SFPDTC
(6)	EN 1.4125 Equiv.	—	Treated Hardness: 50 to 55 HRC	CJPDTA	—	—

* For P Fixed Type, it is EN 1.4301 Equiv.

Specification Table

Part Number	—	P	—	L	—	B
JPDTA10 JPDTC10 FPDTC12T	— — —	14 14.25 P14.25	—	L18	—	B8.6

■P Dim. Tolerance Table

P	h6
5.50 to 6.00	0 (−) 0.008
6.01 to 10.00	0 (−) 0.009
10.01 to 18.00	0 (−) 0.011
18.01 to 30.00	0 (−) 0.013

■P Fixed Type

Part Number			P Selection	L	B	M (Coarse)	^* Tightening Torque N・cm	ℓ	C
Type	D	D dim. Tolerance g6
JPDTA GJPDTA SJPDTA CJPDTA	6	−0.004 −0.012	8·10	10	5	M3	98	5	1
	8	−0.005 −0.014	12	12	6	M5	461	8	1.5
	10		12·14	16	10				2
	12	−0.006 −0.017	16	20	20
	13		18	22	22	M8	1911	12	3
	16		25	24	25
	20	−0.007 −0.020	30	32	30

		Mass (g) Ref. Value
D	P	EN 1.2510 Equiv.	EN 1.4301 Equiv.	EN 1.4125 Equiv.
6	8	3.92	3.99	3.95
6	10	5.03	5.12	5.07
8	12	8.84	8.99	8.91
10	12	17.52	19.47	17.68
10	14	20.73	21.10	20.92
12	16	48.13	48.98	—
13	18	62.18	—	—
16	25	129.58	131.89	—
20	30	240.83	—	—

■P Configurable

Part Number			P 0.01 mm Increments	L	B	M	^* Tightening Torque	l	C
Type	D	D dim. Tolerance g6				(Coarse)	N・cm
JPDTC GJPDTC	5	-0.004 -0.012	5.50 to 8.00	8	4	M2	—	3	1
	6		6.50 to 10.00	10	5	M3	98	5
	6T					M2.6	—	4
	8	-0.005 -0.014	9.00 to 13.00	12	6	M5	461	8	1.5
	8T					M4	225	6
	10		11.00 to 15.00	16	10	M5	461	8	2
	12	-0.006 -0.017	13.00 to 16.00	20	20
	13		14.00 to 18.00	22	22	M8	1911	12	3
	16		17.00 to 25.00	24	25
	20	-0.007	22.00 to 30.00	32	30
		-0.020

■P, L, B Configurable

Part Number			P 0.01 mm Increments	L 1 mm Increments	B 0.1 mm Increments	M (Coarse)	^* Tightening Torque N・cm	ℓ	C
Type	D	D dim. Tolerance g6	P 0.01 mm Increments	L 1 mm Increments	B 0.1 mm Increments	M (Coarse)	^* Tightening Torque N・cm	ℓ	C
FPDTC GFPDTC BFPDTC SFPDTC	5	−0.004 −0.012	5.50 to 8.00	5 to 10	1.5 to 15.0	M2	—	3	1
	6		6.50 to 10.00	6 to 12	1.5 to 15.0	M3	98	5
	6T		6.50 to 10.00	6 to 12	1.5 to 15.0	M2.6	—	4
	8	−0.005 −0.014	8.50 to 15.00	8 to 16	1.5 to 30.0	M5	461	8	1.5
	8T		8.50 to 15.00	6 to 16	1.5 to 30.0	M4	225	6	1.5
	10		11.00 to 17.00	10 to 20	3.0 to 30.0	M5	461	8	2
	10T		11.00 to 17.00	6 to 16	3.0 to 30.0	M4	225	6
	12	−0.006 −0.017	13.00 to 18.00	12 to 24	3.0 to 30.0	M5	461	8
	12T		13.00 to 18.00	8 to 18	3.0 to 30.0	M4	225	6
	13		14.00 to 20.00	13 to 26	5.0 to 30.0	M8	1911	12	3
	13T		14.00 to 20.00	8 to 20	5.0 to 30.0	M6	784	9
	16		17.00 to 27.00	16 to 32	5.0 to 35.0	M8	1911	12
	16T		17.00 to 27.00	10 to 24	5.0 to 35.0	M6	784	9
	20	−0.007 −0.020	22.00 to 30.00	20 to 40	5.0 to 40.0	M8	1911	12
	20T	−0.007 −0.020	22.00 to 30.00	12 to 30	5.0 to 40.0	M6	784	9

[!] Pins having "T" inserted after the D dimension have one size smaller thread diameter and larger wall thickness. (Actual D dimension is the number without "T".)
[ ! ]Holes may go through.
*The tightening torque (ref. value) for hardened products is strength class 8.8. Not applicable when using locking materials or lock washers.

Alterations
Code

Alteration Details

Application Conditions

Ordering Example

Stem R Alterations

Changes the relief to R0.5　
[ ! ] Applicable when P - D ≥ 2
[NG] Combination with RAC or LAC is not available

SFPDTC8-P10.00-L10-B13.0-RC

C Chamfered Size

Changes C Chamfering at P dimension part to 0.5 or less.
[NG] Not applicable to D dimension part.

SFPDTC8-P10.00-L10-B13.0-CN

RAC

Adds a hex socket

[NG] Combination with RC or LAC is not available

D	Applicable Dimensions		Hex Hole Dimensions
D	L	B	E	S
5	8 or more	8.0 or more	2	2
6 6T	10 or more	8.0 or more	2	3
8 8T	10 or more	12.5 or more	2.5	4
10 10T	12 or more	13.0 or more	3	5
12 12T	12 or more	16.0 or more	4	6
13 13T	15 or more	19.0 or more	4	6
16 16T	16 or more	20.0 or more	5	8
20 20T	20 or more	20.0 or more	5	8

SFPDTC8-P10.00-L10-B13.0-RAC

LAC

Adds a wrench hole

[NG] Combination with RC or RAC is not available

D	Applicable Dimensions	Wrench Hole Dimensions
D	B	P	Q
5	8.0 or more	5.50 to 9.99	2
6 6T	8.0 or more	10.00 to 16.99	3.5
8 8T	9.0 or more	17.00 or more	5
10 10T	9.0 or more
12 12T	9.0 or more
13 13T	14.0 or more
16 16T	15.0 or more
20 20T	15.0 or more

SFPDTC8-P10.00-L10-B13.0-LAC

[NG] Alterations are not available for P Fixed Type

Lista de números de peça

Número de itens

Seguinte

Número da peça

BFPDTC5-P[5.5-8/0.01]-L[5-10/1]-B[2-10/0.1]

BFPDTC6-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]

BFPDTC6T-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]

BFPDTC8-P[9-13/0.01]-L[8-16/1]-B[2-15/0.1]

BFPDTC8T-P[9-13/0.01]-L[6-16/1]-B[2-15/0.1]

BFPDTC10-P[11-15/0.01]-L[10-20/1]-B[3-20/0.1]

BFPDTC10T-P[11-15/0.01]-L[6-16/1]-B[3-20/0.1]

BFPDTC12-P[13-16/0.01]-L[12-24/1]-B[3-30/0.1]

BFPDTC12T-P[13-16/0.01]-L[8-18/1]-B[3-30/0.1]

BFPDTC13-P[14-18/0.01]-L[13-26/1]-B[5-30/0.1]

BFPDTC13T-P[14-18/0.01]-L[8-20/1]-B[5-30/0.1]

BFPDTC16-P[17-25/0.01]-L[16-32/1]-B[5-35/0.1]

BFPDTC16T-P[17-25/0.01]-L[10-24/1]-B[5-35/0.1]

BFPDTC20-P[22-30/0.01]-L[20-40/1]-B[5-40/0.1]

BFPDTC20T-P[22-30/0.01]-L[12-30/1]-B[5-40/0.1]

FPDTC5-P[5.5-8/0.01]-L[5-10/1]-B[2-10/0.1]

FPDTC6-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]

FPDTC6T-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]

FPDTC8-P[9-15/0.01]-L[8-16/1]-B[2-15/0.1]

FPDTC8T-P[8.5-15/0.01]-L[6-16/1]-B[1-30/0.1]

FPDTC10-P[11-15/0.01]-L[10-20/1]-B[3-20/0.1]

FPDTC10T-P[11-15/0.01]-L[6-16/1]-B[3-20/0.1]

FPDTC12-P[13-16/0.01]-L[12-24/1]-B[3-30/0.1]

FPDTC12T-P[13-18/0.01]-L[8-18/1]-B[3-30/0.1]

FPDTC13-P[14-18/0.01]-L[13-26/1]-B[5-30/0.1]

FPDTC13T-P[14-18/0.01]-L[8-20/1]-B[5-30/0.1]

FPDTC16-P[17-25/0.01]-L[16-32/1]-B[5-35/0.1]

FPDTC16T-P[17-25/0.01]-L[10-24/1]-B[5-35/0.1]

FPDTC20-P[22-30/0.01]-L[20-40/1]-B[5-40/0.1]

FPDTC20T-P[22-30/0.01]-L[12-30/1]-B[5-40/0.1]

GFPDTC5-P[5.5-8/0.01]-L[5-10/1]-B[2-10/0.1]

GFPDTC6-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]

GFPDTC6T-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]

GFPDTC8-P[9-13/0.01]-L[8-16/1]-B[2-15/0.1]

GFPDTC8T-P[9-13/0.01]-L[8-16/1]-B[2-15/0.1]

GFPDTC10-P[11-15/0.01]-L[10-20/1]-B[3-20/0.1]

GFPDTC10T-P[11-15/0.01]-L[6-16/1]-B[3-20/0.1]

GFPDTC12-P[13-16/0.01]-L[12-24/1]-B[3-30/0.1]

GFPDTC12T-P[13-16/0.01]-L[8-18/1]-B[3-20/0.1]

GFPDTC13-P[14-18/0.01]-L[13-26/1]-B[5-30/0.1]

GFPDTC13T-P[14-18/0.01]-L[8-20/1]-B[5-30/0.1]

GFPDTC16-P[17-25/0.01]-L[16-32/1]-B[5-35/0.1]

GFPDTC16T-P[17-25/0.01]-L[10-24/1]-B[5-35/0.1]

GFPDTC20-P[22-30/0.01]-L[20-40/1]-B[5-40/0.1]

GFPDTC20T-P[22-30/0.01]-L[12-30/1]-B[5-40/0.1]
