Flow Rate Controller-Straight / Meter Out
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information

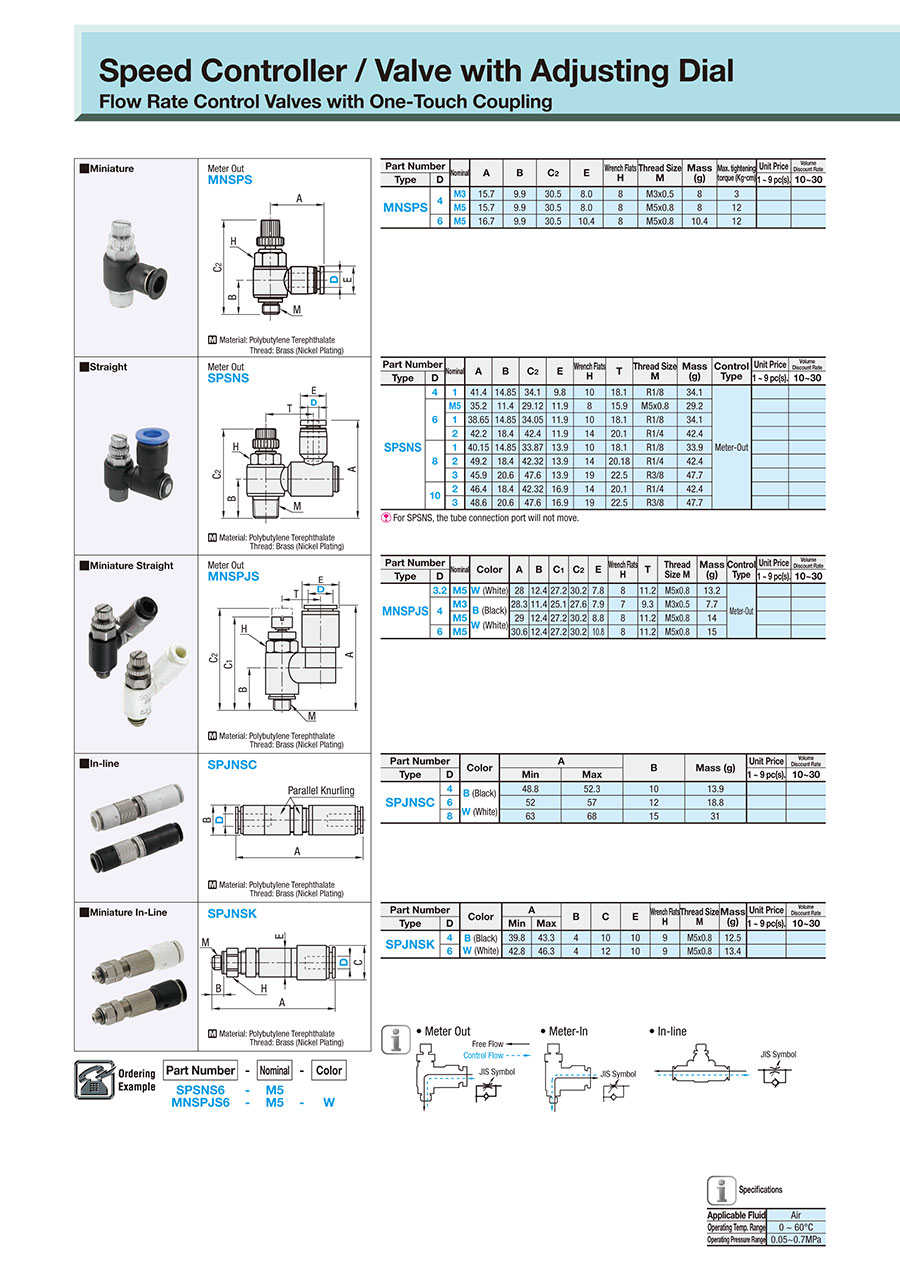

- Catalog
Material: Polybutylene Terephthalate
Thread: Brass (Nickel Plating)
Specifications
| Part Number | - | Nominal | - | Color |
| SPSNS6 MNSPJS6 | - - | M5 M5 | - | W |
| Part Number | Nominal | A | B | C2 | E | Wrench Flats H | T | Thread Size M | Mass (g) | Control Type | Unit Price | Volume Discount Rate | |
| Type | D | 1 ~ 9 pc(s). | 10~30 | ||||||||||
| SPSNS | 4 | 1 | 41.4 | 14.85 | 34.1 | 9.8 | 10 | 18.1 | R1/8 | 34.1 | Meter-Out | ||
| 6 | M5 | 35.2 | 11.4 | 29.12 | 11.9 | 8 | 15.9 | M5x0.8 | 29.2 | ||||
| 1 | 38.65 | 14.85 | 34.05 | 11.9 | 10 | 18.1 | R1/8 | 34.1 | |||||
| 2 | 42.2 | 18.4 | 42.4 | 11.9 | 14 | 20.1 | R1/4 | 42.4 | |||||
| 8 | 1 | 40.15 | 14.85 | 33.87 | 13.9 | 10 | 18.1 | R1/8 | 33.9 | ||||
| 2 | 49.2 | 18.4 | 42.32 | 13.9 | 14 | 20.18 | R1/4 | 42.4 | |||||
| 3 | 45.9 | 20.6 | 47.6 | 13.9 | 19 | 22.5 | R3/8 | 47.7 | |||||
| 10 | 2 | 46.4 | 18.4 | 42.32 | 16.9 | 14 | 20.1 | R1/4 | 42.4 | ||||
| 3 | 48.6 | 20.6 | 47.6 | 16.9 | 19 | 22.5 | R3/8 | 47.7 | |||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| SPSNS6-1 |
| SPSNS6-2 |
| SPSNS6-M5 |
| SPSNS8-1 |
| SPSNS8-2 |
| SPSNS8-3 |
| SPSNS10-2 |
| SPSNS10-3 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Tube O.D. D (mm) | Thread Nominal M | |
|---|---|---|---|---|---|---|
8.57 € | 1 | Available | 5 Days | 6 | 1 (R1/8) | |
9.06 € | 1 | Available | 5 Days | 6 | 2(R1/4) | |
8.31 € | 1 | Available | 5 Days | 6 | M5 | |
8.95 € | 1 | Available | 5 Days | 8 | 1 (R1/8) | |
9.06 € | 1 | Available | 5 Days | 8 | 2(R1/4) | |
11.07 € | 1 | Available | 5 Days | 8 | 3(R3/8) | |
10.45 € | 1 | Available | 5 Days | 10 | 2(R1/4) | |
11.46 € | 1 | Available | 5 Days | 10 | 3(R3/8) |
Loading...
More Information
Basic information
| Type | Speed Controllers | Control Type | Meter-Out | Joint Type | Threaded + One-Touch Fitting |
|---|---|---|---|---|---|
| Usage Environment/Application | Standard | Thread Material | Brass | Knob Type | With Straight Slot |
| Lock Nut Type | Lock Nuts | Operating Temperature Range(℃) | 0::60 | Operating Pressure Range(MPa) | 0.05::0.7 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
