Jig Pins / Standard(h7) / Circumference Groove

Condições de filtragem

Inlet Side Tip Shape
- Round
- Diamond
Material
Steel
EN 1.2379 Equiv.
EN 1.7220 Equiv.
EN 1.7242 Equiv.
Mounting Side Dia. D(Ø)
- 6
- 8
- 10
- 10T
- 12
- 16
- 20
Heat Treatment
- Directly Quenched
- Carburized
Concentricity
- Standard Class o0.03
- Standard Grade ø0.05 (With Surface Treatment)
Insertion Guide Section Outer Dia. P(Ø)
[8-35/0.1Ø unidades]
Positioning Part Length B(mm)
[2-30/1mm unidades]
Type
CAD
- 2D
- 3D
Dias de envio estimados
- Tudo
- Dentro de 7 dias úteis
- Dentro de 9 dias úteis

MISUMI

Jig Pins / Standard(h7) / Circumference Groove

CatálogoP. 1-1691

Número da peça:

Indefinido. 51 candidatos encontrados.

Desenho de contorno e tabela de especificações
Lista de números de peça
Informações detalhadas
Catálogo

Desenho de contorno e tabela de especificações

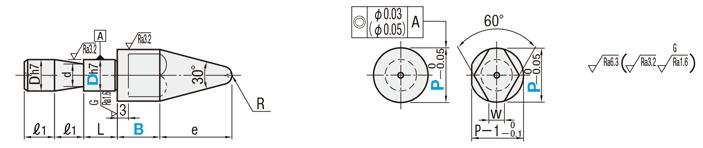

Dimensional Drawing

Locating Pins for Fixtures - Standard Grade, Not Shouldered, Set Screw: Related Image

(Round)

(Diamond)

[ ! ] e = P/2 ÷ tan 15° + R - (R ÷ sin 15°) Reference: sin 15° ≒ 0.259, tan 15° ≒ 0.267
[ ! ] Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m. However, angle dimension tolerances are excluded.
[ ! ] The coaxiality of the Dicoat treated and TiCN treated products will have the precision in ( ).
[ ! ] Dicoat Treated / TiCN Treated items do not come with a center hole.

Type		[M] Material	[H] Hardness	[S] Surface Treatment
ELNTA	Round	EN 1.7220 Equiv.	Hardened 35 to 40HRC	‐
ELNTD	Diamond
TELNTA	Round	EN 1.7242 Equiv.	Carburized 55HRC or more (Depth 0.7 to 0.8)
TELNTD	Diamond
R-LNTA	Round	EN 1.7220 Equiv.	35 to 40HRC (Surface 750HV or more)	Hard Chrome Plating
R-LNTD	Diamond
D-LNTA	Round	EN 1.2379 Equiv.	55HRC or more (Surface 3000 HV)	Dicoat Treated
D-LNTD	Diamond
H-LNTA	Round		55HRC or more (Surface 3000 HV)	TiCN Treatment
H-LNTD	Diamond

Specification Table

Part Number		—	P	—	B

Type	D
ELNTA	6	—	P10.0	—	B15	(Set Screw)

Part Number				P Ordering Code 0.1 mm Increments	B Ordering Code 1 mm Increments	L	ℓ₁	d	R	Applicable Set Screw	W
Type		D_h7
Round	Diamond	D_h7
ELNTA TELNTA R-LNTA D-LNTA H-LNTA	ELNTD TELNTD R-LNTD D-LNTD H-LNTD	6	0 －0.012	8.0 to 12.0	[ ! ]2 to 30	5	8	4	3	M5	3
		8	0 －0.015	10.0 to 16.0		5	8	5	4	M5	3.5
		10		12.0 to 20.0		10	8	7	4	M6	4
		10T		12.0 to 20.0		5	8	7	5	M6	5
		12	0 －0.018	14.0 to 25.0		12	10	9	6	M8	6
		16	0 －0.018	18.0 to 32.0		12	10	13	8	M8	8
		20	0 －0.021	22.0 to 35.0		12	10	17	8	M8	9

[ ! ] For Dicoat Treated / TiCN Treated products and the Diamond Shape, the value of 5 mm or more can be configured for the B dimension.

Alterations

Alterations Code	Alteration Details		Application Conditions	Ordering Example
MK	Wear Groove Alterations	Drill 4 grooves on the B dimension area. Abrasion management can be facilitated by checking the wear and tear of the grooves. Groove Depth: 0.2 mm (±0.05 mm) Groove Shape: V Groove (90°)	[ ! ] Applicable to Hardening, Carburized and Round Shape Products only [ ! ] Applicable when B ≥ 4	ELNTA6-P8.0-B14-MK
KC	Flat Position	Changes the flat position to 90° from the standard position 0°.	[ ! ] Applicable to Diamond Shape Type only	ELNTD8-P12.5-B15-KC
KD	Flat Machining	Machining on one side.	[ ! ] Applicable to Round Shape Type only	ELNTA6-P8.0-B14-KD
RC	Tip Angle Change	Changes the tip angle. Selection: 60°, 90°, 120° Ordering Code: RC60	-	ELNTA6-P8.0-B14-RC60

Lista de números de peça

Número de itens

Número da peça

D-LNTA6-P[8-12/0.1]-B[5-30/1]

D-LNTA8-P[10-16/0.1]-B[5-30/1]

D-LNTA10-P[12-20/0.1]-B[5-30/1]

D-LNTA10T-P[12-20/0.1]-B[5-30/1]

D-LNTA12-P[14-25/0.1]-B[5-30/1]

D-LNTD6-P[8-12/0.1]-B[5-30/1]

D-LNTD8-P[10-16/0.1]-B[5-30/1]

D-LNTD10-P[12-20/0.1]-B[5-30/1]

D-LNTD10T-P[12-20/0.1]-B[5-30/1]

D-LNTD12-P[14-25/0.1]-B[5-30/1]

ELNTA6-P[8-12/0.1]-B[2-30/1]

ELNTA8-P[10-16/0.1]-B[2-30/1]

ELNTA10-P[12-20/0.1]-B[2-30/1]

ELNTA10T-P[12-20/0.1]-B[2-30/1]

ELNTA12-P[14-25/0.1]-B[2-30/1]

ELNTA16-P[18-32/0.1]-B[2-30/1]

ELNTA20-P[22-35/0.1]-B[2-30/1]

ELNTD6-P[8-12/0.1]-B[5-30/1]

ELNTD8-P[10-16/0.1]-B[5-30/1]

ELNTD10-P[12-20/0.1]-B[5-30/1]

ELNTD10T-P[12-20/0.1]-B[5-30/1]

ELNTD12-P[14-25/0.1]-B[5-30/1]

ELNTD16-P[18-32/0.1]-B[5-30/1]

ELNTD20-P[22-35/0.1]-B[5-30/1]

H-LNTA10-P[12-20/0.1]-B[5-30/1]

H-LNTA10T-P[12-20/0.1]-B[5-30/1]

H-LNTA12-P[14-25/0.1]-B[5-30/1]

R-LNTA6-P[8-12/0.1]-B[2-30/1]

R-LNTA8-P[10-16/0.1]-B[2-30/1]

R-LNTA10-P[12-20/0.1]-B[2-30/1]

R-LNTA10T-P[12-20/0.1]-B[2-30/1]

R-LNTA12-P[14-25/0.1]-B[2-30/1]

R-LNTD6-P[8-12/0.1]-B[5-30/1]

R-LNTD8-P[10-16/0.1]-B[5-30/1]

R-LNTD10-P[12-20/0.1]-B[5-30/1]

R-LNTD10T-P[12-20/0.1]-B[5-30/1]

R-LNTD12-P[14-25/0.1]-B[5-30/1]

TELNTA6-P[8-12/0.1]-B[2-30/1]

TELNTA8-P[10-16/0.1]-B[2-30/1]

TELNTA10-P[12-20/0.1]-B[2-30/1]

TELNTA10T-P[12-20/0.1]-B[2-30/1]

TELNTA12-P[14-25/0.1]-B[2-30/1]

TELNTA16-P[18-32/0.1]-B[2-30/1]

TELNTA20-P[22-35/0.1]-B[2-30/1]

TELNTD6-P[8-12/0.1]-B[5-30/1]

TELNTD8-P[10-16/0.1]-B[5-30/1]

TELNTD10-P[12-20/0.1]-B[5-30/1]

TELNTD10T-P[12-20/0.1]-B[5-30/1]

TELNTD12-P[14-25/0.1]-B[5-30/1]

TELNTD16-P[18-32/0.1]-B[5-30/1]

TELNTD20-P[22-35/0.1]-B[5-30/1]

Inlet Side Tip Shape

Material

Mounting Side Dia. D

(Ø)

Heat Treatment

Concentricity

Insertion Guide Section Outer Dia. P

(Ø)

Positioning Part Length B

(mm)

RoHS?

Quantidade mínima de encomenda

Round	[Steel] EN 1.2379 Equiv.	6	Directly Quenched	Standard Grade ø0.05 (With Surface Treatment)	8 ～ 12	5 ～ 30	10	1 unidades
Round	[Steel] EN 1.2379 Equiv.	8	Directly Quenched	Standard Grade ø0.05 (With Surface Treatment)	10 ～ 16	5 ～ 30	10	1 unidades
Round	[Steel] EN 1.2379 Equiv.	10	Directly Quenched	Standard Grade ø0.05 (With Surface Treatment)	12 ～ 20	5 ～ 30	10	1 unidades
Round	[Steel] EN 1.2379 Equiv.	10T	Directly Quenched	Standard Grade ø0.05 (With Surface Treatment)	12 ～ 20	5 ～ 30	10	1 unidades
Round	[Steel] EN 1.2379 Equiv.	12	Directly Quenched	Standard Grade ø0.05 (With Surface Treatment)	14 ～ 25	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.2379 Equiv.	6	Directly Quenched	Standard Grade ø0.05 (With Surface Treatment)	8 ～ 12	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.2379 Equiv.	8	Directly Quenched	Standard Grade ø0.05 (With Surface Treatment)	10 ～ 16	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.2379 Equiv.	10	Directly Quenched	Standard Grade ø0.05 (With Surface Treatment)	12 ～ 20	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.2379 Equiv.	10T	Directly Quenched	Standard Grade ø0.05 (With Surface Treatment)	12 ～ 20	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.2379 Equiv.	12	Directly Quenched	Standard Grade ø0.05 (With Surface Treatment)	14 ～ 25	5 ～ 30	10	1 unidades
Round	[Steel] EN 1.7220 Equiv.	6	Directly Quenched	Standard Class o0.03	8 ～ 12	2 ～ 30	10	1 unidades
Round	[Steel] EN 1.7220 Equiv.	8	Directly Quenched	Standard Class o0.03	10 ～ 16	2 ～ 30	10	1 unidades
Round	[Steel] EN 1.7220 Equiv.	10	Directly Quenched	Standard Class o0.03	12 ～ 20	2 ～ 30	10	1 unidades
Round	[Steel] EN 1.7220 Equiv.	10T	Directly Quenched	Standard Class o0.03	12 ～ 20	2 ～ 30	10	1 unidades
Round	[Steel] EN 1.7220 Equiv.	12	Directly Quenched	Standard Class o0.03	14 ～ 25	2 ～ 30	10	1 unidades
Round	[Steel] EN 1.7220 Equiv.	16	Directly Quenched	Standard Class o0.03	18 ～ 32	2 ～ 30	10	1 unidades
Round	[Steel] EN 1.7220 Equiv.	20	Directly Quenched	Standard Class o0.03	22 ～ 35	2 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7220 Equiv.	6	Directly Quenched	Standard Class o0.03	8 ～ 12	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7220 Equiv.	8	Directly Quenched	Standard Class o0.03	10 ～ 16	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7220 Equiv.	10	Directly Quenched	Standard Class o0.03	12 ～ 20	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7220 Equiv.	10T	Directly Quenched	Standard Class o0.03	12 ～ 20	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7220 Equiv.	12	Directly Quenched	Standard Class o0.03	14 ～ 25	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7220 Equiv.	16	Directly Quenched	Standard Class o0.03	18 ～ 32	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7220 Equiv.	20	Directly Quenched	Standard Class o0.03	22 ～ 35	5 ～ 30	10	1 unidades
Round	[Steel] EN 1.2379 Equiv.	10	Directly Quenched	Standard Grade ø0.05 (With Surface Treatment)	12 ～ 20	5 ～ 30	10	1 unidades
Round	[Steel] EN 1.2379 Equiv.	10T	Directly Quenched	Standard Grade ø0.05 (With Surface Treatment)	12 ～ 20	5 ～ 30	10	1 unidades
Round	[Steel] EN 1.2379 Equiv.	12	Directly Quenched	Standard Grade ø0.05 (With Surface Treatment)	14 ～ 25	5 ～ 30	10	1 unidades
Round	[Steel] EN 1.7220 Equiv.	6	Directly Quenched	Standard Class o0.03	8 ～ 12	2 ～ 30	10	1 unidades
Round	[Steel] EN 1.7220 Equiv.	8	Directly Quenched	Standard Class o0.03	10 ～ 16	2 ～ 30	10	1 unidades
Round	[Steel] EN 1.7220 Equiv.	10	Directly Quenched	Standard Class o0.03	12 ～ 20	2 ～ 30	10	1 unidades
Round	[Steel] EN 1.7220 Equiv.	10T	Directly Quenched	Standard Class o0.03	12 ～ 20	2 ～ 30	10	1 unidades
Round	[Steel] EN 1.7220 Equiv.	12	Directly Quenched	Standard Class o0.03	14 ～ 25	2 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7220 Equiv.	6	Directly Quenched	Standard Class o0.03	8 ～ 12	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7220 Equiv.	8	Directly Quenched	Standard Class o0.03	10 ～ 16	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7220 Equiv.	10	Directly Quenched	Standard Class o0.03	12 ～ 20	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7220 Equiv.	10T	Directly Quenched	Standard Class o0.03	12 ～ 20	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7220 Equiv.	12	Directly Quenched	Standard Class o0.03	14 ～ 25	5 ～ 30	10	1 unidades
Round	[Steel] EN 1.7242 Equiv.	6	Carburized	Standard Class o0.03	8 ～ 12	2 ～ 30	10	1 unidades
Round	[Steel] EN 1.7242 Equiv.	8	Carburized	Standard Class o0.03	10 ～ 16	2 ～ 30	10	1 unidades
Round	[Steel] EN 1.7242 Equiv.	10	Carburized	Standard Class o0.03	12 ～ 20	2 ～ 30	10	1 unidades
Round	[Steel] EN 1.7242 Equiv.	10T	Carburized	Standard Class o0.03	12 ～ 20	2 ～ 30	10	1 unidades
Round	[Steel] EN 1.7242 Equiv.	12	Carburized	Standard Class o0.03	14 ～ 25	2 ～ 30	10	1 unidades
Round	[Steel] EN 1.7242 Equiv.	16	Carburized	Standard Class o0.03	18 ～ 32	2 ～ 30	10	1 unidades
Round	[Steel] EN 1.7242 Equiv.	20	Carburized	Standard Class o0.03	22 ～ 35	2 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7242 Equiv.	6	Carburized	Standard Class o0.03	8 ～ 12	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7242 Equiv.	8	Carburized	Standard Class o0.03	10 ～ 16	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7242 Equiv.	10	Carburized	Standard Class o0.03	12 ～ 20	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7242 Equiv.	10T	Carburized	Standard Class o0.03	12 ～ 20	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7242 Equiv.	12	Carburized	Standard Class o0.03	14 ～ 25	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7242 Equiv.	16	Carburized	Standard Class o0.03	18 ～ 32	5 ～ 30	10	1 unidades
Diamond	[Steel] EN 1.7242 Equiv.	20	Carburized	Standard Class o0.03	22 ～ 35	5 ～ 30	10	1 unidades
