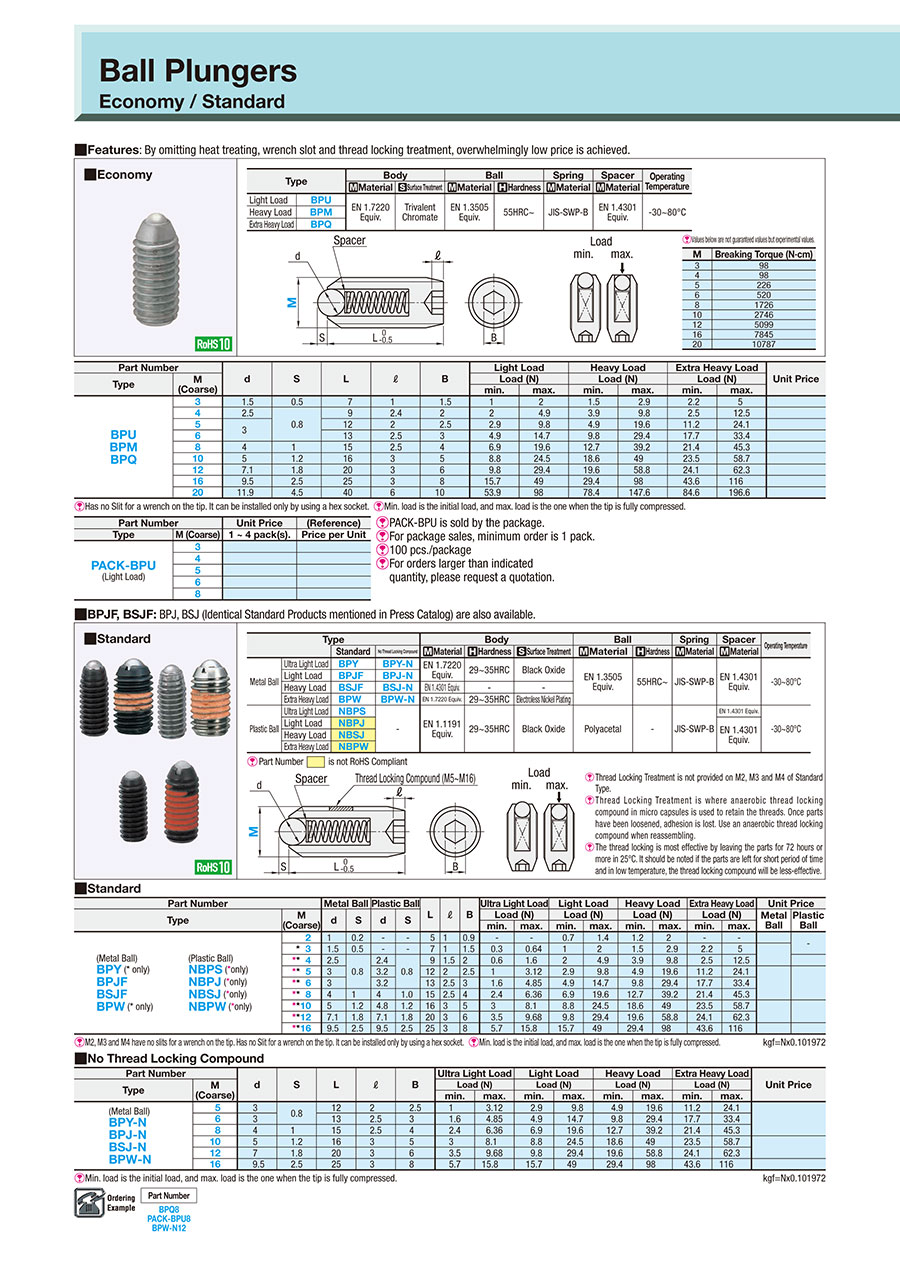

Ball Plungers / Economy【1 a 100 unidades】

Values below are not guaranteed values but experimental values.

M	Breaking Torque (N·cm)
3	98
4	98
5	226
6	520
8	1726
10	2746
12	5099
16	7845
20	10787

Part Number		d	S	L	ℓ	B	Light Load		Heavy Load		Extra Heavy Load		Unit Price
Type	M (Coarse)						Load (N)		Load (N)		Load (N)
							min.	max.	min.	max.	min.	max.
BPU BPM BPQ	3	1.5	0.5	7	1	1.5	1	2	1.5	2.9	2.2	5
	4	2.5	0.8	9	2.4	2	2	4.9	3.9	9.8	2.5	12.5
	5	3		12	2	2.5	2.9	9.8	4.9	19.6	11.2	24.1
	6			13	2.5	3	4.9	14.7	9.8	29.4	17.7	33.4
	8	4	1	15	2.5	4	6.9	19.6	12.7	39.2	21.4	45.3
	10	5	1.2	16	3	5	8.8	24.5	18.6	49	23.5	58.7
	12	7.1	1.8	20	3	6	9.8	29.4	19.6	58.8	24.1	62.3
	16	9.5	2.5	25	3	8	15.7	49	29.4	98	43.6	116
	20	11.9	4.5	40	6	10	53.9	98	78.4	147.6	84.6	196.6

Has no Slit for a wrench on the tip. It can be installed only by using a hex socket. Min. load is the initial load, and max. load is the one when the tip is fully compressed.

Part Number		Unit Price	(Reference)
Type	M (Coarse)	1 ~ 4 pack(s).	Price per Unit
PACK-BPU (Light Load)	3
	4
	5
	6
	8

PACK-BPU is sold by the package.
For package sales, minimum order is 1 pack.
100 pcs./package
For orders larger than indicated
quantity, please request a quotation.
