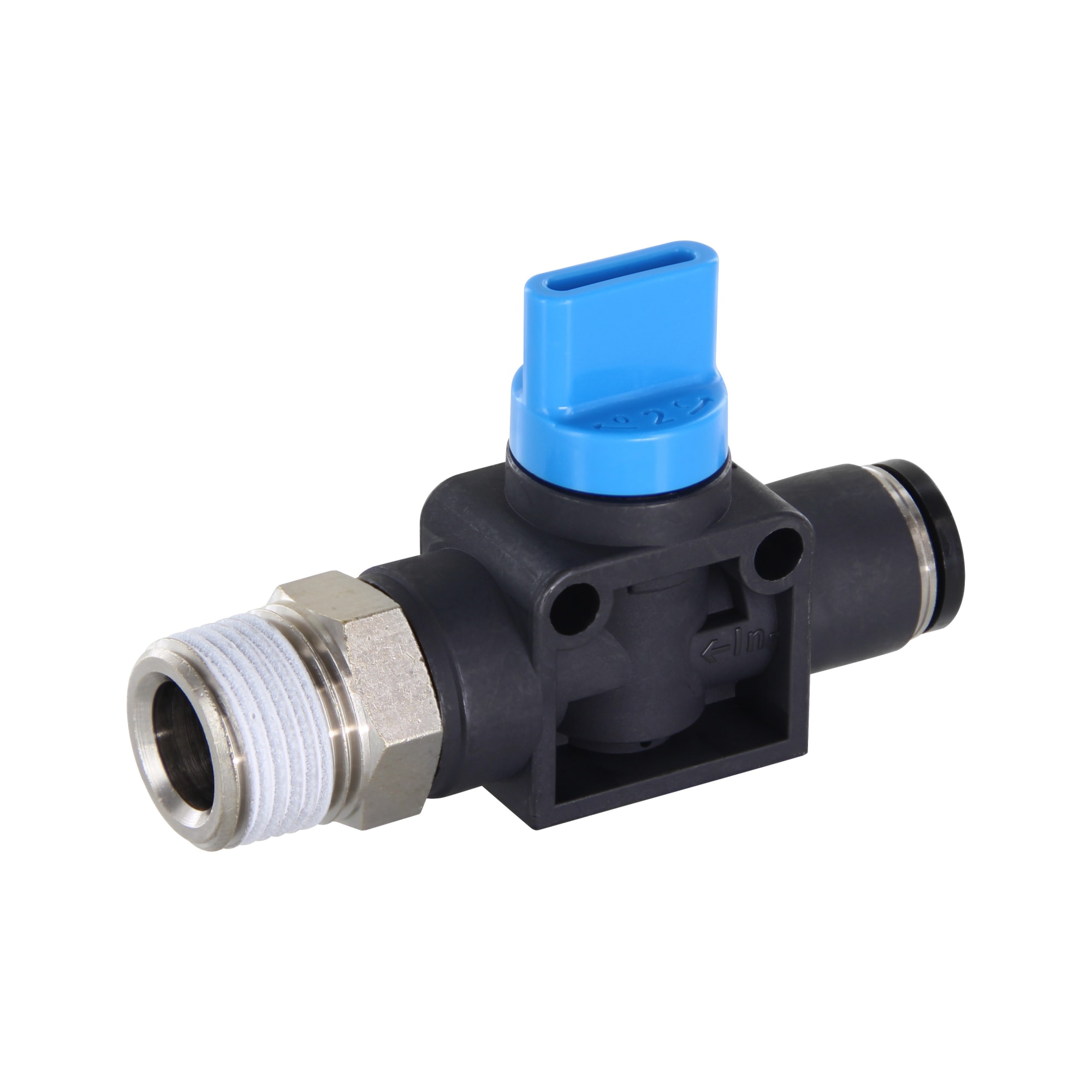

Hand Valve, BVHV

Click on this image to zoom in.

Promotional pricing ends 30/11/2024
Volume Discount

[Features] Valve that opens and closes compressed air. -Flow direction is A: Quick connect fitting side IN, B: There are 2 types of thread side IN.

(i)Remark

Please check the content on our website as the PDF does not contain the most up-to-date information.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Drawing / Specifications
3D Preview 3D preview is available after complete configuration
Part Numbers
More Information
Catalog

One-Touch Coupling Shut-Off Valves:Related Image

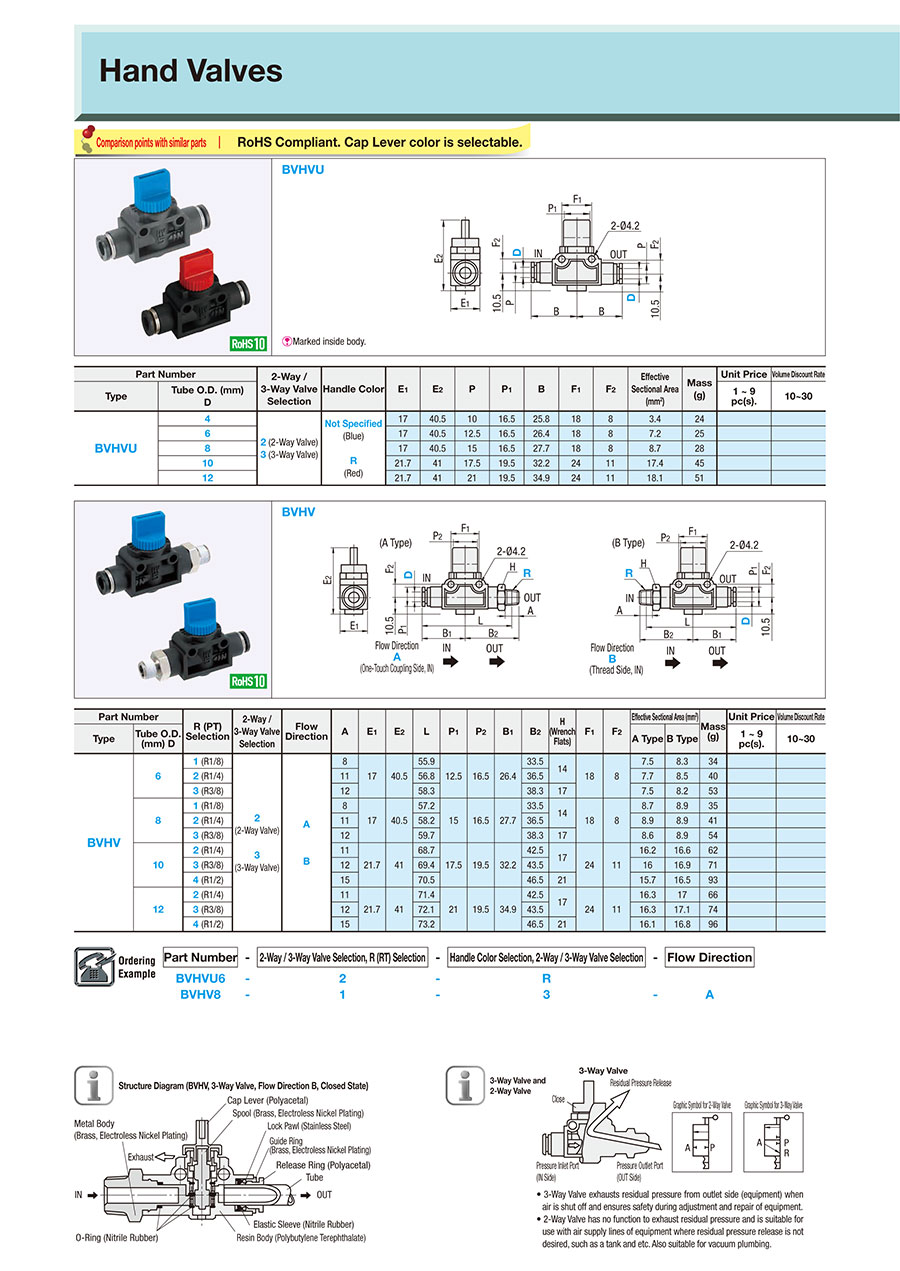

Specifications

Part Number	-	2-Way / 3-Way Valve Selection, R (RT) Selection	-	Handle Color Selection, 2-Way / 3-Way Valve Selection	-	Flow Direction
BVHVU6 BVHV8	- -	2 1	- -	R 3	-	A

Part Number		R (PT) Selection	2-Way / 3-Way Valve Selection	Flow Direction	A	E₁	E₂	L	P₁	P₂	B₁	B₂	H (Wrench Flats)	F₁	F₂	Effective Sectional Area (mm²)		Mass (g)	Unit Price	Volume Discount Rate
Type	Tube O.D. (mm) D	R (PT) Selection	2-Way / 3-Way Valve Selection	Flow Direction	A	E₁	E₂	L	P₁	P₂	B₁	B₂	H (Wrench Flats)	F₁	F₂	A Type	B Type	Mass (g)	1 ~ 9 pc(s).	10~30
BVHV	6	1 (R1/8)	2 (2-Way Valve) 3 (3-Way Valve)	A B	8	17	40.5	55.9	12.5	16.5	26.4	33.5	12	18	8	7.5	8.1	29
		2 (R1/4)			11			56.8				36.5	14			8	8.6	34
		3 (R3/8)			12			58.5				38.5	17			8	8.8	46
	8	1 (R1/8)			8	17	40.5	57.2	15	16.5	27.7	33.5	12	18	8	8.9	9.1	30
		2 (R1/4)			11			58.2				36.5	14			9.8	10	36
		3 (R3/8)			12			59.9				38.5	17			10.1	10.3	46
	10	2 (R1/4)			11	21.7	41	68.7	17.5	19.5	32.2	42.5	14	24	11	14.5	15.6	49
		3 (R3/8)			12			69.4				43.5	17			16.3	16.8	60
		4 (R1/2)			15			70.5				46.5	21			16.8	17.5	83
	12	2 (R1/4)			11	21.7	41	71.4	21	19.5	34.9	42.5	14	24	11	14.4	15.7	53
		3 (R3/8)			12			72.1				43.5	17			16.5	17.1	63
		4 (R1/2)			15			73.2				46.5	21			16.9	17.7	86

Part Number:

3D preview is not available, because the part number has not yet been determined.

In order to open the 3D preview, the part number must be fixed.

Plug-in is required for 3D Preview

CAD Download

Data to be displayed: 30; 45; 60

Part Number
BVHV6-1-2-A
BVHV6-1-2-B
BVHV6-1-3-A
BVHV6-1-3-B
BVHV6-2-2-A
BVHV6-2-2-B
BVHV6-2-3-A
BVHV6-2-3-B
BVHV6-3-2-A
BVHV6-3-2-B
BVHV6-3-3-A
BVHV6-3-3-B
BVHV8-1-2-A
BVHV8-1-2-B
BVHV8-1-3-A
BVHV8-1-3-B
BVHV8-2-2-A
BVHV8-2-2-B
BVHV8-2-3-A
BVHV8-2-3-B
BVHV8-3-2-A
BVHV8-3-2-B
BVHV8-3-3-A
BVHV8-3-3-B
BVHV10-2-2-A
BVHV10-2-2-B
BVHV10-2-3-A
BVHV10-2-3-B
BVHV10-3-2-A
BVHV10-3-2-B
BVHV10-3-3-A
BVHV10-3-3-B
BVHV10-4-2-A
BVHV10-4-2-B
BVHV10-4-3-A
BVHV10-4-3-B
BVHV12-2-2-A
BVHV12-2-2-B
BVHV12-2-3-A
BVHV12-2-3-B
BVHV12-3-2-A
BVHV12-3-2-B
BVHV12-3-3-A
BVHV12-3-3-B
BVHV12-4-2-A
BVHV12-4-2-B
BVHV12-4-3-A
BVHV12-4-3-B

Standard Unit Price	Minimum order quantity	Volume Discount	Standard Shipping Days ?	RoHS	Number of Ports	Number of Positions	Tube Outer Dia. D (or D1)	Effective Sectional Area (mm²)	Piping Screw Size R	2-Way Valve, 3-Way Valve	Flow Direction
10.71 € 7.50 €	1	Available	Same day Stock	10	2	[2-Position Normally Closed] 2-Position Normally Closed	6	7.5	1 (R1/8)	2 (2-Way Valve)	A (One-Touch Fitting Side, IN)
10.71 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	6	8.3	1 (R1/8)	2 (2-Way Valve)	B (Threaded Side, IN)
10.71 €	1	Available	5 Days	10	3	2-Position Exhaust	6	7.5	1 (R1/8)	3 (3-Way Valve)	A (One-Touch Fitting Side, IN)
10.71 €	1	Available	5 Days	10	3	2-Position Exhaust	6	8.3	1 (R1/8)	3 (3-Way Valve)	B (Threaded Side, IN)
11.07 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	6	7.7	2(R1/4)	2 (2-Way Valve)	A (One-Touch Fitting Side, IN)
11.07 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	6	8.5	2(R1/4)	2 (2-Way Valve)	B (Threaded Side, IN)
11.07 €	1	Available	5 Days	10	3	2-Position Exhaust	6	7.7	2(R1/4)	3 (3-Way Valve)	A (One-Touch Fitting Side, IN)
11.07 €	1	Available	5 Days	10	3	2-Position Exhaust	6	8.5	2(R1/4)	3 (3-Way Valve)	B (Threaded Side, IN)
11.46 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	6	7.5	3(R3/8)	2 (2-Way Valve)	A (One-Touch Fitting Side, IN)
11.46 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	6	8.2	3(R3/8)	2 (2-Way Valve)	B (Threaded Side, IN)
11.46 €	1	Available	5 Days	10	3	2-Position Exhaust	6	7.5	3(R3/8)	3 (3-Way Valve)	A (One-Touch Fitting Side, IN)
11.46 €	1	Available	5 Days	10	3	2-Position Exhaust	6	8.2	3(R3/8)	3 (3-Way Valve)	B (Threaded Side, IN)
11.46 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	8	8.7	1 (R1/8)	2 (2-Way Valve)	A (One-Touch Fitting Side, IN)
11.46 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	8	8.9	1 (R1/8)	2 (2-Way Valve)	B (Threaded Side, IN)
11.46 €	1	Available	5 Days	10	3	2-Position Exhaust	8	8.7	1 (R1/8)	3 (3-Way Valve)	A (One-Touch Fitting Side, IN)
11.46 €	1	Available	5 Days	10	3	2-Position Exhaust	8	8.9	1 (R1/8)	3 (3-Way Valve)	B (Threaded Side, IN)
11.97 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	8	8.9	2(R1/4)	2 (2-Way Valve)	A (One-Touch Fitting Side, IN)
11.97 € 8.38 €	1	Available	Same day Stock	10	2	[2-Position Normally Closed] 2-Position Normally Closed	8	8.9	2(R1/4)	2 (2-Way Valve)	B (Threaded Side, IN)
11.97 €	1	Available	5 Days	10	3	2-Position Exhaust	8	8.9	2(R1/4)	3 (3-Way Valve)	A (One-Touch Fitting Side, IN)
11.97 €	1	Available	5 Days	10	3	2-Position Exhaust	8	8.9	2(R1/4)	3 (3-Way Valve)	B (Threaded Side, IN)
12.35 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	8	8.6	3(R3/8)	2 (2-Way Valve)	A (One-Touch Fitting Side, IN)
12.35 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	8	8.9	3(R3/8)	2 (2-Way Valve)	B (Threaded Side, IN)
12.35 €	1	Available	5 Days	10	3	2-Position Exhaust	8	8.6	3(R3/8)	3 (3-Way Valve)	A (One-Touch Fitting Side, IN)
12.35 €	1	Available	5 Days	10	3	2-Position Exhaust	8	8.9	3(R3/8)	3 (3-Way Valve)	B (Threaded Side, IN)
12.35 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	10	16.2	2(R1/4)	2 (2-Way Valve)	A (One-Touch Fitting Side, IN)
12.35 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	10	16.6	2(R1/4)	2 (2-Way Valve)	B (Threaded Side, IN)
12.35 €	1	Available	5 Days	10	3	2-Position Exhaust	10	16.2	2(R1/4)	3 (3-Way Valve)	A (One-Touch Fitting Side, IN)
12.35 €	1	Available	5 Days	10	3	2-Position Exhaust	10	16.6	2(R1/4)	3 (3-Way Valve)	B (Threaded Side, IN)
12.72 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	10	16	3(R3/8)	2 (2-Way Valve)	A (One-Touch Fitting Side, IN)
12.72 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	10	16.9	3(R3/8)	2 (2-Way Valve)	B (Threaded Side, IN)
12.72 €	1	Available	5 Days	10	3	2-Position Exhaust	10	16	3(R3/8)	3 (3-Way Valve)	A (One-Touch Fitting Side, IN)
12.72 €	1	Available	5 Days	10	3	2-Position Exhaust	10	16.9	3(R3/8)	3 (3-Way Valve)	B (Threaded Side, IN)
13.10 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	10	15.7	4(R1/2)	2 (2-Way Valve)	A (One-Touch Fitting Side, IN)
13.10 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	10	16.5	4(R1/2)	2 (2-Way Valve)	B (Threaded Side, IN)
13.10 €	1	Available	5 Days	10	3	2-Position Exhaust	10	15.7	4(R1/2)	3 (3-Way Valve)	A (One-Touch Fitting Side, IN)
13.10 €	1	Available	5 Days	10	3	2-Position Exhaust	10	16.5	4(R1/2)	3 (3-Way Valve)	B (Threaded Side, IN)
13.10 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	12	16.3	2(R1/4)	2 (2-Way Valve)	A (One-Touch Fitting Side, IN)
13.10 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	12	17	2(R1/4)	2 (2-Way Valve)	B (Threaded Side, IN)
13.10 €	1	Available	5 Days	10	3	2-Position Exhaust	12	16.3	2(R1/4)	3 (3-Way Valve)	A (One-Touch Fitting Side, IN)
13.10 €	1	Available	5 Days	10	3	2-Position Exhaust	12	17	2(R1/4)	3 (3-Way Valve)	B (Threaded Side, IN)
13.60 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	12	16.3	3(R3/8)	2 (2-Way Valve)	A (One-Touch Fitting Side, IN)
13.60 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	12	17.1	3(R3/8)	2 (2-Way Valve)	B (Threaded Side, IN)
13.60 €	1	Available	5 Days	10	3	2-Position Exhaust	12	16.3	3(R3/8)	3 (3-Way Valve)	A (One-Touch Fitting Side, IN)
13.60 €	1	Available	5 Days	10	3	2-Position Exhaust	12	17.1	3(R3/8)	3 (3-Way Valve)	B (Threaded Side, IN)
13.99 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	12	16.1	4(R1/2)	2 (2-Way Valve)	A (One-Touch Fitting Side, IN)
13.99 €	1	Available	5 Days	10	2	[2-Position Normally Closed] 2-Position Normally Closed	12	16.8	4(R1/2)	2 (2-Way Valve)	B (Threaded Side, IN)
13.99 €	1	Available	5 Days	10	3	2-Position Exhaust	12	16.1	4(R1/2)	3 (3-Way Valve)	A (One-Touch Fitting Side, IN)
13.99 €	1	Available	5 Days	10	3	2-Position Exhaust	12	16.8	4(R1/2)	3 (3-Way Valve)	B (Threaded Side, IN)
