Tool Sliders / Guide Rail Type

MISUMI

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Drawing / Specifications
3D Preview 3D preview is available after complete configuration
Part Numbers
More Information
Catalog

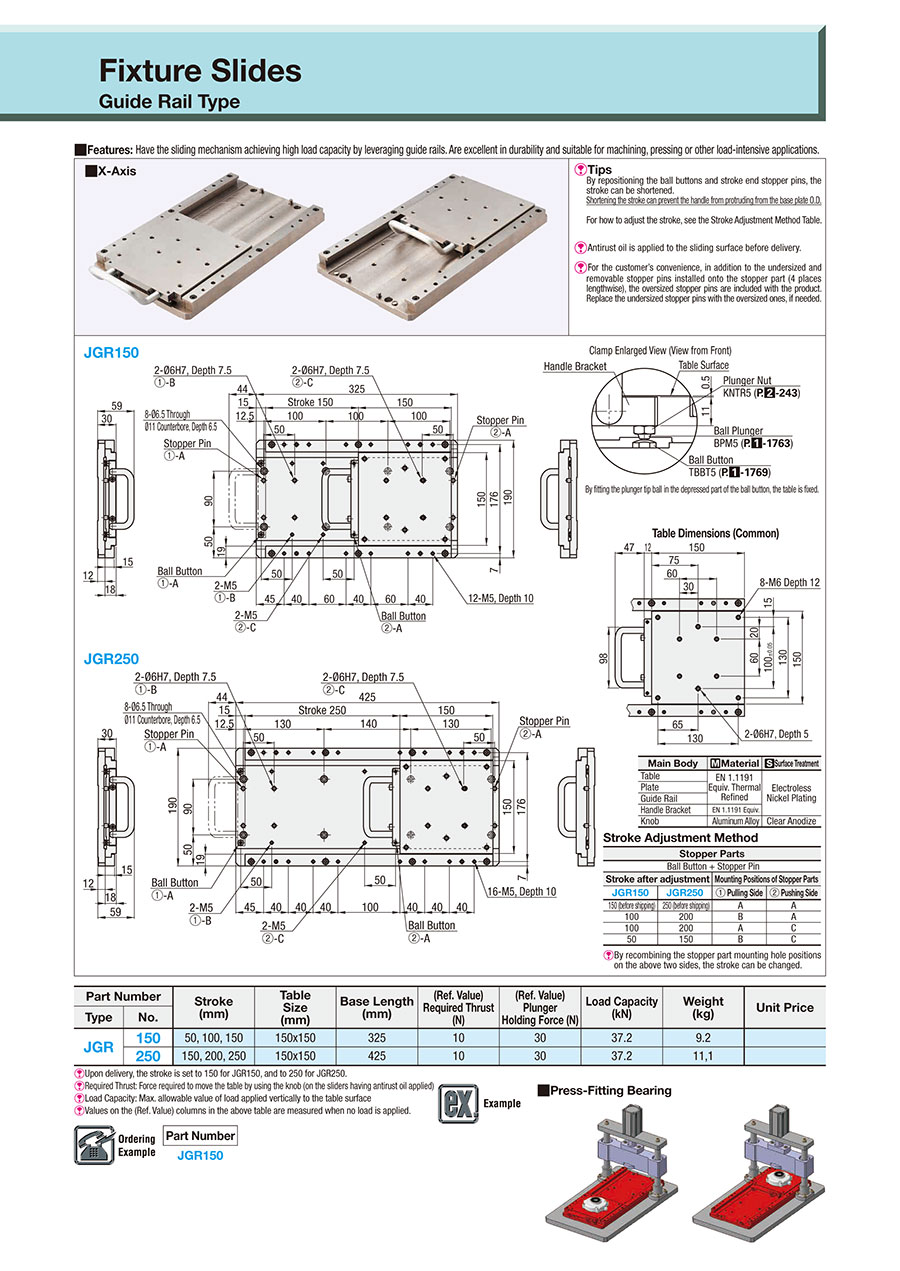

JGR150

Clamp Enlarged View (View from Front)

By fitting the plunger tip ball in the
depressed part of the ball button, the table is fixed

Mounting Hole Dimension (Common)

Stroke Adjustment Method

Stopper Parts
Ball Button + Stopper Pin
Stroke after adjustment		Mounting Positions of Stopper Parts
JGR150	JGR250	(1) Pulling Side	(2) Pushing Side
150 (before shipping)	250 (Before Shipping)	A	A
100	200	B	A
100	200	A	C
50	150	B	C

[ ! ] By recombining the stopper part mounting hole positions on the above two sides, the
stroke can be changed.

JGR250

[ ! ] One Point
By repositioning the ball buttons and stroke end stopper pins, the stroke can be shortened.
Shortening the stroke can prevent the handle from protruding from the base plate O.D.
Stroke Adjustment Method: See the Stroke Adjustment Method Table
[ ! ] Antirust oil is applied to the sliding surface before delivery.
[!] For the customer's convenience, in addition to the undersized and removable stopper pins installed onto the stopper part (4 places lengthwise), the oversized stopper pins are included with the product
. Replace the undersized stopper pins with the oversized ones, if needed.

Main Body	Material	Surface Treatment
Table	EN 1.1191 Equiv. Thermal Refined	Electroless Nickel Plating
Plate
Guide Rail
Handle Bracket	EN 1.1191 Equiv.
Knob	Aluminum Alloy	Clear Anodize

Specification Table

Part Number

JGR150

Part Number		Stroke (mm)	Table Size (mm)	Base Length (mm)	(Reference Value) Required Thrust (N)	(Reference Value) Plunger Holding Force (N)	Load Capacity (kN)	Weight (kg)
Type	No.
JGR	150	50·100·150	150 × 150	325	10	30	37.2	9.2
	250	150·200·250	150 × 150	425	10	30	37.2	11,1

Upon delivery, the stroke is set to 150 for JGR150, and to 250 for JGR250.
Required Thrust: Force required to move the table by using the knob (When antirust oil applied)
Load Capacity: Max. allowable value of load applied vertically to the table surface
Values on the (Ref. Value) columns in the above table are measured when no load is applied.

Part Number:

3D preview is not available, because the part number has not yet been determined.

In order to open the 3D preview, the part number must be fixed.

Plug-in is required for 3D Preview

CAD Download

Data to be displayed: 30; 45; 60

Part Number
JGR150
JGR250

Part Number	Standard Unit Price	Minimum order quantity	Volume Discount	Standard Shipping Days ?	Base Length (Overall Length) (mm)	Stroke (mm)
	409.30 €	1		19 Days	325	50 ～ 150
	447.09 €	1		19 Days	425	150 ～ 250

App. Example

■Press-Fitting Bearing
Fixture Slides - Guide Rail Type: Related Image

Products homepage

Basic information

Load Capacity (Range)(N)	100.1 or More	Feeding Method	Manual Sliding	Table Size (Length) L(mm)	150
Table Size (Width) W(mm)	150	Table Material	EN 1.1191 Equiv.	Table Surface Treatment	Electroless Nickel Plating
Table Width W(mm)	150	Allowable Load	High Load
