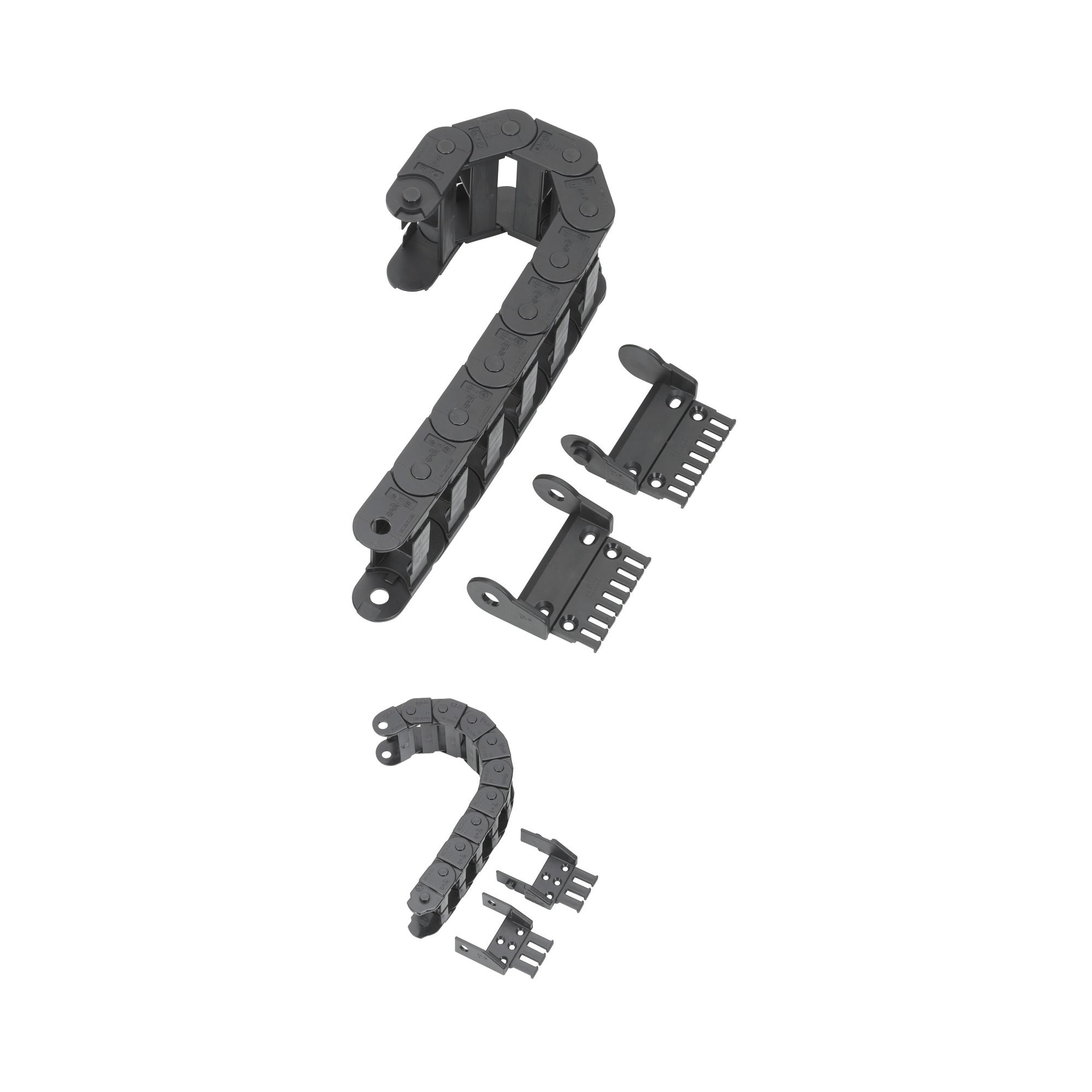

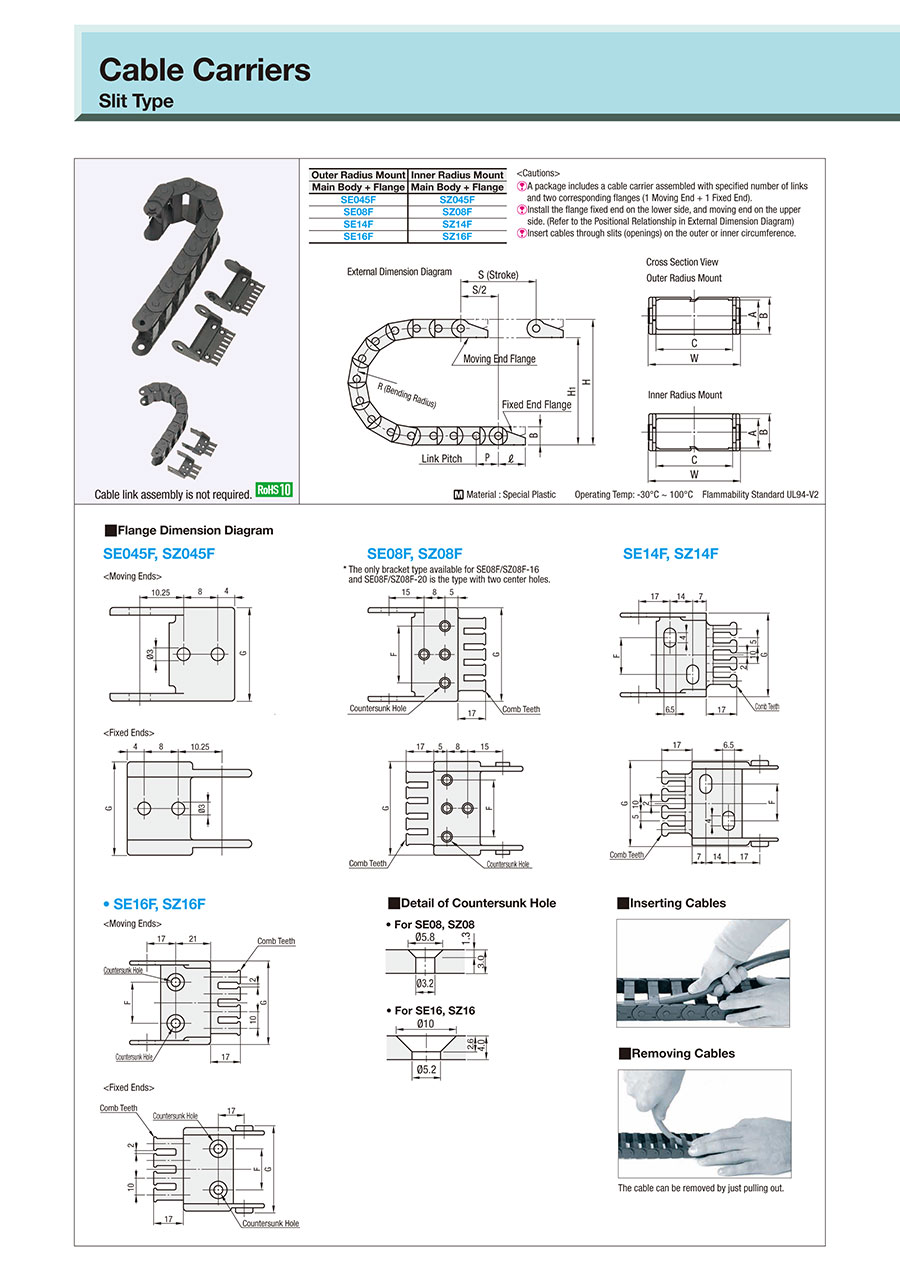

Cable Carriers / Slit Type(Lista de números de peça: página 11)
Passe o rato sobre a imagem para a aumentar
Número da peça:
candidatos encontrados.Desenho de contorno e tabela de especificações
| External Dimension Diagram | Cross-Section | |||
 | Outer Radius Mount | SE200F-2·3 SE300F-2 | ||
 |  | |||
| Inner Radius Mount | SZ200F-2·3 SZ300F-2 | |||
 |  |
Material: Special Plastic Operating Temp.: −30°C to 100°C Flammability Standard: UL94-V2

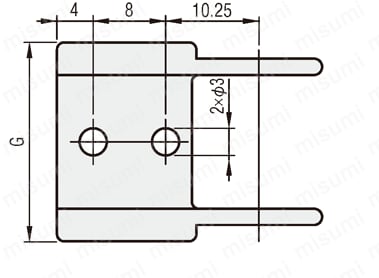

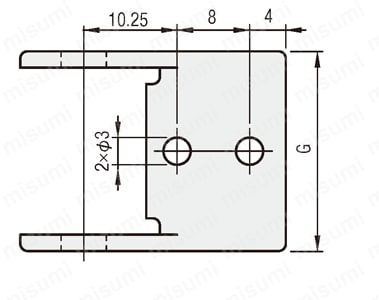

■Mounting Bracket Drawing| SE045F·SZ045F | SE08F·SZ08F | SE14F·SZ14F | SE16F·SZ16F | |||
| [Moving End] | ||||||
 |  |  |  | |||
| [Fixed End] | * The only bracket type available for No. 16 and No. 20 of SE08F/SZ08F is the type with two center holes. | |||||
 |  |  |  | |||

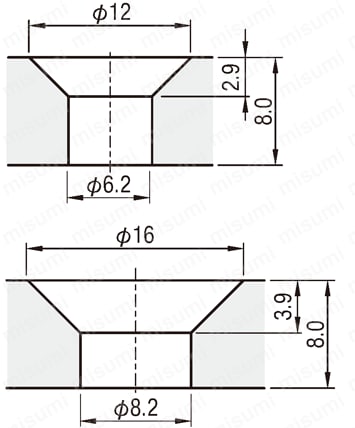

| SE200F·SZ200F | SE300F·SZ300F | ■Flat Head Screw Shape | ||||
| [Moving End] | ·For SE08 and SZ08 ·For SE16 and SZ16  ·For SE200 and SZ200  | ·For SE300 and SZ300 | ||||
 |  | |||||
| [Fixed End] | ||||||
 |  | |||||
[ ! ] Cable Carrier (10 Links and 1 Link) and mounting brackets are not assembled together at the time of delivery.
Link connection and brackets assembly are required for use.
[!] Install the mounting bracket fixed end on the lower side, and moving end on the upper side. (Refer to the Positional Relationship in External Dimension Diagram)
[ ! ] Insert cables through slits (openings) on the outer or inner circumference.
| ■Inserting Cables | ■Removing Cables | ||
 |  | The cable can be removed by just pulling out. |
| Outer Radius Mount | Inner Radius Mount |
| Cable Carrier + Mounting Brackets | Cable Carrier + Mounting Brackets |
| SE045F | SZ045F |
| SE08F | SZ08F |
| SE14F | SZ14F |
| SE16F | SZ16F |
| SE200F | SZ200F |
| SE300F | SZ300F |
Specification Table
| Part Number | — | Bending Radius | — | Number of Links |
| SE14F−3 | — | 048 | — | 20 |
No. under Part Number is the difference between the C or D dimension.
| Part Number | Bending Radius Selection | Number of Links | H (Mounting Height) | H1 | HF (Required Physical Height) | K (Arc + Allowance) | P | B | ℓ | |
| Type | No. | |||||||||
| SE045F SZ045F | 16 | 018 | 1 to 27 | 48.5 | 36 | 58.5 | 85 | 13 | 12.5 | 22.3 |
| 028 | 1 to 29 | 68.5 | 56 | 78.5 | 115 | |||||
| 038 | 1 to 31 | 88.5 | 76 | 98.5 | 150 | |||||
| SE08F SZ08F | 16 20 30 40 50 | 028 | 1 to 37 | 75 | 55 | 90 | 130 | 20 | 19.3 | 28 |
| 038 | 1 to 38 | 95 | 75 | 110 | 160 | |||||
| 048 | 1 to 40 | 115 | 95 | 130 | 195 | |||||
| SE14F SZ14F | 1 2 3 4 | 028 | 1 to 30 | 81 | 56 | 91 | 150 | 30.5 | 25 | 38 |
| 038 | 1 to 30 | 101 | 76 | 111 | 185 | |||||
| 048 | 1 to 30 | 121 | 96 | 131 | 215 | |||||
| 075 | 1 to 30 | 175 | 150 | 185 | 300 | |||||
| 100 | 1 to 33 | 225 | 200 | 235 | 380 | |||||
| SE16F SZ16F | 2 3 4 | 060 | 1 to 30 | 159 | 120 | 174 | 250 | 30.5 | 39 | 38 |
| 075 | 1 to 30 | 189 | 150 | 204 | 300 | |||||
| 100 | 1 to 33 | 239 | 200 | 254 | 380 | |||||
| SE200F SZ200F | 1 2 3 | 055 | 1 to 28 | 145 | 110 | 185 | 276 | 46 | 35 | 72 |
| 075 | 1 to 30 | 185 | 150 | 225 | 346 | |||||
| 100 | 1 to 31 | 235 | 200 | 275 | 414 | |||||
| 150 | 1 to 35 | 335 | 300 | 375 | 578 | |||||
| 200 | 1 to 38 | 435 | 400 | 475 | 742 | |||||
| SE300F SZ300F | 1 2 | 075 | 1 to 29 | 215 | 148 | 255 | 400 | 67 | 64 | 94 |
| 100 | 1 to 30 | 265 | 198 | 305 | 500 | |||||
| 125 | 1 to 33 | 315 | 248 | 355 | 650 | |||||
| 150 | 1 to 33 | 365 | 298 | 405 | 725 | |||||
| 200 | 1 to 36 | 465 | 398 | 505 | 875 | |||||
| 250 | 1 to 38 | 565 | 498 | 605 | 1050 | |||||
| 300 | 1 to 41 | 665 | 598 | 705 | 1225 | |||||
| Part Number | Bending Radius Selection | A | B | C | D | E | W | F | G | Number of Comb Teeth | Weight per Link (g) | |
| Type | No. | |||||||||||
| SE045F SZ045F | 16 | 018 028 038 | 9.4 | 12.5 | 16 | 23 | — | 22 | — | 1.4 | ||
| — | — | |||||||||||
| SE08F SZ08F | 16 | 028 038 048 | 14.6 | 19.3 | 16 | — | — | 24.2 | — | 24.2 | 2 | 4.8 |
| 20 | 20 | — | — | 28.2 | — | 28.2 | 2 | 5.0 | ||||
| 30 | 30 | — | — | 38.2 | 22 | 38.2 | 3 | 5.6 | ||||
| 40 | 40 | — | — | 48.2 | 32 | 48.2 | 4 | 6.2 | ||||
| 50 | 50 | — | — | 58.2 | 42 | 58.2 | 5 | 7.4 | ||||
| SE14F SZ14F | 1 | 028 038 048 075 100 | 19 | 25 | 15 | — | — | 27 | — | 26.3 | 2 | 9.3 |
| 2 | 25 | — | — | 37 | 10 | 36.3 | 3 | 9.6 | ||||
| 3 | 38 | — | — | 50 | 23 | 49.3 | 4 | 12 | ||||
| 4 | 50 | — | — | 62 | 35 | 61.3 | 5 | 13 | ||||
| SE16F SZ16F | 2 | 060 075 100 | 32 | 39 | 23 | — | — | 37.5 | 12 | 35.5 | 3 | 15.5 |
| 3 | 36 | — | — | 50.5 | 25 | 48.5 | 4 | 17.3 | ||||
| 4 | 48 | — | — | 62.5 | 37 | 60.5 | 5 | 18.8 | ||||
| SE200F SZ200F | 1 | 055 075 100 150 200 | 24.3 | 35 | 57 | — | — | 74.4 | 44 | — | 6 | 32 |
| 2 | — | 37 | 3 | 94.4 | 64 | — | 8 | 36 | ||||
| 3 | — | 50 | 3 | 120.4 | 90 | — | 10 | 38 | ||||
| SE300F SZ300F | 1 | 075 100 125 150 200 250 300 | 48.5 | 64 | 75 | — | — | 95 | 53 | 95 | 7 | 107 |
| 2 | — | 48 | 4 | 120 | 78 | 120 | 10 | 119 | ||||
