  • Cable Carriers / Flap Open-Close Type (Cable Carrier+Mounting Brackets)

    Cuidado

    • Please check the content on our website as the PDF does not contain the most up-to-date information.

    Número da peça:

    Indefinido. 1,151 candidatos encontrados.
    Quantidade:

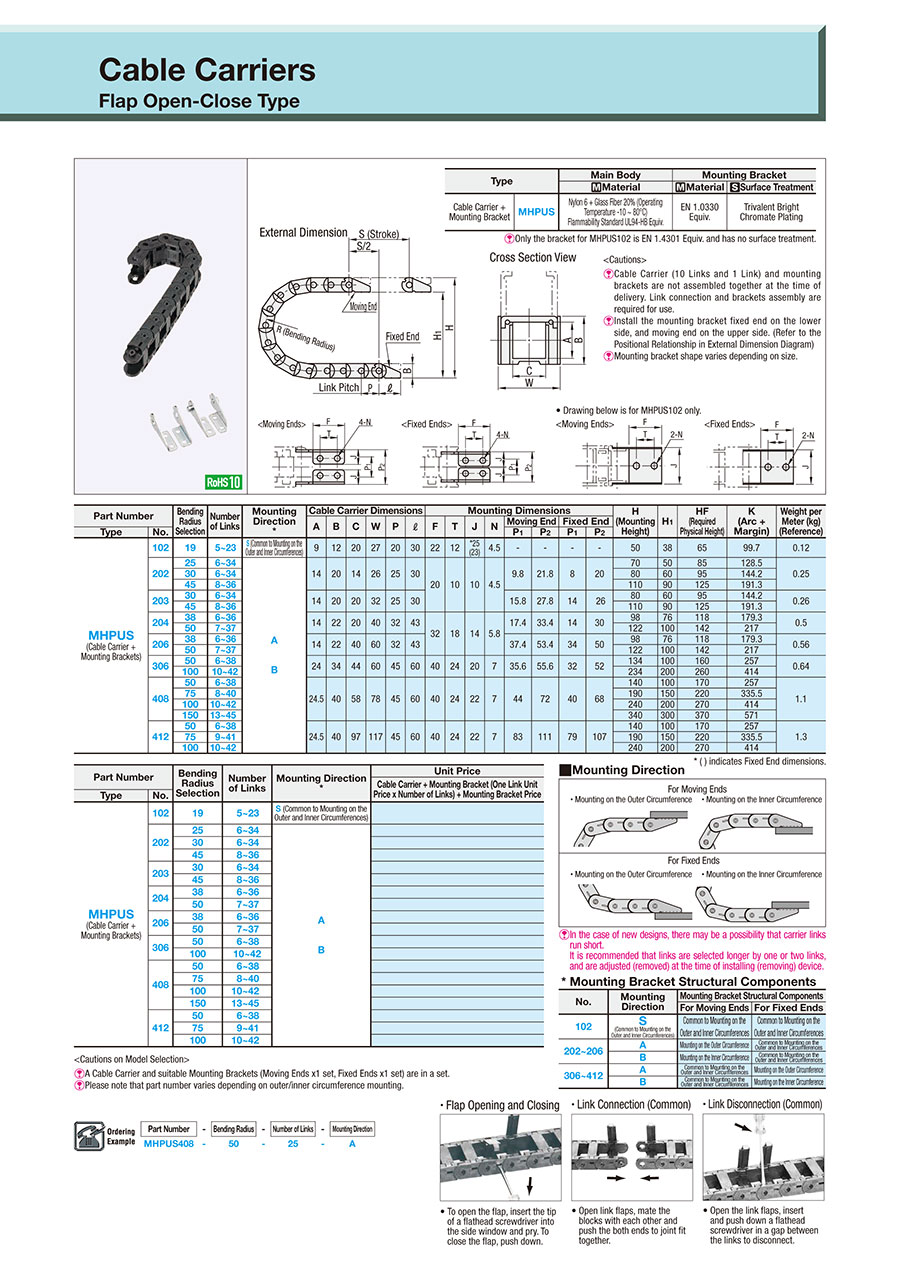

    Desenho de contorno e tabela de especificações

    External Dimension Diagram Cross-Section

        ·Drawing below is for MHPUS102 only.
    [Moving End] [Fixed End] [Moving End] [Fixed End]

    [ ! ] Cable Carrier (10 Links and 1 Link) and mounting brackets are not assembled together at the time of delivery.
    Link connection and brackets assembly are required for use.
    [!] Install the mounting bracket fixed end on the lower side, and moving end on the upper side. (Refer to the Positional Relationship in External Dimension Diagram)
    [ ! ] Mounting bracket shape varies depending on size.

    TypeMain BodyMounting Bracket
    MaterialMaterialSurface Treatment
    Cable Carrier + Mounting BracketsMHPUSNylon 6 + Glass Fiber 20%
    (Operating Temperature: -10 to 80°C)
    Flammability Standard UL94-HB Equivalent
    EN 1.0330 Equiv.Trivalent Bright Chromate Plating
    Only the bracket for MHPUS102 is EN 1.4301 Equiv. and has no surface treatment.
    * Mounting Bracket Structural Components
    No.Mounting DirectionMounting Bracket Structural Components
    For Moving EndsFor Moving / Fixed Ends
    102S
    (Common to Mounting on the Outer and Inner Circumferences)
    Common to Mounting on the Outer and Inner CircumferencesCommon to Mounting on the Outer and Inner Circumferences
    202 to 206AMounting on the Outer CircumferenceCommon to Mounting on the Outer and Inner Circumferences
    BMounting on the Inner CircumferenceCommon to Mounting on the Outer and Inner Circumferences
    306 to 412ACommon to Mounting on the Outer and Inner CircumferencesMounting on the Outer Circumference
    BCommon to Mounting on the Outer and Inner CircumferencesMounting on the Inner Circumference

    Specification Table

    Part NumberBending RadiusNumber of LinksMounting Direction
    MHPUS4085025A
    Part NumberBending Radius
    Selection
    Number of LinksMounting Direction
    *
    Cable Carrier DimensionsMounting DimensionsH
    (Mounting Height)
    H1HF
    (Required Physical Height)
    K
    (Arc + Allowance)
    (Reference)
    Weight per Meter
    (kg)
    ABCWPFTJNMoving EndFixed End
    TypeNo.P1P2P1P2
    MHPUS
    (Main Body + Mounting Brackets)
    102195 to 23S
    (Common to Mounting on the Outer and Inner Circumferences)
    912202720302212※25
    (23)
    4.550386599.70.12
    202256 to 34A


    B
    1420142625302010104.59.821.8820705085128.50.25
    306 to 34806095144.2
    458 to 3611090125191.3
    203306 to 3414202032253015.827.81426806095144.20.26
    458 to 3611090125191.3
    204386 to 361422204032433218145.817.433.414309876118179.30.5
    507 to 37122100142217
    206386 to 3614224060324337.453.434509876118179.30.56
    507 to 37122100142217
    306506 to 38243444604560402420735.655.632521341001602570.64
    10010 to 42234200260414
    408506 to 3824.540587845604024227447240681401001702571.1
    758 to 40190150220335.5
    10010 to 42240200270414
    15013 to 45340300370571
    412506 to 3824.540971174560402422783111791071401001702571.3
    759 to 41190150220335.5
    10010 to 42240200270414
    * () indicates Fixed End dimensions.
    Part NumberBending Radius
    Selection
    Number of LinksMounting Direction
    *
    TypeNo.
    MHPUS
    (Main Body + Mounting Brackets)
    102195 to 23S
    (Common to Mounting on the Outer and Inner Circumferences)
    202256 to 34A


    B
    306 to 34
    458 to 36
    203306 to 34
    458 to 36
    204386 to 36
    507 to 37
    206386 to 36
    507 to 37
    306506 to 38
    10010 to 42
    408506 to 38
    758 to 40
    10010 to 42
    15013 to 45
    412506 to 38
    759 to 41
    10010 to 42
    The main body (links) and mounting brackets are not sold separately.
