Jig Pins / Height Adjust / Set Screw

Jig Pins / Height Adjust / Set Screw

Número da peça:

Indefinido. 48 candidatos encontrados.
Quantidade:

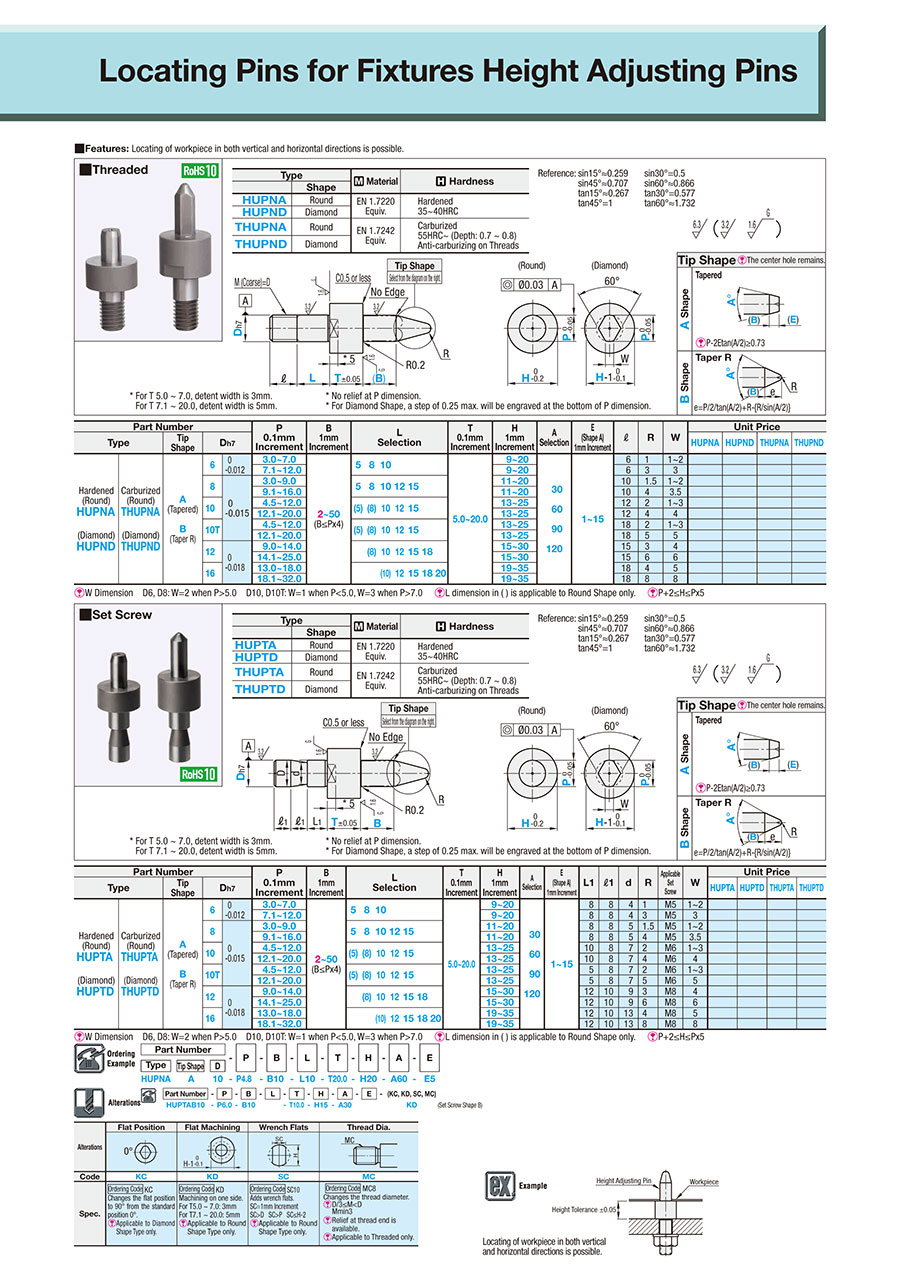

Desenho de contorno e tabela de especificações

(Round)

(Diamond)

Height Adjusting Pins for Fixtures - Set Screw: Related Image
[!] * For T 5.0 to 7.0, detent width is 3 mm. For T 7.1 to 20.0, detent width is 5 mm.
Tip Shape Selectable [ ! ] The center hole remains.
Shape AShape B
Tapered
Height Adjusting Pins for Fixtures - Set Screw: Related Image
Taper R
Height Adjusting Pins for Fixtures - Set Screw: Related Image
[ ! ] P - 2Etan (A/2) ≥ 0.73

[ ! ] e = P/2 ÷ tan (A/2) + R - (R ÷ sin (A/2))

Reference:
sin 15° ≒ 0.259, sin 30° = 0.5, sin 45° ≒ 0.707, sin 60° ≒ 0.866
tan15° ≒ 0.267 tan30° ≒ 0.577 tan45° = 1 tan60° ≒ 1.732
[!] Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m. However, chamfer tolerances, threaded length and angle dimension tolerances are excluded.
[ ! ] No grinding relief at P dimension.
[ ! ] For Diamond Shape, a step of 0.25 max. will be engraved at the bottom of P dimension.
Type[M] Material[H] Hardness
 Config.
HUPTARoundEN 1.7220 Equiv.Hardened
35 to 40HRC
HUPTDDiamond
THUPTARoundEN 1.7242 Equiv.Carburized
55HRC or more (Depth 0.7 to 0.8)
THUPTDDiamond

Specification Table

Part Number—P—B—T—H—A—E

Type Tip Shape D
HUPTD A 6—P3—B8—T10—H9—A60—E1
Part NumberP
Ordering Code
0.1 mm Increments		B
Ordering Code
1 mm Increments		T
Ordering Code
0.1 mm Increments		H
Ordering Code
1 mm Increments		A
Selection		E
(Shape A)
1 mm Increments		L1ℓ1dRApplicable
Set
Screw
W
TypeTip ShapeDh7
Hardened
(Round)
HUPTA

(Diamond)
HUPTD		Carburized
(Round)
THUPTA

(Diamond)
THUPTD		A
(Tapered)

B
(Taper R)		6　0
−0.012		3.0 to 7.02 to 50
(B ≤ P × 4)		5.0 to 20.0 9 to 20 30

 60

 90

120		1 to 15 8 8 41M51 to 2
 7.1 to 12.0 9 to 20 8 8 43M53
8　0
−0.015		3.0 to 9.011 to 20 8 8 51.5M51 to 2
 9.1 to 16.011 to 20 8 8 54M53.5
10 4.5 to 12.013 to 2510 8 72M61 to 3
12.1 to 20.013 to 2510 8 74M64
10T 4.5 to 12.013 to 25 5 8 72M61 to 3
12.1 to 20.013 to 25 5 8 75M65
12　0
−0.018		 9.0 to 14.015 to 301210 93M84
14.1 to 25.015 to 301210 96M86
1613.0 to 18.019 to 351210134M85
18.1 to 32.019 to 351210138M88
[!] W Dimension D6, D8: When P > 5.0, W = 2 D10, D10T: When P < 5.0, W = 1, When P > 7.0, W = 3 [!] P + 2 ≤ H ≤ P × 5

Alterations

Alterations
Code		Alteration DetailsApplication ConditionsOrdering Example
KCFlat Position
Height Adjusting Pins for Fixtures - Set Screw: Related Image		Changes the flat position to 90° from the standard position 0°.[ ! ] Applicable to Diamond Shape Type onlyHUPTDA10-P8.8-B10-T20.0-H20-A60-E3-KC
KDFlat Machining
Height Adjusting Pins for Fixtures - Set Screw: Related Image		Machining on one side.
When T5.0 to 7.0: 3 mm
When T7.1 to 20.0: 5 mm		[ ! ] Applicable to Round Shape Type only
[ ! ] KD cannot be combined with SC		HUPTAA10-P8.8-B10-T20.0-H20-A60-E3-KD
SCWrench Flats
Height Adjusting Pins for Fixtures - Set Screw: Related Image		Adds wrench flats.
Ordering Code: SC10		SC = 1 mm Increments
SC > D, SC > P
SC ≤ H-2
[ ! ] Applicable to Round Shape Type only		HUPTAA10-P8.8-B10-T20.0-H20-A60-E3-SC18

Lista de números de peça

Número de itens
  • 1
    • Número da peça
    HUPTAA6-P[3-12/0.1]-B[2-50/1]-T[5-20/0.1]-H[9-20/1]-A[30,60,90,120]-E[1-15/1]
    HUPTAA8-P[3-16/0.1]-B[2-50/1]-T[5-20/0.1]-H[11-20/1]-A[30,60,90,120]-E[1-15/1]
    HUPTAA10-P[4.5-20/0.1]-B[2-50/1]-T[5-20/0.1]-H[13-25/1]-A[30,60,90,120]-E[1-15/1]
    HUPTAA10T-P[4.5-20/0.1]-B[2-50/1]-T[5-20/0.1]-H[13-25/1]-A[30,60,90,120]-E[1-15/1]
    HUPTAA12-P[9-25/0.1]-B[2-50/1]-T[5-20/0.1]-H[15-30/1]-A[30,60,90,120]-E[1-15/1]
    HUPTAA16-P[13-32/0.1]-B[2-50/1]-T[5-20/0.1]-H[19-35/1]-A[30,60,90,120]-E[1-15/1]
    HUPTAB6-P[3-12/0.1]-B[2-50/1]-T[5-20/0.1]-H[9-20/1]-A[30,60,90,120]
    HUPTAB8-P[3-16/0.1]-B[2-50/1]-T[5-20/0.1]-H[11-20/1]-A[30,60,90,120]
    HUPTAB10-P[4.5-20/0.1]-B[2-50/1]-T[5-20/0.1]-H[13-25/1]-A[30,60,90,120]
    HUPTAB10T-P[4.5-20/0.1]-B[2-50/1]-T[5-20/0.1]-H[13-25/1]-A[30,60,90,120]
    HUPTAB12-P[9-25/0.1]-B[2-50/1]-T[5-20/0.1]-H[15-30/1]-A[30,60,90,120]
    HUPTAB16-P[13-32/0.1]-B[2-50/1]-T[5-20/0.1]-H[19-35/1]-A[30,60,90,120]
    HUPTDA6-P[3-12/0.1]-B[2-50/1]-T[5-20/0.1]-H[9-20/1]-A[30,60,90,120]-E[1-15/1]
    HUPTDA8-P[3-16/0.1]-B[2-50/1]-T[5-20/0.1]-H[11-20/1]-A[30,60,90,120]-E[1-15/1]
    HUPTDA10-P[4.5-20/0.1]-B[2-50/1]-T[5-20/0.1]-H[13-25/1]-A[30,60,90,120]-E[1-15/1]
    HUPTDA10T-P[4.5-20/0.1]-B[2-50/1]-T[5-20/0.1]-H[13-25/1]-A[30,60,90,120]-E[1-15/1]
    HUPTDA12-P[9-25/0.1]-B[2-50/1]-T[5-20/0.1]-H[15-30/1]-A[30,60,90,120]-E[1-15/1]
    HUPTDA16-P[13-32/0.1]-B[2-50/1]-T[5-20/0.1]-H[19-35/1]-A[30,60,90,120]-E[1-15/1]
    HUPTDB6-P[3-12/0.1]-B[2-50/1]-T[5-20/0.1]-H[9-20/1]-A[30,60,90,120]
    HUPTDB8-P[3-16/0.1]-B[2-50/1]-T[5-20/0.1]-H[11-20/1]-A[30,60,90,120]
    HUPTDB10-P[4.5-20/0.1]-B[2-50/1]-T[5-20/0.1]-H[13-25/1]-A[30,60,90,120]
    HUPTDB10T-P[4.5-20/0.1]-B[2-50/1]-T[5-20/0.1]-H[13-25/1]-A[30,60,90,120]
    HUPTDB12-P[9-25/0.1]-B[2-50/1]-T[5-20/0.1]-H[15-30/1]-A[30,60,90,120]
    HUPTDB16-P[13-32/0.1]-B[2-50/1]-T[5-20/0.1]-H[19-35/1]-A[30,60,90,120]
    THUPTAA6-P[3-12/0.1]-B[2-50/1]-T[5-20/0.1]-H[9-20/1]-A[30,60,90,120]-E[1-15/1]
    THUPTAA8-P[3-16/0.1]-B[2-50/1]-T[5-20/0.1]-H[11-20/1]-A[30,60,90,120]-E[1-15/1]
    THUPTAA10-P[4.5-20/0.1]-B[2-50/1]-T[5-20/0.1]-H[13-25/1]-A[30,60,90,120]-E[1-15/1]
    THUPTAA10T-P[4.5-20/0.1]-B[2-50/1]-T[5-20/0.1]-H[13-25/1]-A[30,60,90,120]-E[1-15/1]
    THUPTAA12-P[9-25/0.1]-B[2-50/1]-T[5-20/0.1]-H[15-30/1]-A[30,60,90,120]-E[1-15/1]
    THUPTAA16-P[13-32/0.1]-B[2-50/1]-T[5-20/0.1]-H[19-35/1]-A[30,60,90,120]-E[1-15/1]
    THUPTAB6-P[3-12/0.1]-B[2-50/1]-T[5-20/0.1]-H[9-20/1]-A[30,60,90,120]
    THUPTAB8-P[3-16/0.1]-B[2-50/1]-T[5-20/0.1]-H[11-20/1]-A[30,60,90,120]
    THUPTAB10-P[4.5-20/0.1]-B[2-50/1]-T[5-20/0.1]-H[13-25/1]-A[30,60,90,120]
    THUPTAB10T-P[4.5-20/0.1]-B[2-50/1]-T[5-20/0.1]-H[13-25/1]-A[30,60,90,120]
    THUPTAB12-P[9-25/0.1]-B[2-50/1]-T[5-20/0.1]-H[15-30/1]-A[30,60,90,120]
    THUPTAB16-P[13-32/0.1]-B[2-50/1]-T[5-20/0.1]-H[19-35/1]-A[30,60,90,120]
    THUPTDA6-P[3-12/0.1]-B[2-50/1]-T[5-20/0.1]-H[9-20/1]-A[30,60,90,120]-E[1-15/1]
    THUPTDA8-P[3-16/0.1]-B[2-50/1]-T[5-20/0.1]-H[11-20/1]-A[30,60,90,120]-E[1-15/1]
    THUPTDA10-P[4.5-20/0.1]-B[2-50/1]-T[5-20/0.1]-H[13-25/1]-A[30,60,90,120]-E[1-15/1]
    THUPTDA10T-P[4.5-20/0.1]-B[2-50/1]-T[5-20/0.1]-H[13-25/1]-A[30,60,90,120]-E[1-15/1]
    THUPTDA12-P[9-25/0.1]-B[2-50/1]-T[5-20/0.1]-H[15-30/1]-A[30,60,90,120]-E[1-15/1]
    THUPTDA16-P[13-32/0.1]-B[2-50/1]-T[5-20/0.1]-H[19-35/1]-A[30,60,90,120]-E[1-15/1]
    THUPTDB6-P[3-12/0.1]-B[2-50/1]-T[5-20/0.1]-H[9-20/1]-A[30,60,90,120]
    THUPTDB8-P[3-16/0.1]-B[2-50/1]-T[5-20/0.1]-H[11-20/1]-A[30,60,90,120]
    THUPTDB10-P[4.5-20/0.1]-B[2-50/1]-T[5-20/0.1]-H[13-25/1]-A[30,60,90,120]
    THUPTDB10T-P[4.5-20/0.1]-B[2-50/1]-T[5-20/0.1]-H[13-25/1]-A[30,60,90,120]
    THUPTDB12-P[9-25/0.1]-B[2-50/1]-T[5-20/0.1]-H[15-30/1]-A[30,60,90,120]
    THUPTDB16-P[13-32/0.1]-B[2-50/1]-T[5-20/0.1]-H[19-35/1]-A[30,60,90,120]

    Inlet Side Tip Shape

    Inlet Side Tip Type

    Material

    Mounting Side Dia. D

    (Ø)

    Heat Treatment

    Insertion Guide Section Outer Dia. P

    (Ø)

    Positioning Part Length B

    (mm)

    A

    E

    (mm)

    H

    (mm)

    T

    (mm)

    		RoHS?Quantidade mínima de encomenda
