  • Sponge tapes / SI, EPT, EPDM / > C1, C8, C35 / adhesive layer

    Número da peça:

    Indefinido. 90 candidatos encontrados.
    Quantidade:

    Desenho de contorno e tabela de especificações

    Back to the Category Panels (polyurethane rubber, rubber, foam, felt)

    Technical Drawing - Panels (polyurethane rubber, rubber, foam, felt)

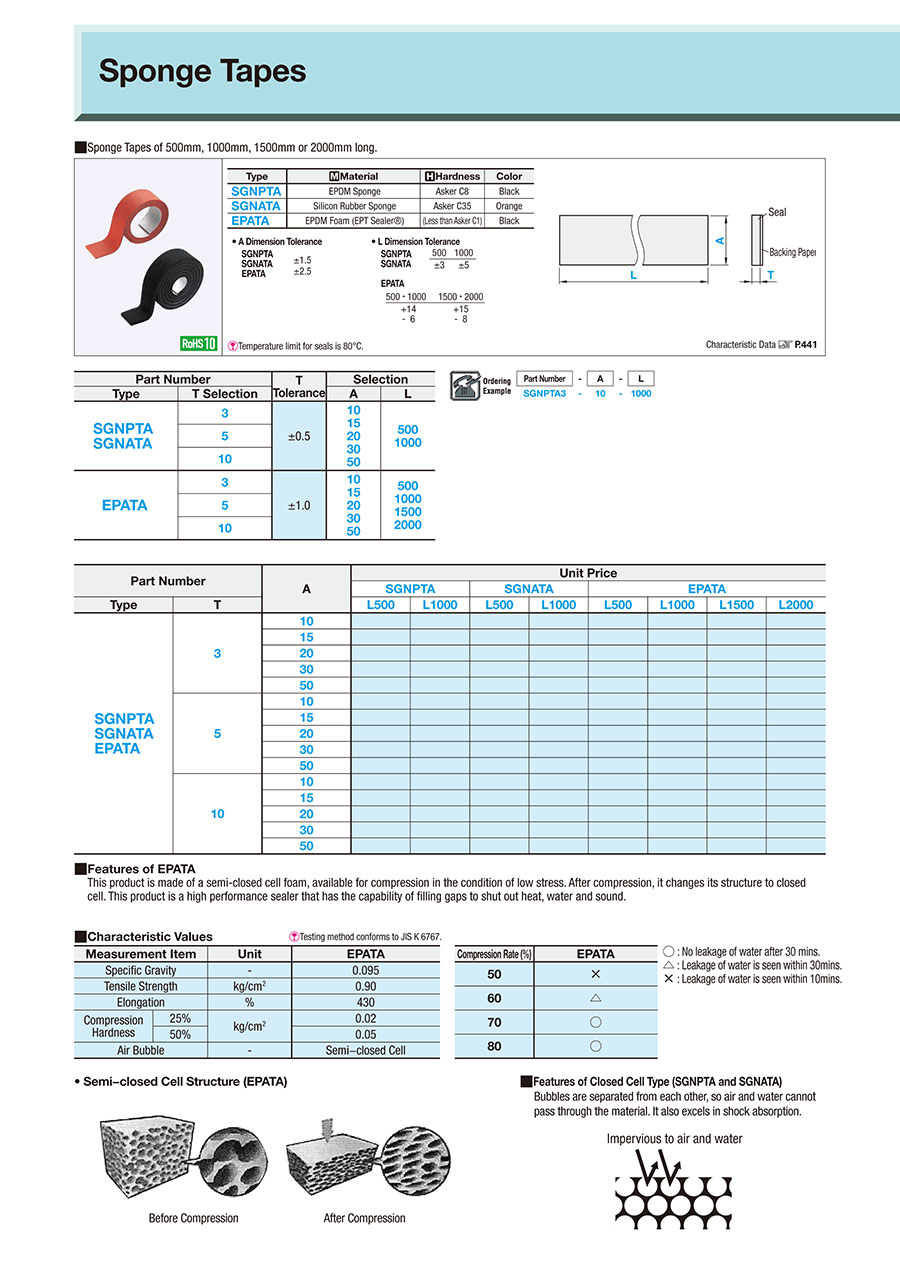

    Sponge Tapes:Related Image
    Open the technical drawing in the new window

    Available dimensions and tolerances can be found under the tab More information.


    Basic Properties (e.g., material, hardness, coating, tolerance) - Panels (polyurethane rubber, rubber, foam, felt)

    TypeMaterialHardnessColor
    SGNPTAEPDM SpongeAsker C8Black
    SGNATASilicon Rubber SpongeAsker C35Orange
    EPATAEPDM Foam (EPT Sealer®)(Less than Asker C1)Black
    Characteristic Data Here
    Temperature limit for seals is 80°C.

    Further specifications can be found under the tab More information.


    Composition of a Product Code - Panels (polyurethane rubber, rubber, foam, felt)

    Part Number-A-L
    SGNPTA3-10-1000
