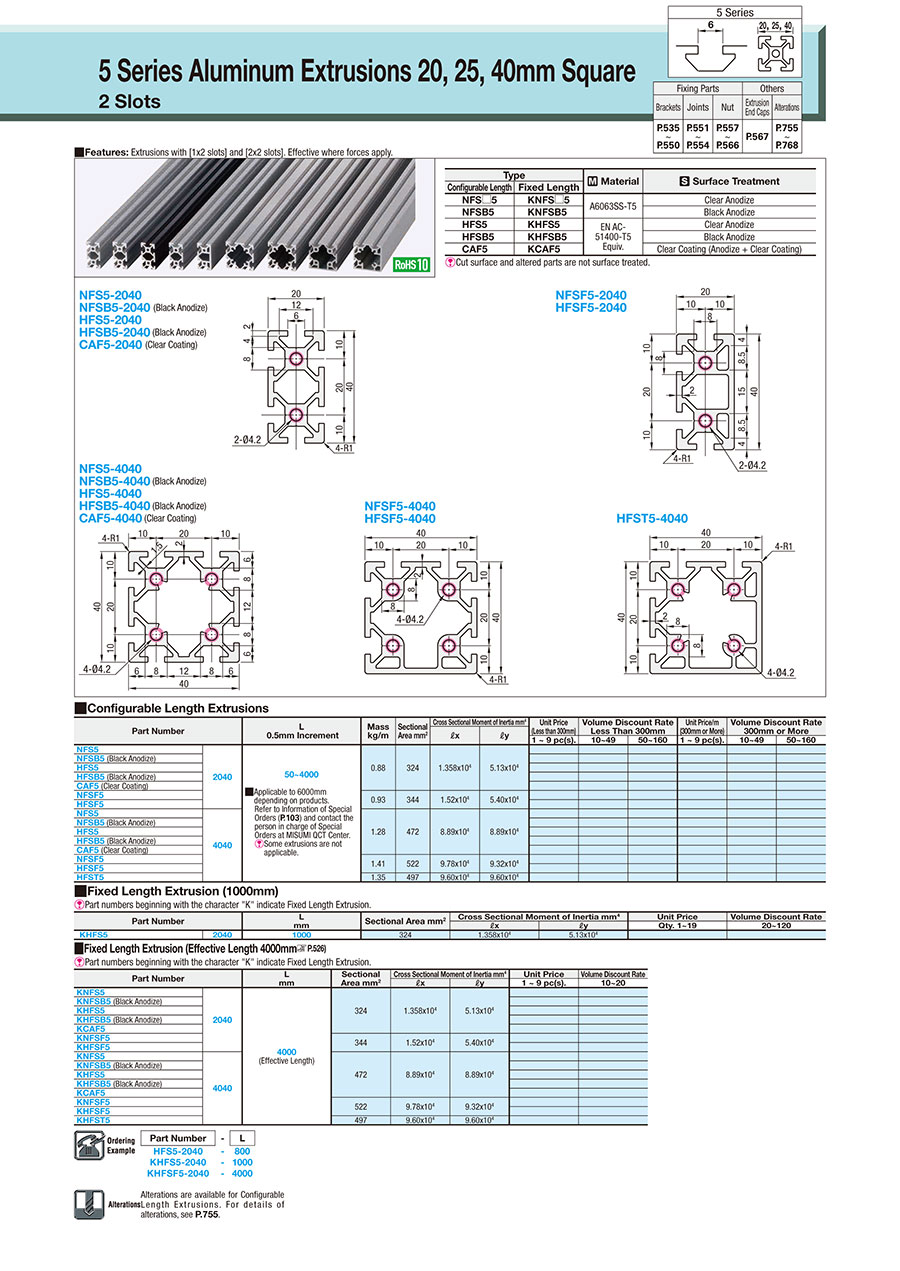

5 Series / slot width 6 / 20x40mm

Part Number	-	L
HFS5-2040	-	800
KHFS5-2040	-	1000
KHFSB5-2040	-	4000

■Configurable Length Extrusions

Type	Material	Surface Treatment	Part Number	L 0.5mm Increment	Mass kg/m	Sectional Area mm2	Cross Sectional Moment of Inertia mm4
							ℓx	ℓy
HFS	EN AC-51400-T5 Equiv.	Clear Anodize	HFS5-2040	50~4000	0.88	324	1.358x104	5.13x104
HFS	EN AC-51400-T5 Equiv.	Black Anodize	HFSB5-2040	50~4000	0.88	324	1.358x104	5.13x104
HFS	EN AC-51400-T5 Equiv.	Clear Coating	CAF5-2040	50~4000	0.88	324	1.358x104	5.13x104
NFS	EN AW-6063-T5 Equiv.	Clear Anodize	NFS5-2040	50~4000	0.88	324	1.358x104	5.13x104
NFS	EN AW-6063-T5 Equiv.	Black Anodize	NFSB5-2040	50~4000	0.88	324	1.358x104	5.13x104

Applicable to 6000mm depending on products.
For some extrusions, MISUMI may be unable to accept the order.
Refer to Information of Special Orders (P.103) and contact the person in charge of Special Orders at MISUMI QCT Center.

■Fixed Length Extrusions (Effective Length 4000mm, 1000mm)
Part numbers beginning with the character "K" indicate Fixed Length Extrusion.

Type	Material	Surface Treatment	Part Number	L mm	Sectional Area mm2	Cross Sectional Moment of Inertia mm4
						ℓx	ℓy
HFS	EN AC-51400-T5 Equiv.	Clear Anodize	KHFS5-2040	4000	324	1.358x104	5.13x104
HFS	EN AC-51400-T5 Equiv.	Clear Anodize	KHFS5-2040	1000	324	1.358x104	5.13x104
HFS	EN AC-51400-T5 Equiv.	Black Anodize	KHFSB5-2040	4000	324	1.358x104	5.13x104
HFS	EN AC-51400-T5 Equiv.	Clear Coating	KCAF5-2040	4000	324	1.358x104	5.13x104
NFS	EN AW-6063-T5 Equiv.	Clear Anodize	KNFS5-2040	4000	324	1.358x104	5.13x104
NFS	EN AW-6063-T5 Equiv.	Black Anodize	KNFSB5-2040	4000	324	1.358x104	5.13x104

"Effective Length 4000mm" represents the extrusion with 4000mm or more effective length.
The actual length with extra lengths on ends is more than 4000mm (several tens of mm).
Fixed Length Extrusions need to be cut by users thus the exact length cannot be specified.
