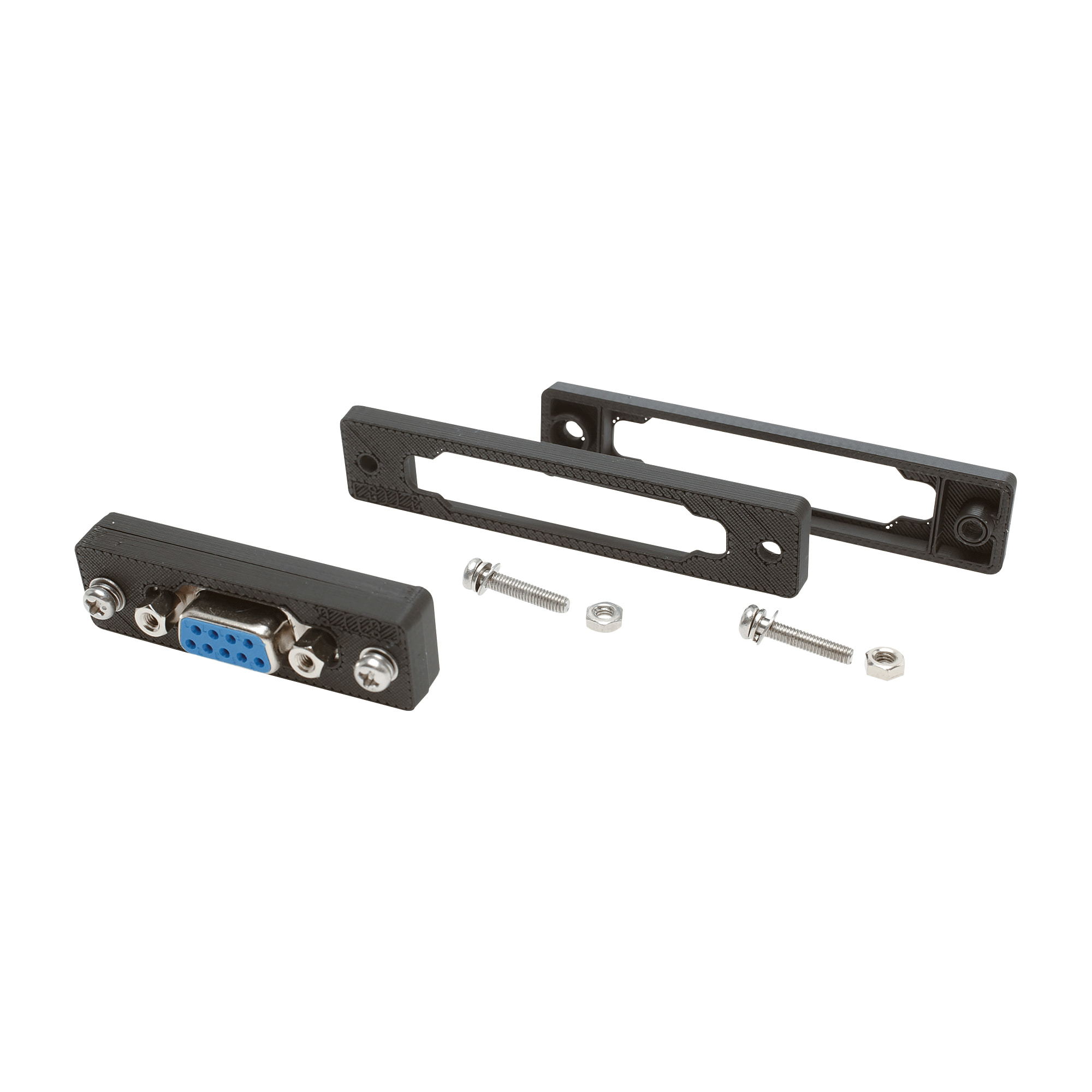

D-sub Connector Panel Mounting Accessory (Dedicated for Gender Changer)
Passe o rato sobre a imagem para a aumentar
Número da peça:
candidatos encontrados.Especificações do produto
Specification Table
| Model | Supported Number of Cores ( ) is High Density Type | Weight g |
| DGC-9-HOLD | 9 (15) | 6 |
| DGC-25-HOLD | 25 | 7 |
Overview of Specifications
Material/Finishing
| Item | Quantity | Material |
| Resin Plate | 2 | ABS Resin, Black |
| M3 SEMS Screw 15 mm (Effective Screw Length Approx. 13 mm) | 2 | Iron, Nickel Plating |
| M3 Nut | 2 | Iron, Nickel Plating |
Lista de números de peça
Número de itens
| Número da peça |
|---|
Preço unitário (excluindo IVA)(Preço unitário incluindo IVA) | Data de envio standard |
|---|
3.74 € ( 4.45 € ) | 5 dias úteis |
7.41 € ( 8.82 € ) | 5 dias úteis |
Informações detalhadas
Informações básicas
[Specifications]·An accessory that can be mounted on panels with a thickness of 2.3 mm · Compatible with 9- and 25-core cables commonly used in RS232C communication.
● Accessory can mount a gender changer to panels
● Supports both general purpose 9-core and 25-core through RS-232C communication
● Supports up to 2.3 mm panel thickness
· Depending on hood type, 2.3 mm panel thickness may not be supported.
· The gender changer in the product photo is not included.
· Refer to the following outer diameter drawing for panel cut dimensions. In addition, cut dimensions vary depending on the number of cores.
Como utilizar
Usage Example
Especificações comuns
Compatible Wire Size
| Connector Type | Compatible Wire Size | ||
|---|---|---|---|
| AWG Size | Conductor Cross-Sectional Area (mm2) | ||
| Solder Connection Type | Finer than 20 | Less than 0.53 | |
| Pressure Weld Connection Type | 1.27 mm Pitch 28 Flat Cable | − | |
| High-density Solder Connection Type | 22 ~ 28 | 0.08 ~ 0.32 | |
| Terminal Block Built in Type | 14 ~ 26 | 2.0 ~ 1.5 | |
| High Current Type | For 10A | 16 ~ 12 | 0.3 ~ 1.25 |
| For 20A | 12 ~ 18 | 0.75 ~ 3.5 | |
・ When mounting a hood, the wires in the table at left may not be usable, depending on the cable extraction port diameter. Use with due attention to the cable finished outer diameter, etc.
Panel Size
Solder Connection / Pressure Weld Connection Type
● Dimension Table
| Number of Cores | A±0.15 | B±0.2 | C±0.2 | ||
|---|---|---|---|---|---|
| High Current Type | High-density type | Others | |||
| - | 15 | 9 | 24.99 | 20.6 | 12.0 |
| 3 | 26 | 15 | 33.32 | 28.8 | 12.0 |
| 5 | 44 | 25 | 47.04 | 42.6 | 12.0 |
| 8 | 62 | 37 | 63.50 | 59.0 | 12.0 |
| - | 78 | 50 | 61.11 | 56.6 | 15.2 |
Mounting holes for panel front and rear mounting are common.
Pressure Weld Connection Type
a. Dimensions when mounting the connector from panel front
● Dimension Table
| Number of Cores | A1 | B1 |
|---|---|---|
| 9 | 24.99 | 22.00 |
| 15 | 33.32 | 30.30 |
| 25 | 47.04 | 44.00 |
| 37 | 63.05 | 60.50 |
b. Dimensions when mounting the connector from panel rear
● Dimension Table
| Number of Cores | A2 | B2 |
|---|---|---|
| 9 | 24.99 | 20.20 |
| 15 | 33.32 | 28.60 |
| 25 | 47.04 | 42.50 |
| 37 | 63.05 | 59.20 |
Contact Arrangement Diagram
| Shell Size Group | E | A | B | C | D |
|---|---|---|---|---|---|
| Standard Type |  |  |  |  |  |
| High-density type |  |  |  |  |  |
