● A compact, high-capacity nylon connector, widely used in FA devices, etc.
● Features a contact pitch of 3.96 mm, an assembly mounting height of 7.5 mm, and a thickness of 4.5 mm.
● The good performance quality and stability of use are due to having UL / CSA / TUV standards.
UL: E60389
CSA: LR20812
TÜV: R75122
Estamos a traduzir a nossa loja para português!
Mas como temos muitos produtos e páginas, vai demorar algum tempo. Entretanto, o nosso catálogo de produtos estará em inglês. Obrigado pela sua paciência!
Condições de filtragem
- Cable Length(m)
- 1
- 2
- 3
- 5
- 7
- 10
- Dias de envio estimados
- Tudo
- Dentro de 5 dias úteis
- Dentro de 12 dias úteis

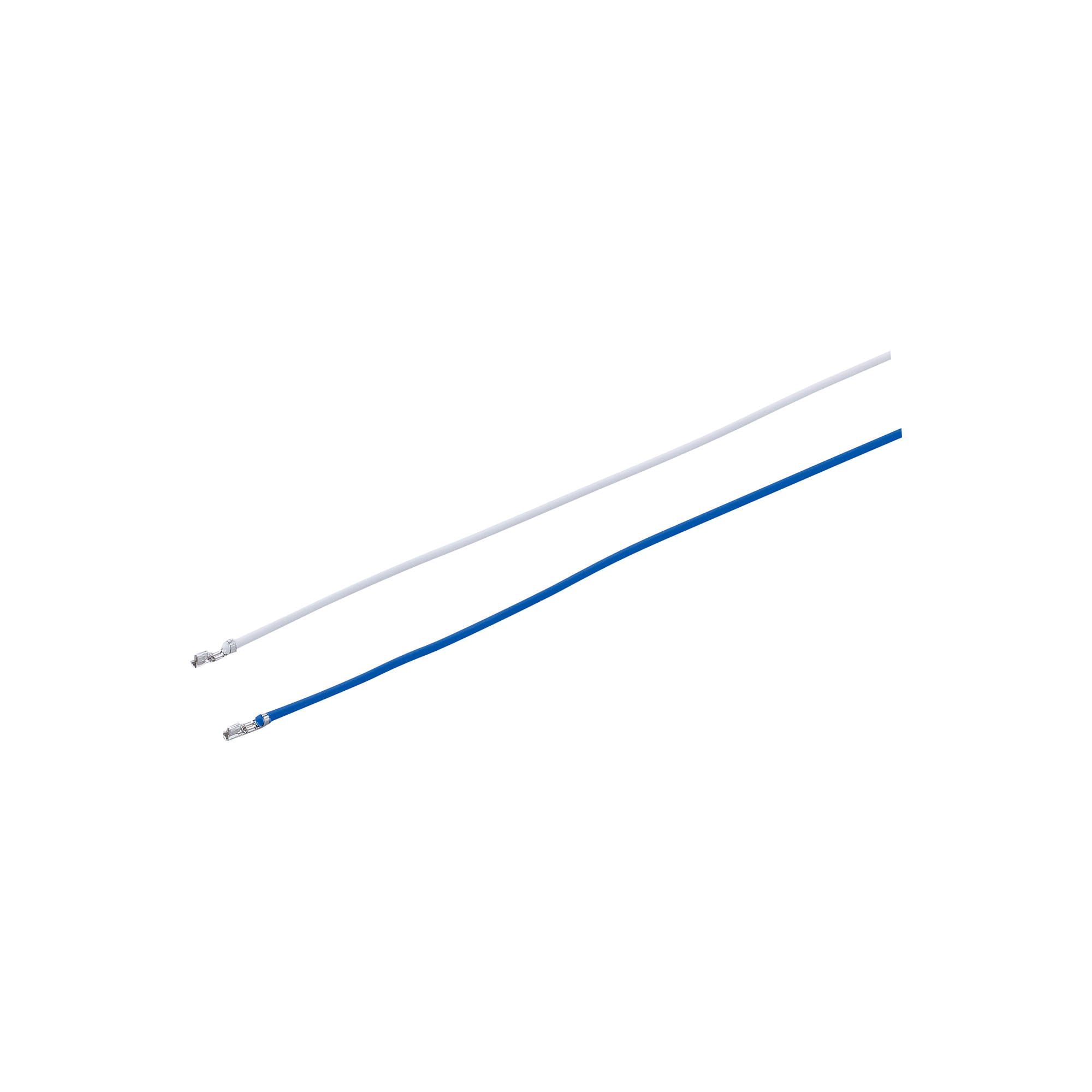

PH Connector Crimped Contact Cable【50 unidades】
Passe o rato sobre a imagem para a aumentar
Número da peça:
candidatos encontrados.Especificações do produto
Specifications
1 Pack Unit With Total of 50
| Model Number | Contact Type | Cable Color Specified | Parts Specification | Weight 1 m | |||
| Stock (1 m) Non-stock (2 m ~) | Non-stock | Used Cable | Used Contact Model Number | ||||
| (g) | |||||||
| BPH002-24 | Female (Socket) | B (Blue) C (White) D (Black) | A (Brown) E (Red) F (Yellow) G (Green) | AWG24 | UL1007 Type | BPH-002T-P0.5S | 222 |
More Information
Lista de números de peça
Número de itens
| Número da peça |
|---|
Preço unitário (excluindo IVA)(Preço unitário incluindo IVA) | Data de envio standard |
|---|
34.34 € ( 40.86 € ) | 12 dias úteis |
42.59 € ( 50.68 € ) | 12 dias úteis |
50.86 € ( 60.52 € ) | 12 dias úteis |
67.43 € ( 80.24 € ) | 12 dias úteis |
83.97 € ( 99.92 € ) | 12 dias úteis |
108.80 € ( 129.47 € ) | 12 dias úteis |
34.34 € ( 40.86 € ) | 5 dias úteis |
42.59 € ( 50.68 € ) | 12 dias úteis |
50.86 € ( 60.52 € ) | 12 dias úteis |
67.43 € ( 80.24 € ) | 12 dias úteis |
83.97 € ( 99.92 € ) | 12 dias úteis |
108.80 € ( 129.47 € ) | 12 dias úteis |
34.34 € ( 40.86 € ) | 5 dias úteis |
42.59 € ( 50.68 € ) | 12 dias úteis |
50.86 € ( 60.52 € ) | 12 dias úteis |
67.43 € ( 80.24 € ) | 12 dias úteis |
83.97 € ( 99.92 € ) | 12 dias úteis |
108.80 € ( 129.47 € ) | 12 dias úteis |
34.34 € ( 40.86 € ) | 5 dias úteis |
42.59 € ( 50.68 € ) | 12 dias úteis |
50.86 € ( 60.52 € ) | 12 dias úteis |
67.43 € ( 80.24 € ) | 12 dias úteis |
83.97 € ( 99.92 € ) | 12 dias úteis |
108.80 € ( 129.47 € ) | 12 dias úteis |
34.34 € ( 40.86 € ) | 12 dias úteis |
42.59 € ( 50.68 € ) | 12 dias úteis |
50.86 € ( 60.52 € ) | 12 dias úteis |
67.43 € ( 80.24 € ) | 12 dias úteis |
83.97 € ( 99.92 € ) | 12 dias úteis |
108.80 € ( 129.47 € ) | 12 dias úteis |
34.34 € ( 40.86 € ) | 12 dias úteis |
42.59 € ( 50.68 € ) | 12 dias úteis |
50.86 € ( 60.52 € ) | 12 dias úteis |
67.43 € ( 80.24 € ) | 12 dias úteis |
83.97 € ( 99.92 € ) | 12 dias úteis |
108.80 € ( 129.47 € ) | 12 dias úteis |
34.34 € ( 40.86 € ) | 12 dias úteis |
42.59 € ( 50.68 € ) | 12 dias úteis |
50.86 € ( 60.52 € ) | 12 dias úteis |
67.43 € ( 80.24 € ) | 12 dias úteis |
83.97 € ( 99.92 € ) | 12 dias úteis |
108.80 € ( 129.47 € ) | 12 dias úteis |
Informações detalhadas
Informações básicas
No special tools required. Ideal for field assembly with quick delivery. 1 package contains 50 pieces
● Sold as a pack of crimped cables.
● High Quality Crimped Connector Cables Processed at a Misumi Factory
● Connector cables can be assembled without investing in specialized tools.
● Available as 50 pieces / pack
· If the wiring is incorrect, remove it with the dedicated wire removal tool.
· For reuse, raise the contact lance.
Especificações comuns
VH Connector Common Specifications
Specifications
| Item | Content | |
|---|---|---|
| Rated Voltage | 250 VAC / VDC | |
| Rated Current | 5 A (*) | |
| Withstand Voltage | 1,500 VAC (1 minute) | |
| Insulation Resistance | 1,000 MΩ or more | |
| Contact Resistance | Initial | 10 mΩ or less |
| After environmental testing | 20 mΩ or less | |
| Applicable Electric Wire Range | AWG22 ~ 18 (0.33 ~ 0.83 mm2) | |
| Suitable Electric Wire Insulation Outer Diameter | 1.7 ~ 3.0 mm | |
| Operating Temperature Range | -25 ~ 85°C | |
* When BVH-21T-P1.1 is used
Material
| Item | Material |
|---|---|
| Housing | Nylon 66 (UL94V-0) |
| Housing Color | White Color |
| Crimp Contact | Phosphor Bronze / Tin Plated |
PH Connector Common Specifications
● Compact, high-density nylon connectors, widely used in FA devices, etc.
● Features a contact pitch of 2.0 mm, an assembly mounting height of 7.5 mm, and a thickness of 4.5 mm.
● The good performance quality and stability of use are due to having UL / CSA / TUV standards.
UL: E60389
CSA: LR20812
TUV: R75087
● Features a contact pitch of 2.0 mm, an assembly mounting height of 7.5 mm, and a thickness of 4.5 mm.
● The good performance quality and stability of use are due to having UL / CSA / TUV standards.
UL: E60389
CSA: LR20812
TUV: R75087
Specifications
| Item | Content | |
|---|---|---|
| Rated Voltage | 100 VAC / VDC | |
| Rated Current | 2 A | |
| Withstand Voltage | 800 VAC (1 minute) | |
| Insulation Resistance | 1,000 MΩ or more | |
| Contact Resistance | Initial | 10 mΩ or less |
| After environmental testing | 20 mΩ or less | |
| Applicable Electric Wire Range | AWG30 ~ 24 (0.05 ~ 0.22 mm2) | |
| Suitable Electric Wire Insulation Outer Diameter | 0.9 ~ 1.5 mm | |
| Operating Temperature Range | -25 ~ 85°C | |
Material
| Item | Material |
|---|---|
| Housing | Nylon 66 (UL94V-0) |
| Housing Color | White Color |
| Crimp Contact | Phosphor Bronze / Tin Plated |
