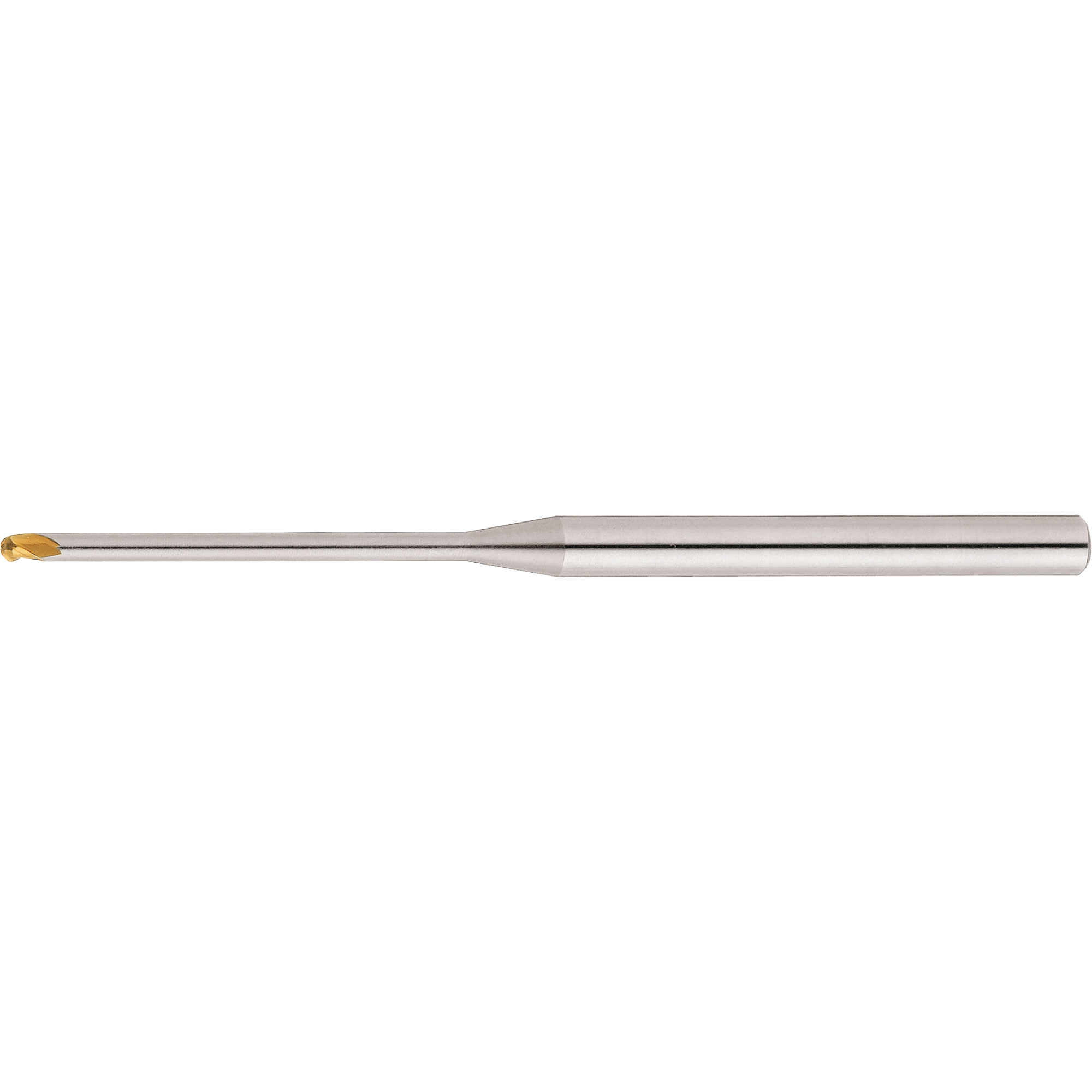

TSC series carbide long neck ball end mill, 3-flute / long neck model

Name: TSC series carbide long neck ball end mill, 3-flute / long neck model from MISUMI | MISUMI
Brand: MISUMI
SKU: 110600007060
Availability: Instock

Passe o rato sobre a imagem para a aumentar

Número da peça:

Indefinido. 46 candidatos encontrados.

Desenho de contorno
Lista de números de peça
Informações detalhadas

Desenho de contorno

TSC series carbide long neck ball end mill, 3-flute / long neck model:Related Image

Lista de números de peça

Número de itens

Número da peça

R Size

(mm)

Flute Length (ℓ)

(mm)

Number of Flutes

(sheet)

Overall Length (L)

(mm)

Length Under Neck (ℓ1)

(mm)

Shank Diameter (d)

(mm)

R Precision

(μm)

Inventory Classification

Outer Diameter D

(mm)

Under Neck Diameter d1

(mm)

Actual Effective Length Depends on Work Inclination Angle 30'

(mm)

Actual Effective Length Depends on Work Inclination Angle 1°

(mm)

Actual Effective Length Depends on Work Inclination Angle 2°

(mm)

Actual Effective Length Depends on Work Inclination Angle 3°

(mm)

Quantidade mínima de encomenda

0.75	-	2	50	8 ～ 23	6	±0.005	Manufactured Product	1.5	1.45	-	-	-	-	1 unidades
1	-	2	50	8 ～ 24	6	±0.005	Manufactured Product	2	1.95	-	-	-	-	1 unidades
1.5	-	2	50	9 ～ 26	6	±0.005	Manufactured Product	3	2.9	-	-	-	-	1 unidades
2	-	2	50	11 ～ 28	6	±0.005	Manufactured Product	4	3.8	-	-	-	-	1 unidades
0.5	0.8	3	50	3	4	±0.005	Stocked Product	1	0.95	3.12	3.25	3.54	3.89	1 unidades
0.5	0.8	3	50	4	4	±0.005	Stocked Product	1	0.95	4.16	4.33	4.72	3.89	1 unidades
0.5	0.8	3	50	5	4	±0.005	Stocked Product	1	0.95	5.2	5.41	5.9	5.98	1 unidades
0.5	0.8	3	50	4	4	±0.005	Stocked Product	1	0.95	6.24	6.49	7.08	7.78	1 unidades
0.5	0.8	3	50	4	4	±0.005	Stocked Product	1	0.95	7.28	7.57	8.26	9.08	1 unidades
0.5	0.8	3	50	4	4	±0.005	Stocked Product	1	0.95	8.31	8.66	9.44	10.38	1 unidades
0.5	0.8	3	50	10	4	±0.005	Stocked Product	1	0.95	10.39	10.82	11.8	12.97	1 unidades
0.5	0.8	3	50	12	4	±0.005	Stocked Product	1	0.95	12.47	12.99	14.16	15.57	1 unidades
0.5	0.8	3	50	14	4	±0.005	Stocked Product	1	0.95	14.55	15.15	16.52	18.16	1 unidades
0.75	1.2	3	50	4	4	±0.005	Stocked Product	1.5	1.45	6.24	6.49	7.08	7.78	1 unidades
0.75	1.2	3	50	4	4	±0.005	Stocked Product	1.5	1.45	8.31	8.66	9.44	10.38	1 unidades
0.75	1.2	3	50	4	4	±0.005	Stocked Product	1.5	1.45	10.39	10.82	11.8	12.97	1 unidades
0.75	1.2	3	50	12	4	±0.005	Stocked Product	1.5	1.45	12.47	12.99	14.16	15.57	1 unidades
1	1.6	3	50	4	4	±0.005	Stocked Product	2	1.95	4.16	4.33	4.72	5.19	1 unidades
1	1.6	3	50	4	4	±0.005	Stocked Product	2	1.95	6.24	6.49	7.08	7.78	1 unidades
1	1.6	3	50	4	4	±0.005	Stocked Product	2	1.95	8.31	8.66	9.44	10.38	1 unidades
1	1.6	3	50	4	4	±0.005	Stocked Product	2	1.95	10.39	10.82	11.8	12.97	1 unidades
1	1.6	3	50	12	4	±0.005	Stocked Product	2	1.95	12.47	12.99	14.16	15.57	1 unidades
1	1.6	3	50	14	4	±0.005	Stocked Product	2	1.95	14.55	15.15	16.52	18.16	1 unidades
1	1.6	3	50	16	4	±0.005	Stocked Product	2	1.95	16.63	17.31	18.87	Without Interference	1 unidades
1	1.6	3	70	18	4	±0.005	Stocked Product	2	1.95	18.71	19.48	21.23	Without Interference	1 unidades
1	1.6	3	70	20	4	±0.005	Stocked Product	2	1.95	20.79	21.64	23.59	Without Interference	1 unidades
1	1.6	3	70	25	4	±0.005	Stocked Product	2	1.95	25.98	27.05	29.49	Without Interference	1 unidades
1	1.6	3	70	30	4	±0.005	Stocked Product	2	1.95	31.18	32.46	Without Interference	Without Interference	1 unidades
1	1.6	3	110	40	4	±0.005	Stocked Product	2	1.95	41.57	43.28	Without Interference	Without Interference	1 unidades
1.5	2.4	3	50	10	6	±0.005	Stocked Product	3	2.9	10.39	10.82	11.8	12.97	1 unidades
1.5	2.4	3	50	12	6	±0.005	Stocked Product	3	2.9	12.47	12.99	14.16	15.57	1 unidades
1.5	2.4	3	70	16	6	±0.005	Stocked Product	3	2.9	16.63	17.31	18.87	20.76	1 unidades
1.5	2.4	3	70	20	6	±0.005	Stocked Product	3	2.9	20.79	21.64	23.59	25.95	1 unidades
1.5	2.4	3	70	25	6	±0.005	Stocked Product	3	2.9	25.98	27.05	29.49	Without Interference	1 unidades
1.5	2.4	3	70	30	6	±0.005	Stocked Product	3	2.9	31.18	32.46	35.39	Without Interference	1 unidades
2	3.2	3	50	10	6	±0.005	Stocked Product	4	3.85	10.39	10.82	11.8	12.97	1 unidades
2	3.2	3	50	12	6	±0.005	Stocked Product	4	3.85	12.47	12.99	14.16	15.57	1 unidades
2	3.2	3	50	16	6	±0.005	Stocked Product	4	3.85	16.63	17.31	18.87	Without Interference	1 unidades
2	3.2	3	70	20	6	±0.005	Stocked Product	4	3.85	20.79	21.64	23.59	Without Interference	1 unidades
2	3.2	3	70	25	6	±0.005	Stocked Product	4	3.85	25.98	27.05	29.49	Without Interference	1 unidades
2	3.2	3	70	30	6	±0.005	Stocked Product	4	3.85	31.18	32.46	Without Interference	Without Interference	1 unidades
2	3.2	3	110	35	6	±0.005	Stocked Product	4	3.85	36.38	37.87	Without Interference	Without Interference	1 unidades
2	3.2	3	110	40	6	±0.005	Stocked Product	4	3.85	41.57	43.28	Without Interference	Without Interference	1 unidades
2	3.2	3	110	50	6	±0.005	Stocked Product	4	3.85	51.97	54.11	Without Interference	Without Interference	1 unidades
3	4.8	3	70	20	6	-0.007 ~ +0.003	Stocked Product	6	5.85	Without Interference	Without Interference	Without Interference	Without Interference	1 unidades
3	4.8	3	70	30	6	-0.007 ~ +0.003	Stocked Product	6	5.85	Without Interference	Without Interference	Without Interference	Without Interference	1 unidades

Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)	Data de envio standard

- ( - )	8 dias úteis
- ( - )	8 dias úteis
- ( - )	8 dias úteis
- ( - )	8 dias úteis
41.39 € ( 49.25 € )	5 dias úteis
42.28 € ( 50.31 € )	5 dias úteis
42.28 € ( 50.31 € )	5 dias úteis
34.00 € ( 40.46 € )	5 dias úteis
45.68 € ( 54.36 € )	5 dias úteis
34.00 € ( 40.46 € )	5 dias úteis
34.00 € ( 40.46 € )	5 dias úteis
34.00 € ( 40.46 € )	5 dias úteis
48.31 € ( 57.49 € )	5 dias úteis
45.47 € ( 54.11 € )	5 dias úteis
46.86 € ( 55.76 € )	5 dias úteis
44.48 € ( 52.93 € )	5 dias úteis
47.67 € ( 56.73 € )	5 dias úteis
35.36 € ( 42.08 € )	5 dias úteis
42.84 € ( 50.98 € )	5 dias úteis
47.58 € ( 56.62 € )	5 dias úteis
45.10 € ( 53.67 € )	5 dias úteis
45.20 € ( 53.79 € )	5 dias úteis
43.09 € ( 51.28 € )	5 dias úteis
45.10 € ( 53.67 € )	5 dias úteis
44.02 € ( 52.38 € )	5 dias úteis
47.58 € ( 56.62 € )	5 dias úteis
56.83 € ( 67.63 € )	5 dias úteis
64.25 € ( 76.46 € )	5 dias úteis
94.36 € ( 112.29 € )	5 dias úteis
54.51 € ( 64.87 € )	5 dias úteis
53.81 € ( 64.03 € )	5 dias úteis
58.54 € ( 69.66 € )	5 dias úteis
62.84 € ( 74.78 € )	5 dias úteis
62.84 € ( 74.78 € )	5 dias úteis
63.10 € ( 75.09 € )	5 dias úteis
43.17 € ( 51.37 € )	5 dias úteis
53.54 € ( 63.71 € )	5 dias úteis
44.07 € ( 52.44 € )	5 dias úteis
49.26 € ( 58.62 € )	5 dias úteis
47.81 € ( 56.89 € )	5 dias úteis
53.81 € ( 64.03 € )	5 dias úteis
69.08 € ( 82.21 € )	5 dias úteis
66.19 € ( 78.77 € )	5 dias úteis
100.28 € ( 119.33 € )	5 dias úteis
71.41 € ( 84.98 € )	5 dias úteis
69.28 € ( 82.44 € )	5 dias úteis

Informações básicas

[Features]
-Long-neck ball with 3 cutting edges, suitable for high-speed machining of deep cutting areas
-The coating has high oxidation resistance and high hardness, and achieves long service life. Effective in high speed machining and dry machining as coating properties
-Can be reground. Please refer to the "Regrinding Service" page for application procedures, range of services, prices, etc.

Especificações e preço

Specifications

TSC series carbide long neck ball end mill, 3-flute / long neck model:Related Image

Model Number			Shank Diameter d	Flute Length ℓ	Under Neck Diameter d1	Overall Length L	Actual Effective Length Depends on Work Inclination Angle				Figure
	Tip R	Length Under Neck ℓ1					Actual Effective Length Depends on Work Inclination Angle
	Tip R	Length Under Neck ℓ1					30'	1°	2°	3°
TSC-BEM3LB (Stocked Product)	0.5	3	4	0.8	0.95	50	3.12	3.25	3.54	3.89	1
		4					4.16	4.33	4.72	5.19
		5					5.20	5.41	5.90	5.98
		6					6.24	6.49	7.08	7.78
		7					7.28	7.57	8.26	9.08
		8					8.31	8.66	9.44	10.38
		10					10.39	10.82	11.80	12.97
		12					12.47	12.99	14.16	15.57
		14					14.55	15.15	16.52	18.16
	0.75	6	4	1.2	1.45	50	6.24	6.49	7.08	7.78	1
		8					8.31	8.66	9.44	10.38
		10					10.39	10.82	11.80	12.97
		12					12.47	12.99	14.16	15.57
		16					16.63	17.31	18.87	20.76
	1	4	4	1.6	1.95	50	4.16	4.33	4.72	5.19	1
		6					6.24	6.49	7.08	7.78
		8					8.31	8.66	9.44	10.38
		10					10.39	10.82	11.80	12.97
		12					12.47	12.99	14.16	15.57
		14					14.55	15.15	16.52	18.16
		16					16.63	17.31	18.87	Without Interference
		18				70	18.71	19.48	21.23	Without Interference
		20					20.79	21.64	23.59	Without Interference
		25					25.98	27.05	29.49	Without Interference
		30					31.18	32.46	Without Interference	Without Interference
		40				110	41.57	43.28	Without Interference	Without Interference
	1.5	10	6	2.4	2.9	50	10.39	10.82	11.80	12.97	1
		12				50	12.47	12.99	14.16	15.57
		16				70	16.63	17.31	18.87	20.76
		20					20.79	21.64	23.59	25.95
		25					25.98	27.05	29.49	Without Interference
		30					31.18	32.46	35.39	Without Interference
	2	10	6	3.2	3.85	50	10.39	10.82	11.80	12.97	1
		12					12.47	12.99	14.16	15.57
		16					16.63	17.31	18.87	Without Interference
		20				70	20.79	21.64	23.59	Without Interference
		25					25.98	27.05	29.49	Without Interference
		30					31.18	32.46	Without Interference	Without Interference
		35				110	36.38	37.87	Without Interference	Without Interference
		40					41.57	43.28	Without Interference	Without Interference
		50					51.97	54.11	Without Interference	Without Interference
	3	20	6	4.8	5.85	70	Without Interference	Without Interference	Without Interference	Without Interference	2
	3	30	6	4.8	5.85	70	Without Interference	Without Interference	Without Interference	Without Interference	2

[ ! ]Take care when placing orders as the model numbers of manufactured products differ from those of stocked products.

Model Number		Length Under Neck ℓ1 1 mm Increment Designation	Shank Diameter d	Flute Length ℓ	Under Neck Diameter d1	Overall Length L	Figure
Model Number	Tip R	Length Under Neck ℓ1 1 mm Increment Designation	Shank Diameter d	Flute Length ℓ	Under Neck Diameter d1	Overall Length L	Figure
LN-TSC-BEM3S (Manufactured Product)	0.75	8 ~ 23	6	3	1.45	50	3
	1	8 ~ 24	6	3	1.95	50	3
	1.5	9 ~ 26	6	4	2.9	50	3
	2	11 ~ 28	6	6	3.8	50	3

For Cutting Conditions, Refer to >>Click here.
