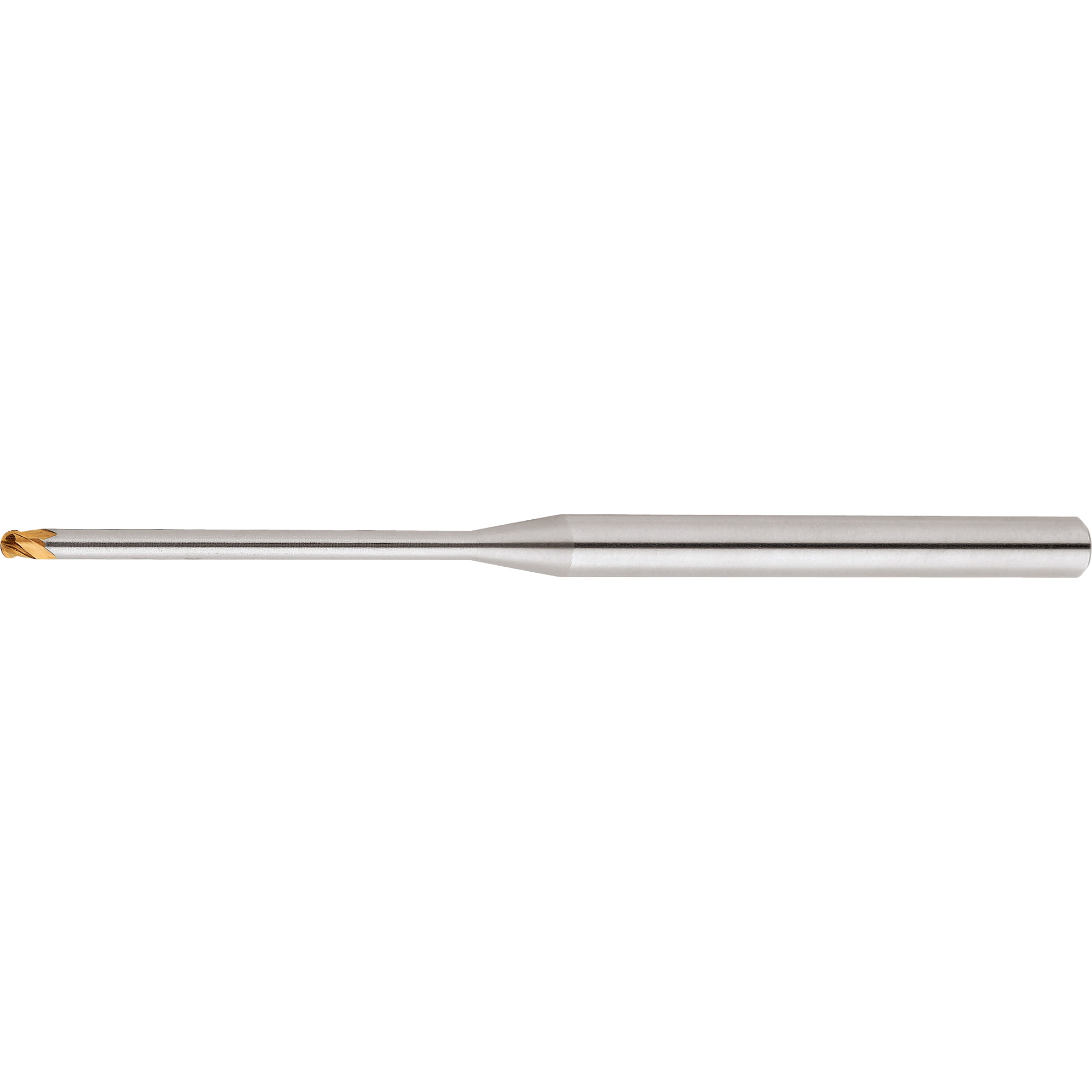

TSC series carbide long neck ball end mill, 4-flute / long neck model

Name: TSC series carbide long neck ball end mill, 4-flute / long neck model from MISUMI | MISUMI
Brand: MISUMI
SKU: 110600007150
Availability: Instock

Passe o rato sobre a imagem para a aumentar

Número da peça:

Indefinido. 20 candidatos encontrados.

Desenho de contorno
Lista de números de peça
Informações detalhadas

Desenho de contorno

TSC series carbide long neck ball end mill, 4-flute / long neck model:Related Image

Lista de números de peça

Número de itens

Número da peça

R Size

(mm)

Flute Length (ℓ)

(mm)

Overall Length (L)

(mm)

Length Under Neck (ℓ1)

(mm)

Shank Diameter (d)

(mm)

R Precision

(μm)

Inventory Classification

Outer Diameter D

(mm)

Figure

Length Under Neck (θ)

(Degree)

Under Neck Diameter d1

(mm)

Actual Effective Length Depends on Work Inclination Angle 30'

(mm)

Actual Effective Length Depends on Work Inclination Angle 1°

(mm)

Actual Effective Length Depends on Work Inclination Angle 2°

(mm)

Actual Effective Length Depends on Work Inclination Angle 3°

(mm)

Quantidade mínima de encomenda

1	3	50	-	6	±0.005	Manufactured Product	8 ～ 24	2	3	-	1.95	-	-	-	-	1 unidades
1.5	4	50	-	6	±0.005	Manufactured Product	9 ～ 26	3	3	-	2.9	-	-	-	-	1 unidades
2	6	50	-	6	±0.005	Manufactured Product	11 ～ 28	4	3	-	3.8	-	-	-	-	1 unidades
1	1.6	50	4	4	±0.005	Stocked Product	-	2	1	10°	1.95	4.16	4.33	4.72	5.19	1 unidades
1	1.6	50	6	4	±0.005	Stocked Product	-	2	1	10°	1.95	6.24	6.49	7.08	7.78	1 unidades
1	1.6	50	8	4	±0.005	Stocked Product	-	2	1	10°	1.95	8.31	8.66	9.44	10.38	1 unidades
1	1.6	50	10	4	±0.005	Stocked Product	-	2	1	10°	1.95	10.39	10.82	11.8	12.97	1 unidades
1	1.6	50	12	4	±0.005	Stocked Product	-	2	1	10°	1.95	12.47	12.99	14.16	15.57	1 unidades
1	1.6	50	16	4	±0.005	Stocked Product	-	2	1	10°	1.95	16.63	17.31	18.87	Without Interference	1 unidades
1	1.6	70	18	4	±0.005	Stocked Product	-	2	1	10°	1.95	18.71	19.48	21.23	Without Interference	1 unidades
1	1.6	70	20	4	±0.005	Stocked Product	-	2	1	10°	1.95	20.79	21.64	23.59	Without Interference	1 unidades
1	1.6	70	25	4	±0.005	Stocked Product	-	2	1	10°	1.95	25.98	27.05	29.49	Without Interference	1 unidades
1.5	2.4	70	16	6	±0.005	Stocked Product	-	3	1	10°	2.9	16.63	17.31	18.87	20.76	1 unidades
1.5	2.4	70	20	6	±0.005	Stocked Product	-	3	1	10°	2.9	20.79	21.64	23.59	25.95	1 unidades
1.5	2.4	70	25	6	±0.005	Stocked Product	-	3	1	10°	2.9	25.98	27.05	29.49	Without Interference	1 unidades
1.5	2.4	70	30	6	±0.005	Stocked Product	-	3	1	10°	2.9	31.18	32.46	35.39	Without Interference	1 unidades
2	3.2	50	16	6	±0.005	Stocked Product	-	4	1	10°	3.85	16.63	17.31	18.87	Without Interference	1 unidades
2	3.2	70	20	6	±0.005	Stocked Product	-	4	1	10°	3.85	20.79	21.64	23.59	Without Interference	1 unidades
2	3.2	70	30	6	±0.005	Stocked Product	-	4	1	10°	3.85	31.18	32.46	Without Interference	Without Interference	1 unidades
3	4.8	70	20	6	-0.007 ~ +0.003	Stocked Product	-	4	2	-	5.85	Without Interference	Without Interference	Without Interference	Without Interference	1 unidades

Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)	Data de envio standard

- ( - )	8 dias úteis
- ( - )	8 dias úteis
- ( - )	8 dias úteis
44.48 € ( 52.93 € )	5 dias úteis
48.08 € ( 57.22 € )	5 dias úteis
51.39 € ( 61.15 € )	5 dias úteis
51.39 € ( 61.15 € )	5 dias úteis
50.23 € ( 59.77 € )	5 dias úteis
39.49 € ( 46.99 € )	5 dias úteis
51.39 € ( 61.15 € )	5 dias úteis
56.19 € ( 66.87 € )	5 dias úteis
65.73 € ( 78.22 € )	5 dias úteis
57.39 € ( 68.29 € )	5 dias úteis
61.43 € ( 73.10 € )	5 dias úteis
52.59 € ( 62.58 € )	5 dias úteis
76.46 € ( 90.99 € )	5 dias úteis
64.02 € ( 76.18 € )	5 dias úteis
52.59 € ( 62.58 € )	5 dias úteis
71.45 € ( 85.03 € )	5 dias úteis
80.74 € ( 96.08 € )	5 dias úteis

Informações básicas

[Features]
-Long Neck Ball 4-Flute type suitable for high-feed machining of deep cutting areas
-It has coating with high oxidation resistance and high hardness, and achieves long service life. Effective in high-speed machining and dry machining as coating properties
-Can be reground. Please refer to the "Regrinding Service" page for application procedures, range of services, prices, etc.

Especificações e preço

Specifications

TSC series carbide long neck ball end mill, 4-flute / long neck model:Related Image

Model Number			Shank Diameter d	Flute Length ℓ	Under Neck Diameter d1	Overall Length L	Actual Effective Length Depends on Work Inclination Angle				Figure
	Tip R	Length Under Neck ℓ1					Actual Effective Length Depends on Work Inclination Angle
	Tip R	Length Under Neck ℓ1					30'	1°	2°	3°
TSC-BEM4LB (Stocked Product)	1	4	4	1.6	1.95	50	4.16	4.33	4.72	5.19	1
		6					6.24	6.49	7.08	7.78
		8					8.31	8.66	9.44	10.38
		10					10.39	10.82	11.80	12.97
		12					12.47	12.99	14.16	15.57
		16					16.63	17.31	18.87	Without Interference
		18				70	18.71	19.48	21.23	Without Interference
		20					20.79	21.64	23.59	Without Interference
		25					25.98	27.05	29.49	Without Interference
	1.5	16	6	2.4	2.9	70	16.63	17.31	18.87	20.76	1
		20					20.79	21.64	23.59	25.95
		25					25.98	27.05	29.49	Without Interference
		30					31.18	32.46	35.39	Without Interference
	2	16	6	3.2	3.85	50	16.63	17.31	18.87	Without Interference	1
		20				70	20.79	21.64	23.59	Without Interference
		30				70	31.18	32.46	Without Interference	Without Interference
	3	20	6	4.8	5.85	70	Without Interference	Without Interference	Without Interference	Without Interference	2

Model Number
LN-TSC-BEM4S (Manufactured Product)

Tip R	Length Under Neck ℓ1 1 mm Increment Designation	Shank Diameter d	Flute Length ℓ	Under Neck Diameter d1	Overall Length L	Figure
1	8 ~ 24	6	3	1.95	50	3
1.5	9 ~ 26	6	4	2.9	50	3
2	11 ~ 28	6	6	3.8	50	3

[ ! ]Take care when placing orders as the model numbers of manufactured products differ from those of stocked products.

For Cutting Conditions, Refer to >>Click here.
