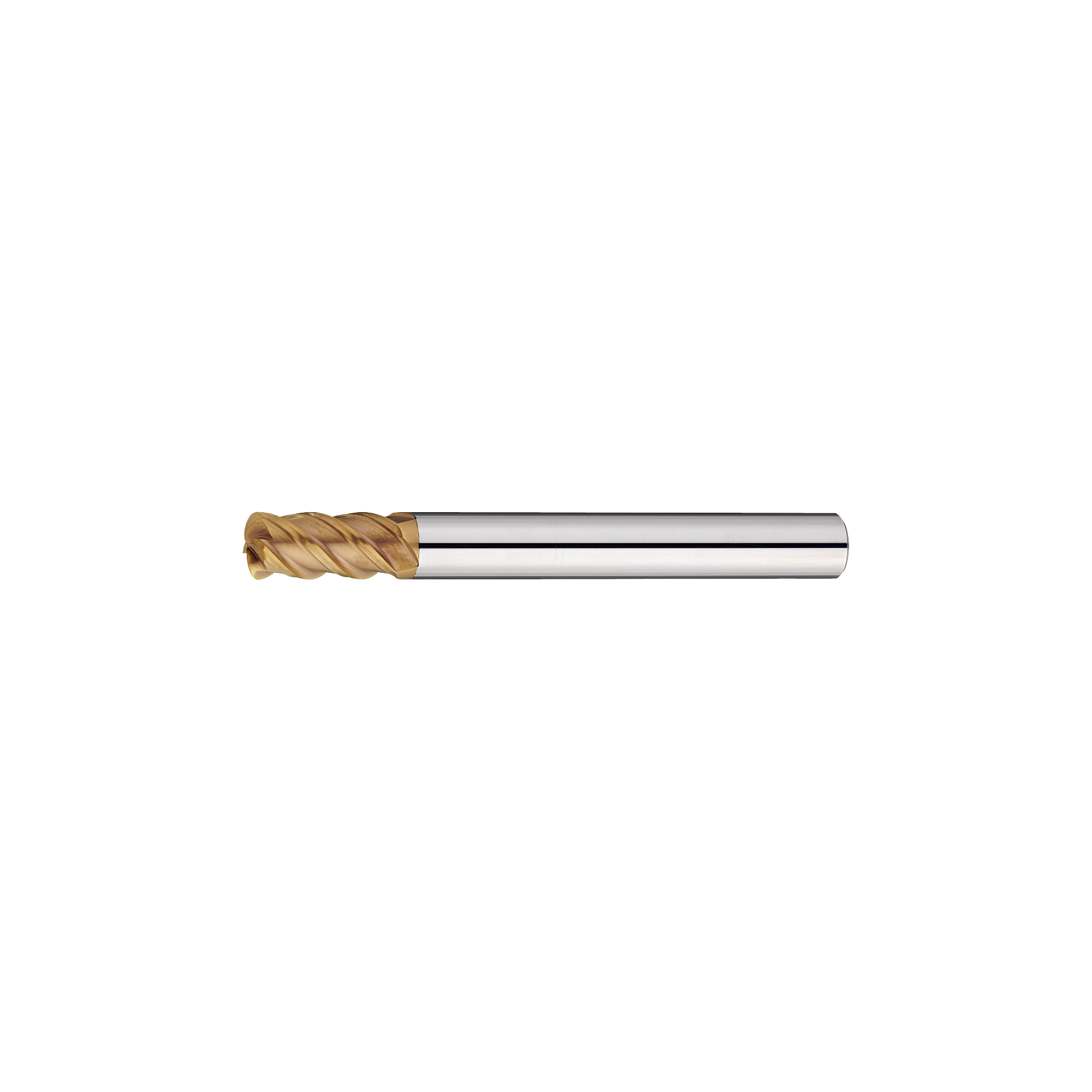

TSC series carbide composite radius end mill, for high-feed machining, 4-flute, 45° spiral / short model

TSC series carbide composite radius end mill, for high-feed machining, 4-flute, 45° spiral / short model

Passe o rato sobre a imagem para a aumentar

Número da peça:

Indefinido. 7 candidatos encontrados.
Quantidade:

Desenho de contorno

TSC series carbide composite radius end mill, for high-feed machining, 4-flute, 45° spiral / short model:Related Image

Lista de números de peça

Número de itens

Outer Diameter (D)

(φ)

R Size

(mm)

Flute Length (ℓ)

(mm)

Overall Length (L)

(mm)

Shank Diameter (d)

(mm)

Figure

Shoulder Radius R1

(mm)

Base Radius R2

(mm)

Approximate R-Value

(mm)

Quantidade mínima de encomenda
4
0.813
8
50
6
1
0.5
4
0.813
1 unidades
6
1.219
10
70
6
2
0.5
9
1.219
1 unidades
8
1.625
16
80
8
2
1
12
1.625
1 unidades
10
2.031
20
90
10
2
1.5
15
2.031
1 unidades
12
2.438
24
100
12
2
1.5
18
2.438
1 unidades
16
2.465
32
140
16
2
2
24
2.465
1 unidades
20
2.607
40
150
20
2
2
30
2.607
1 unidades
Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)
Data de envio standard
116.38 €
(
138.49 €
)
5 dias úteis
123.10 €
(
146.49 €
)
5 dias úteis
120.22 €
(
143.06 €
)
5 dias úteis
138.54 €
(
164.86 €
)
5 dias úteis
184.20 €
(
219.20 €
)
5 dias úteis
345.04 €
(
410.60 €
)
5 dias úteis
488.52 €
(
581.34 €
)
5 dias úteis

Informações detalhadas

Informações básicas

[Features]
-Combined corner radius shape of shoulder R and bottom R, (1) Cutting chips are thin when bottom face is milled, enabling high-speed feed (2) Minimizing cusp height (uncut part) during contour milling reduces the number of average finishing operations
-Can be reground. Please refer to the "Regrinding Service" page for application procedures, range of services, prices, etc.

Especificações e preço

Specifications

TSC series carbide composite radius end mill, for high-feed machining, 4-flute, 45° spiral / short model:Related Image

Model Number
TSC-MCR-HFEM4S

Outer Diameter
D
Shoulder
Radius
R1
Base
Radius
R2
Approximate R-Value Flute Length
Overall Length
L
Shank Diameter
d
Figure
4 0.5 4 0.813 8 50 6 1
6 0.5 9 1.219 10 70 6 2
8 1 12 1.625 16 80 8 2
10 1.5 15 2.031 20 90 10 2
12 1.5 18 2.438 24 100 12 2
16 2 24 2.465 32 140 16 2
20 2 30 2.607 40 150 20 2


For Cutting Conditions, Refer to >>Click here.

Caraterísticas e exemplos de utilização

More Information


The shoulder R and base R composite radius eliminate the medium finishing process by (1), enabling high-speed feeding due to thin chippings when bottom-surface machining, and by (2), minimizing the cusp height (leftover) when machining lines at the same height.
The TS coat consisting of a nitride-based composite film with a fully crystalline structure means that it realizes a high oxidation resistance temperature and high hardness. Ideal for high-speed machining and dry machining of anything from raw carbon steel materials through to heat-treated / high hardness steel.
[ ! ] This product has a special groove shape with a performance that may not be reproducible without the use of Misumi dedicated re-grinding.


TSC series carbide composite radius end mill, for high-feed machining, 4-flute, 45° spiral / short model:Related Image
