Passe o rato sobre a imagem para a aumentar
Número da peça:
candidatos encontrados.Número da peça |
---|
Preço unitário (excluindo IVA)(Preço unitário incluindo IVA) | Data de envio standard |
---|
46.54 € ( 55.38 € ) | 5 dias úteis |
50.00 € ( 59.50 € ) | 5 dias úteis |
51.46 € ( 61.24 € ) | 5 dias úteis |
54.18 € ( 64.47 € ) | 5 dias úteis |
59.29 € ( 70.56 € ) | 5 dias úteis |
56.51 € ( 67.25 € ) | 5 dias úteis |
72.40 € ( 86.16 € ) | 5 dias úteis |
69.03 € ( 82.15 € ) | 5 dias úteis |
85.19 € ( 101.38 € ) | 5 dias úteis |
88.22 € ( 104.98 € ) | 5 dias úteis |
94.32 € ( 112.24 € ) | 5 dias úteis |
95.36 € ( 113.48 € ) | 5 dias úteis |
112.35 € ( 133.70 € ) | 5 dias úteis |
128.78 € ( 153.25 € ) | 5 dias úteis |
93.30 € ( 111.03 € ) | 5 dias úteis |
105.83 € ( 125.94 € ) | 5 dias úteis |
149.04 € ( 177.36 € ) | 5 dias úteis |

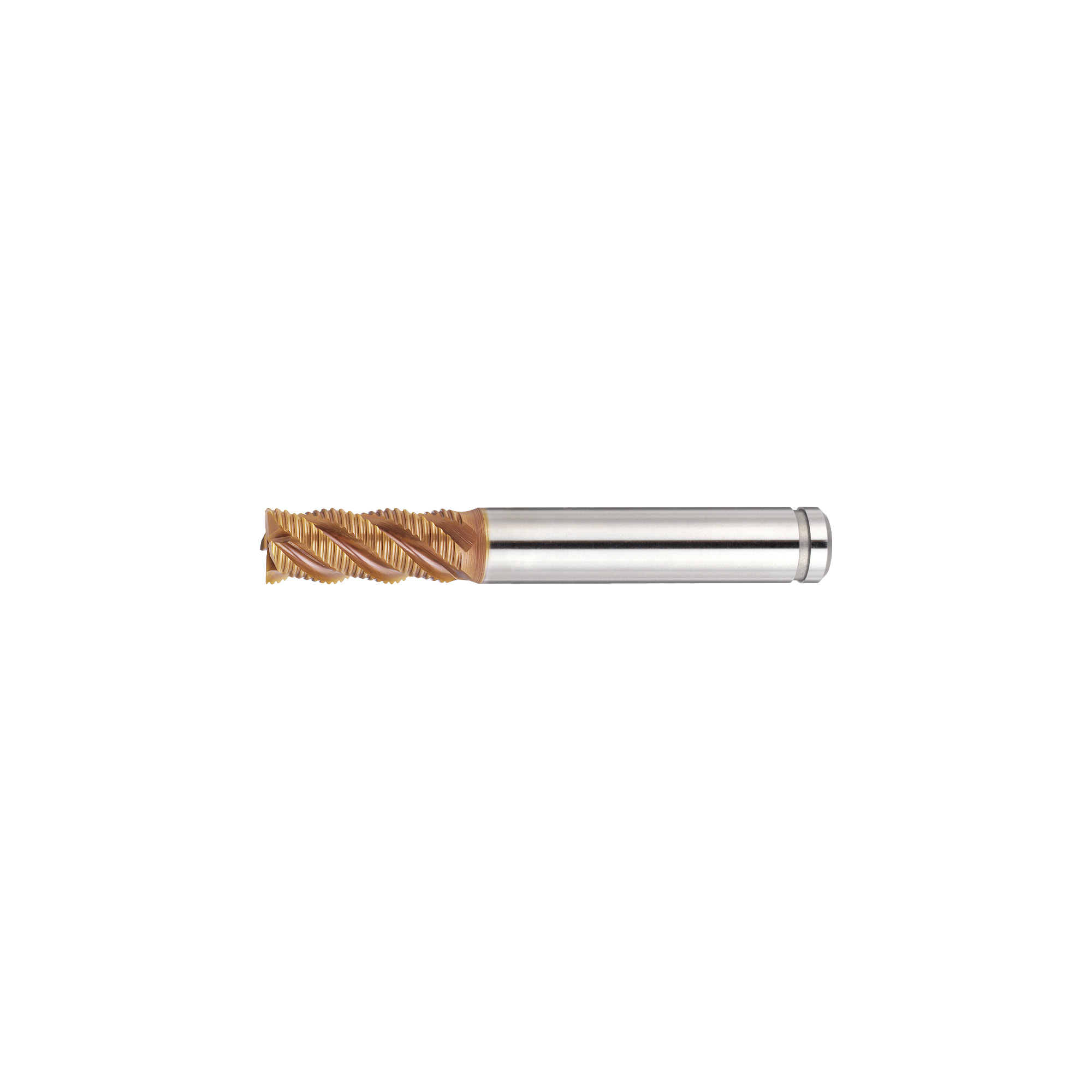

The combination of AS coating and 45° helix achieves the astonishing durability for everything from general steel to stainless steel!
Model Number
ASPM-HRFPS
Outer Diameter D |
Shank Diameter d |
Shank Diameter d |
Flute Length ℓ |
Overall Length L |
Under Neck Angle θ |
Corner Chamfering C |
Number of Flutes Z |
6 | — | 6 | 13 | 57 | — | 0.2 ~ 0.7 | 3 |
7 | — | 10 | 16 | 66 | 15° | 0.2 ~ 0.7 | 3 |
8 | — | 10 | 19 | 69 | 15° | 0.2 ~ 0.7 | 4 |
9 | — | 10 | 19 | 69 | 15° | 0.2 ~ 0.7 | 4 |
10 | 8 | 8 | 22 | 72 | — | 0.2 ~ 0.7 | 4 |
10 | 10 | 10 | 22 | 72 | — | 0.2 ~ 0.7 | 4 |
12 | 10 | 10 | 26 | 83 | — | 0.2 ~ 0.7 | 4 |
12 | 12 | 12 | 26 | 83 | — | 0.2 ~ 0.7 | 4 |
13 | — | 12 | 26 | 83 | — | 0.2 ~ 0.7 | 4 |
14 | — | 12 | 26 | 83 | — | 0.2 ~ 0.7 | 4 |
15 | — | 12 | 26 | 83 | — | 0.2 ~ 0.7 | 4 |
16 | — | 16 | 32 | 92 | — | 0.3 ~ 0.9 | 4 |
18 | — | 16 | 32 | 92 | — | 0.3 ~ 0.9 | 4 |
20 | — | 20 | 38 | 104 | — | 0.3 ~ 0.9 | 4 |
22 | — | 20 | 38 | 104 | — | 0.3 ~ 0.9 | 4 |
25 | — | 25 | 45 | 121 | — | 0.3 ~ 0.9 | 4 |
30 | — | 25 | 45 | 121 | — | 0.3 ~ 0.9 | 5 |
Outer Diameter D | Tolerance |
6 | ±0.060 |
7 ~ 10 | ±0.075 |
12 ~ 18 | ±0.090 |
20 ~ 30 | ±0.105 |
[ ! ]For shank diameter (d) specifications listed in blue, specify both a outer diameter (D) and shank diameter (d).
For Cutting Conditions, Refer to >>Click here.
