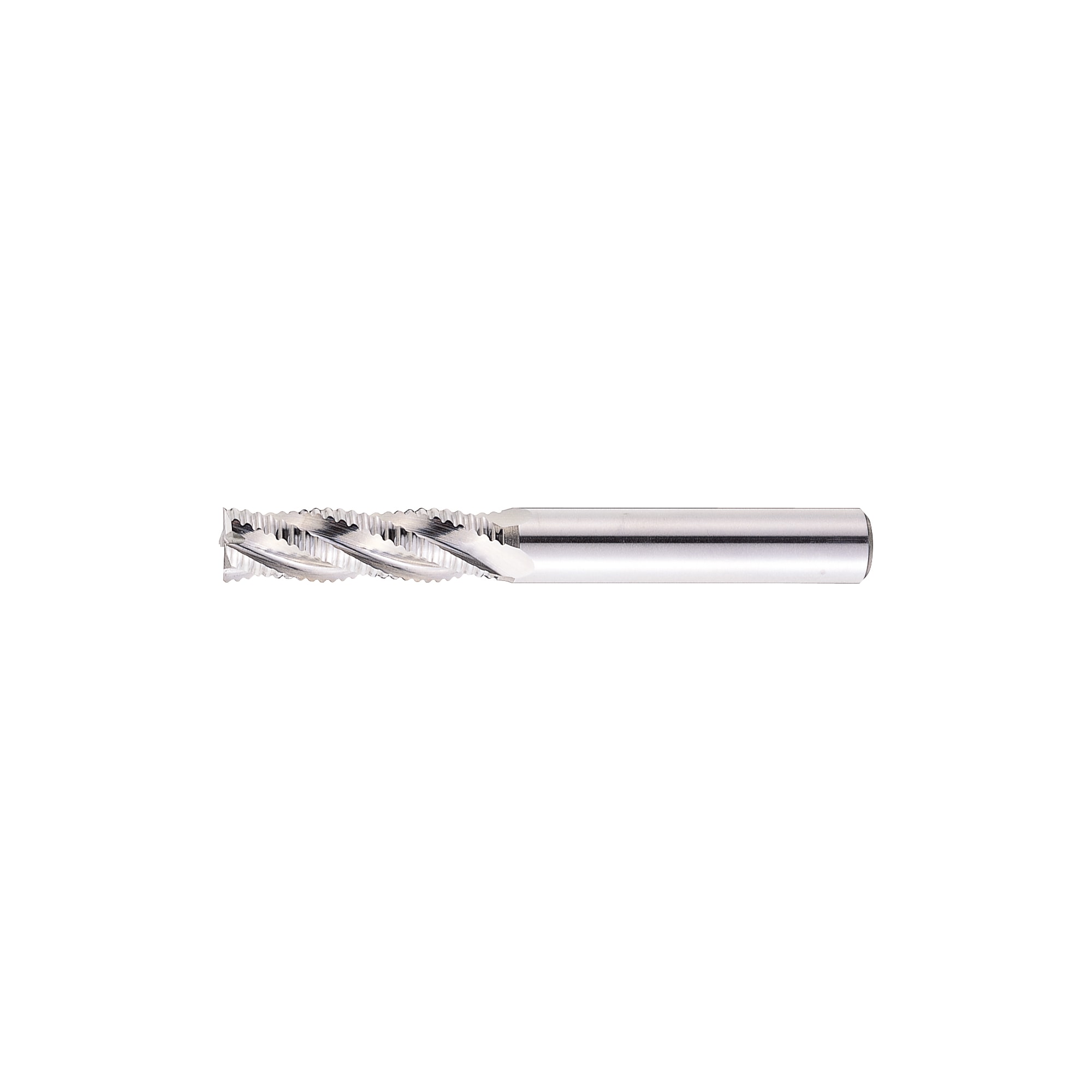

High-Speed Steel Roughing End Mill, Regular, Center Cut / Non-Coated Model

High-Speed Steel Roughing End Mill, Regular, Center Cut / Non-Coated Model

Número da peça:

Indefinido. 18 candidatos encontrados.
Quantidade:

Desenho de contorno

High-Speed Steel Roughing End Mill, Regular, Center Cut / Non-Coated Model:Related Image

Lista de números de peça

Número de itens

Outer Diameter (D)

(φ)

Flute Length (ℓ)

(mm)

Number of Flutes

(sheet)

Processing Applications

Shank Diameter (d)

(mm)

Overall Length (L)

(mm)

Length Under Neck (θ)

Corner Chamfering C

(mm)

Tolerance

(mm)

Quantidade mínima de encomenda
6
19
3
Flat Surface / Side Surface / Groove / Inclined Cutting
6
63
-
-
±0.060
1 unidades
8
28
4
Flat Surface / Side Surface / Groove / Inclined Cutting
10
78
15°
-
±0.075
1 unidades
10
34
4
Flat Surface / Side Surface / Groove / Inclined Cutting
10
84
-
-
±0.075
1 unidades
12
40
4
Flat Surface / Side Surface / Groove / Inclined Cutting
12
97
-
0.2 ~ 0.7
±0.090
1 unidades
14
40
4
Flat Surface / Side Surface / Groove / Inclined Cutting
12
97
-
0.2 ~ 0.7
±0.090
1 unidades
15
40
4
Flat Surface / Side Surface / Groove / Inclined Cutting
12
97
-
0.2 ~ 0.7
±0.090
1 unidades
16
48
4
Flat Surface / Side Surface / Groove / Inclined Cutting
16
108
-
0.3 ~ 0.9
±0.090
1 unidades
18
48
4
Flat Surface / Side Surface / Groove / Inclined Cutting
16
108
-
0.3 ~ 0.9
±0.090
1 unidades
20
56
4
Flat Surface / Side Surface / Groove / Inclined Cutting
20
122
-
0.3 ~ 0.9
±0.105
1 unidades
22
56
4
Flat Surface / Side Surface / Groove / Inclined Cutting
20
122
-
0.3 ~ 0.9
±0.105
1 unidades
25
68
4
Flat Surface / Side Surface / Groove / Inclined Cutting
25
144
-
0.3 ~ 0.9
±0.105
1 unidades
28
68
5
Flat Surface / Side Surface / Inclined Cutting
25
144
-
0.3 ~ 0.9
±0.105
1 unidades
30
68
5
Flat Surface / Side Surface / Inclined Cutting
25
144
-
0.3 ~ 0.9
±0.105
1 unidades
32
80
6
Flat Surface / Side Surface / Inclined Cutting
32
160
-
0.3 ~ 0.9
±0.107
1 unidades
35
80
6
Flat Surface / Side Surface / Inclined Cutting
32
160
-
0.3 ~ 0.9
±0.107
1 unidades
40
95
6
Flat Surface / Side Surface / Inclined Cutting
32
175
-
0.3 ~ 0.9
±0.107
1 unidades
45
95
6
Flat Surface / Side Surface / Inclined Cutting
42
197
-
0.3 ~ 0.9
±0.107
1 unidades
50
112
6
Flat Surface / Side Surface / Inclined Cutting
42
214
-
0.3 ~ 0.9
±0.107
1 unidades
Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)
Data de envio standard
30.11 €
( 35.83 € )
5 dias úteis
33.84 €
( 40.27 € )
5 dias úteis
34.11 €
( 40.59 € )
5 dias úteis
42.82 €
( 50.96 € )
5 dias úteis
47.30 €
( 56.29 € )
5 dias úteis
59.58 €
( 70.90 € )
5 dias úteis
53.39 €
( 63.53 € )
5 dias úteis
59.12 €
( 70.35 € )
5 dias úteis
63.53 €
( 75.60 € )
5 dias úteis
77.48 €
( 92.20 € )
5 dias úteis
94.64 €
( 112.62 € )
5 dias úteis
122.38 €
( 145.63 € )
5 dias úteis
135.96 €
( 161.79 € )
5 dias úteis
173.77 €
( 206.79 € )
5 dias úteis
115.07 €
( 136.93 € )
5 dias úteis
165.12 €
( 196.49 € )
5 dias úteis
226.59 €
( 269.64 € )
5 dias úteis
260.30 €
( 309.76 € )
5 dias úteis

Informações detalhadas

Informações básicas

[Features]
-High-speed steel roughing cutter without coating with regular flute length and optimum pitch width for roughing
-Can be reground. Please refer to the "Regrinding Service" page to find out how to proceed, what services you can take advantage of, what the prices are, etc.

Especificações e preço

Specifications

High-Speed Steel Roughing End Mill, Regular, Center Cut / Non-Coated Model:Related Image

Model Number
RFEMR

Outer
Diameter D
Flute
Length ℓ
Overall
Length L
Under Neck
Angle θ
Shank
Diameter d
Corner
Chamfering C
Number of
Flutes Z
6 19 63 6 3
8 28 78 15° 10 4
10 34 84 10 4
12 40 97 12 0.2 ~ 0.7 4
14 40 97 12 0.2 ~ 0.7 4
15 40 97 12 0.2 ~ 0.7 4
16 48 108 16 0.3 ~ 0.9 4
18 48 108 16 0.3 ~ 0.9 4
20 56 122 20 0.3 ~ 0.9 4
22 56 122 20 0.3 ~ 0.9 4
25 68 144 25 0.3 ~ 0.9 4
28 68 144 25 0.3 ~ 0.9 5
30 68 144 25 0.3 ~ 0.9 5
32 80 160 32 0.3 ~ 0.9 6
35 80 160 32 0.3 ~ 0.9 6
40 95 175 32 0.3 ~ 0.9 6
45 95 197 42 0.3 ~ 0.9 6
50 112 214 42 0.3 ~ 0.9 6


For Cutting Conditions, Refer to >>Click here.
