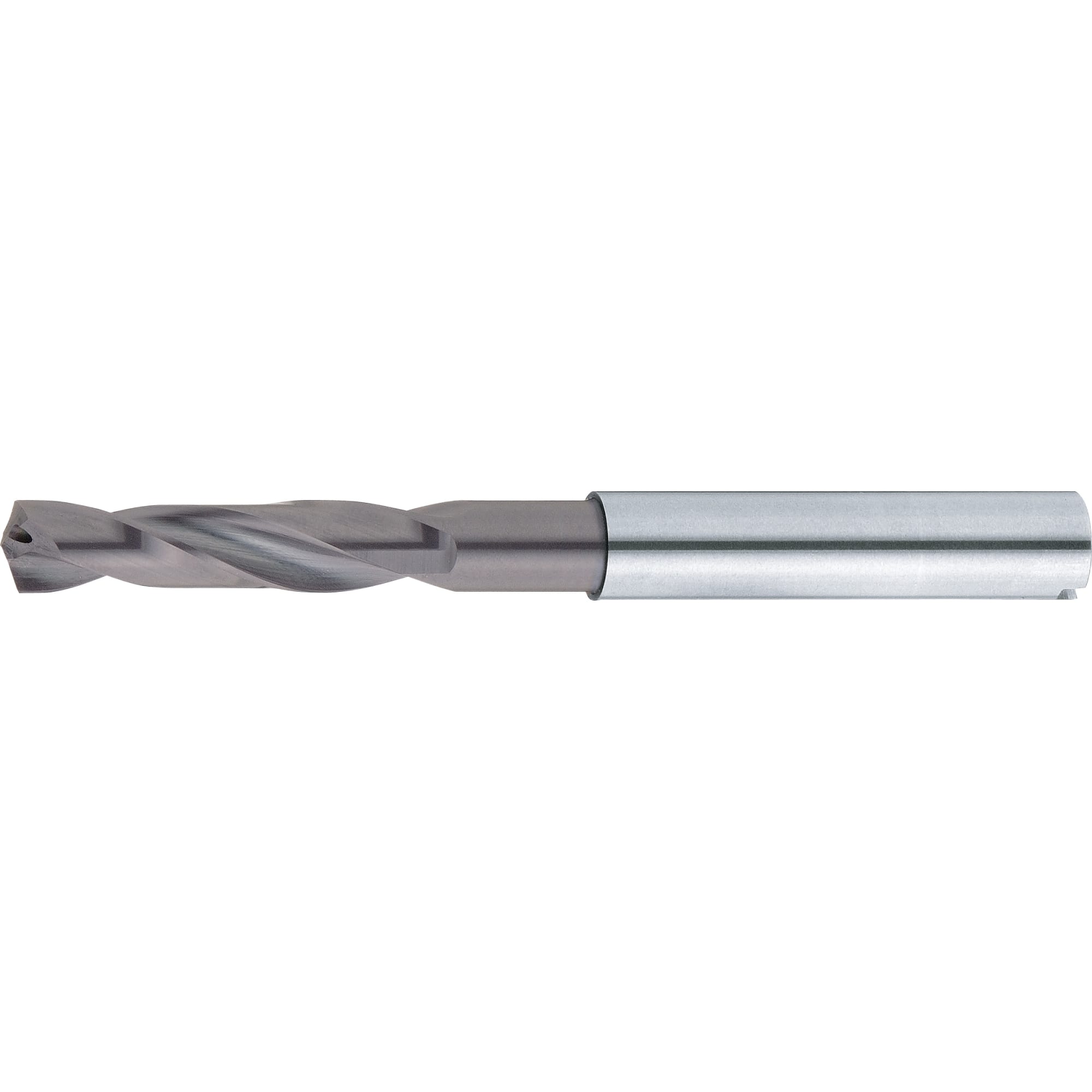

TiAlN Coated Carbide High-Speed High-Feed Machining Drill, With Oil Holes / Stub, Regular

TiAlN Coated Carbide High-Speed High-Feed Machining Drill, With Oil Holes / Stub, Regular

Passe o rato sobre a imagem para a aumentar

  • TAC-HRESDB
  • TAC-HRESDR

Número da peça:

Indefinido. 2 candidatos encontrados.
Quantidade:

Desenho de contorno

TiAlN Coated Carbide High-Speed High-Feed Machining Drill, With Oil Holes / Stub, Regular:Related Image

Lista de números de peça

Número de itens
Número da peça

Hole diameter (drill diameter) D

(mm)

Groove Length L

(mm)

Overall Length L

(mm)

Shank Diameter d

Diameter Tolerance

Tolerance of Shank Diameter

Quantidade mínima de encomenda
4.2
24
66
6
+0.016 ~ +0.004
0 ~ -0.008
1 unidades
7
53
91
8
+0.021 ~ +0.006
0 ~ -0.009
1 unidades
Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)
Data de envio standard
107.05 €
(
127.39 €
)
5 dias úteis
148.91 €
(
177.20 €
)
5 dias úteis

Informações detalhadas

Informações básicas

[Features]
-Internal lubrication efficiently evacuates chips and improves tool life
-Capable of high feed and high speed cutting from general steel to stainless steel
-Adopting a corrugated cutting edge achieves excellent sharpness and strength, and promotes chip evacuation
-High-speed cutting is achieved by maintaining excellent strength and stability by adopting tapered shape and R-type thinning
-Suppresses chipping by adopting chamfer treatment on the shoulder
-By adopting diameter plus tolerance, it is effective for high-precision finishing of holes closer to hole tolerance

Especificações e preço

Specifications

TiAlN Coated Carbide High-Speed High-Feed Machining Drill, With Oil Holes / Stub, Regular:Related Image

Model Number
TAC-HRESDB (Stub)
Diameter
D
Groove Length
Overall Length
L
Shank Diameter
d
320626
3.320626
3.520626
424666
4.224666
4.524666
528666
5.528666
628666
6.534798
6.834798
734798
7.541798
7.841798
841798
8.5478910
9478910
10478910
10.35510212
115510212
125510212
136010714
[ ! ]Refer to >>Click here for information on the advantages of the diameter plus tolerance.

Model Number
TAC-HRESDR (Regular)
Diameter
D
Groove Length
Overall Length
L
Shank Diameter
d
328666
3.328666
3.528666
436746
4.236746
4.536746
544826
644826
6.553918
6.853918
753918
7.553918
7.853918
853918
106110310
127111812
137712414


For Cutting Conditions, Refer to >>Click here.

Caraterísticas e exemplos de utilização

More Information


Internal lubrication enables cutting chips to be discharged efficiently and the lifetime of the tool is extended.
Capable of high-feed, high-speed cutting on everything from general steel to stainless steel.
Adopting a corrugated blade provides for outstanding sharpness and strength and also promotes the discharge of cutting chips.
With three rakes + R-model thinning, high-speed cutting is achieved due to outstanding strength and stability.
Chipping is prevented with a shoulder C-plane coating.
Adopting a diameter plus tolerance allows holes to be finished with high accuracy closer to the hole tolerance and fewer hole diameter minus values after regrinding.
