Estamos a traduzir a nossa loja para português!  
Mas como temos muitos produtos e páginas, vai demorar algum tempo. Entretanto, o nosso catálogo de produtos estará em inglês. Obrigado pela sua paciência!

Página Inicial MISUMI
Automation Components
Vacuum Components
Suction Cups, Components for Suctioning
Vacuum suction cups
Vacuum Pad, Standard Small Type, VPMA, Barb Fitting Type

Condições de filtragem

Pad Type
- Deep Type
- Compact
Mounting Method
- Recessed Type
- Pad Screw Fixed
Rubber Group Material
Nitrile Rubber
Nitrile Rubber
NBR which conforms to Food Sanitation Law
Silicone Rubber
Silicone Rubber
Silicone Rubber +Carbon
Urethane Rubber
Fluorine Rubber
Usage Environment
- Standard
- Static electricity diffusion
Color
Black
Gray
White
White
Blue
Outer Diameter D(φ)
- 0.7
- 1
- 1.5
- 2
- 3
- 4
- 6
- 8
- 10
- 15
- 20
- 25
- 30
Height L1(mm)
- 4
- 5.5
- 7
- 8
- 9
- 10
- 11
- 12
- 14
Full length B(mm)
- 18
- 19
- 21.5
- 22.5
- 23
- 24
- 28
- 29
- 30
- 31
- 36.6
- 37.6
- 38.6
- 40.6
Mount Connection Screw
- M4
- M5
- M6
- M10
Vacuum Outlet Tube Outer Diameter(φ)
- 3
- 4
- 6
Type
- VPMA
CAD
- 2D
Dias de envio estimados
- Tudo
- Dentro de 11 dias úteis

NIHON PISCO

Vacuum Pad, Standard Small Type, VPMA, Barb Fitting Type

Catálogo

Número da peça:

Indefinido. 196 candidatos encontrados.

Informações do produto
Lista de números de peça
Informações detalhadas
Catálogo

Informações do produto

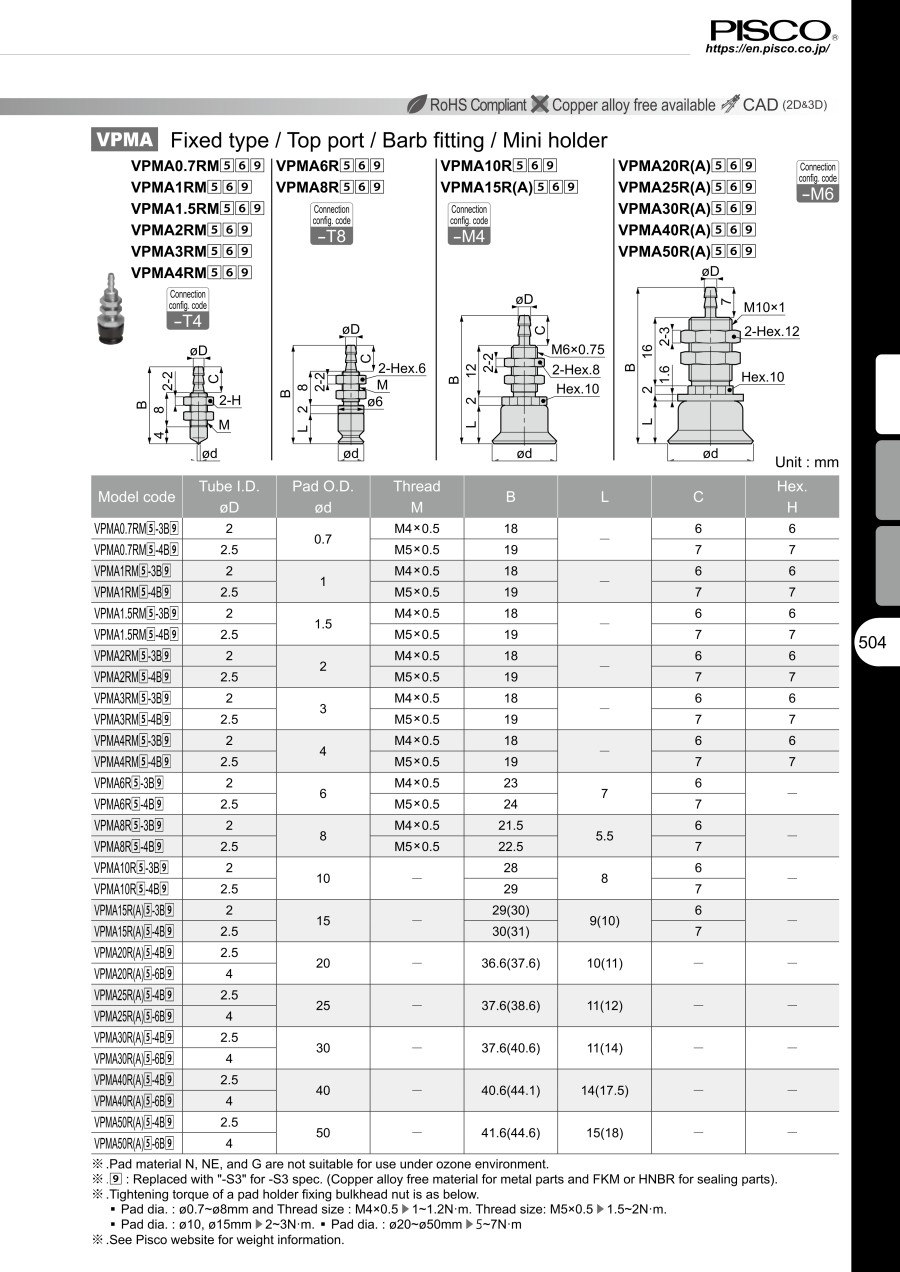

Dimensions

Standard table

Model code	Tube I.D. øD	Pad O.D. ød	Thread M	B	L	C	Hex. H	Connection config. code
VPMA0.7RM[5]-3B[9]	2	0.7	M4×0.5	18	4	6	6	-T4
VPMA0.7RM[5]-4B[9]	2.5	0.7	M5×0.5	19		7	7
VPMA1RM[5]-3B[9]	2	1	M4×0.5	18		6	6
VPMA1RM[5]-4B[9]	2.5	1	M5×0.5	19		7	7
VPMA1.5RM[5]-3B[9]	2	1.5	M4×0.5	18		6	6
VPMA1.5RM[5]-4B[9]	2.5	1.5	M5×0.5	19		7	7
VPMA2RM[5]-3B[9]	2	2	M4×0.5	18		6	6
VPMA2RM[5]-4B[9]	2.5	2	M5×0.5	19		7	7
VPMA3RM[5]-3B[9]	2	3	M4×0.5	18		6	6
VPMA3RM[5]-4B[9]	2.5	3	M5×0.5	19		7	7
VPMA4RM[5]-3B[9]	2	4	M4×0.5	18		6	6
VPMA4RM[5]-4B[9]	2.5	4	M5×0.5	19		7	7
VPMA6R[5]-3B[9]	2	6	M4×0.5	23	7	6	6	-T8
VPMA6R[5]-4B[9]	2.5	6	M5×0.5	24	7	7
VPMA8R[5]-3B[9]	2	8	M4×0.5	21.5	5.5	6
VPMA8R[5]-4B[9]	2.5	8	M5×0.5	22.5	5.5	7
VPMA10R[5]-3B[9]	2	10	M6×0.75	28	8	6	8	-M4
VPMA10R[5]-4B[9]	2.5	10		29	8	7
VPMA15R(A)[5]-3B[9]	2	15		29(30)	9(10)	6
VPMA15R(A)[5]-4B[9]	2.5	15		30(31)	9(10)	7
VPMA20R(A)[5]-4B[9]	2.5	20	M10×1	36.6(37.6)	10(11)	7	12	-M6
VPMA20R(A)[5]-6B[9]	4	20		36.6(37.6)	10(11)
VPMA25R(A)[5]-4B[9]	2.5	25		37.6(38.6)	11(12)
VPMA25R(A)[5]-6B[9]	4	25		37.6(38.6)	11(12)
VPMA30R(A)[5]-4B[9]	2.5	30		37.6(40.6)	11(14)
VPMA30R(A)[5]-6B[9]	4	30		37.6(40.6)	11(14)
VPMA40R(A)[5]-4B[9]	2.5	40		40.6(44.1)	14(17.5)
VPMA40R(A)[5]-6B[9]	4	40		40.6(44.1)	14(17.5)
VPMA50R(A)[5]-4B[9]	2.5	50		41.6(44.6)	15(18)
VPMA50R(A)[5]-6B[9]	4	50		41.6(44.6)	15(18)

Units: mm

*Value in ( ) is the dimension of a deep type pad.
*[5]: Replaced with Pad rubber material code. Refer to the catalog for details.
*[9]: Replaced with "-S3" for -S3 spec. (Copper alloy free material for metal parts and FKM or HNBR for sealing parts).
*Pad material N, NE, and G are not suitable for use under ozone environment.
*Tightening torque of a pad holder fixing bulkhead nut is as below.
▪Pad dia.: ø0.7~ø8 mm: Thread size M4×0.5 ▶ 1~1.2 N·m, M5×0.5 ▶ 1.5~2 N·m.
▪Pad dia.: ø10, ø15 mm ▶ 2~3 N·m.
▪Pad dia.: ø20~ø50 mm ▶ 5~7 N·m

Lista de números de peça

Número de itens

Seguinte

Número da peça

Pad Type

Mounting Method

Rubber Group Material

Usage Environment

Color

Outer Diameter D

(φ)

Height L1

(mm)

Full length B

(mm)

Mount Connection Screw

Vacuum Outlet Tube Outer Diameter

(φ)

Quantidade mínima de encomenda

Compact	Recessed Type	Fluorine Rubber	Standard	Gray	0.7	4	18	M4	3	1 unidades
Compact	Recessed Type	Fluorine Rubber	Standard	Gray	0.7	4	19	M5	4	1 unidades
Compact	Recessed Type	NBR which conforms to Food Sanitation Law	Standard	Gray	0.7	4	18	M4	3	1 unidades
Compact	Recessed Type	NBR which conforms to Food Sanitation Law	Standard	Gray	0.7	4	19	M5	4	1 unidades
Compact	Recessed Type	[Nitrile Rubber] Nitrile Rubber	Standard	Black	0.7	4	18	M4	3	1 unidades
Compact	Recessed Type	[Nitrile Rubber] Nitrile Rubber	Standard	Black	0.7	4	19	M5	4	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber	Standard	[White] White	0.7	4	18	M4	3	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber	Standard	[White] White	0.7	4	19	M5	4	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber +Carbon	Standard / Static electricity diffusion	Black	0.7	4	18	M4	3	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber +Carbon	Standard / Static electricity diffusion	Black	0.7	4	19	M5	4	1 unidades
Compact	Recessed Type	Urethane Rubber	Standard	Blue	0.7	4	18	M4	3	1 unidades
Compact	Recessed Type	Urethane Rubber	Standard	Blue	0.7	4	19	M5	4	1 unidades
Compact	Recessed Type	Fluorine Rubber	Standard	Gray	1	4	18	M4	3	1 unidades
Compact	Recessed Type	Fluorine Rubber	Standard	Gray	1	4	19	M5	4	1 unidades
Compact	Recessed Type	NBR which conforms to Food Sanitation Law	Standard	Gray	1	4	18	M4	3	1 unidades
Compact	Recessed Type	NBR which conforms to Food Sanitation Law	Standard	Gray	1	4	19	M5	4	1 unidades
Compact	Recessed Type	[Nitrile Rubber] Nitrile Rubber	Standard	Black	1	4	18	M4	3	1 unidades
Compact	Recessed Type	[Nitrile Rubber] Nitrile Rubber	Standard	Black	1	4	19	M5	4	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber	Standard	[White] White	1	4	18	M4	3	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber	Standard	[White] White	1	4	19	M5	4	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber +Carbon	Standard / Static electricity diffusion	Black	1	4	18	M4	3	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber +Carbon	Standard / Static electricity diffusion	Black	1	4	19	M5	4	1 unidades
Compact	Recessed Type	Urethane Rubber	Standard	Blue	1	4	18	M4	3	1 unidades
Compact	Recessed Type	Urethane Rubber	Standard	Blue	1	4	19	M5	4	1 unidades
Compact	Recessed Type	Fluorine Rubber	Standard	Gray	1.5	4	18	M4	3	1 unidades
Compact	Recessed Type	Fluorine Rubber	Standard	Gray	1.5	4	19	M5	4	1 unidades
Compact	Recessed Type	NBR which conforms to Food Sanitation Law	Standard	Gray	1.5	4	18	M4	3	1 unidades
Compact	Recessed Type	NBR which conforms to Food Sanitation Law	Standard	Gray	1.5	4	19	M5	4	1 unidades
Compact	Recessed Type	[Nitrile Rubber] Nitrile Rubber	Standard	Black	1.5	4	18	M4	3	1 unidades
Compact	Recessed Type	[Nitrile Rubber] Nitrile Rubber	Standard	Black	1.5	4	19	M5	4	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber	Standard	[White] White	1.5	4	18	M4	3	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber	Standard	[White] White	1.5	4	19	M5	4	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber +Carbon	Standard / Static electricity diffusion	Black	1.5	4	18	M4	3	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber +Carbon	Standard / Static electricity diffusion	Black	1.5	4	19	M5	4	1 unidades
Compact	Recessed Type	Urethane Rubber	Standard	Blue	1.5	4	18	M4	3	1 unidades
Compact	Recessed Type	Urethane Rubber	Standard	Blue	1.5	4	19	M5	4	1 unidades
Compact	Recessed Type	Fluorine Rubber	Standard	Gray	2	4	18	M4	3	1 unidades
Compact	Recessed Type	Fluorine Rubber	Standard	Gray	2	4	19	M5	4	1 unidades
Compact	Recessed Type	NBR which conforms to Food Sanitation Law	Standard	Gray	2	4	18	M4	3	1 unidades
Compact	Recessed Type	NBR which conforms to Food Sanitation Law	Standard	Gray	2	4	19	M5	4	1 unidades
Compact	Recessed Type	[Nitrile Rubber] Nitrile Rubber	Standard	Black	2	4	18	M4	3	1 unidades
Compact	Recessed Type	[Nitrile Rubber] Nitrile Rubber	Standard	Black	2	4	19	M5	4	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber	Standard	[White] White	2	4	18	M4	3	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber	Standard	[White] White	2	4	19	M5	4	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber +Carbon	Standard / Static electricity diffusion	Black	2	4	18	M4	3	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber +Carbon	Standard / Static electricity diffusion	Black	2	4	19	M5	4	1 unidades
Compact	Recessed Type	Urethane Rubber	Standard	Blue	2	4	18	M4	3	1 unidades
Compact	Recessed Type	Urethane Rubber	Standard	Blue	2	4	19	M5	4	1 unidades
Compact	Recessed Type	Fluorine Rubber	Standard	Gray	3	4	18	M4	3	1 unidades
Compact	Recessed Type	Fluorine Rubber	Standard	Gray	3	4	19	M5	4	1 unidades
Compact	Recessed Type	NBR which conforms to Food Sanitation Law	Standard	Gray	3	4	18	M4	3	1 unidades
Compact	Recessed Type	NBR which conforms to Food Sanitation Law	Standard	Gray	3	4	19	M5	4	1 unidades
Compact	Recessed Type	[Nitrile Rubber] Nitrile Rubber	Standard	Black	3	4	18	M4	3	1 unidades
Compact	Recessed Type	[Nitrile Rubber] Nitrile Rubber	Standard	Black	3	4	19	M5	4	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber	Standard	[White] White	3	4	18	M4	3	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber	Standard	[White] White	3	4	19	M5	4	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber +Carbon	Standard / Static electricity diffusion	Black	3	4	18	M4	3	1 unidades
Compact	Recessed Type	[Silicone Rubber] Silicone Rubber +Carbon	Standard / Static electricity diffusion	Black	3	4	19	M5	4	1 unidades
Compact	Recessed Type	Urethane Rubber	Standard	Blue	3	4	18	M4	3	1 unidades
Compact	Recessed Type	Urethane Rubber	Standard	Blue	3	4	19	M5	4	1 unidades

Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)	Data de envio standard

19.50 € ( 23.20 € )	11 dias úteis
19.50 € ( 23.20 € )	11 dias úteis
12.34 € ( 14.68 € )	11 dias úteis
12.34 € ( 14.68 € )	11 dias úteis
11.61 € ( 13.82 € )	11 dias úteis
11.61 € ( 13.82 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
15.78 € ( 18.78 € )	11 dias úteis
15.78 € ( 18.78 € )	11 dias úteis
19.50 € ( 23.20 € )	11 dias úteis
19.50 € ( 23.20 € )	11 dias úteis
12.34 € ( 14.68 € )	11 dias úteis
12.34 € ( 14.68 € )	11 dias úteis
11.61 € ( 13.82 € )	11 dias úteis
11.61 € ( 13.82 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
15.78 € ( 18.78 € )	11 dias úteis
15.78 € ( 18.78 € )	11 dias úteis
19.50 € ( 23.20 € )	11 dias úteis
19.50 € ( 23.20 € )	11 dias úteis
12.34 € ( 14.68 € )	11 dias úteis
12.34 € ( 14.68 € )	11 dias úteis
11.61 € ( 13.82 € )	11 dias úteis
11.61 € ( 13.82 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
15.78 € ( 18.78 € )	11 dias úteis
15.78 € ( 18.78 € )	11 dias úteis
19.50 € ( 23.20 € )	11 dias úteis
19.50 € ( 23.20 € )	11 dias úteis
12.34 € ( 14.68 € )	11 dias úteis
12.34 € ( 14.68 € )	11 dias úteis
11.61 € ( 13.82 € )	11 dias úteis
11.61 € ( 13.82 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
15.78 € ( 18.78 € )	11 dias úteis
15.78 € ( 18.78 € )	11 dias úteis
19.50 € ( 23.20 € )	11 dias úteis
19.50 € ( 23.20 € )	11 dias úteis
12.34 € ( 14.68 € )	11 dias úteis
12.34 € ( 14.68 € )	11 dias úteis
11.61 € ( 13.82 € )	11 dias úteis
11.61 € ( 13.82 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
12.99 € ( 15.46 € )	11 dias úteis
15.78 € ( 18.78 € )	11 dias úteis
15.78 € ( 18.78 € )	11 dias úteis

Seguinte

Informações detalhadas

Informações básicas

Informações básicas

Small vacuum pad ideal for use in semiconductor manufacturing equipment. *CAD data currently being revised for this series. This will be available as soon as modifications are complete.

[Features]
· Containers of different shapes are available, including the general type which is ideal for flat work surfaces (ones that are rigid enough not to flap), the deep type ideal for round fruits (apples, etc.) and balls, and the small type ideal for small works and for use at semiconductor manufacturing facilities.
· A wide range of pad sizes, pad materials, and holder shapes are available.
· Pad holders have been added for applications requiring copper-based metal not to be used and as part of efforts to reduce ozone concentrations.
· Copper-based metal is not used for metal parts. HNBR is used for sealing rubber material.

Catálogo

Products homepage

Catálogo (visualização de 2 páginas)
