Vacuum Pad, Soft Bellows Small Type, VPMA, One Touch Fitting Type
Número da peça:
candidatos encontrados.Informações do produto

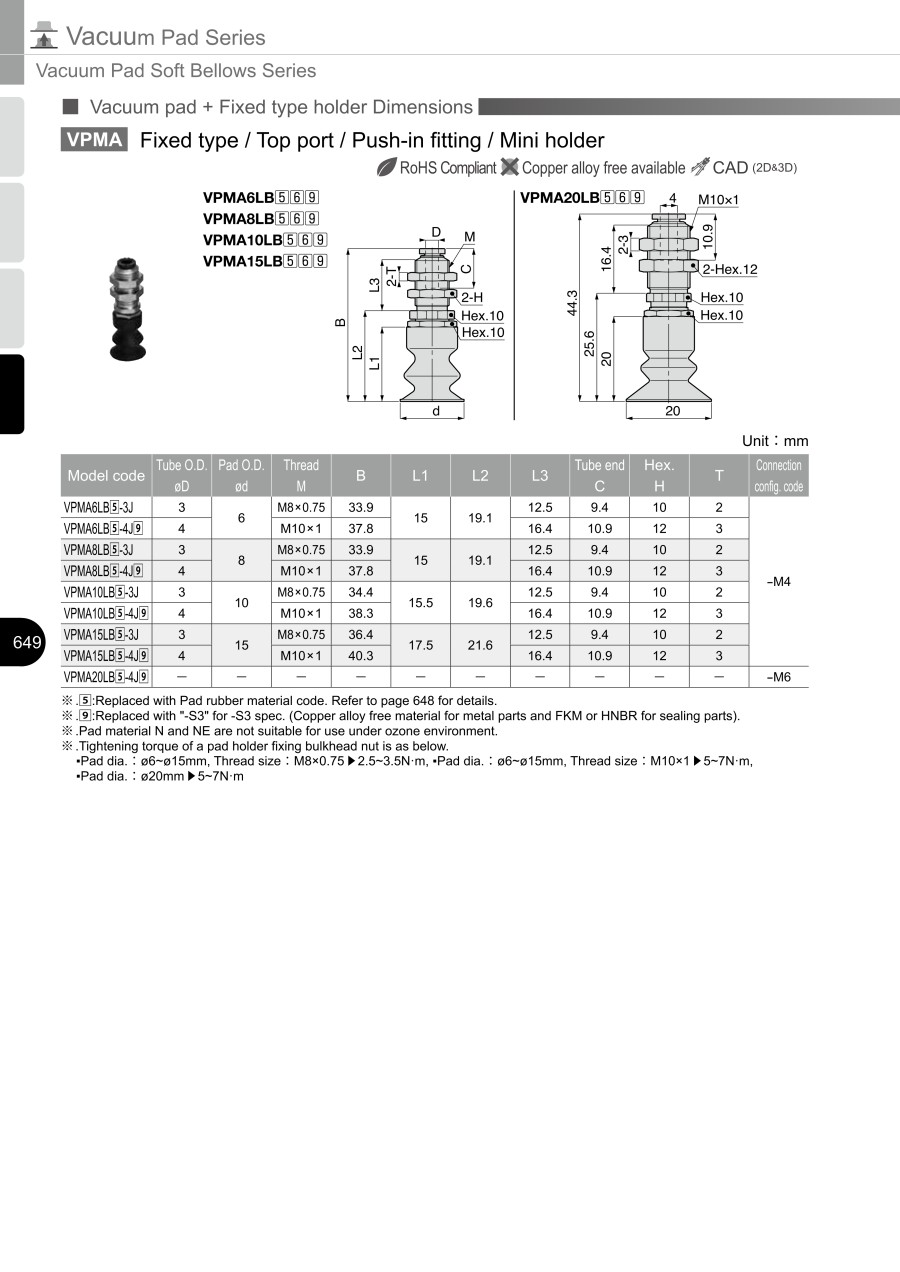

Dimensions
Standard table
| Model code | Tube O.D. øD | Pad O.D. ød | Thread M | B | L1 | L2 | L3 | Tube end C | Hex. H | T | Connection config. code |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VPMA6LB[5]-3J | 3 | 6 | M8×0.75 | 33.9 | 15 | 19.1 | 12.5 | 9.4 | 10 | 2 | -M4 |
| VPMA6LB[5]-4J[9] | 4 | M10×1 | 37.8 | 16.4 | 10.9 | 12 | 3 | ||||
| VPMA8LB[5]-3J | 3 | 8 | M8×0.75 | 33.9 | 15 | 19.1 | 12.5 | 9.4 | 10 | 2 | |
| VPMA8LB[5]-4J[9] | 4 | M10×1 | 37.8 | 16.4 | 10.9 | 12 | 3 | ||||
| VPMA10LB[5]-3J | 3 | 10 | M8×0.75 | 34.4 | 15.5 | 19.6 | 12.5 | 9.4 | 10 | 2 | |
| VPMA10LB[5]-4J[9] | 4 | M10×1 | 38.3 | 16.4 | 10.9 | 12 | 3 | ||||
| VPMA15LB[5]-3J | 3 | 15 | M8×0.75 | 36.4 | 17.5 | 21.6 | 12.5 | 9.4 | 10 | 2 | |
| VPMA15LB[5]-4J[9] | 4 | M10×1 | 40.3 | 16.4 | 10.9 | 12 | 3 | ||||
| VPMA20LB[5]-4J[9] | 4 | 20 | M10×1 | 44.3 | 20 | 25.6 | 16.4 | 10.9 | 12 | 3 | -M6 |
Units: mm
*[5]: Replaced with Pad rubber material code. Refer to the catalog for details.
*[7]: Replaced with "-S3" for -S3 spec. (Copper alloy free material for metal parts and FKM or HNBR for sealing parts).
*Pad material N and NE are not suitable for use under ozone environment.
*Tightening torque of a pad holder fixing bulkhead nut is as below.
▪Pad dia.: ø6~ø15 mm: Thread size: M8×0.75 ▶ 2.5~3.5 N·m, Thread size: M10×1 ▶ 5~7 N·m,
▪Pad dia.: ø20 mm ▶ 5~7 N·m
Lista de números de peça
| Número da peça |
|---|
Preço unitário (excluindo IVA)(Preço unitário incluindo IVA) | Data de envio standard |
|---|
16.71 € ( 19.88 € ) | 11 dias úteis |
16.71 € ( 19.88 € ) | 11 dias úteis |
19.02 € ( 22.63 € ) | 11 dias úteis |
19.02 € ( 22.63 € ) | 11 dias úteis |
16.71 € ( 19.88 € ) | 11 dias úteis |
16.71 € ( 19.88 € ) | 6 dias úteis |
19.02 € ( 22.63 € ) | 11 dias úteis |
19.02 € ( 22.63 € ) | 11 dias úteis |
16.71 € ( 19.88 € ) | 11 dias úteis |
16.71 € ( 19.88 € ) | 11 dias úteis |
19.02 € ( 22.63 € ) | 11 dias úteis |
19.02 € ( 22.63 € ) | 11 dias úteis |
28.29 € ( 33.67 € ) | 12 dias úteis |
17.16 € ( 20.42 € ) | 11 dias úteis |
17.16 € ( 20.42 € ) | 11 dias úteis |
19.95 € ( 23.74 € ) | 11 dias úteis |
19.95 € ( 23.74 € ) | 11 dias úteis |
17.63 € ( 20.98 € ) | 11 dias úteis |
20.42 € ( 24.30 € ) | 11 dias úteis |
Informações detalhadas
Informações básicas
Excellent flexibility, ideal for adherence of paper, plastic molded articles, etc. *CAD data currently being revised for this series. This will be available as soon as modifications are complete.
[Features]
· The pad rubber is flexible enough to adhere plastic molded parts while leaving relatively few traces.
· A wide range of pad sizes, pad materials, and holder shapes are available.
· Downsizes holders (A and B types) for existing vacuum pads, saving space.
· The pad section can be changed without removing the holder from the equipment, as is conventional.
· Also compatible with the optional fall prevention valve and pad direct attachment type filter.
· Pad holder (VPHD and VPHE types) with vacuum inlet on both sides.
