Condições de filtragem

Mounting Height H(mm)
- 70
- 85
- 93
- 122
Properties
Antistatic
Electrical Conductivity
Stopper
- NA
- With Rotation Stopper
Allowable Load(daN)
- 40
- 50
- 60
- 70
- 80
Wheel Material
Rubber
Nylon
Nylon
Urethane
Urethane
Urethane
Others
Nylon Foil Rubber
Elastomer
Wheel Characteristics
Mounting Hole Pitch, Long Length Direction L1(mm)
- 55
- 82
Mounting Hole Pitch, Short Length Direction W1(mm)
- 40
- 42
Plate Length(mm)
- 70
- 100
Wheel Dia. D(mm)
- 50
- 65
- 75
- 100
Wheel Width(mm)
- 25
- 26
- 27
- 28
Swivel Radius(mm)
- 53
- 61
- 66
- 68
- 82
Wheel Bearings
Type
CAD
- 2D
Dias de envio estimados
- Tudo
- Dentro de 6 dias úteis
- Dentro de 8 dias úteis
- Dentro de 10 dias úteis
- Dentro de 11 dias úteis
- Dentro de 18 dias úteis

YUEI CASTER

SG Model Swivel Wheel Plate Type

Catálogo

Número da peça:

Indefinido. 26 candidatos encontrados.

Lista de números de peça
Informações detalhadas
Catálogo

Lista de números de peça

Número de itens

Número da peça

Mounting Height H

(mm)

Properties

Stopper

Allowable Load

(daN)

Wheel Material

Wheel Characteristics

Mounting Hole Pitch, Long Length Direction L1

(mm)

Mounting Hole Pitch, Short Length Direction W1

(mm)

Plate Length

(mm)

Wheel Dia. D

(mm)

Wheel Width

(mm)

Application

Swivel Radius

(mm)

Load Category

Wheel Bearings

JAN Code

Order Code

RoHS?

Quantidade mínima de encomenda

70	-	NA	60	[Nylon] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance	55	-	70	-	28	Streamlining of Logistics, Hand Truck	53	Light Load	None	-	-	-	1 unidades
70	-	NA	60	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	55	42	70	50	28	Streamlining of Logistics, Hand Truck	53	Light/Medium Load	NA	-	-	10	1 unidades
70	-	NA	50	Rubber	NA	55	42	70	50	28	Streamlining of Logistics, Hand Truck / Vertical lift	53	Light/Medium Load	NA	-	-	-	1 unidades
70	-	NA	60	[Urethane] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	55	42	70	50	25	Streamlining of Logistics, Hand Truck	53	Light/Medium Load	NA	-	-	10	1 unidades
-	-	NA	70	[Nylon] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance	55	-	70	-	-	Streamlining of Logistics, Hand Truck	61	Light Load	None	-	-	-	1 unidades
85	-	With Rotation Stopper	40	Elastomer	Chemical Resistance	55	42	70	65	27	Streamlining of Logistics, Hand Truck	68	Light Load	NA	4562182579485	412-7170	-	1 unidades
85	-	NA	70	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	55	42	70	65	25	Streamlining of Logistics, Hand Truck	61	Light/Medium Load	NA	-	-	10	1 unidades
85	-	NA	50	Rubber	NA	55	42	70	65	25	Streamlining of Logistics, Hand Truck	61	Light/Medium Load	NA	-	-	-	1 unidades
-	[Antistatic] Electrical Conductivity	NA	-	Rubber	NA	55	-	70	-	-	Streamlining of Logistics, Hand Truck	61	Light Load	None	-	-	-	1 unidades
85	-	NA	60	[Urethane] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	55	42	70	65	25	Streamlining of Logistics, Hand Truck	61	Light/Medium Load	NA	-	-	10	1 unidades
93	-	NA	-	[Nylon] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance	55	-	70	-	-	Streamlining of Logistics, Hand Truck	66	Light Load	None	-	-	-	1 unidades
93	-	NA	50	Elastomer	Chemical Resistance	55	42	70	75	27	Streamlining of Logistics, Hand Truck	66	Light/Medium Load	NA	-	-	-	1 unidades
93	-	NA	80	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	55	42	70	75	25	Streamlining of Logistics, Hand Truck	66	Light/Medium Load	NA	-	-	10	1 unidades
93	-	NA	60	[Others] Nylon Foil Rubber	NA	55	42	70	75	27	Streamlining of Logistics, Hand Truck	66	Light/Medium Load	NA	-	-	-	1 unidades
93	-	NA	60	Rubber	NA	55	42	70	75	25	Streamlining of Logistics, Hand Truck	66	Light/Medium Load	NA	-	-	-	1 unidades
93	[Antistatic] Electrical Conductivity	NA	60	Rubber	NA	55	-	70	-	-	Streamlining of Logistics, Hand Truck	66	Light Load	None	-	-	-	1 unidades
93	-	NA	70	[Urethane] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	55	42	70	75	26	Streamlining of Logistics, Hand Truck	66	Light/Medium Load	Available	-	-	-	1 unidades
122	-	NA	60	[Nylon] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance	82	-	100	-	-	Streamlining of Logistics, Hand Truck	82	Light Load	None	-	-	-	1 unidades
122	-	NA	50	Elastomer	Chemical Resistance	82	40	100	100	27	Streamlining of Logistics, Hand Truck	82	Light/Medium Load	NA	-	-	-	1 unidades
122	-	NA	60	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	82	40	100	100	25	Streamlining of Logistics, Hand Truck	82	Light/Medium Load	NA	-	-	-	1 unidades
122	-	NA	60	[Others] Nylon Foil Rubber	NA	82	40	100	100	27	Streamlining of Logistics, Hand Truck	82	Light/Medium Load	NA	-	-	-	1 unidades
122	-	NA	60	[Others] Nylon Foil Rubber	NA	82	40	100	100	27	Streamlining of Logistics, Hand Truck	82	Light/Medium Load	Available	-	-	-	1 unidades
122	-	NA	50	Rubber	NA	82	40	100	100	25	Streamlining of Logistics, Hand Truck	82	Light/Medium Load	NA	-	-	-	1 unidades
122	[Antistatic] Electrical Conductivity	NA	-	Rubber	NA	82	-	100	-	-	Streamlining of Logistics, Hand Truck	82	Light Load	None	-	-	-	1 unidades
122	-	NA	60	[Urethane] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	82	40	100	100	28	Streamlining of Logistics, Hand Truck	82	Light/Medium Load	Available	-	-	-	1 unidades
122	-	NA	60	[Urethane] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	82	40	100	100	28	Streamlining of Logistics, Hand Truck	82	Light/Medium Load	NA	-	-	-	1 unidades

Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)	Data de envio standard

7.81 € ( 9.29 € )	8 dias úteis
7.10 € ( 8.45 € )	6 dias úteis
8.37 € ( 9.96 € )	6 dias úteis
10.97 € ( 13.05 € )	6 dias úteis
8.68 € ( 10.33 € )	8 dias úteis
10.13 € ( 12.05 € )	6 dias úteis
7.81 € ( 9.29 € )	6 dias úteis
9.55 € ( 11.36 € )	6 dias úteis
13.96 € ( 16.61 € )	8 dias úteis
11.58 € ( 13.78 € )	10 dias úteis
9.46 € ( 11.26 € )	11 dias úteis
9.46 € ( 11.26 € )	6 dias úteis
8.51 € ( 10.13 € )	6 dias úteis
10.99 € ( 13.08 € )	11 dias úteis
10.68 € ( 12.71 € )	6 dias úteis
16.31 € ( 19.41 € )	8 dias úteis
14.01 € ( 16.67 € )	6 dias úteis
12.82 € ( 15.26 € )	11 dias úteis
12.56 € ( 14.95 € )	6 dias úteis
11.42 € ( 13.59 € )	8 dias úteis
14.60 € ( 17.37 € )	11 dias úteis
18.52 € ( 22.04 € )	18 dias úteis
15.08 € ( 17.95 € )	6 dias úteis
20.90 € ( 24.87 € )	8 dias úteis
19.42 € ( 23.11 € )	6 dias úteis
15.45 € ( 18.39 € )	6 dias úteis

Informações detalhadas

Informações básicas

Informações básicas

[Features] Swivel plate caster for light duty platform trolley. [Features] Used for drive orientation platform trolley.

Catálogo

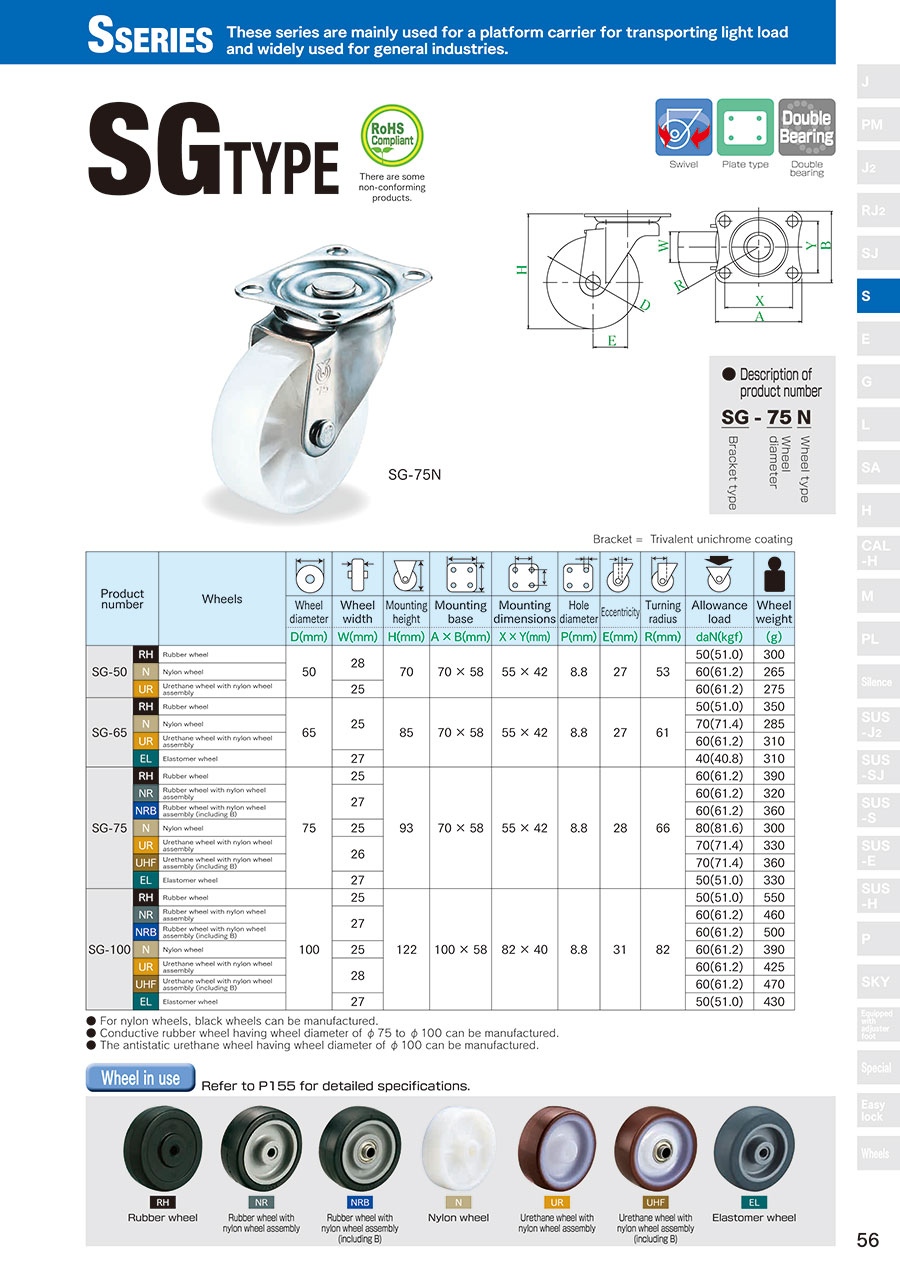

Catálogo (visualização de 2 páginas)
