Flexible Fluororesin 2 Layer Tube for Coating (Flexibility and Abrasion Resistance) TES

Two-layer structure consisting of inside layer (special fluororesin) + outer layer (special nylon resin). Excellent in flexibility and suitable for movable piping such as robots. Semi-transparent, so fluids can be visually checked.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Save
Similar products
Product data
CAD data not available

Product specification
Part Numbers

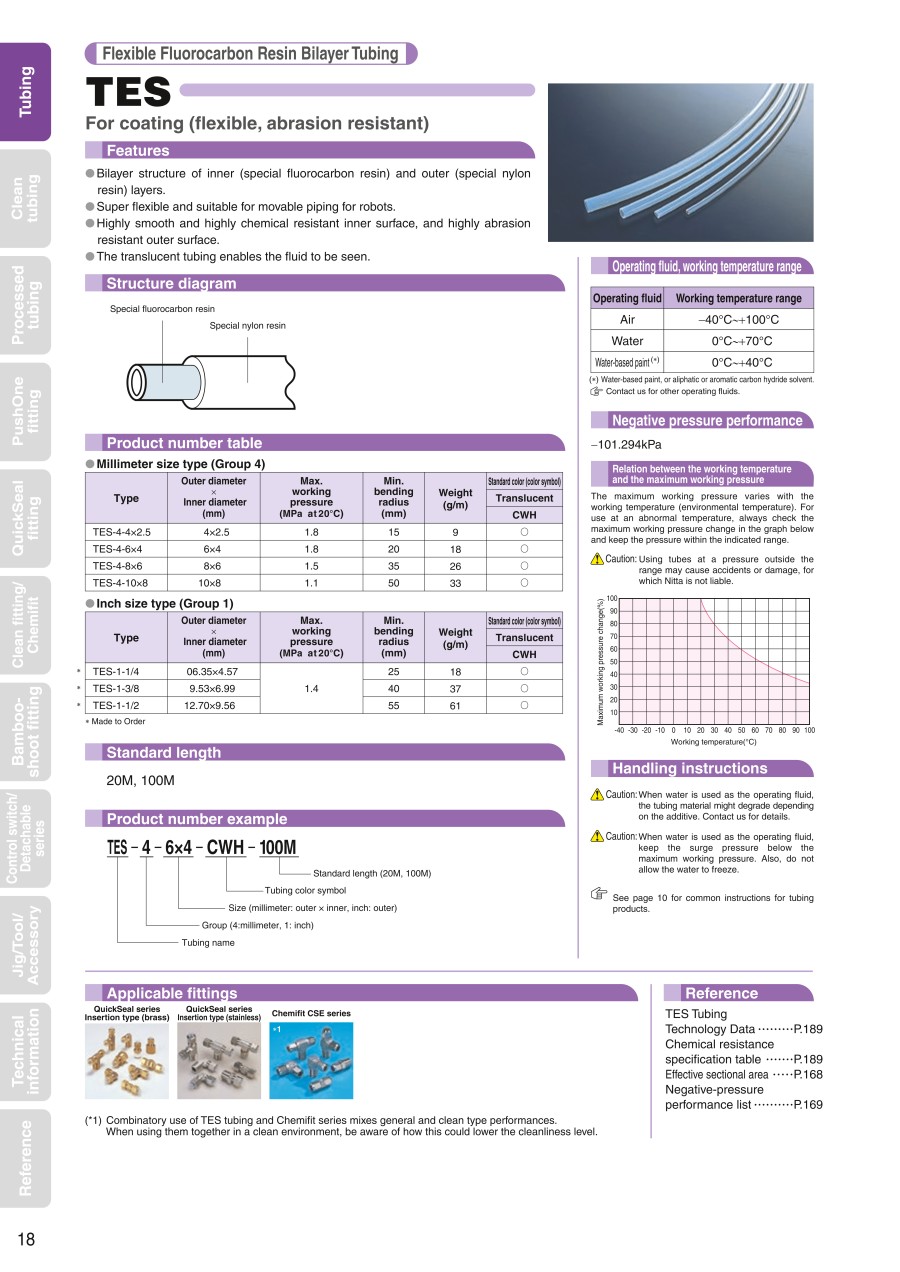

Catalog

Data to be displayed: 30; 45; 60

Part Number
TES-4-4X2.5-CWH-20M
TES-4-6X4-CWH-20M
TES-4-6X4-CWH-100M
TES-4-8X6-CWH-20M
TES-4-8X6-CWH-100M
TES-4-10X8-CWH-20M
TES-4-10X8-CWH-100M

Standard Unit Price	Minimum order quantity	Standard Shipping Days ?	O.D. *O.D. of the outer layer for the two-layer type (Ø)	O.D. [Distinction]	I.D. [Distinction]	Minimum Bending Radius (mm)	Operating Pressure Range (when using air) (MPa)	Length (M)
69.48 €	1	24 Days	2.5	Up to 4	Up to 3	15	1.8～4	20
104.56 €	1	24 Days	4	Up to 6	Up to 4	20	1.8～6	20
377.14 €	1	35 Days	4	Up to 6	Up to 4	20	1.8～6	100
96.44 €	1	6 Days	6	Up to 8	Up to 6	35	1.5～8	20
527.33 €	1	15 Days	6	Up to 8	Up to 6	35	1.5～8	100
136.20 €	1	24 Days	8	Up to 10	Up to 8	50	1.1～10	20
638.97 €	1	35 Days	8	Up to 10	Up to 8	50	1.1～10	100

Products homepage

Basic information

Type	Straight	Internal Diameter(Ø)	b:NA	Material	Fluorine + Nylon Resin
Applicable Fluid	Water / Air	Operating Environment	Abrasion Resistance / Chemical Resistance	Color	Semi-Transparent
Material, Fluororesin	Special Fluorinated Resin+Special Nylon	Operating Temperature Range (when using air)(°C)	-40::100
