Fluoropolymer Tubing (PFA) Inch Size, TILM Series(Lista de números de peça: página 2)

Condições de filtragem

Estoque
Mostrar apenas artigos em stock

O.D. [Distinction]

* ~2 represents over 5, and 3 or less.

I.D. [Distinction]

* ~2 represents over 5, and 3 or less.

Color

White

White (material color)

Transparent (including non-white colors)

Blue (Translucent)
Transparency

Outer Diameter D(inch)

I.D. D(inch)

Tube O.D. D(mm)

3.18
4.75
6.35
9.53
12.7
19.05
25.4
31.75

Tube I.D. d(mm)

1.58
2.18
3.15
3.95
6.33
9.5
15.85
22.2
27.95

Maximum operating pressure(MPa)

Length(m)

Type

CAD

Dias de envio estimados

Tudo
Dentro de 11 dias úteis
Dentro de 19 dias úteis
Dentro de 20 dias úteis
Dentro de 22 dias úteis
Dentro de 39 dias úteis
Dentro de 56 dias úteis

SMC

Fluoropolymer Tubing (PFA) Inch Size, TILM Series(Lista de números de peça: página 2)

Catálogo

Cuidado

Product images may be representative images only. Please refer to the manufacturer's catalog for shape details.
The last digits of the product codes indicate the length of the tubings.

Número da peça:

Indefinido. 78 candidatos encontrados.

Lista de números de peça
Informações detalhadas
Catálogo

Lista de números de peça

Número de itens

Número da peça

O.D. [Distinction]

I.D. [Distinction]

Color

Minimum Bending Radius

(mm)

Outer Diameter D

(inch)

I.D. D

(inch)

Tube O.D. D

(mm)

Tube I.D. d

(mm)

Maximum operating pressure

(MPa)

Length

(m)

Quantidade mínima de encomenda

Up to 30	Up to 30	[Transparent (including non-white colors)] Blue (Translucent)	400	1	7/8	25.4	22.2	0.4 (at 20°C)	20	1 unidades
Up to 30	Up to 30	[Transparent (including non-white colors)] Blue (Translucent)	400	1	7/8	25.4	22.2	0.4 (at 20°C)	33	1 unidades
Up to 30	Up to 30	[Transparent (including non-white colors)] Blue (Translucent)	400	1	7/8	25.4	22.2	0.4 (at 20°C)	50	1 unidades
Up to 30	Up to 30	[Transparent (including non-white colors)] Transparency	400	1	7/8	25.4	22.2	0.4 (at 20°C)	20	1 unidades
Up to 40	Up to 30	[White] White (material color)	500	1 1/4	1 1/10	31.75	27.95	0.4 (at 20°C)	20	1 unidades
Up to 40	Up to 30	[Red] Red	500	1 1/4	1 1/10	31.75	27.95	0.4 (at 20°C)	20	1 unidades
Up to 40	Up to 30	[Transparent (including non-white colors)] Blue (Translucent)	500	1 1/4	1 1/10	31.75	27.95	0.4 (at 20°C)	2	1 unidades
Up to 40	Up to 30	[Transparent (including non-white colors)] Blue (Translucent)	500	1 1/4	1 1/10	31.75	27.95	0.4 (at 20°C)	16	1 unidades
Up to 40	Up to 30	[Transparent (including non-white colors)] Blue (Translucent)	500	1 1/4	1 1/10	31.75	27.95	0.4 (at 20°C)	20	1 unidades
Up to 40	Up to 30	[Transparent (including non-white colors)] Blue (Translucent)	500	1 1/4	1 1/10	31.75	27.95	0.4 (at 20°C)	33	1 unidades
Up to 40	Up to 30	[Transparent (including non-white colors)] Blue (Translucent)	500	1 1/4	1 1/10	31.75	27.95	0.4 (at 20°C)	50	1 unidades
Up to 40	Up to 30	[Transparent (including non-white colors)] Transparency	500	1 1/4	1 1/10	31.75	27.95	0.4 (at 20°C)	20	1 unidades
Up to 4	Up to 2	[White] White (material color)	10	1/8	1/16	3.18	1.58	2.3 (at 20°C)	20	1 unidades
Up to 4	Up to 2	[Red] Red	10	1/8	1/16	3.18	1.58	2.3 (at 20°C)	20	1 unidades
Up to 4	Up to 2	[Transparent (including non-white colors)] Blue (Translucent)	10	1/8	1/16	3.18	1.58	2.3 (at 20°C)	16	1 unidades
Up to 4	Up to 2	[Transparent (including non-white colors)] Blue (Translucent)	10	1/8	1/16	3.18	1.58	2.3 (at 20°C)	20	1 unidades
Up to 4	Up to 2	[Transparent (including non-white colors)] Blue (Translucent)	10	1/8	1/16	3.18	1.58	2.3 (at 20°C)	33	1 unidades
Up to 4	Up to 2	[Transparent (including non-white colors)] Transparency	10	1/8	1/16	3.18	1.58	2.3 (at 20°C)	20	1 unidades

Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)	Data de envio standard

1,276.82 € ( 1,519.42 € )	11 dias úteis
2,106.76 € ( 2,507.04 € )	11 dias úteis
3,192.10 € ( 3,798.60 € )	39 dias úteis
1,850.56 € ( 2,202.17 € )	20 dias úteis
3,069.87 € ( 3,653.15 € )	22 dias úteis
2,895.94 € ( 3,446.17 € )	20 dias úteis
219.97 € ( 261.76 € )	11 dias úteis
1,598.44 € ( 1,902.14 € )	22 dias úteis
1,998.06 € ( 2,377.69 € )	22 dias úteis
3,296.77 € ( 3,923.16 € )	20 dias úteis
4,995.10 € ( 5,944.17 € )	56 dias úteis
2,895.94 € ( 3,446.17 € )	20 dias úteis
113.60 € ( 135.18 € )	11 dias úteis
107.06 € ( 127.40 € )	22 dias úteis
59.02 € ( 70.23 € )	11 dias úteis
73.76 € ( 87.77 € )	11 dias úteis
121.73 € ( 144.86 € )	39 dias úteis
107.06 € ( 127.40 € )	11 dias úteis

Informações detalhadas

Informações básicas

Informações básicas

Fluoropolymer tubing (PFA) with superior heat resistance, inch size, TILM Series.
[Features]
・ The material is fluoropolymer, which has excellent chemical resistance. It also has excellent heat resistance, making it suitable for a wide range of applications.
[Applications]
・ Solar battery manufacturing field, liquid crystal manufacturing field, HDD manufacturing field, medical field, food field.

Cuidado

Product images may be representative images only. Please refer to the manufacturer's catalog for shape details.
The last digits of the product codes indicate the length of the tubings.

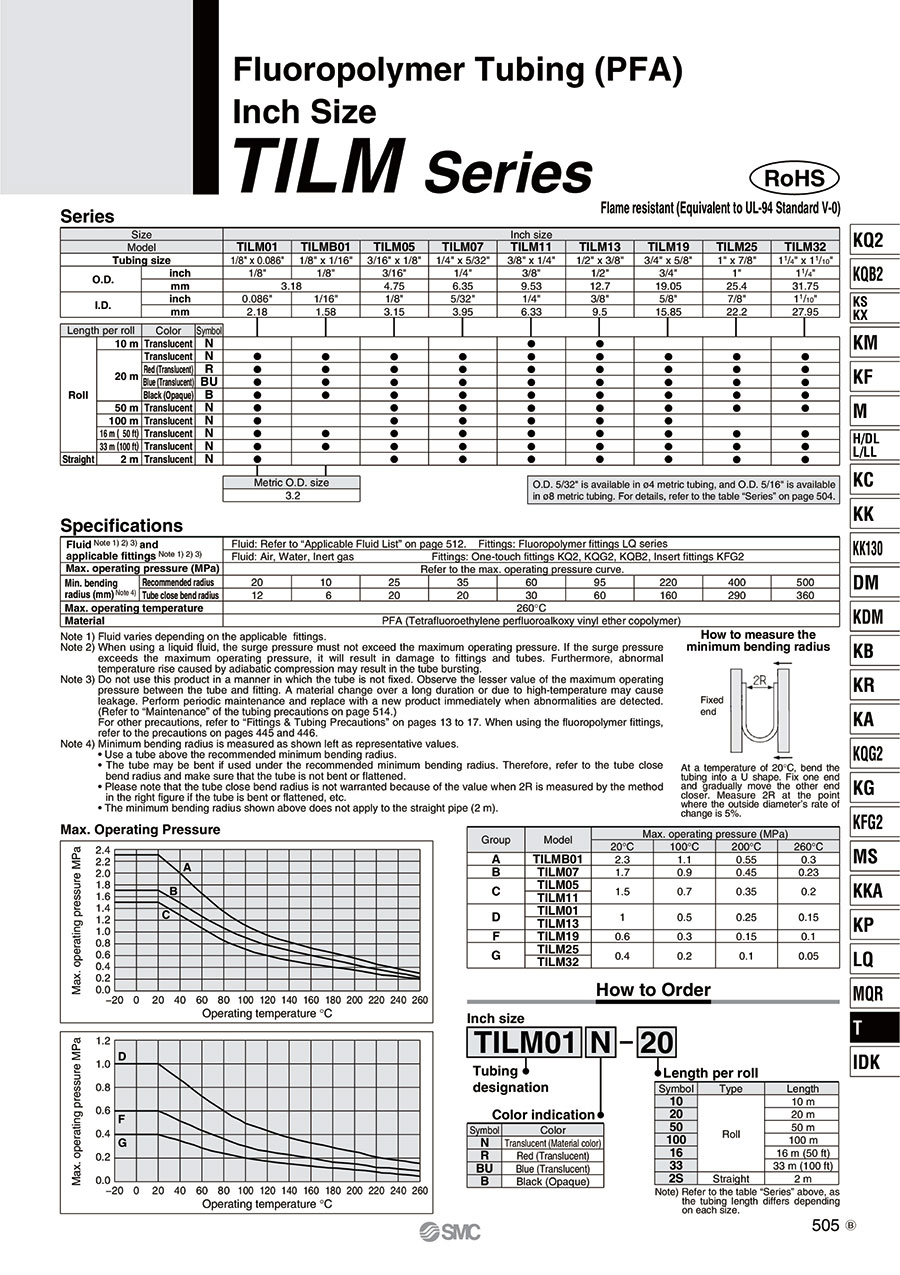

Catálogo

Catálogo (visualização de 2 páginas)
