C(D)QM, Compact Cylinder, Guide Rod Type
Clique na imagem para ver uma imagem ampliada
Cuidado
- See catalog for specification details.
- Product pictures are representations. CAD data is not supported for some model numbers.
Número da peça:
candidatos encontrados.Informações do produto
Compact Cylinder, Guide-Rod Type CQM Series Specifications

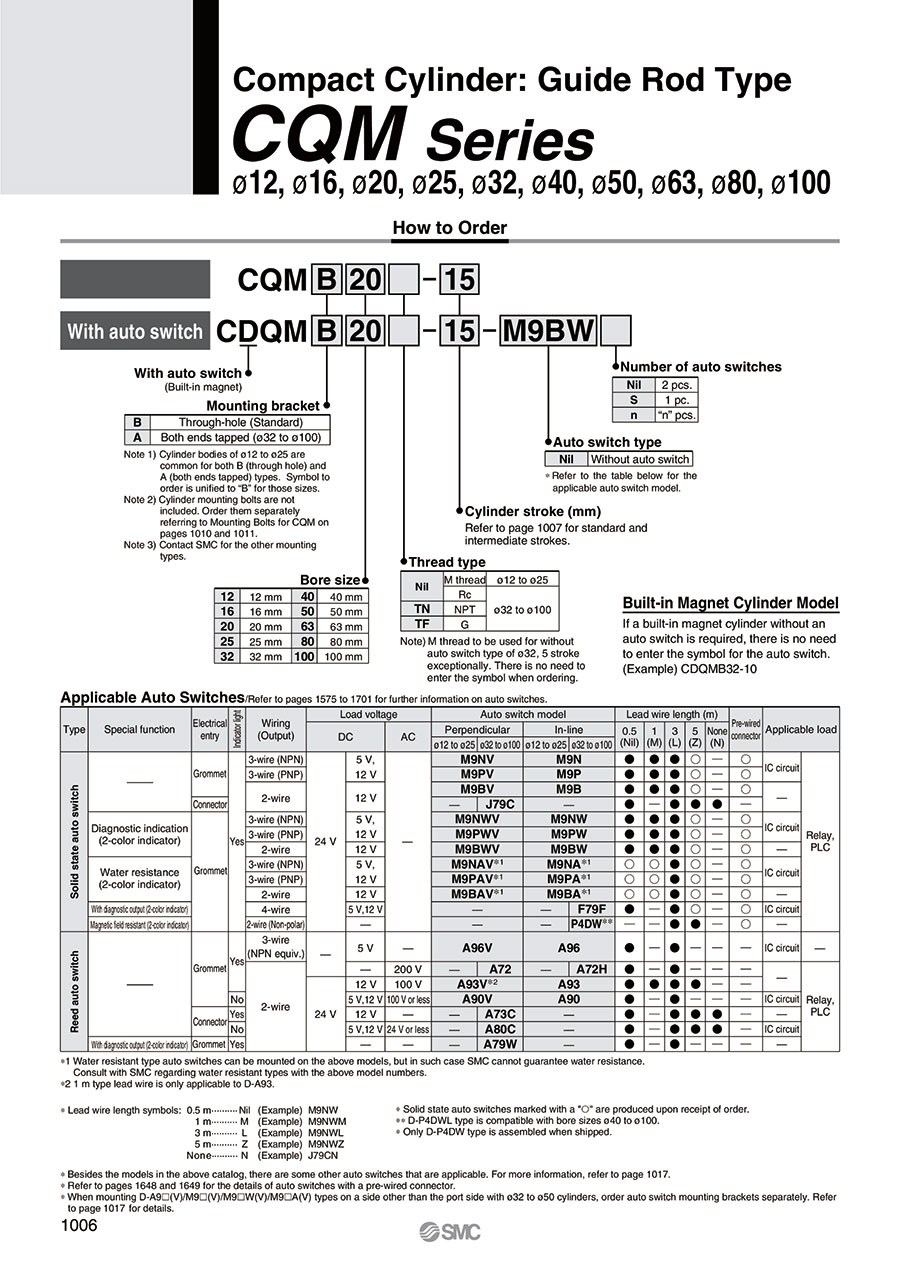

Model Number Notation
Model Number Notation
Specifications
| Tube Internal Diameter (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
|---|---|---|---|---|---|---|---|---|---|---|
| Model | Pneumatic (non-lube) type | |||||||||
| Action | Double acting, single rod | |||||||||
| Applicable fluids | Air | |||||||||
| Proof pressure | 1.5 MPa | |||||||||
| Maximum operating pressure | 1.0 MPa | |||||||||
| Minimum operating pressure | 0.12 MPa | 0.1 MPa | ||||||||
| Ambient and fluid temperature | Without auto switch: -10°C to +70°C (No freezing) With auto switch: -10°C to +60°C (No freezing) | |||||||||
| Cushion | Rubber bumper at both ends | |||||||||
| Stroke length tolerance | +1.0 mm* 0 | |||||||||
| Mounting | Through-holes | |||||||||
| Piston speed | 50 to 500 mm/s | 50 to 300 mm/s | ||||||||
- *Stroke length tolerance does not include the amount of bumper change.
Standard stroke
| Bore size (mm) | Standard stroke (mm) |
|---|---|
| 12, 16 | 5, 10, 15, 20, 25, 30 |
| 20, 25 | 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 |
| 32, 40 | 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 |
| 50, 63, 80, 100 | 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 |
Structural drawing
ø12 to ø25 (12‑ to 25‑mm bore size)
ø32 to ø100 (32‑mm to 100‑mm bore size)
ø50 to ø100 (50‑mm to 100‑mm bore size)
Component Parts
| Number | Description | Material | Note |
|---|---|---|---|
| 1 | Cylinder tube | Aluminum alloy | Hard anodized |
| 2 | Collar | Aluminum alloy | ø12 to ø40 (12‑mm to 40‑mm bore size) Anodized |
| Aluminum alloy casted | ø50 to ø100 (50‑mm to 100‑mm bore size) Chromated, coated | ||
| 3 | Piston | Aluminum alloy | - |
| 4 | Piston rod | Stainless steel | ø12 to ø25 (12‑mm to 25‑mm bore size) |
| Carbon steel | ø32 to ø100 (32‑mm to 100‑mm bore size) Hard chrome plated | ||
| 5 | Plate | Aluminum alloy | Anodized |
| 6 | Guide rod | Stainless steel | - |
| 7 | Bushing | Resin/Copper alloy (Multiple layers) | - |
| 8 | Bushing | Resin/Copper alloy (Multiple layers) | ø50 to ø100 (50‑mm to 100‑mm bore size) |
| 9 | Hexagon socket head cap screw | Carbon steel | Zinc chromated |
| 10 | Hexagon socket head cap screw | Carbon steel | Zinc chromated |
| 11 | Retaining ring | Carbon tool steel | Phosphate coated |
| 12 | Bumper A | Urethane | - |
| 13 | Bumper B | Urethane | - |
| 14 | Magnet | - | - |
| 15 | Rod seal | NBR | - |
| 16 | Piston seal | NBR | - |
| 17 | Gasket | NBR | - |
Compact Cylinder, Guide-Rod Type CQM Series Example Dimensions
ø12 to ø25 (12‑ to 25‑mm bore size) dimensional drawing
(Unit: mm)
| Bore size (mm) | Stroke range (mm) | Without auto switch | With auto switch | EA | EB | F | HA | OA | HB | IA | IB | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | A | B | ||||||||||
| 12 | 5 to 30 | 26.5 | 17 | 31.5 | 22 | 25 | 24 | 5 | M3 × 0.5 | M4 × 0.7 | 3 (0 to +0.2) | 32 | 31.5 |
| 16 | 5 to 30 | 26.5 | 17 | 31.5 | 22 | 29 | 28 | 5 | M3 × 0.5 | M4 × 0.7 | 3 (0 to +0.2) | 38 | 37 |
| 20 | 5 to 50 | 32 | 19.5 | 42 | 29.5 | 36 | 34 | 5.5 | M4 × 0.7 | M6 × 1.0 | 4 (0 to +0.2) | 47 | 45.5 |
| 25 | 5 to 50 | 35.5 | 22.5 | 45.5 | 32.5 | 40 | 38 | 5.5 | M5 × 0.8 | M6 × 1.0 | 5 (0 to +0.2) | 52 | 50.5 |
(Unit: mm)
| Bore size (mm) | KA | KB | L | M | N | OB | Q | RA | RB | T | V | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 10 ± 0.1 | 7.1 | 3.5 | 15.5 | 3.5 | 6.5 | 7.5 | 7 | 4 | 0.5 | 14.9 | 6 |
| 16 | 14 ± 0.1 | 9.9 | 3.5 | 20 | 3.5 | 6.5 | 7.5 | 7 | 4 | 0.5 | 20 | 6 |
| 20 | 17 ± 0.1 | 12 | 4.5 | 25.5 | 5.4 | 9 | 9 | 10 | 7 | 1 | 26 | 8 |
| 25 | 22 ± 0.1 | 15.6 | 5 | 28 | 5.4 | 9 | 11 | 10 | 7 | 1 | 30 | 8 |
Note) For the following bore/stroke sizes, the through-hole is threaded: Standard without auto switch: ø12 (12‑mm bore size) and ø16 (16‑mm bore size) 5 stroke; ø20 (20‑mm bore size) 5 to 15 stroke; ø25 (25‑mm bore size) 5 and 10 stroke. Built-in magnet with auto switch: ø20 (20‑mm bore size) 5 stroke.
Lista de números de peça
| Número da peça |
|---|
| Encomenda suspensa |
| Encomenda suspensa |
| Encomenda suspensa |
| Encomenda suspensa |
| Encomenda suspensa |
| Encomenda suspensa |
Preço unitário (excluindo IVA)(Preço unitário incluindo IVA) | Data de envio standard |
|---|
100.89 € ( 120.06 € ) | 19 dias úteis |
195.32 € ( 232.43 € ) | 21 dias úteis |
175.77 € ( 209.17 € ) | 24 dias úteis |
105.81 € ( 125.91 € ) | 7 dias úteis |
141.23 € ( 168.06 € ) | 11 dias úteis |
107.18 € ( 127.54 € ) | 31 dias úteis |
172.24 € ( 204.97 € ) | 28 dias úteis |
143.61 € ( 170.90 € ) | 11 dias úteis |
182.02 € ( 216.60 € ) | 17 dias úteis |
108.56 € ( 129.19 € ) | 7 dias úteis |
157.11 € ( 186.96 € ) | 21 dias úteis |
173.63 € ( 206.62 € ) | 24 dias úteis |
202.98 € ( 241.55 € ) | 28 dias úteis |
202.97 € ( 241.53 € ) | 11 dias úteis |
175.50 € ( 208.84 € ) | 26 dias úteis |
183.39 € ( 218.23 € ) | 24 dias úteis |
192.82 € ( 229.46 € ) | 11 dias úteis |
183.39 € ( 218.23 € ) | 21 dias úteis |
109.97 € ( 130.86 € ) | 26 dias úteis |
109.97 € ( 130.86 € ) | 7 dias úteis |
153.10 € ( 182.19 € ) | 11 dias úteis |
158.52 € ( 188.64 € ) | 17 dias úteis |
158.52 € ( 188.64 € ) | 11 dias úteis |
175.03 € ( 208.29 € ) | 17 dias úteis |
146.39 € ( 174.20 € ) | 24 dias úteis |
176.90 € ( 210.51 € ) | 21 dias úteis |
111.35 € ( 132.51 € ) | 7 dias úteis |
154.48 € ( 183.83 € ) | 11 dias úteis |
159.90 € ( 190.28 € ) | 17 dias úteis |
176.42 € ( 209.94 € ) | 24 dias úteis |
205.76 € ( 244.85 € ) | 11 dias úteis |
192.10 € ( 228.60 € ) | 24 dias úteis |
178.29 € ( 212.17 € ) | 11 dias úteis |
195.61 € ( 232.78 € ) | 11 dias úteis |
113.48 € ( 135.04 € ) | 28 dias úteis |
113.42 € ( 134.97 € ) | 4 dias úteis |
156.61 € ( 186.37 € ) | 26 dias úteis |
162.03 € ( 192.82 € ) | 28 dias úteis |
180.42 € ( 214.70 € ) | 24 dias úteis |
115.56 € ( 137.52 € ) | 19 dias úteis |
180.56 € ( 214.87 € ) | 11 dias úteis |
119.74 € ( 142.49 € ) | 17 dias úteis |
123.19 € ( 146.60 € ) | 13 dias úteis |
166.32 € ( 197.92 € ) | 17 dias úteis |
171.76 € ( 204.39 € ) | 17 dias úteis |
188.26 € ( 224.03 € ) | 28 dias úteis |
235.65 € ( 280.42 € ) | 28 dias úteis |
229.61 € ( 273.24 € ) | 11 dias úteis |
217.60 € ( 258.94 € ) | 17 dias úteis |
194.15 € ( 231.04 € ) | 26 dias úteis |
130.89 € ( 155.76 € ) | 17 dias úteis |
130.89 € ( 155.76 € ) | 17 dias úteis |
195.97 € ( 233.20 € ) | 24 dias úteis |
130.89 € ( 155.76 € ) | 17 dias úteis |
174.02 € ( 207.08 € ) | 24 dias úteis |
130.89 € ( 155.76 € ) | 17 dias úteis |
130.82 € ( 155.68 € ) | 7 dias úteis |
195.97 € ( 233.20 € ) | 17 dias úteis |
203.73 € ( 242.44 € ) | 17 dias úteis |
205.73 € ( 244.82 € ) | 17 dias úteis |
Informações detalhadas
Informações básicas
Compact Cylinder, Guide Rod Type CQM Series to which a load can be directly mounted.
[Features]
· Mounting dimensions compatible with CQS and CQ2 series.
· Auto switch can be mounted/removed even when the plate is retracted.
Cuidado
- See catalog for specification details.
- Product pictures are representations. CAD data is not supported for some model numbers.
