Electric Actuator Slider Type Belt Drive LEFB Series Step Motor/Servo Motor

Condições de filtragem

Stroke(mm)
- 1,000
- 1,200
- 1,500
- 1,800
- 2,000
- 300
- 500
- 600
- 700
- 800
- 900
Max. Transportable Mass Range (Horizontal)(kg)
The calculation method differs depending on the manufacturer. For details, see the technical data provided by the relevant manufacturer.
Max. Transportable Mass (Horizontal)(kg)
The calculation method differs depending on the manufacturer. For details, see the technical data provided by the relevant manufacturer.
- 1
- 2
- 5
- 10
- 14
- 19
Lead(mm)
- 48
- Equivalent to 48
I/O Module
Table Width W1(mm)
- 39.4
- 50
- 60
Brake
- Not Provided
- Provided
Table Length L1(mm)
- 72
- 102
- 122
Maximum Velocity(mm/sec)
- 1,500
- 3,000
- 1100
- 1400
- 2000
Size
- 16
- 25
- 32
Motor type
- Servo motor (24 V DC)
- Step motor (24‑V DC servo)
Motor options
- With lock
- Without lock
Actuator/cable type
Actuator cable length(m)
- 1.5
- 3
- 5
- 8
- 10
- 15
- 20
- Without cable
Controller/driver type
I/O cable length / communication plug(m)
Controller/driver mounting method
- DIN rail mounting type
- Screw mounting type
Grease application (Seal band part)
- None (Roller specifications)
- Yes
Auto switch mounting bracket
- 1 pc. included (Include)
- None
Positioning pin hole
- Bottom of housing B
Type
- LEFB
CAD
- 2D
- 3D
Dias de envio estimados
- Tudo
- Dentro de 4 dias úteis
- Dentro de 11 dias úteis
- Dentro de 15 dias úteis
- Dentro de 17 dias úteis
- Dentro de 18 dias úteis
- Dentro de 19 dias úteis
- Dentro de 20 dias úteis
- Dentro de 21 dias úteis
- Dentro de 22 dias úteis
- Dentro de 23 dias úteis

SMC

Electric Actuator Slider Type Belt Drive LEFB Series Step Motor/Servo Motor

Catálogo

Cuidado

Webpages for products currently without individual pages on this site will be released on an ad-hoc basis.
Product images may be representative images only. Refer to the manufacturer's catalog for shape details.
CAD data is not available for some model numbers.

Número da peça:

Indefinido. 793 candidatos encontrados.

Lista de números de peça
Informações detalhadas
Catálogo

Lista de números de peça

Número de itens

...

Seguinte

Número da peça

LEFB16AT-1000B-R36N3D

LEFB16AT-1000B-R56P1D

Stroke

(mm)

Max. Transportable Mass Range (Horizontal)

(kg)

Max. Transportable Mass (Horizontal)

(kg)

Lead

(mm)

I/O Module

Table Width W1

(mm)

Brake

Table Length L1

(mm)

Maximum Velocity

(mm/sec)

Size

Motor type

Motor options

Actuator/cable type

Actuator cable length

(m)

Controller/driver type

I/O cable length / communication plug

(m)

Controller/driver mounting method

Grease application (Seal band part)

Auto switch mounting bracket

Positioning pin hole

Quantidade mínima de encomenda

1,000	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Without cable	Without cable	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
1,000	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	3	LECP6/LECA6, PNP, step data input type	3	Screw mounting type	-	-	-	1 unidades
1,000	0 to 2.0	1	Equivalent to 48	PNP	39.4	Not Provided	72	2000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	5	LECA6 (Step data input type)	5	Screw mounting type	Yes	-	Bottom of housing B	1 unidades
1,000	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	5	LECP6/LECA6, PNP, step data input type	5	DIN rail mounting type	-	-	-	1 unidades
1,000	0 to 2.0	1	48	NPN	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	With lock	Robotic cable (flex-resistant cable)	3	LECP6/LECA6, PNP, step data input type	3	DIN rail mounting type	-	-	-	1 unidades
1,000	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	With lock	Robotic cable (flex-resistant cable)	5	LECP6/LECA6, PNP, step data input type	1.5	DIN rail mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Without cable	Without cable	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	1.5	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	NPN	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	1.5	LECP6/LECA6, PNP, step data input type	1.5	Screw mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	NPN	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	1.5	LECP6/LECA6, PNP, step data input type	1.5	DIN rail mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	1.5	LECP6/LECA6, PNP, step data input type	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	1.5	LECP6/LECA6, PNP, step data input type	1.5	Screw mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	1.5	LECP6/LECA6, PNP, step data input type	1.5	DIN rail mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	1.5	LECP6/LECA6, PNP, step data input type	5	DIN rail mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	3	LECP6/LECA6, PNP, step data input type	1.5	Screw mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	3	LECP6/LECA6, PNP, step data input type	1.5	DIN rail mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	5	LECP6/LECA6, PNP, step data input type	5	DIN rail mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	With lock	Robotic cable (flex-resistant cable)	3	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	NPN	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	With lock	Robotic cable (flex-resistant cable)	1.5	LECP6/LECA6, PNP, step data input type	1.5	DIN rail mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	With lock	Robotic cable (flex-resistant cable)	3	LECP6/LECA6, PNP, step data input type	1.5	Screw mounting type	-	-	-	1 unidades
500	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Without cable	Without cable	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
500	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	3	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
500	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	5	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
500	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	1.5	LECP6/LECA6, PNP, step data input type	1.5	Screw mounting type	-	-	-	1 unidades
500	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	1.5	LECP6/LECA6, PNP, step data input type	1.5	DIN rail mounting type	-	-	-	1 unidades
500	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	1.5	LECP6/LECA6, PNP, step data input type	5	DIN rail mounting type	-	-	-	1 unidades
500	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	3	LECP6/LECA6, PNP, step data input type	3	Screw mounting type	-	-	-	1 unidades
500	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	5	LECP6/LECA6, PNP, step data input type	3	DIN rail mounting type	-	-	-	1 unidades
500	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	5	LECP6/LECA6, PNP, step data input type	5	DIN rail mounting type	-	-	-	1 unidades
500	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	With lock	Without cable	Without cable	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
500	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	With lock	Robotic cable (flex-resistant cable)	5	LECP6/LECA6, PNP, step data input type	5	DIN rail mounting type	-	-	-	1 unidades
600	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Without cable	Without cable	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
600	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	1.5	LECP6/LECA6, PNP, step data input type	1.5	Screw mounting type	-	-	-	1 unidades
600	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	3	LECP6/LECA6, PNP, step data input type	3	Screw mounting type	-	-	-	1 unidades
700	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Without cable	Without cable	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
700	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	1.5	LECP6/LECA6, PNP, step data input type	1.5	DIN rail mounting type	-	-	-	1 unidades
700	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	3	LECP6/LECA6, PNP, step data input type	3	Screw mounting type	-	-	-	1 unidades
800	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Without cable	Without cable	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
800	0 to 2.0	1	48	NPN	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	3	LECP6/LECA6, PNP, step data input type	3	Screw mounting type	-	-	-	1 unidades
800	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	3	LECP6/LECA6, PNP, step data input type	1.5	DIN rail mounting type	-	-	-	1 unidades
800	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	With lock	Robotic cable (flex-resistant cable)	3	LECP6/LECA6, PNP, step data input type	3	DIN rail mounting type	-	-	-	1 unidades
900	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Without cable	Without cable	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
900	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	3	LECP6/LECA6, PNP, step data input type	3	Screw mounting type	-	-	-	1 unidades
900	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	5	LECP6/LECA6, PNP, step data input type	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
900	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Servo motor (24 V DC)	Without lock	Robotic cable (flex-resistant cable)	5	LECP6/LECA6, PNP, step data input type	3	DIN rail mounting type	-	-	-	1 unidades
1,000	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Step motor (24‑V DC servo)	Without lock	Without cable	Without cable	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
1,000	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Step motor (24‑V DC servo)	Without lock	Robotic cable (flex-resistant cable)	3	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
1,000	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Step motor (24‑V DC servo)	Without lock	Robotic cable (flex-resistant cable)	5	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
1,000	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Step motor (24‑V DC servo)	Without lock	Standard cable	1.5	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
1,000	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Step motor (24‑V DC servo)	Without lock	Standard cable	3	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
1,000	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Step motor (24‑V DC servo)	Without lock	Standard cable	5	LECPA (pulse input type)	1.5	Screw mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Step motor (24‑V DC servo)	Without lock	Without cable	Without cable	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Step motor (24‑V DC servo)	Without lock	Robotic cable (flex-resistant cable)	1.5	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	Not Provided	39.4	Not Provided	72	3,000	16	Step motor (24‑V DC servo)	Without lock	Robotic cable (flex-resistant cable)	3	None	Without cable (without communication plug connector)	Screw mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	NPN	39.4	Not Provided	72	3,000	16	Step motor (24‑V DC servo)	Without lock	Robotic cable (flex-resistant cable)	3	LECPA (pulse input type)	1.5	Screw mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Step motor (24‑V DC servo)	Without lock	Robotic cable (flex-resistant cable)	3	LECPA (pulse input type)	3	DIN rail mounting type	-	-	-	1 unidades
300	0 to 2.0	1	Equivalent to 48	Ethernet	39.4	Not Provided	72	1100	16	Step motor (24‑V DC servo)	Without lock	Robotic cable (flex-resistant cable)	3	JXC91 (EtherNet/IP direct input type)	Without plug connector	Screw mounting type	Yes	-	Bottom of housing B	1 unidades
300	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Step motor (24‑V DC servo)	Without lock	Robotic cable (flex-resistant cable)	1.5	LECP1 (programless type)	1.5	Screw mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Step motor (24‑V DC servo)	Without lock	Robotic cable (flex-resistant cable)	3	LECP1 (programless type)	1.5	Screw mounting type	-	-	-	1 unidades
300	0 to 2.0	1	48	PNP	39.4	Not Provided	72	3,000	16	Step motor (24‑V DC servo)	Without lock	Robotic cable (flex-resistant cable)	3	LECP1 (programless type)	3	Screw mounting type	-	-	-	1 unidades

Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)	Data de envio standard

1,096.66 € ( 1,305.03 € )	24 dias úteis
1,569.67 € ( 1,867.91 € )	17 dias úteis
1,656.59 € ( 1,971.34 € )	23 dias úteis
1,678.99 € ( 1,998.00 € )	23 dias úteis
1,856.44 € ( 2,209.16 € )	23 dias úteis
1,919.39 € ( 2,284.07 € )	28 dias úteis
884.13 € ( 1,052.11 € )	24 dias úteis
976.81 € ( 1,162.40 € )	24 dias úteis
1,302.40 € ( 1,549.86 € )	28 dias úteis
1,324.80 € ( 1,576.51 € )	28 dias úteis
1,248.16 € ( 1,485.31 € )	28 dias úteis
1,302.40 € ( 1,549.86 € )	23 dias úteis
1,324.81 € ( 1,576.52 € )	28 dias úteis
1,357.96 € ( 1,615.97 € )	28 dias úteis
1,333.59 € ( 1,586.97 € )	28 dias úteis
1,355.99 € ( 1,613.63 € )	23 dias úteis
1,466.44 € ( 1,745.06 € )	23 dias úteis
1,272.37 € ( 1,514.12 € )	24 dias úteis
1,581.73 € ( 1,882.26 € )	23 dias úteis
1,597.96 € ( 1,901.57 € )	23 dias úteis
912.60 € ( 1,085.99 € )	17 dias úteis
1,036.47 € ( 1,233.40 € )	24 dias úteis
1,113.77 € ( 1,325.39 € )	24 dias úteis
1,330.87 € ( 1,583.74 € )	28 dias úteis
1,353.29 € ( 1,610.42 € )	28 dias úteis
1,386.43 € ( 1,649.85 € )	28 dias úteis
1,385.60 € ( 1,648.86 € )	23 dias úteis
1,485.31 € ( 1,767.52 € )	28 dias úteis
1,494.94 € ( 1,778.98 € )	23 dias úteis
1,143.33 € ( 1,360.56 € )	24 dias úteis
1,768.50 € ( 2,104.51 € )	23 dias úteis
954.10 € ( 1,135.38 € )	24 dias úteis
1,372.39 € ( 1,633.14 € )	23 dias úteis
1,427.10 € ( 1,698.25 € )	28 dias úteis
961.87 € ( 1,144.63 € )	24 dias úteis
1,402.53 € ( 1,669.01 € )	23 dias úteis
1,434.87 € ( 1,707.50 € )	23 dias úteis
969.67 € ( 1,153.91 € )	24 dias úteis
1,442.67 € ( 1,716.78 € )	23 dias úteis
1,441.53 € ( 1,715.42 € )	23 dias úteis
1,729.46 € ( 2,058.06 € )	23 dias úteis
1,026.69 € ( 1,221.76 € )	24 dias úteis
1,499.69 € ( 1,784.63 € )	23 dias úteis
1,499.19 € ( 1,784.04 € )	28 dias úteis
1,599.41 € ( 1,903.30 € )	28 dias úteis
1,011.11 € ( 1,203.22 € )	17 dias úteis
1,134.99 € ( 1,350.64 € )	24 dias úteis
1,212.30 € ( 1,442.64 € )	24 dias úteis
1,078.69 € ( 1,283.64 € )	24 dias úteis
1,090.31 € ( 1,297.47 € )	24 dias úteis
1,372.41 € ( 1,633.17 € )	25 dias úteis
798.59 € ( 950.32 € )	19 dias úteis
891.29 € ( 1,060.64 € )	24 dias úteis
922.46 € ( 1,097.73 € )	24 dias úteis
1,161.74 € ( 1,382.47 € )	24 dias úteis
1,205.33 € ( 1,434.34 € )	24 dias úteis
1,526.43 € ( 1,816.45 € )	11 dias úteis
1,204.46 € ( 1,433.31 € )	28 dias úteis
1,235.63 € ( 1,470.40 € )	21 dias úteis
1,241.09 € ( 1,476.90 € )	28 dias úteis

...

Seguinte

Informações detalhadas

Informações básicas

Informações básicas

A slider-type electric actuator.
[Features]
· Maximum stroke: 2,000 mm (step motor [24‑V DC servo]).
· Maximum speed: 2,000 mm/s (step motor [24‑V DC servo]).
· Positioning repeatability: ±0.08 mm (step motor [24‑V DC servo]).
· Maximum speed: 2,000 mm/s (AC servo motor).
· Maximum stroke: 3,000 mm (AC servo motor).
· Maximum acceleration/deceleration: 20,000 mm/S2 (AC servo motor).
· Pulse input type, with absolute encoder (AC servo motor).
· Positioning Repeatability: ±0.06 mm (AC servo motor).

Cuidado

Webpages for products currently without individual pages on this site will be released on an ad-hoc basis.
Product images may be representative images only. Refer to the manufacturer's catalog for shape details.
CAD data is not available for some model numbers.

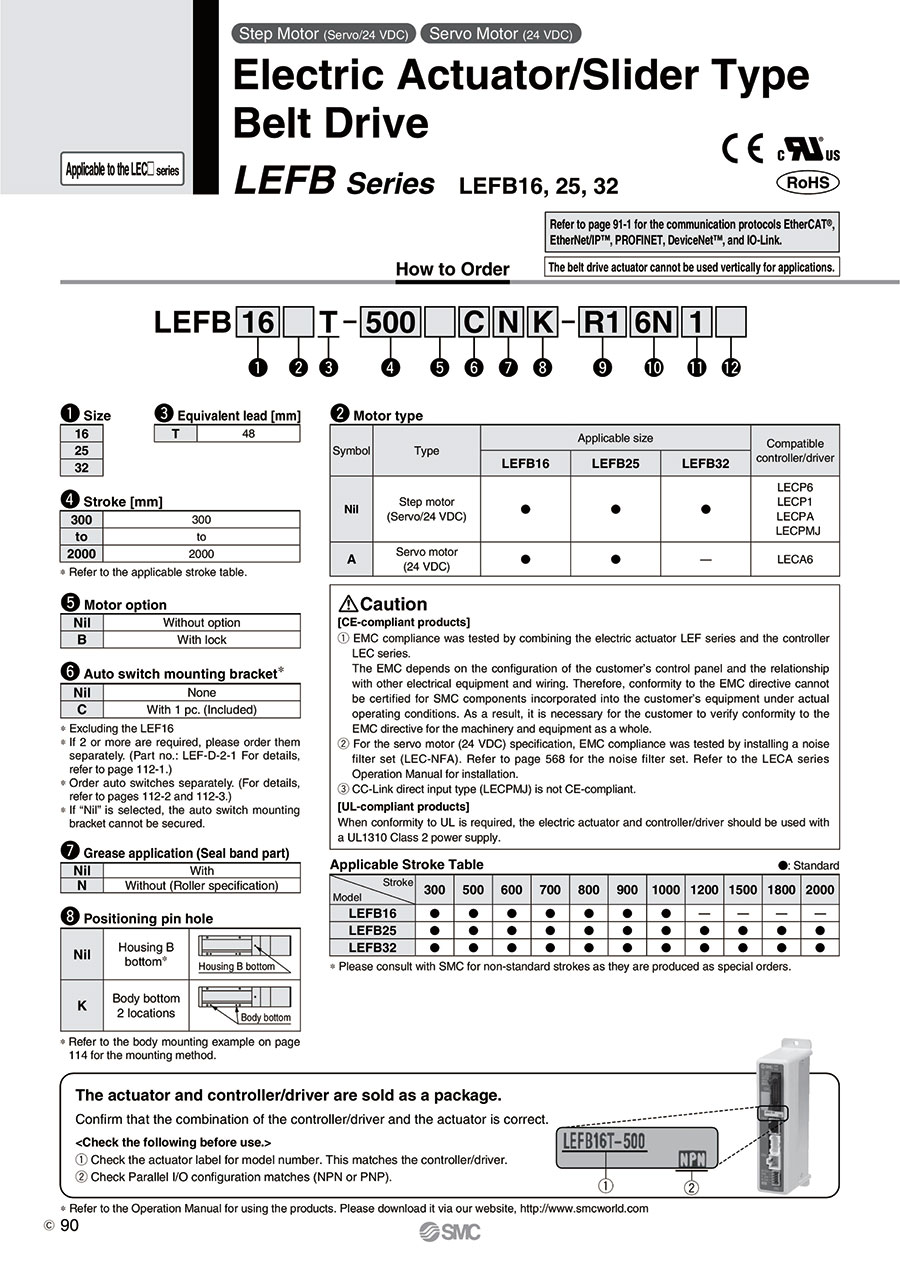

Catálogo
