    Mini Free Mount Cylinder, ø4, ø6, ø8, ø10, CUJ Series

    Mini Free Mount Cylinder, ø4, ø6, ø8, ø10, CUJ Series

    Cuidado

    • See catalog for specification details.
    •
    • CAD data is not supported for some model numbers.
    • Product images may be representative images.

    Número da peça:

    Indefinido. 383 candidatos encontrados.
    Quantidade:

    Informações do produto

    Mini Free Mount Cylinder ø4, ø6, ø8, ø10, CUJ Series Specifications

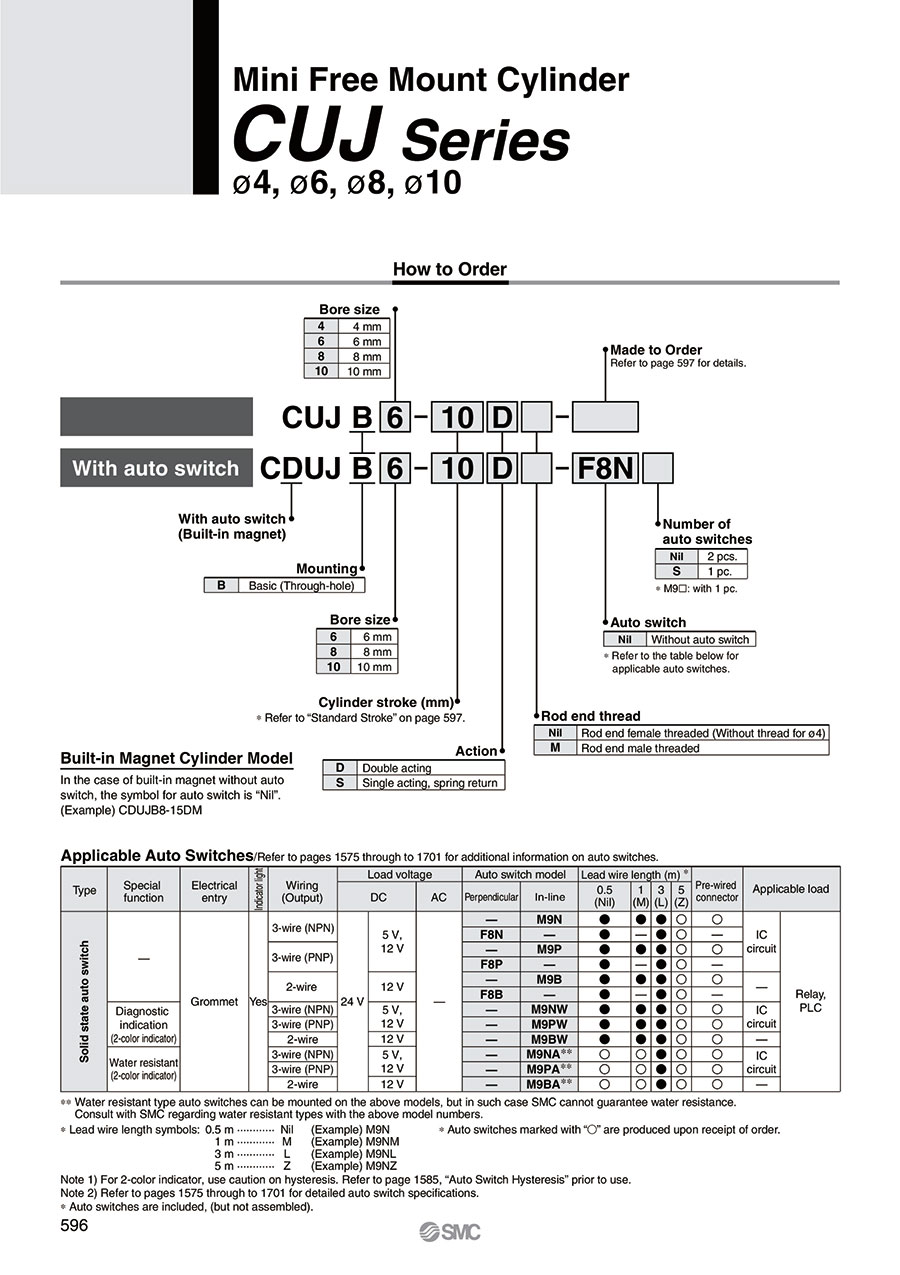

    How to Order

    Symbol

    Mini Free Mount Cylinder, o4, o6, o8, o10, CUJ Series

    Double acting, single rod, without cushion

    Mini Free Mount Cylinder, o4, o6, o8, o10, CUJ Series

    Single acting, spring return

    Specifications

    Bore size (mm)46810
    ActionDouble acting; Single acting, spring return
    FluidAir
    Proof pressure1.05 MPa
    Minimum operating
    pressure    		Double acting0.15 MPa0.1 MPa
    Single acting, spring return0.35 MPa0.3 MPa0.2 MPa
    Maximum operating pressure0.7 MPa
    Ambient and fluid temperatureWithout auto switch: -10 to 70°C (No freezing)
    With auto switch: -10 to 60°C (No freezing)
    CushionNone
    LubricationNon-lube
    Piston speed50 to 500 mm/s
    Stroke length tolerance0 to +0.5
    MountingThrough-hole

    Standard Stroke

    ActionBore size (mm)Standard stroke (mm)
    Double acting44, 6, 8, 10, 15, 20
    64, 6, 8, 10, 15, 20
    25, 30
    8, 10
    Single acting,
    spring return    		44, 6
    64, 6, 8
    104, 6, 8, 10

    Construction

    Double Acting
    Single Acting, Spring Return
    Component Parts
    No.DescriptionMaterialNote
    1Cylinder tubeAluminum alloyHard anodized
    2Rod coverCopper alloyElectroless nickel plated
    3PistonWithout switchStainless steel
    With switchAluminum alloyChromated
    4Piston rodStainless steel
    5Seal retainerAluminum alloyChromated (CUJB4 only)
    6Magnet retainerAluminum alloyChromated
    7Return springPiano wire
    8Bronze elementSintered metallic BC
    9Magnet-
    10Rod end nutIronChromated
    11Piston sealNBR
    12Rod sealNBR
    13Tube gasketNBR
    Replacement Parts: Seal Kit
    Double Acting
    Bore size (mm)Kit no.Contents
    4CUJB4-PSSet of ⑪, ⑫, ⑬ and grease pack.
    6CUJB6-PS
    8CUJB8-PS
    10CUJB10-PS
    ∗ Seal kit ⑪ to ⑬ comes as a set. Use the kit number for each bore size.

    Single Acting, Spring Return
    Bore size (mm)Kit no.Contents
    4CUJB4-S-PSSet of ⑪ and grease pack.
    6CUJB6-S-PS
    8CUJB8-S-PS
    10CUJB10-S-PS
    ∗ Use the following part number for ordering a grease pack only.
    Grease part no.: GR-L-005 (5 g)

    Dimensions: ø4 Double Acting; Single Acting, Spring Return

    Dimensions: ø6 Double Acting; Single Acting, Spring Return

    Dimensions: ø8 Double Acting; Single Acting, Spring Return

    Dimensions: ø10 Double Acting; Single Acting, Spring Return

    ∗ Use caution especially when multiple cylinders are used in pararell such as stacking because the body width dimensions have plus tolerances. Contact SMC for a product with body width dimensions having different tolerances.
