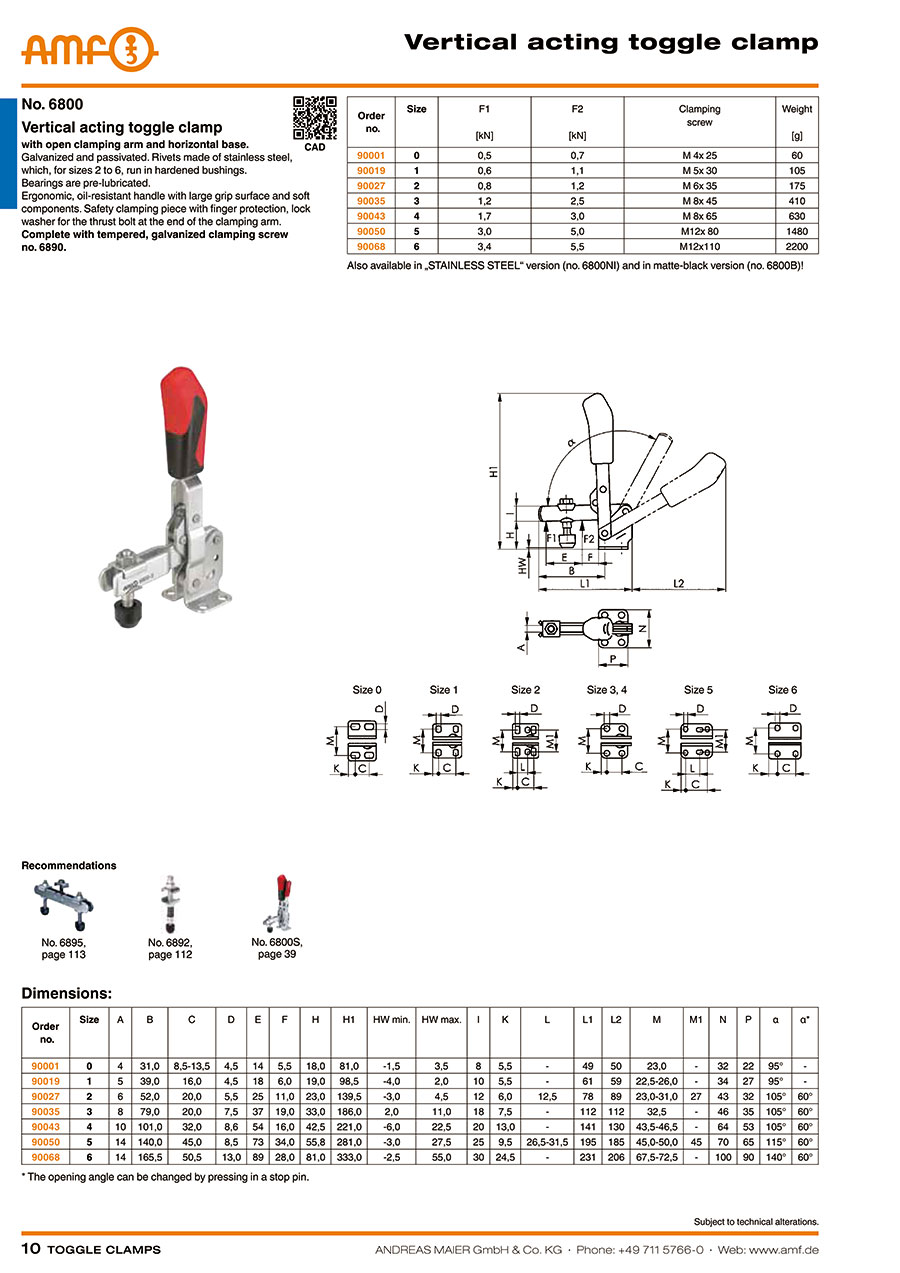

6800 Vertical acting toggle clamp

No. 6800 Vertical Acting Toggle Clamp

Product Information

With open clamping arm and horizontal base.
Galvanized and passivated. Rivets made of stainless steel, which, for sizes 2 to 6, run in hardened bushings.
Bearings are pre-lubricated.
Ergonomic, oil-resistant handle with large grip surface and soft components.
Safety clamping piece with finger protection, lock washer for the thrust bolt at the end of the clamping arm.
Complete with tempered, galvanized clamping screw no. 6890.

Drawing

Dimensions

Order no.	Size	A	B	C	D	E	F	H	H1	HW min.	HW max.	I	K	L	L1	L2	M	M1	N	P	α	α*
90001	0	4	31.0	8.5-13.5	4.5	14	5.5	18.0	81.0	-1.5	3.5	8	5.5	-	49	50	23.0	-	32	22	95°	-
90019	1	5	39.0	16.0	4.5	18	6.0	19.0	98.5	-4.0	2.0	10	5.5	-	61	59	22.5-26.0	-	34	27	95°	-
90027	2	6	52.0	20.0	5.5	25	11.0	23.0	139.5	-3.0	4.5	12	6.0	12.5	78	89	23.0-31.0	27	43	32	105°	60°
90035	3	8	79.0	20.0	7.5	37	19.0	33.0	186.0	2.0	11.0	18	7.5	-	112	112	32.5	-	46	35	105°	60°
90043	4	10	101.0	32.0	8.6	54	16.0	42.5	221.0	-6.0	22.5	20	13.0	-	141	130	43.5-46.5	-	64	53	105°	60°
90050	5	14	140.0	45.0	8.5	73	34.0	55.8	281.0	-3.0	27.5	25	9.5	26.5-31.5	195	185	45.0-50.0	45	70	65	115°	60°
90068	6	14	165.5	50.5	13.0	89	28.0	81.0	333.0	-2.5	55.0	30	24.5	-	231	206	67.5-72.5	-	100	90	140°	60°

* The opening angle can be changed by pressing in a stop pin.

Technical Information

Order no.	Size	F1 [kN]	F2 [kN]	Clamping screw	Weight [g]
90001	0	0.5	0.7	M4 x 25	60
90019	1	0.6	1.1	M5 x 30	105
90027	2	0.8	1.2	M6 x 35	175
90035	3	1.2	2.5	M8 x 45	410
90043	4	1.7	3.0	M8 x 65	630
90050	5	3.0	5.0	M12 x 80	1480
90068	6	3.4	5.5	M12 x110	2200

Also available in „STAINLESS STEEL“ version (no. 6800NI) and in matte-black version (no. 6800B)!

Recommendations


      No. 6895                           No. 6892                 No. 6800S
