Swivel clamp connector joints, two-part clamp pieces
- Promotional pricing ends 31/12/2024
- Volume Discount

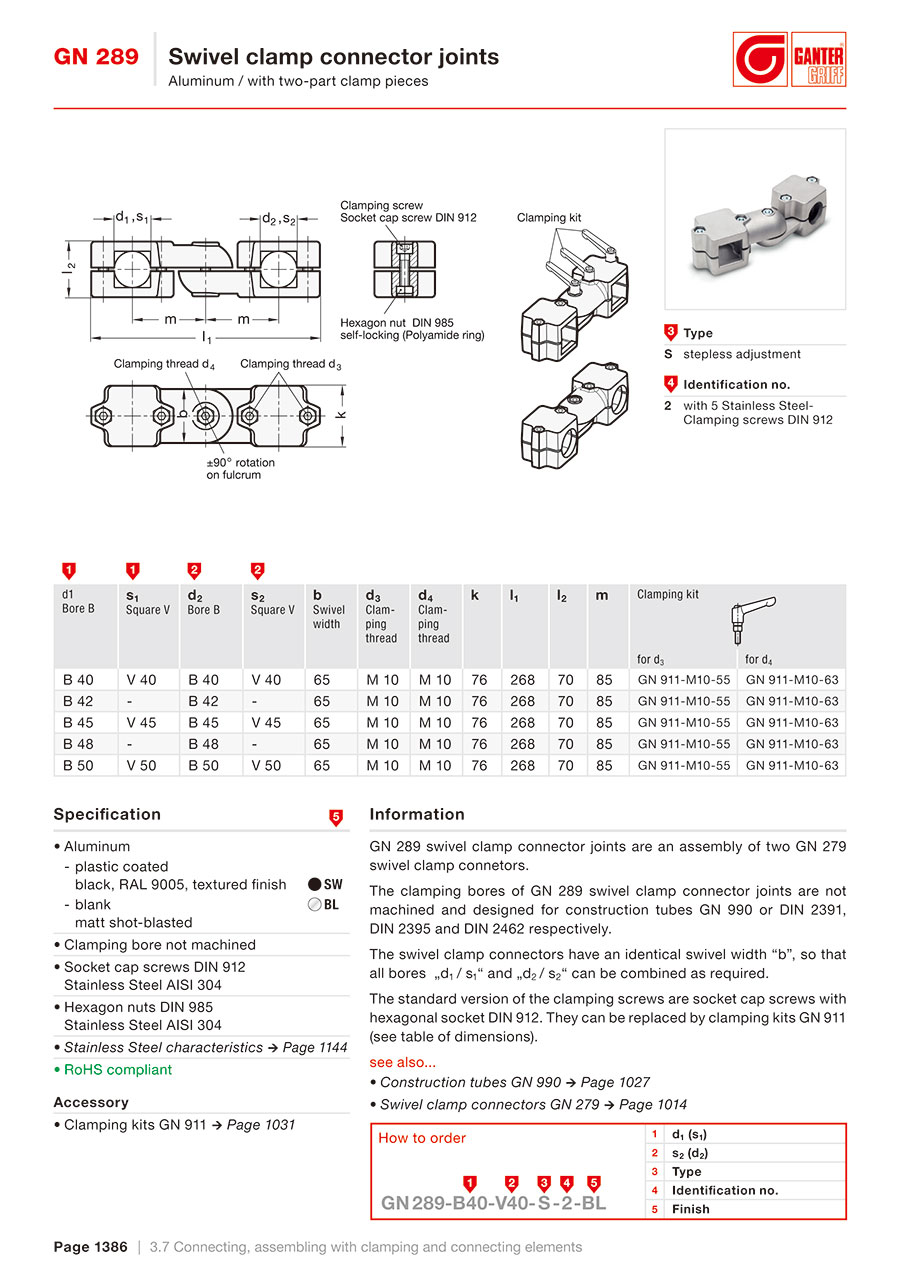

The clamping bores of GN 289 swivel clamp connector joints are not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462 respectively.
The swivel clamp connectors have an identical swivel width “b”, so that all bores „d1/s1" und „d2/s2“ can be combined as required.
The standard version of the clamping screws are socket cap screws with hexagonal socket DIN 912. They can be replaced by clamping kits GN 911 (see table of dimensions).
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Bore d1 (mm) | Bore d2 (mm) | Finish | |
|---|---|---|---|---|---|---|---|
108.96 € | 1 | Available | 7 Days | 40 | 40 | BL | |
111.90 € | 1 | Available | 7 Days | 40 | 40 | SW | |
110.00 € | 1 | Available | 7 Days | 40 | 40 | BL | |
111.90 € | 1 | Available | 7 Days | 40 | 40 | SW | |
112.00 € | 1 | Available | 7 Days | 42 | 42 | BL | |
112.40 € | 1 | Available | 7 Days | 42 | 42 | SW | |
111.50 € | 1 | Available | 7 Days | 45 | 45 | BL | |
109.36 € | 1 | Available | 7 Days | 45 | 45 | SW | |
110.00 € | 1 | Available | 7 Days | 45 | 45 | BL | |
109.36 € | 1 | Available | 7 Days | 45 | 45 | SW | |
111.00 € | 1 | Available | 7 Days | 48 | 48 | BL | |
112.40 € | 1 | Available | 7 Days | 48 | 48 | SW | |
111.50 € | 1 | Available | 7 Days | 50 | 50 | BL | |
111.36 € | 1 | Available | 7 Days | 50 | 50 | SW | |
111.46 € | 1 | Available | 7 Days | 50 | 50 | BL | |
111.36 € | 1 | Available | 7 Days | 50 | 50 | SW | |
111.90 € | 1 | Available | 7 Days | 40 | 40 | SW | |
111.46 € 78.02 € | 1 | Available |
Same day
Stock | 40 | 40 | BL | |
112.40 € | 1 | Available | 7 Days | 40 | 40 | SW | |
108.96 € | 1 | Available | 7 Days | 45 | 45 | BL | |
109.36 € | 1 | Available | 7 Days | 45 | 45 | SW | |
112.00 € | 1 | Available | 7 Days | 50 | 50 | BL | |
111.36 € | 1 | Available | 7 Days | 50 | 50 | SW |
Loading...
Basic information
| Type | Flexible (Rotation) | Post Shape | 丸-角支柱用 | Material | Aluminum |
|---|---|---|---|---|---|
| Combined-Post Dia. | Equal Dia. | Type | S, stepless adjustment | Identification No. | 2, with 5 Stainless Steel-clamping screws DIN 912 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
