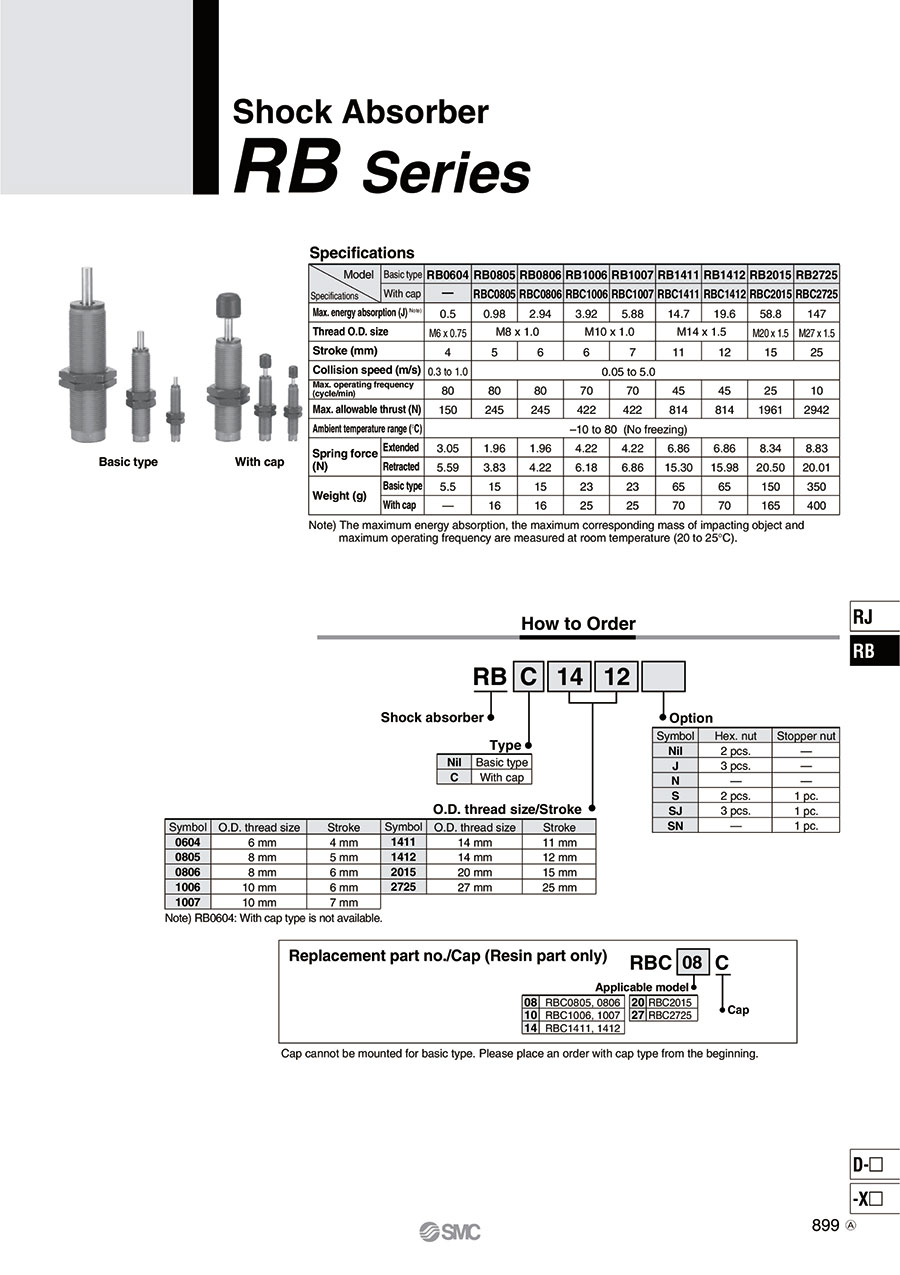

Shock Absorber RB Series Specifications

Shock Absorber RB Series (Basic Type) external appearance

Shock Absorber RB Series (With Cap) external appearance

Specifications	Model
	Basic Type	RB0604	RB0805	RB0806	RB1006	RB1007	RB1411	RB1412	RB2015	RB2725
	With Cap	-	RBC0805	RBC0806	RBC1006	RBC1007	RBC1411	RBC1412	RBC2015	RBC2725
Max. Energy Absorption (J)^*		0.5	0.98	2.94	3.92	5.88	14.7	19.6	58.8	147
Thread O.D. Size		M6 × 0.75	M8 × 1.0		M10 × 1.0		M14 × 1.5		M20 × 1.5	M27 × 1.5
Stroke (mm)		4	5	6	6	7	11	12	15	25
Collision Speed (m/s)		0.3 to 1.0	0.05 to 5.0
Max. Operating Frequency (cycle/min)		80	80	80	70	70	45	45	25	10
Max. Allowable Thrust (N)		150	245	245	422	422	814	814	1,961	2,942
Ambient Temperature Range (°C)		-10 to +80 (provided that it does not freeze)
Spring Force (N)	Extended	3.05	1.96	1.96	4.22	4.22	6.86	6.86	8.34	8.83
Spring Force (N)	Compressed	5.59	3.83	4.22	6.18	6.86	15.30	15.98	20.50	20.01
Weight (g)	Basic Type	5.5	15	15	23	23	65	65	150	350
Weight (g)	With Cap	-	16	16	25	25	70	70	165	400

*Max. absorbed energy, max. equivalent mass and max. operating frequency are the values at room temperature (20 to 25°C).

Structural Diagram / Component Parts

RB0604 structural diagram

Number	Part Name	Material	Treatment
1	Outer tube	Free-cutting steel	Nitriding
2	Piston	Copper alloy	-
3	Spring guide	Stainless steel	-
4	Piston rod	Carbon steel	Nitriding
5	Stopper	Stainless steel	-
6	Bearing	Copper alloy	-
7	Return spring	Piano wire	Zinc trivalent chromated
8	Rod seal	NBR	-
9	Accumulator	NBR	Foam rubber
10	Steel ball	Bearing steel	-
11	Hex socket head cap screw	Special steel	Nickel plated
12	Hex nut	Carbon steel	Nickel plated

RB□0805 to RB□2725 structural diagram

Number	Part Name	Material	Treatment
1	Outer tube	Rolled steel	Gray coated
2	Inner tube	Special steel	Heat treated
3	Piston rod	Special steel	Electroless nickel plated
4	Piston	Special steel	Heat treated
5	Bearing	Special bearing steel	-
6	Spring guide	Carbon steel	Zinc chromated
7	Lock ring	Copper	-
8	Return spring	Piano wire	Zinc chromated
9	Seal holder	Copper alloy	-
10	Stopper	Carbon steel	Zinc chromated
11	Steel ball	Bearing steel	-
12	Set screw	Special steel	-
13	Accumulator	NBR	Foam rubber
14	Rod seal	NBR	-
15	Scraper	NBR	-
16	Gasket	NBR	-
17	Gasket	NBR	RB(C)2015/2725 only

Dimensional Outline Drawing

(Units: mm)

RB0604 dimensional drawing

Hex nut (2 pcs. as standard) dimensional drawing

Basic Type: RB0805/RB0806/RB1006/RB1007 dimensional drawing

With cap: RBC0805/RBC0806/RBC1006/RBC1007 dimensional drawing

*Dimensions other than those listed below are the same as the Basic Type.

(Units: mm)

Model		Basic Type Dimensions										*With Cap			Hex Nut Dimensions
Basic Type	With Cap	D	E₁	E₂	F	H	a	L	LL	MM	S	E₃	LL	Z	B	C	h
RB0805	RBC0805	2.8	6.8	6.6	2.4	5	1.4	33.4	45.8	M8 × 1.0	40.8	6.8	54.3	8.5	12	13.9	4
RB0806	RBC0806	2.8	6.8	6.6	2.4	6	1.4	33.4	46.8	M8 × 1.0	40.8	6.8	55.3	8.5	12	13.9	4
RB1006	RBC1006	3	8.8	8.6	2.7	6	1.4	39	52.7	M10 × 1.0	46.7	8.7	62.7	10	14	16.2	4
RB1007	RBC1007	3	8.8	8.6	2.7	7	1.4	39	53.7	M10 × 1.0	46.7	8.7	63.7	10	14	16.2	4

Basic Type: RB1411/RB1412/RB2015/RB2725 dimensional drawing

With cap: RBC1411/RBC1412/RBC2015/RBC2725 dimensional drawing

*Dimensions other than those listed below are the same as the Basic Type.

(Units: mm)

Model		Basic Type Dimensions										*With Cap			Hex Nut Dimensions
Basic Type	With Cap	D	E₁	E₂	F	H	K	L	LL	MM	S	E₃	LL	Z	B	C	h
RB1411	RBC1411	5	12.2	12	3.5	11	12	58.8	78.3	M14 × 1.5	67.3	12	91.8	13.5	19	21.9	6
RB1412	RBC1412	5	12.2	12	3.5	12	12	58.8	79.3	M14 × 1.5	67.3	12	92.8	13.5	19	21.9	6
RB2015	RBC2015	6	18.2	18	4	15	18	62.2	88.2	M20 × 1.5	73.2	18	105.2	17	27	31.2	6
RB2725	RBC2725	8	25.2	25	5	25	25	86	124	M27 × 1.5	99	25	147	23	36	41.6	6

*Please see catalog for information other than the above.
*Image is of a representative model.
