AS***1FE, Speed Controller, One-touch Fitting, Residual Pressure Exhaust

Condições de filtragem

Main Body Shape
Elbow
Elbow
Universal
Control Direction
- Meter-In
- Meter-Out
Connection Dia.
- 1/2
- 1/4
- 1/8
- 3/8
Option
- With Seal
- With seal
Applicable Tube O.D. mm(mm)
- 4
- 6
- 8
- 10
- 12
Body Size
Made-to-order specifications
Type
CAD
- 2D
Dias de envio estimados
- Tudo
- Dentro de 4 dias úteis
- Dentro de 11 dias úteis
- Dentro de 18 dias úteis
- Dentro de 19 dias úteis
- Dentro de 23 dias úteis
- Dentro de 24 dias úteis
- Dentro de 29 dias úteis
- Dentro de 45 dias úteis

SMC

AS***1FE, Speed Controller, One-touch Fitting, Residual Pressure Exhaust

Catálogo

Cuidado

For specifications and details, please refer to the catalog.
Product images may be representative images. Refer to the catalog for details.

Número da peça:

Indefinido. 59 candidatos encontrados.

Lista de números de peça
Informações detalhadas
Catálogo

Lista de números de peça

Número de itens

Número da peça

AS2201FE-01-04SK

AS2201FE-01-04SK-X12

AS2201FE-01-06SK

AS2201FE-01-06SK-X214

AS2201FE-01-08SK

AS2201FE-01-08SK-X214

Main Body Shape

Control Direction

Operating Temperature Range

(℃)

Operating Pressure Range

(MPa)

Max. Flow

(l/min)

Connection Dia.

Option

Applicable Tube O.D. mm

(mm)

Body Size

Made-to-order specifications

Quantidade mínima de encomenda

[Elbow] Elbow	Meter-Out	-5～60	0.1～1.0	180	1/8	With seal	4	1/8, 1/4 standards	None	1 unidades
[Elbow] Elbow	Meter-Out	-5～60	0.1～1.0	180	1/8	With seal	4	1/8, 1/4 standards	Lubricant: Vaseline	1 unidades
[Elbow] Elbow	Meter-Out	-	-	-	1/8	With Seal	6	1/8, 1/4 Standard	None	1 unidades
[Elbow] Elbow	Meter-Out	-5～60	0.1～1.0	230	1/8	With seal	6	1/8, 1/4 standards	Throttle valve (no check valve)	1 unidades
[Elbow] Elbow	Meter-Out	-5～60	0.1～1.0	230	1/8	With seal	8	1/8, 1/4 standards	None	1 unidades
[Elbow] Elbow	Meter-Out	-5～60	0.1～1.0	230	1/8	With seal	8	1/8, 1/4 standards	Throttle valve (no check valve)	1 unidades
[Elbow] Elbow	Meter-Out	-5～60	0.1～1.0	230	1/8	With seal	10	1/8, 1/4 standards	None	1 unidades
[Elbow] Elbow	Meter-Out	-5～60	0.1～1.0	260	1/4	With seal	4	1/8, 1/4 standards	None	1 unidades
[Elbow] Elbow	Meter-Out	-	-	-	1/4	With Seal	6	1/8, 1/4 Standard	None	1 unidades
[Elbow] Elbow	Meter-Out	-	-	-	1/4	With Seal	8	1/8, 1/4 Standard	None	1 unidades
[Elbow] Elbow	Meter-Out	-5～60	0.1～1.0	460	1/4	With seal	10	1/8, 1/4 standards	None	1 unidades
[Elbow] Elbow	Meter-In	-5～60	0.1～1.0	180	1/8	With seal	4	1/8, 1/4 standards	None	1 unidades
[Elbow] Elbow	Meter-In	-5～60	0.1～1.0	230	1/8	With seal	6	1/8, 1/4 standards	None	1 unidades
[Elbow] Elbow	Meter-In	-5～60	0.1～1.0	230	1/8	With seal	6	1/8, 1/4 standards	Lubricant: Vaseline	1 unidades
[Elbow] Elbow	Meter-In	-5～60	0.1～1.0	230	1/8	With seal	8	1/8, 1/4 standards	None	1 unidades
[Elbow] Elbow	Meter-In	-5～60	0.1～1.0	230	1/8	With seal	10	1/8, 1/4 standards	None	1 unidades
[Elbow] Elbow	Meter-In	-5～60	0.1～1.0	260	1/4	With seal	4	1/8, 1/4 standards	None	1 unidades
[Elbow] Elbow	Meter-In	-5～60	0.1～1.0	390	1/4	With seal	6	1/8, 1/4 standards	None	1 unidades
[Elbow] Elbow	Meter-In	-5～60	0.1～1.0	460	1/4	With seal	8	1/8, 1/4 standards	None	1 unidades
[Elbow] Elbow	Meter-In	-5～60	0.1～1.0	460	1/4	With seal	10	1/8, 1/4 standards	None	1 unidades
Universal	Meter-Out	-5～60	0.1～1.0	180	1/8	With seal	4	1/8, 1/4 standards	None	1 unidades
Universal	Meter-Out	-5～60	0.1～1.0	230	1/8	With seal	6	1/8, 1/4 standards	None	1 unidades
Universal	Meter-Out	-5～60	0.1～1.0	230	1/8	With seal	6	1/8, 1/4 standards	Grease-free (seal fluorine coating) + throttle valve (no check valve)	1 unidades
Universal	Meter-Out	-5～60	0.1～1.0	230	1/8	With seal	8	1/8, 1/4 standards	None	1 unidades
Universal	Meter-Out	-5～60	0.1～1.0	260	1/4	With seal	4	1/8, 1/4 standards	None	1 unidades
Universal	Meter-Out	-5～60	0.1～1.0	390	1/4	With seal	6	1/8, 1/4 standards	None	1 unidades
Universal	Meter-Out	-5～60	0.1～1.0	460	1/4	With seal	8	1/8, 1/4 standards	None	1 unidades
Universal	Meter-Out	-5～60	0.1～1.0	460	1/4	With seal	10	1/8, 1/4 standards	None	1 unidades
Universal	Meter-In	-5～60	0.1～1.0	180	1/8	With seal	4	1/8, 1/4 standards	None	1 unidades
Universal	Meter-In	-5～60	0.1～1.0	230	1/8	With seal	6	1/8, 1/4 standards	None	1 unidades
Universal	Meter-In	-5～60	0.1～1.0	230	1/8	With seal	8	1/8, 1/4 standards	None	1 unidades
Universal	Meter-In	-5～60	0.1～1.0	260	1/4	With seal	4	1/8, 1/4 standards	None	1 unidades
Universal	Meter-In	-5～60	0.1～1.0	390	1/4	With seal	6	1/8, 1/4 standards	None	1 unidades
Universal	Meter-In	-5～60	0.1～1.0	460	1/4	With seal	8	1/8, 1/4 standards	None	1 unidades
Universal	Meter-In	-5～60	0.1～1.0	460	1/4	With seal	10	1/8, 1/4 standards	None	1 unidades
[Elbow] Elbow	Meter-Out	-5～60	0.1～1.0	660	3/8	With seal	6	3/8 standard	None	1 unidades
[Elbow] Elbow	Meter-Out	-	-	-	3/8	With Seal	8	3/8 Standard	None	1 unidades
[Elbow] Elbow	Meter-Out	-5～60	0.1～1.0	920	3/8	With seal	10	3/8 standard	None	1 unidades
[Elbow] Elbow	Meter-Out	-5～60	0.1～1.0	920	3/8	With seal	12	3/8 standard	None	1 unidades
[Elbow] Elbow	Meter-In	-5～60	0.1～1.0	660	3/8	With seal	6	3/8 standard	None	1 unidades
[Elbow] Elbow	Meter-In	-5～60	0.1～1.0	790	3/8	With seal	8	3/8 standard	None	1 unidades
[Elbow] Elbow	Meter-In	-5～60	0.1～1.0	920	3/8	With seal	10	3/8 standard	None	1 unidades
[Elbow] Elbow	Meter-In	-5～60	0.1～1.0	920	3/8	With seal	12	3/8 standard	None	1 unidades
Universal	Meter-Out	-5～60	0.1～1.0	660	3/8	With seal	6	3/8 standard	None	1 unidades
Universal	Meter-Out	-5～60	0.1～1.0	790	3/8	With seal	8	3/8 standard	None	1 unidades
Universal	Meter-Out	-5～60	0.1～1.0	920	3/8	With seal	10	3/8 standard	None	1 unidades
Universal	Meter-Out	-5～60	0.1～1.0	920	3/8	With seal	12	3/8 standard	None	1 unidades
Universal	Meter-In	-5～60	0.1～1.0	660	3/8	With seal	6	3/8 standard	None	1 unidades
Universal	Meter-In	-5～60	0.1～1.0	790	3/8	With seal	8	3/8 standard	None	1 unidades
Universal	Meter-In	-5～60	0.1～1.0	920	3/8	With seal	10	3/8 standard	None	1 unidades
Universal	Meter-In	-5～60	0.1～1.0	920	3/8	With seal	12	3/8 standard	None	1 unidades
[Elbow] Elbow	Meter-Out	-5～60	0.1～1.0	1,580	1/2	With seal	10	1/2 standard	None	1 unidades
[Elbow] Elbow	Meter-Out	-5～60	0.1～1.0	1,710	1/2	With seal	12	1/2 standard	None	1 unidades
[Elbow] Elbow	Meter-In	-5～60	0.1～1.0	1,580	1/2	With seal	10	1/2 standard	None	1 unidades
[Elbow] Elbow	Meter-In	-5～60	0.1～1.0	1,710	1/2	With seal	12	1/2 standard	None	1 unidades
Universal	Meter-Out	-5～60	0.1～1.0	1,580	1/2	With seal	10	1/2 standard	None	1 unidades
Universal	Meter-Out	-5～60	0.1～1.0	1,710	1/2	With seal	12	1/2 standard	None	1 unidades
Universal	Meter-In	-5～60	0.1～1.0	1,580	1/2	With seal	10	1/2 standard	None	1 unidades
Universal	Meter-In	-5～60	0.1～1.0	1,710	1/2	With seal	12	1/2 standard	None	1 unidades

Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)	Data de envio standard

16.47 € ( 19.60 € )	19 dias úteis
17.73 € ( 21.10 € )	24 dias úteis
16.47 € ( 19.60 € )	4 dias úteis
17.02 € ( 20.25 € )	23 dias úteis
16.47 € ( 19.60 € )	4 dias úteis
18.48 € ( 21.99 € )	23 dias úteis
16.47 € ( 19.60 € )	29 dias úteis
18.02 € ( 21.44 € )	29 dias úteis
18.02 € ( 21.44 € )	4 dias úteis
18.02 € ( 21.44 € )	4 dias úteis
18.02 € ( 21.44 € )	11 dias úteis
16.47 € ( 19.60 € )	29 dias úteis
16.47 € ( 19.60 € )	11 dias úteis
17.06 € ( 20.30 € )	23 dias úteis
16.47 € ( 19.60 € )	11 dias úteis
16.47 € ( 19.60 € )	29 dias úteis
18.02 € ( 21.44 € )	29 dias úteis
18.02 € ( 21.44 € )	11 dias úteis
18.02 € ( 21.44 € )	11 dias úteis
18.02 € ( 21.44 € )	11 dias úteis
16.47 € ( 19.60 € )	29 dias úteis
16.47 € ( 19.60 € )	11 dias úteis
505.94 € ( 602.07 € )	23 dias úteis
16.47 € ( 19.60 € )	19 dias úteis
18.02 € ( 21.44 € )	23 dias úteis
18.02 € ( 21.44 € )	11 dias úteis
18.02 € ( 21.44 € )	11 dias úteis
18.02 € ( 21.44 € )	11 dias úteis
16.47 € ( 19.60 € )	18 dias úteis
16.47 € ( 19.60 € )	11 dias úteis
16.47 € ( 19.60 € )	29 dias úteis
18.02 € ( 21.44 € )	23 dias úteis
18.02 € ( 21.44 € )	19 dias úteis
18.02 € ( 21.44 € )	29 dias úteis
18.02 € ( 21.44 € )	29 dias úteis
21.95 € ( 26.12 € )	11 dias úteis
21.95 € ( 26.12 € )	4 dias úteis
21.95 € ( 26.12 € )	4 dias úteis
23.35 € ( 27.79 € )	11 dias úteis
21.95 € ( 26.12 € )	29 dias úteis
21.95 € ( 26.12 € )	29 dias úteis
21.95 € ( 26.12 € )	11 dias úteis
23.35 € ( 27.79 € )	29 dias úteis
21.95 € ( 26.12 € )	29 dias úteis
21.95 € ( 26.12 € )	11 dias úteis
21.95 € ( 26.12 € )	45 dias úteis
23.35 € ( 27.79 € )	29 dias úteis
21.95 € ( 26.12 € )	29 dias úteis
21.95 € ( 26.12 € )	29 dias úteis
21.95 € ( 26.12 € )	29 dias úteis
23.35 € ( 27.79 € )	23 dias úteis
28.81 € ( 34.28 € )	11 dias úteis
28.81 € ( 34.28 € )	11 dias úteis
28.81 € ( 34.28 € )	29 dias úteis
28.81 € ( 34.28 € )	29 dias úteis
28.81 € ( 34.28 € )	11 dias úteis
28.81 € ( 34.28 € )	29 dias úteis
28.81 € ( 34.28 € )	18 dias úteis
28.81 € ( 34.28 € )	29 dias úteis

Informações detalhadas

Informações básicas

Informações básicas

[Features]
· A speed controller integrated with a residual pressure release valve.
· Releases residual pressure with the push of a button.
· The pressure-release button is in clearly visible red.

Cuidado

For specifications and details, please refer to the catalog.
Product images may be representative images. Refer to the catalog for details.

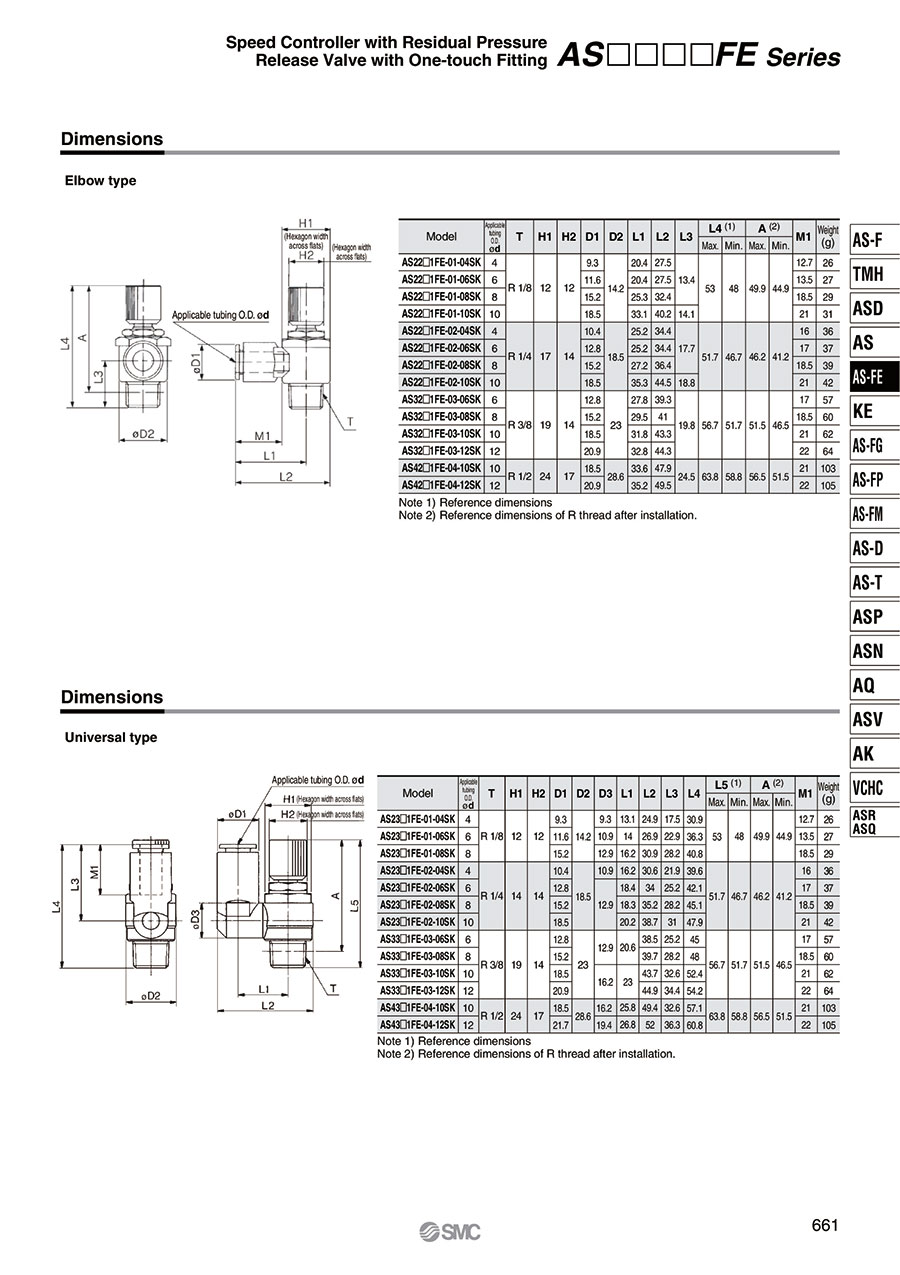

Catálogo
