SMC

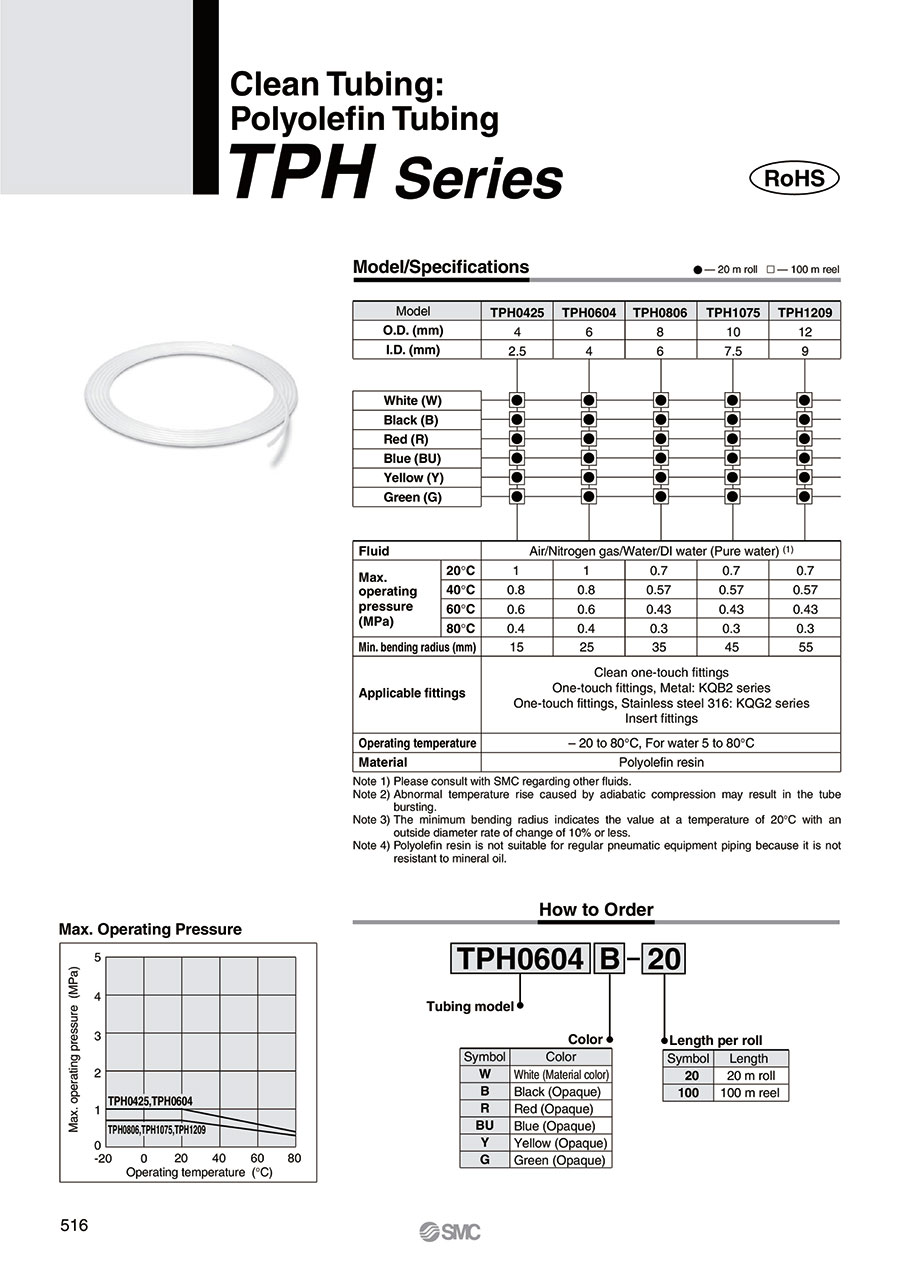

TPH, Clean Tube (Polyolefin Tube)

Catálogo

Cuidado

■ SMC Product Line
Webpages for products currently without individual pages on this site will be released on an ad-hoc basis.
Product images may be representative images only. Please refer to the manufacturer's catalog for shape details.

Número da peça:

Indefinido. 59 candidatos encontrados.

Lista de números de peça
Informações detalhadas
Catálogo

Lista de números de peça

Número de itens

Número da peça

Outer Diameter D

(Ø)

O.D. [Distinction]

Inner Diameter d

(Ø)

I.D. [Distinction]

Color

Minimum Bending Radius

(mm)

Operating Pressure Range (when using air)

(MPa)

Length

(m)

Quantidade mínima de encomenda

4	Up to 4	2.5	Up to 3	[White] White (material color)	15	～1.0	20	1 unidades
4	Up to 4	2.5	Up to 3	[White] White (material color)	15	～1.0	100	1 unidades
4	Up to 4	2.5	Up to 3	[Blue] Clear Blue	15	～1.0	20	1 unidades
4	Up to 4	2.5	Up to 3	[Blue] Clear Blue	15	～1.0	100	1 unidades
4	Up to 4	2.5	Up to 3	[Green] Clear Green	15	～1.0	20	1 unidades
4	Up to 4	2.5	Up to 3	[Green] Clear Green	15	～1.0	100	1 unidades
4	Up to 4	2.5	Up to 3	[Red] Clear Red	15	～1.0	20	1 unidades
4	Up to 4	2.5	Up to 3	[Red] Clear Red	15	～1.0	100	1 unidades
4	Up to 4	2.5	Up to 3	[Transparent (including non-white colors)] Semi-Transparent	15	～1.0	20	1 unidades
4	Up to 4	2.5	Up to 3	[Transparent (including non-white colors)] Semi-Transparent	15	～1.0	100	1 unidades
4	Up to 4	2.5	Up to 3	[Yellow] Clear Yellow	15	～1.0	20	1 unidades
4	Up to 4	2.5	Up to 3	[Yellow] Clear Yellow	15	～1.0	100	1 unidades
6	Up to 6	4	Up to 4	[White] White (material color)	25	～1.0	20	1 unidades
6	Up to 6	4	Up to 4	[White] White (material color)	25	～1.0	100	1 unidades
6	Up to 6	4	Up to 4	[Blue] Clear Blue	25	～1.0	20	1 unidades
6	Up to 6	4	Up to 4	[Blue] Clear Blue	25	～1.0	100	1 unidades
6	Up to 6	4	Up to 4	[Green] Clear Green	25	～1.0	20	1 unidades
6	Up to 6	4	Up to 4	[Green] Clear Green	25	～1.0	100	1 unidades
6	Up to 6	4	Up to 4	[Red] Clear Red	25	～1.0	20	1 unidades
6	Up to 6	4	Up to 4	[Red] Clear Red	25	～1.0	100	1 unidades
6	Up to 6	4	Up to 4	[Transparent (including non-white colors)] Semi-Transparent	25	～1.0	20	1 unidades
6	Up to 6	4	Up to 4	[Transparent (including non-white colors)] Semi-Transparent	25	～1.0	100	1 unidades
6	Up to 6	4	Up to 4	[Yellow] Clear Yellow	25	～1.0	20	1 unidades
6	Up to 6	4	Up to 4	[Yellow] Clear Yellow	25	～1.0	100	1 unidades
8	Up to 8	6	Up to 6	[White] White (material color)	35	～0.7	20	1 unidades
8	Up to 8	6	Up to 6	[White] White (material color)	35	～0.7	100	1 unidades
8	Up to 8	6	Up to 6	[Blue] Clear Blue	35	～0.7	20	1 unidades
8	Up to 8	6	Up to 6	[Blue] Clear Blue	35	～0.7	100	1 unidades
8	Up to 8	6	Up to 6	[Green] Clear Green	35	～0.7	20	1 unidades
8	Up to 8	6	Up to 6	[Green] Clear Green	35	～0.7	100	1 unidades
8	Up to 8	6	Up to 6	[Red] Clear Red	35	～0.7	20	1 unidades
8	Up to 8	6	Up to 6	[Red] Clear Red	35	～0.7	100	1 unidades
8	Up to 8	6	Up to 6	[Transparent (including non-white colors)] Semi-Transparent	35	～0.7	20	1 unidades
8	Up to 8	6	Up to 6	[Transparent (including non-white colors)] Semi-Transparent	35	～0.7	100	1 unidades
8	Up to 8	6	Up to 6	[Yellow] Clear Yellow	35	～0.7	100	1 unidades
10	Up to 10	7.5	Up to 8	[White] White (material color)	45	～0.7	20	1 unidades
10	Up to 10	7.5	Up to 8	[White] White (material color)	45	～0.7	100	1 unidades
10	Up to 10	7.5	Up to 8	[Blue] Clear Blue	45	～0.7	20	1 unidades
10	Up to 10	7.5	Up to 8	[Blue] Clear Blue	45	～0.7	100	1 unidades
10	Up to 10	7.5	Up to 8	[Green] Clear Green	45	～0.7	20	1 unidades
10	Up to 10	7.5	Up to 8	[Green] Clear Green	45	～0.7	100	1 unidades
10	Up to 10	7.5	Up to 8	[Red] Clear Red	45	～0.7	20	1 unidades
10	Up to 10	7.5	Up to 8	[Red] Clear Red	45	～0.7	100	1 unidades
10	Up to 10	7.5	Up to 8	[Transparent (including non-white colors)] Semi-Transparent	45	～0.7	20	1 unidades
10	Up to 10	7.5	Up to 8	[Transparent (including non-white colors)] Semi-Transparent	45	～0.7	100	1 unidades
10	Up to 10	7.5	Up to 8	[Yellow] Clear Yellow	45	～0.7	20	1 unidades
10	Up to 10	7.5	Up to 8	[Yellow] Clear Yellow	45	～0.7	100	1 unidades
12	Up to 15	9	Up to 9	[White] White (material color)	55	～0.7	20	1 unidades
12	Up to 15	9	Up to 9	[White] White (material color)	55	～0.7	100	1 unidades
12	Up to 15	9	Up to 9	[Blue] Clear Blue	55	～0.7	20	1 unidades
12	Up to 15	9	Up to 9	[Blue] Clear Blue	55	～0.7	100	1 unidades
12	Up to 15	9	Up to 9	[Green] Clear Green	55	～0.7	20	1 unidades
12	Up to 15	9	Up to 9	[Green] Clear Green	55	～0.7	100	1 unidades
12	Up to 15	9	Up to 9	[Red] Clear Red	55	～0.7	20	1 unidades
12	Up to 15	9	Up to 9	[Red] Clear Red	55	～0.7	100	1 unidades
12	Up to 15	9	Up to 9	[Transparent (including non-white colors)] Semi-Transparent	55	～0.7	20	1 unidades
12	Up to 15	9	Up to 9	[Transparent (including non-white colors)] Semi-Transparent	55	～0.7	100	1 unidades
12	Up to 15	9	Up to 9	[Yellow] Clear Yellow	55	～0.7	20	1 unidades
12	Up to 15	9	Up to 9	[Yellow] Clear Yellow	55	～0.7	100	1 unidades

Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)	Data de envio standard

37.19 € ( 44.26 € )	4 dias úteis
176.82 € ( 210.42 € )	39 dias úteis
37.19 € ( 44.26 € )	4 dias úteis
176.82 € ( 210.42 € )	11 dias úteis
37.19 € ( 44.26 € )	11 dias úteis
176.82 € ( 210.42 € )	11 dias úteis
37.19 € ( 44.26 € )	11 dias úteis
176.82 € ( 210.42 € )	11 dias úteis
37.19 € ( 44.26 € )	4 dias úteis
176.82 € ( 210.42 € )	39 dias úteis
37.19 € ( 44.26 € )	39 dias úteis
176.82 € ( 210.42 € )	39 dias úteis
39.56 € ( 47.08 € )	4 dias úteis
188.47 € ( 224.28 € )	39 dias úteis
39.56 € ( 47.08 € )	4 dias úteis
188.47 € ( 224.28 € )	11 dias úteis
39.56 € ( 47.08 € )	4 dias úteis
188.47 € ( 224.28 € )	39 dias úteis
39.56 € ( 47.08 € )	39 dias úteis
188.47 € ( 224.28 € )	39 dias úteis
39.56 € ( 47.08 € )	4 dias úteis
188.47 € ( 224.28 € )	4 dias úteis
39.56 € ( 47.08 € )	11 dias úteis
188.47 € ( 224.28 € )	39 dias úteis
44.26 € ( 52.67 € )	39 dias úteis
209.40 € ( 249.19 € )	39 dias úteis
44.26 € ( 52.67 € )	4 dias úteis
209.40 € ( 249.19 € )	11 dias úteis
44.26 € ( 52.67 € )	4 dias úteis
209.40 € ( 249.19 € )	39 dias úteis
44.26 € ( 52.67 € )	11 dias úteis
209.40 € ( 249.19 € )	11 dias úteis
44.26 € ( 52.67 € )	4 dias úteis
209.40 € ( 249.19 € )	39 dias úteis
209.40 € ( 249.19 € )	39 dias úteis
55.82 € ( 66.43 € )	11 dias úteis
265.26 € ( 315.66 € )	11 dias úteis
55.82 € ( 66.43 € )	4 dias úteis
265.26 € ( 315.66 € )	39 dias úteis
55.82 € ( 66.43 € )	11 dias úteis
265.26 € ( 315.66 € )	39 dias úteis
55.82 € ( 66.43 € )	39 dias úteis
265.26 € ( 315.66 € )	39 dias úteis
55.82 € ( 66.43 € )	4 dias úteis
265.26 € ( 315.66 € )	11 dias úteis
55.82 € ( 66.43 € )	11 dias úteis
265.26 € ( 315.66 € )	11 dias úteis
72.15 € ( 85.86 € )	39 dias úteis
341.97 € ( 406.94 € )	11 dias úteis
72.15 € ( 85.86 € )	4 dias úteis
341.97 € ( 406.94 € )	39 dias úteis
72.15 € ( 85.86 € )	11 dias úteis
341.97 € ( 406.94 € )	58 dias úteis
72.15 € ( 85.86 € )	11 dias úteis
341.97 € ( 406.94 € )	56 dias úteis
72.15 € ( 85.86 € )	4 dias úteis
341.97 € ( 406.94 € )	39 dias úteis
72.15 € ( 85.86 € )	11 dias úteis
341.97 € ( 406.94 € )	56 dias úteis

Informações detalhadas

Informações básicas

Informações básicas

A RoHS-compliant clean tube.
[Features]
· Applicable fittings: clean one-touch fitting, metal one-touch fitting KQB2 Series.
· Applicable fittings: SUS316 one-touch fittings KQG2 series, insert fittings.
· Colors: white (material color) / black (opaque) / red (opaque) / blue (opaque) / yellow (opaque) / green (opaque).
· Length: 20 m roll / 100 m roll.
