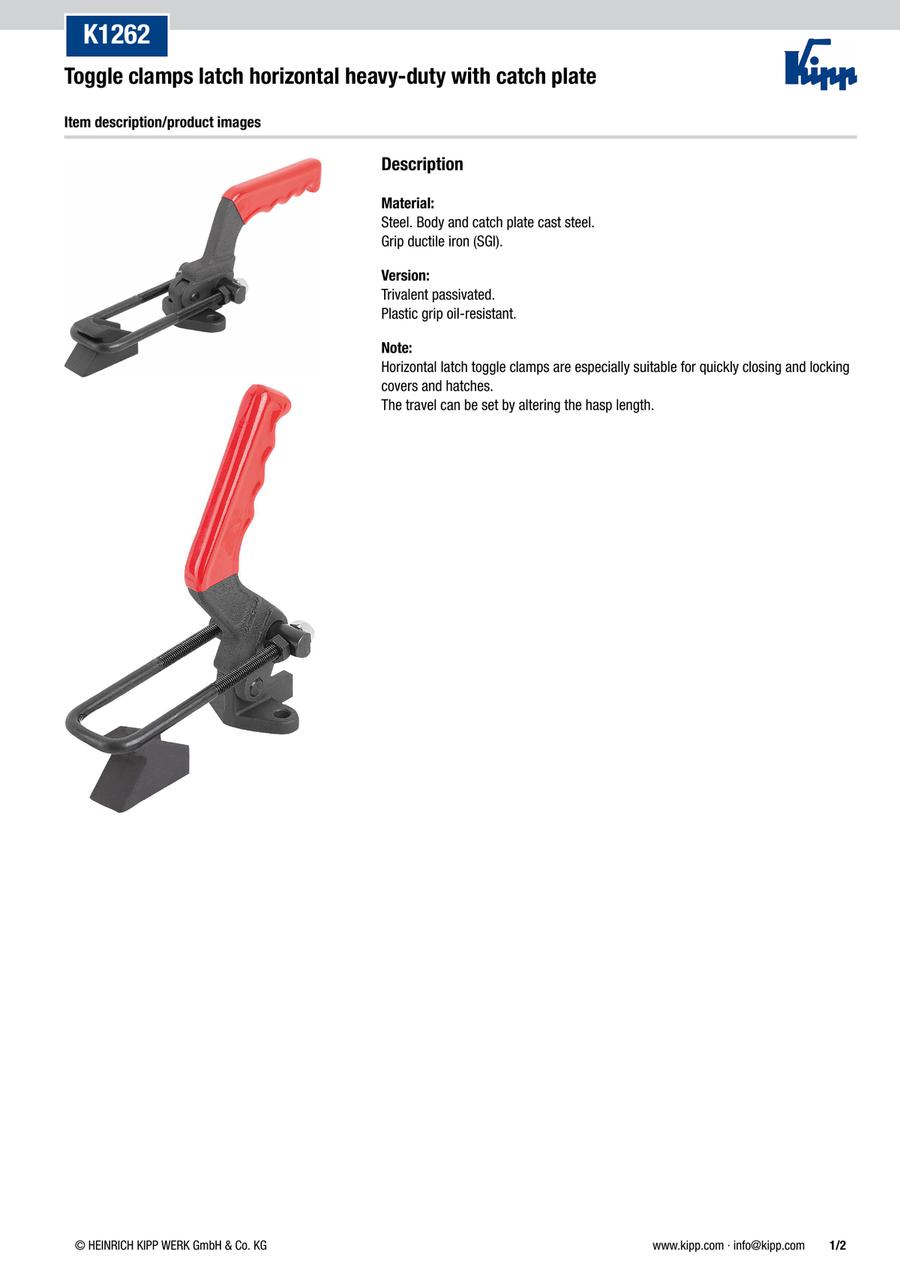

Toggle clamps latch horizontal heavy-duty with catch plate (K1262)

Toggle clamps latch horizontal heavy-duty with catch plate (K1262)

KIPP

KIPP

[Specifications]
・Body Material: Steel
・Surface finish body: galvanised and passivated
・Component material: Plastic
・Surface finish component: oil-resistant
・Component colour: red

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
K1262.020000
K1262.040000
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Opening angle of handle F1=Tractive force
(N) 		F2=Retaining force
(N) 		Travel path L max.
(mm) 		Travel path L min.
(mm) 		Travel path L1 max.
(mm) 		Travel path L1 min.
(mm) 		Clamping travel L2
(mm) 		A
(mm) 		A1
(mm) 		A2
(mm) 		A3
(mm) 		A4
(mm) 		B
(mm) 		B1
(mm) 		B3
(mm) 		B5
(mm) 		D
(mm) 		D1
(mm) 		H
(mm) 		T
(mm)

136.07 €

1 4 Days 138°165002000032027088386059.5243718657450281010.410114.327

178.73 €

1 4 Days 120°1900040000395335112527082364422788456341212.41213133.5

Loading...

  1. 1

Basic information

Hand force FH(N) 600 Body Material Steel Surface finish body galvanised and passivated
Component material Plastic Surface finish component oil-resistant Component colour red
Version 2 with catch plate

Configure

Clear all

2Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Opening angle of handle

    • 120°
    • 138°

    Clear

  • F1=Tractive force(N)

    • 16500
    • 19000

    Clear

  • F2=Retaining force(N)

    • 20000
    • 40000

    Clear

  • Travel path L max.(mm)

    • 320
    • 395

    Clear

  • Travel path L min.(mm)

    • 270
    • 335

    Clear

  • Travel path L1 max.(mm)

    • 88
    • 112

    Clear

  • Travel path L1 min.(mm)

    • 38
    • 52

    Clear

  • Clamping travel L2(mm)

    • 60
    • 70

    Clear

  • A(mm)

    • 59.5
    • 82

    Clear

  • A1(mm)

    • 24
    • 36

    Clear

  • A2(mm)

    • 37
    • 44

    Clear

  • A3(mm)

    • 18
    • 22

    Clear

  • A4(mm)

    • 65
    • 78

    Clear

  • B(mm)

    • 74
    • 84

    Clear

  • B1(mm)

    • 50
    • 56

    Clear

  • B3(mm)

    • 28
    • 34

    Clear

  • B5(mm)

    • 10
    • 12

    Clear

  • D(mm)

    • 10.4
    • 12.4

    Clear

  • D1(mm)

    • 10
    • 12

    Clear

  • H(mm)

    • 114.3
    • 131

    Clear

  • T(mm)

    • 27
    • 33.5

    Clear

  • Type

    Clear

  • Filter by CAD data type

    • 2D
    • 3D

    Clear

Filter by standard shipping days

    • All
    • 4 Days or Less
