Condições de filtragem

Overall Length(m)
- 100
- 500
- 1000
Finished outer diameter(mm)
- 4.8
- 5.1
- 5.3
- 5.5
- 5.6
- 6.1
- 6.2
- 6.3
- 6.4
- 6.6
- 6.7
- 6.8
- 6.9
- 7.5
- 7.6
- 7.7
- 7.8
- 8
- 8.1
- 8.3
- 9
- 9.1
- 9.2
- 9.7
- 9.9
- 10
- 10.1
- 10.7
- 10.8
- 10.9
- 11
- 11.2
- 11.9
- 12.1
- 12.2
- 12.3
- 12.6
- 12.9
- 13
- 13.4
- 13.5
- 14.3
- 14.7
- 14.8
- 15.1
- 15.4
- 16.2
- 16.4
- 16.7
- 17.6
- 17.9
- 18.2
- 18.3
- 18.6
- 19.4
- 20.2
- 20.6
- 21.6
- 22.8
- 25.1
- 26
- 27.9
- 28.8
- 32.3
- 34.2
- 38.3
Core insulation
- Other
- thermoplastic Compound
Sheath material
- Other
- thermoplastic Compound
Perm. External cable temperature during installation / handling
- -15°C to +70°C
Perm. External cable temperature after mounting without vibration
- -40°C to +70°C
Conductor Nominal cross-section
- 0.5
- 0.75
- 1
- 1.5
- 2.5
- 4
- 6
- 10
- 16
- 25
- 35
- 50
Conductor class
- Kl.5 = stranded
- stranded
Number of cores
- 2
- 3
- 4
- 5
- 7
- 8
- 10
- 12
- 16
- 18
- 25
- 30
- 34
- 41
Stranding
- Core
Core identification
- Numbers
- continous white number print
Rated voltage U(V)
- 300
- 500
protective conductor
- no
- yes
Dias de envio estimados
- Tudo
- Dentro de 5 dias úteis

HELUKABEL

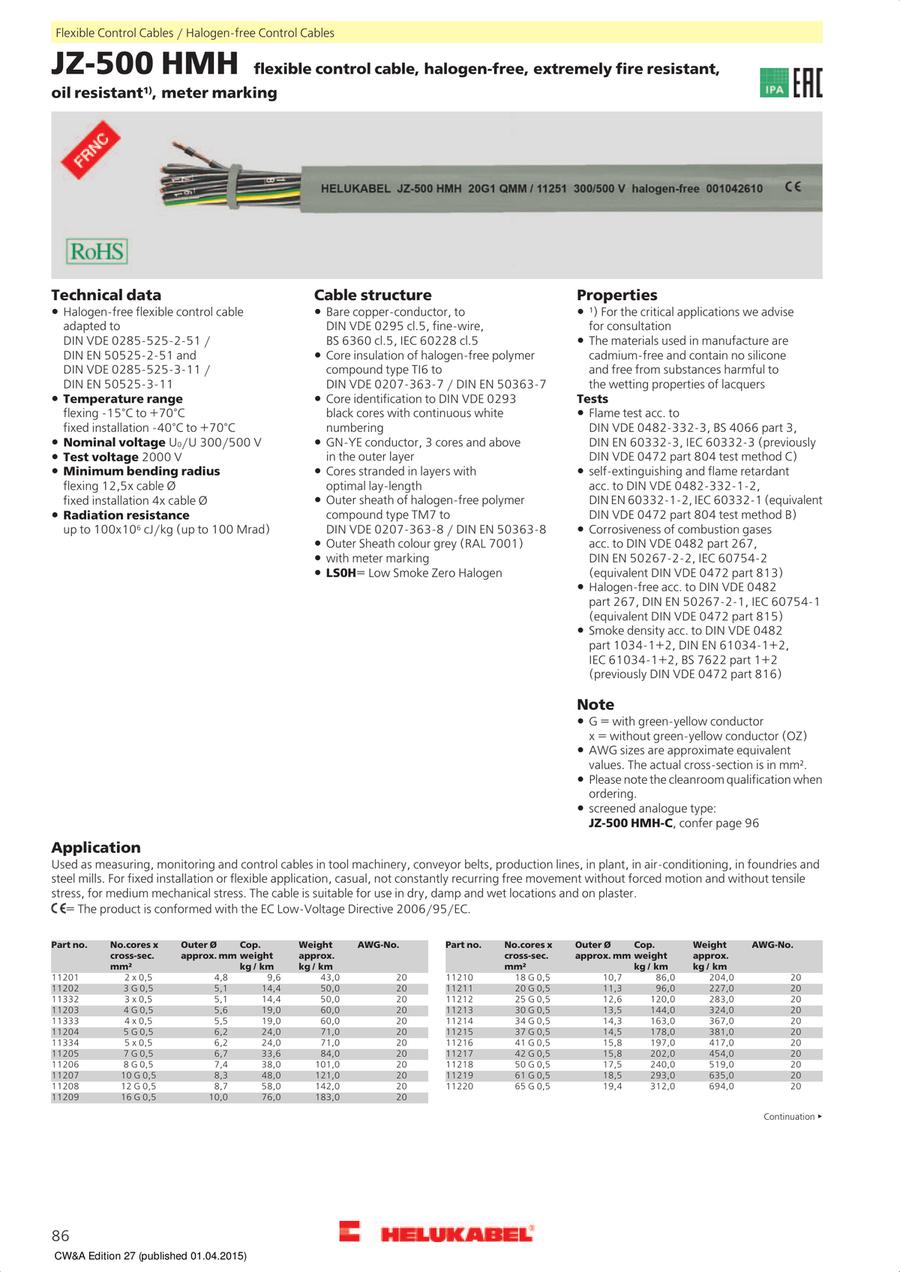

Control Cable halogen free JZ 500 HMH

Catálogo

Número da peça:

Indefinido. 152 candidatos encontrados.

Lista de números de peça
Catálogo

Lista de números de peça

Número de itens

Seguinte

Número da peça

Relacionado

Overall Length

(m)

Finished outer diameter

(mm)

Core insulation

Sheath material

Perm. External cable temperature during installation / handling

Perm. External cable temperature after mounting without vibration

Conductor Nominal cross-section

Conductor class

Number of cores

Stranding

Core identification

Rated voltage U

(V)

protective conductor

RoHS?

Quantidade mínima de encomenda

Data sheet	1000	4.8	Other	Other	-15°C to +70°C	-40°C to +70°C	0.5	Kl.5 = stranded	2	-	Numbers	500	no	10	1 unidades
Data sheet	500	4.8	Other	Other	-15°C to +70°C	-40°C to +70°C	0.5	Kl.5 = stranded	2	-	Numbers	500	no	10	1 unidades
Data sheet	1000	5.1	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	3	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	5.1	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	3	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	5.5	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	4	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	5.5	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	4	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	6.2	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	5	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	6.2	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	5	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	6.7	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	7	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	6.7	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	7	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	8	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	10	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	8	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	10	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	9	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	12	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	9	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	12	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	10.7	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	18	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	12.6	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	25	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	12.6	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	25	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	13.5	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	30	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	13.5	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	30	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	5.3	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	2	Core	continous white number print	500	no	10	1 unidades
Data sheet	500	5.3	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	2	Core	continous white number print	500	no	10	1 unidades
Data sheet	100	5.6	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	3	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	5.6	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	3	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	5.6	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	3	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	6.3	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	4	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	6.3	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	4	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	6.9	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	5	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	6.9	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	5	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	7.7	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	7	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	7.7	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	7	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	9.1	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	10	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	9.1	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	10	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	10	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	12	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	10	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	12	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	12.2	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	18	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	12.2	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	18	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	14.3	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	25	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	14.3	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	25	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	16.7	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	34	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	16.7	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	34	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	5.6	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	2	Core	continous white number print	500	no	10	1 unidades
Data sheet	500	5.6	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	2	Core	continous white number print	500	no	10	1 unidades
Data sheet	100	6.1	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	3	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	6.1	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	3	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	6.1	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	3	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	6.6	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	4	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	6.6	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	4	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	7.5	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	5	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	7.5	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	5	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	8.1	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	7	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	8.1	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	7	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	9	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	8	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	9	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	8	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	10.8	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	12	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	10.8	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	12	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	12.3	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	16	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	12.3	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	16	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	12.9	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	18	Core	continous white number print	500	yes	10	1 unidades
Data sheet	500	12.9	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	18	Core	continous white number print	500	yes	10	1 unidades
Data sheet	1000	15.4	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	25	Core	continous white number print	500	yes	10	1 unidades

Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)	Data de envio standard

641.94 € ( 763.91 € )	5 dias úteis
320.98 € ( 381.97 € )	5 dias úteis
865.59 € ( 1,030.05 € )	5 dias úteis
432.79 € ( 515.02 € )	5 dias úteis
1,049.27 € ( 1,248.63 € )	5 dias úteis
524.63 € ( 624.31 € )	5 dias úteis
1,300.05 € ( 1,547.06 € )	5 dias úteis
650.03 € ( 773.54 € )	5 dias úteis
1,689.17 € ( 2,010.11 € )	5 dias úteis
844.57 € ( 1,005.04 € )	5 dias úteis
2,589.52 € ( 3,081.53 € )	5 dias úteis
1,294.75 € ( 1,540.75 € )	5 dias úteis
2,857.59 € ( 3,400.53 € )	5 dias úteis
1,428.80 € ( 1,700.27 € )	5 dias úteis
4,835.65 € ( 5,754.42 € )	5 dias úteis
7,433.36 € ( 8,845.70 € )	5 dias úteis
3,716.68 € ( 4,422.85 € )	5 dias úteis
9,692.70 € ( 11,534.31 € )	5 dias úteis
4,846.34 € ( 5,767.14 € )	5 dias úteis
804.80 € ( 957.71 € )	5 dias úteis
402.39 € ( 478.84 € )	5 dias úteis
108.53 € ( 129.15 € )	5 dias úteis
1,085.34 € ( 1,291.55 € )	5 dias úteis
542.67 € ( 645.78 € )	5 dias úteis
1,435.40 € ( 1,708.13 € )	5 dias úteis
717.71 € ( 854.07 € )	5 dias úteis
1,680.80 € ( 2,000.15 € )	5 dias úteis
840.39 € ( 1,000.06 € )	5 dias úteis
2,219.74 € ( 2,641.49 € )	5 dias úteis
1,109.88 € ( 1,320.76 € )	5 dias úteis
3,488.75 € ( 4,151.61 € )	5 dias úteis
1,744.37 € ( 2,075.80 € )	5 dias úteis
3,923.96 € ( 4,669.51 € )	5 dias úteis
1,961.98 € ( 2,334.76 € )	5 dias úteis
6,145.01 € ( 7,312.56 € )	5 dias úteis
3,072.51 € ( 3,656.29 € )	5 dias úteis
8,569.26 € ( 10,197.42 € )	5 dias úteis
4,284.63 € ( 5,098.71 € )	5 dias úteis
12,015.80 € ( 14,298.80 € )	5 dias úteis
6,007.89 € ( 7,149.39 € )	5 dias úteis
1,012.64 € ( 1,205.04 € )	5 dias úteis
506.32 € ( 602.52 € )	5 dias úteis
130.06 € ( 154.77 € )	5 dias úteis
1,300.61 € ( 1,547.73 € )	5 dias úteis
650.31 € ( 773.87 € )	5 dias úteis
1,683.03 € ( 2,002.81 € )	5 dias úteis
841.51 € ( 1,001.40 € )	5 dias úteis
2,077.52 € ( 2,472.25 € )	5 dias úteis
1,038.76 € ( 1,236.12 € )	5 dias úteis
2,803.32 € ( 3,335.95 € )	5 dias úteis
1,401.66 € ( 1,667.98 € )	5 dias úteis
4,258.04 € ( 5,067.07 € )	5 dias úteis
2,129.01 € ( 2,533.52 € )	5 dias úteis
4,829.71 € ( 5,747.35 € )	5 dias úteis
2,414.85 € ( 2,873.67 € )	5 dias úteis
7,164.72 € ( 8,526.02 € )	5 dias úteis
3,582.35 € ( 4,263.00 € )	5 dias úteis
7,681.92 € ( 9,141.48 € )	5 dias úteis
3,840.95 € ( 4,570.73 € )	5 dias úteis
10,543.42 € ( 12,546.67 € )	5 dias úteis
