Control Cable screened UL CSA UV resistant halogen free MEGAFLEX 500 C

Condições de filtragem

Overall Length(m)
- 500
- 1000
Finished outer diameter(mm)
- 5.7
- 6
- 6.1
- 6.4
- 6.5
- 6.7
- 6.9
- 7
- 7.3
- 7.4
- 7.8
- 7.9
- 8.3
- 8.6
- 9
- 9.1
- 9.6
- 9.8
- 10.2
- 10.4
- 10.6
- 10.9
- 11.2
- 11.5
- 12.5
- 12.9
- 13.2
- 13.8
- 15
- 15.7
- 15.8
- 15.9
- 16.6
- 18
- 20.8
- 21.6
- 26.2
Core insulation
- Other
- thermoplastic Compound
Sheath material
- Other
- thermoplastic Compound
Perm. External cable temperature during installation / handling
- -30°C to +80°C
Perm. External cable temperature after mounting without vibration
- -40°C to +80°C
Conductor Nominal cross-section
- 0.5
- 0.75
- 1
- 1.5
- 2.5
- 4
- 6
- 10
- 16
- 25
Conductor class
- Kl.5 = stranded
- stranded
Number of cores
- 2
- 3
- 4
- 5
- 7
- 12
- 18
- 25
Stranding
- Core
Core identification
- Numbers
- continous white number print
protective conductor
- no
- yes
Screen over stranding
- Weave
Dias de envio estimados
- Tudo
- Dentro de 5 dias úteis

HELUKABEL

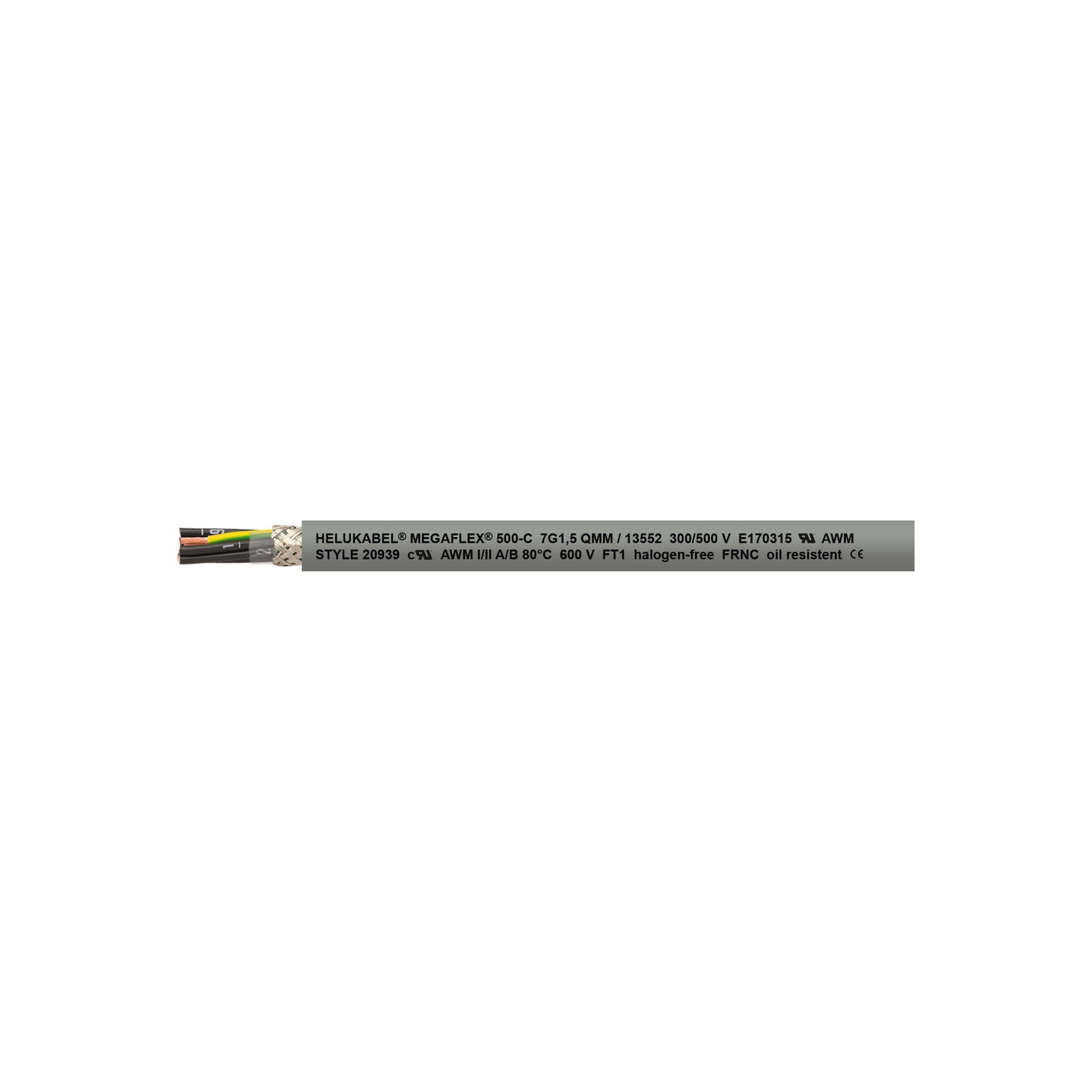

Control Cable screened UL CSA UV resistant halogen free MEGAFLEX 500 C

Passe o rato sobre a imagem para a aumentar

Catálogo

Número da peça:

Indefinido. 76 candidatos encontrados.

Lista de números de peça
Catálogo

Lista de números de peça

Número de itens

Seguinte

Número da peça

Relacionado

Overall Length

(m)

Finished outer diameter

(mm)

Core insulation

Sheath material

Perm. External cable temperature during installation / handling

Perm. External cable temperature after mounting without vibration

Conductor Nominal cross-section

Conductor class

Number of cores

Stranding

Core identification

protective conductor

Screen over stranding

RoHS?

Quantidade mínima de encomenda

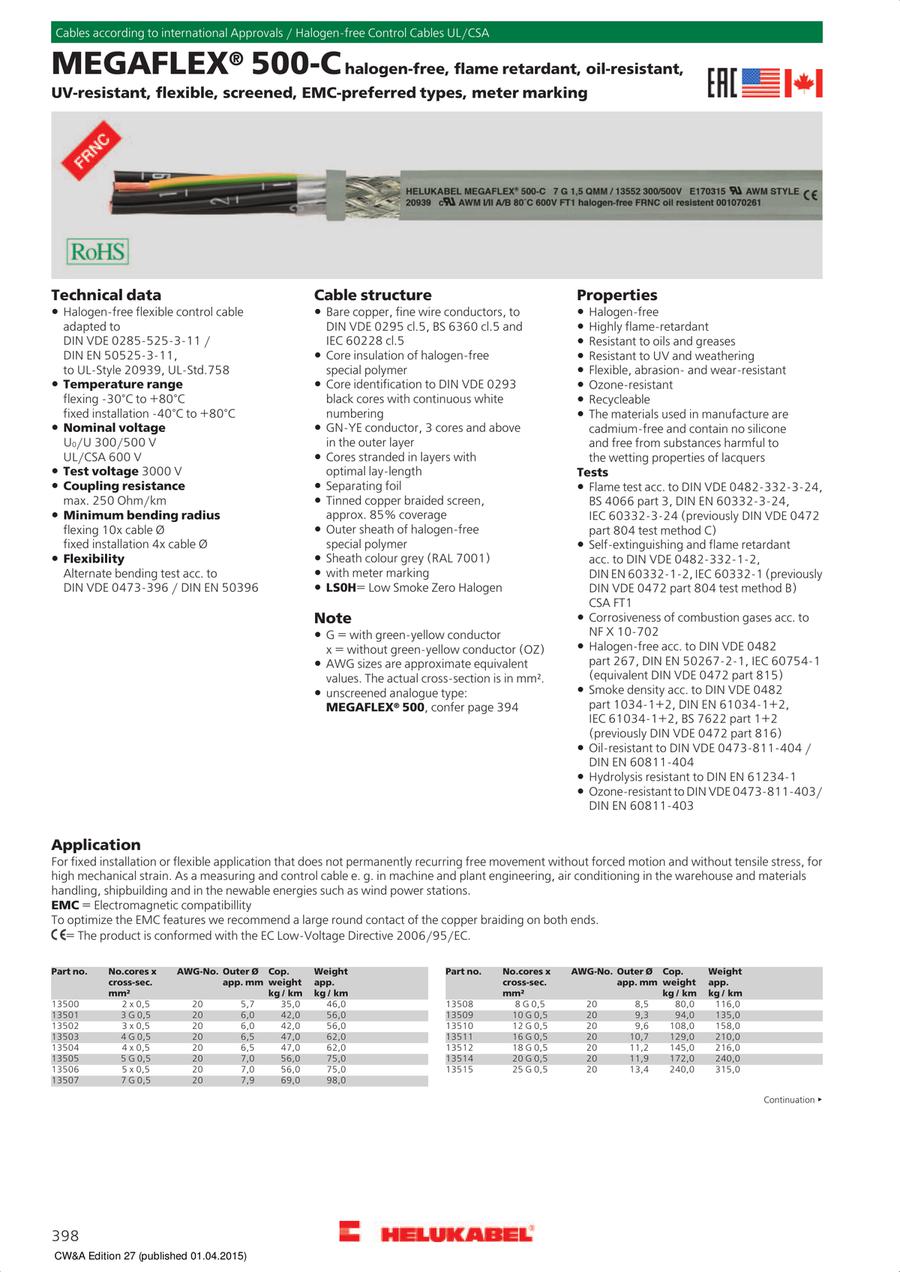

Data sheet	1000	5.7	Other	Other	-30°C to +80°C	-40°C to +80°C	0.5	Kl.5 = stranded	2	-	Numbers	no	Weave	10	1 unidades
Data sheet	500	5.7	Other	Other	-30°C to +80°C	-40°C to +80°C	0.5	Kl.5 = stranded	2	-	Numbers	no	Weave	10	1 unidades
Data sheet	1000	6	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	3	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	6	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	3	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	6.5	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	4	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	6.5	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	4	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	7	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	5	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	7.9	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	7	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	9.6	thermoplastic Compound	thermoplastic Compound	-	-	0.5	stranded	12	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	6.1	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	2	Core	continous white number print	no	-	10	1 unidades
Data sheet	500	6.1	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	2	Core	continous white number print	no	-	10	1 unidades
Data sheet	1000	6.4	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	3	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	6.4	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	3	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	6.9	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	4	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	6.9	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	4	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	6.9	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	4	Core	continous white number print	no	-	10	1 unidades
Data sheet	1000	7.4	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	5	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	7.4	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	5	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	7.4	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	5	Core	continous white number print	no	-	10	1 unidades
Data sheet	500	7.4	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	5	Core	continous white number print	no	-	10	1 unidades
Data sheet	1000	8.6	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	7	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	8.6	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	7	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	8.6	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	7	Core	continous white number print	no	-	10	1 unidades
Data sheet	500	8.6	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	7	Core	continous white number print	no	-	10	1 unidades
Data sheet	1000	10.4	thermoplastic Compound	thermoplastic Compound	-	-	0.75	stranded	12	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	6.4	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	2	Core	continous white number print	no	-	10	1 unidades
Data sheet	500	6.4	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	2	Core	continous white number print	no	-	10	1 unidades
Data sheet	1000	6.7	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	3	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	6.7	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	3	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	7.3	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	4	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	7.3	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	4	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	7.3	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	4	Core	continous white number print	no	-	10	1 unidades
Data sheet	1000	7.8	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	5	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	7.8	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	5	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	9.1	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	7	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	9.1	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	7	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	11.2	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	12	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	11.2	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	12	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	13.2	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	18	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	13.2	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	18	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	15.8	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	25	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	15.8	thermoplastic Compound	thermoplastic Compound	-	-	1	stranded	25	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	7	thermoplastic Compound	thermoplastic Compound	-	-	1.5	stranded	2	Core	continous white number print	no	-	10	1 unidades
Data sheet	500	7	thermoplastic Compound	thermoplastic Compound	-	-	1.5	stranded	2	Core	continous white number print	no	-	10	1 unidades
Data sheet	1000	7.3	thermoplastic Compound	thermoplastic Compound	-	-	1.5	stranded	3	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	7.3	thermoplastic Compound	thermoplastic Compound	-	-	1.5	stranded	3	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	7.9	thermoplastic Compound	thermoplastic Compound	-	-	1.5	stranded	4	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	7.9	thermoplastic Compound	thermoplastic Compound	-	-	1.5	stranded	4	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	8.6	thermoplastic Compound	thermoplastic Compound	-	-	1.5	stranded	5	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	8.6	thermoplastic Compound	thermoplastic Compound	-	-	1.5	stranded	5	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	10.2	thermoplastic Compound	thermoplastic Compound	-	-	1.5	stranded	7	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	10.2	thermoplastic Compound	thermoplastic Compound	-	-	1.5	stranded	7	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	12.5	thermoplastic Compound	thermoplastic Compound	-	-	1.5	stranded	12	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	12.5	thermoplastic Compound	thermoplastic Compound	-	-	1.5	stranded	12	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	15	thermoplastic Compound	thermoplastic Compound	-	-	1.5	stranded	18	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	18	thermoplastic Compound	thermoplastic Compound	-	-	1.5	stranded	25	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	8.3	thermoplastic Compound	thermoplastic Compound	-	-	2.5	stranded	2	Core	continous white number print	no	-	10	1 unidades
Data sheet	1000	9	thermoplastic Compound	thermoplastic Compound	-	-	2.5	stranded	3	Core	continous white number print	yes	-	10	1 unidades
Data sheet	500	9	thermoplastic Compound	thermoplastic Compound	-	-	2.5	stranded	3	Core	continous white number print	yes	-	10	1 unidades
Data sheet	1000	9.8	thermoplastic Compound	thermoplastic Compound	-	-	2.5	stranded	4	Core	continous white number print	yes	-	10	1 unidades

Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)	Data de envio standard

3,383.16 € ( 4,025.96 € )	5 dias úteis
1,691.59 € ( 2,012.99 € )	5 dias úteis
3,589.70 € ( 4,271.74 € )	5 dias úteis
1,794.84 € ( 2,135.86 € )	5 dias úteis
4,309.91 € ( 5,128.79 € )	5 dias úteis
2,154.95 € ( 2,564.39 € )	5 dias úteis
5,076.78 € ( 6,041.37 € )	5 dias úteis
6,136.27 € ( 7,302.16 € )	5 dias úteis
9,709.98 € ( 11,554.88 € )	5 dias úteis
3,373.12 € ( 4,014.01 € )	5 dias úteis
1,686.57 € ( 2,007.02 € )	5 dias úteis
3,393.76 € ( 4,038.57 € )	5 dias úteis
1,696.88 € ( 2,019.29 € )	5 dias úteis
4,374.98 € ( 5,206.23 € )	5 dias úteis
2,187.49 € ( 2,603.11 € )	5 dias úteis
5,661.83 € ( 6,737.58 € )	5 dias úteis
4,852.58 € ( 5,774.57 € )	5 dias úteis
2,426.28 € ( 2,887.27 € )	5 dias úteis
5,254.50 € ( 6,252.85 € )	5 dias úteis
2,627.26 € ( 3,126.44 € )	5 dias úteis
6,502.88 € ( 7,738.43 € )	5 dias úteis
3,251.43 € ( 3,869.20 € )	5 dias úteis
6,925.45 € ( 8,241.29 € )	5 dias úteis
3,462.73 € ( 4,120.65 € )	5 dias úteis
13,184.43 € ( 15,689.47 € )	5 dias úteis
3,564.79 € ( 4,242.10 € )	5 dias úteis
1,782.39 € ( 2,121.04 € )	5 dias úteis
3,953.33 € ( 4,704.46 € )	5 dias úteis
1,976.67 € ( 2,352.24 € )	5 dias úteis
4,787.69 € ( 5,697.35 € )	5 dias úteis
2,393.85 € ( 2,848.68 € )	5 dias úteis
4,787.69 € ( 5,697.35 € )	5 dias úteis
5,656.44 € ( 6,731.16 € )	5 dias úteis
2,828.21 € ( 3,365.57 € )	5 dias úteis
7,237.21 € ( 8,612.28 € )	5 dias úteis
3,618.61 € ( 4,306.15 € )	5 dias úteis
11,444.51 € ( 13,618.97 € )	5 dias úteis
5,722.25 € ( 6,809.48 € )	5 dias úteis
16,786.21 € ( 19,975.59 € )	5 dias úteis
8,393.11 € ( 9,987.80 € )	5 dias úteis
25,234.06 € ( 30,028.53 € )	5 dias úteis
12,617.02 € ( 15,014.25 € )	5 dias úteis
4,391.15 € ( 5,225.47 € )	5 dias úteis
2,195.57 € ( 2,612.73 € )	5 dias úteis
4,992.75 € ( 5,941.37 € )	5 dias úteis
2,496.38 € ( 2,970.69 € )	5 dias úteis
5,564.79 € ( 6,622.10 € )	5 dias úteis
2,782.39 € ( 3,311.04 € )	5 dias úteis
7,804.80 € ( 9,287.71 € )	5 dias úteis
3,902.40 € ( 4,643.86 € )	5 dias úteis
8,617.03 € ( 10,254.27 € )	5 dias úteis
4,308.52 € ( 5,127.14 € )	5 dias úteis
13,908.54 € ( 16,551.16 € )	5 dias úteis
6,954.27 € ( 8,275.58 € )	5 dias úteis
21,108.02 € ( 25,118.54 € )	5 dias úteis
29,253.02 € ( 34,811.09 € )	5 dias úteis
5,806.65 € ( 6,909.91 € )	5 dias úteis
7,956.13 € ( 9,467.79 € )	5 dias úteis
3,978.06 € ( 4,733.89 € )	5 dias úteis
8,818.74 € ( 10,494.30 € )	5 dias úteis
