Blade Receptacles Insulated / Blue, Red, Yellow / CuZn · Insulation Halogen-free PA polyamide

Condições de filtragem

Colour
Connector thickness(mm)
- 0.5
- 0.8
- 1.2
Connector width(mm)
- 2.8
- 4.8
- 6.3
- 9.5
Cross-section range
Cross section(mm²)
Cross section (max.)(mm²)
- 1
- 2.5
- 6
Insulation type
- Insulated
- Partially insulated
Insulation (material)
- Fully insulated
- Partially insulated
Manufacturer part #
- 180230
- 180232
- 180234
- 180235
- 180236
- 180238
- 180240
- 180241
- 180242
- 180243
- 180244
- 180245
- 180246
- 180247
- 180248
- 180249
- 180250
- 180252
- 180254
- 180256
- 180258
- 180260
- 180270
- 180272
- 180274
Min. cross section(mm²)
- 0.5
- 1.5
- 4
Size
Type (manufacturer type)
- 180230
- 180232
- 180234
- 180235
- 180236
- 180238
- 180240
- 180241
- 180242
- 180243
- 180244
- 180245
- 180246
- 180247
- 180248
- 180249
- 180250
- 180252
- 180254
- 180256
- 180258
- 180260
- 180270
- 180272
- 180274
Type (misc.)
Dias de envio estimados
- Tudo
- Dentro de 3 dias úteis
- Dentro de 13 dias úteis

CIMCO

Blade Receptacles Insulated / Blue, Red, Yellow / CuZn · Insulation Halogen-free PA polyamide

Catálogo

Número da peça:

Indefinido. 25 candidatos encontrados.

Lista de números de peça
Informações detalhadas
Catálogo

Lista de números de peça

Número de itens

Número da peça

180230
180232
180234
180235
180236
180238
180240
180241
180242
180243
180244
180245
180246
180247
180248
180249
180250
180252
180254
180256
180258
180260
180270
180272
180274

Colour

Connector thickness

(mm)

Connector width

(mm)

Cross-section range

Cross section

(mm²)

Cross section (max.)

(mm²)

Insulation type

Insulation (material)

Manufacturer part #

Min. cross section

(mm²)

Size

Type (manufacturer type)

Type (misc.)

Quantidade mínima de encomenda

Red	0.8	6.3	0.50 - 1 mm²	0.5 - 1	1	Partially insulated	Partially insulated	180230	0.5	6.3 x 0.8 mm	180230	6.3 x 0.8 mm	1 unidades
Blue	0.8	6.3	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Partially insulated	Partially insulated	180232	1.5	6.3 x 0.8 mm	180232	6.3 x 0.8 mm	1 unidades
Yellow	0.8	6.3	4 - 6 mm²	4 - 6	6	Partially insulated	Partially insulated	180234	4	6.3 x 0.8 mm	180234	6.3 x 0.8 mm	1 unidades
Yellow	1.2	9.5	4 - 6 mm²	4 - 6	6	Partially insulated	Partially insulated	180235	4	9.5 x 1.2 mm	180235	Design: 9.5 x 1.2 mm	1 unidades
Blue	0.5	2.8	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Partially insulated	Partially insulated	180236	1.5	2.8 x 0.5 mm	180236	2.8 x 0.5 mm	1 unidades
Blue	0.8	2.8	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Partially insulated	Partially insulated	180238	1.5	2.8 x 0.8 mm	180238	2.8 x 0.8 mm	1 unidades
Red	0.8	6.3	0.50 - 1 mm²	0.5 - 1	1	Insulated	Fully insulated	180240	0.5	6.3 x 0.8 mm	180240	6.3 x 0.8 mm	1 unidades
Red	0.5	2.8	0.50 - 1 mm²	0.5 - 1	1	Insulated	Fully insulated	180241	0.5	2.8 x 0.5 mm	180241	2.8 x 0.5 mm	1 unidades
Blue	0.8	6.3	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Insulated	Fully insulated	180242	1.5	6.3 x 0.8 mm	180242	6.3 x 0.8 mm	1 unidades
Red	0.8	2.8	0.50 - 1 mm²	0.5 - 1	1	Insulated	Fully insulated	180243	0.5	2.8 x 0.8 mm	180243	2.8 x 0.8 mm	1 unidades
Red	0.5	4.8	0.50 - 1 mm²	0.5 - 1	1	Insulated	Fully insulated	180244	0.5	4.8 x 0.5 mm	180244	4.8 x 0.5 mm	1 unidades
Red	0.8	4.8	0.50 - 1 mm²	0.5 - 1	1	Insulated	Fully insulated	180245	0.5	4.8 x 0.8 mm	180245	4.8 x 0.8 mm	1 unidades
Blue	0.5	2.8	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Insulated	Fully insulated	180246	1.5	2.8 x 0.5 mm	180246	2.8 x 0.5 mm	1 unidades
Blue	0.8	2.8	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Insulated	Fully insulated	180247	1.5	2.8 x 0.8 mm	180247	2.8 x 0.8 mm	1 unidades
Blue	0.5	4.8	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Insulated	Fully insulated	180248	1.5	4.8 x 0.5 mm	180248	4.8 x 0.5 mm	1 unidades
Blue	0.8	4.8	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Insulated	Fully insulated	180249	1.5	4.8 x 0.8 mm	180249	4.8 x 0.8 mm	1 unidades
Red	0.5	2.8	0.50 - 1 mm²	0.5 - 1	1	Partially insulated	Partially insulated	180250	0.5	2.8 x 0.5 mm	180250	2.8 x 0.5 mm	1 unidades
Red	0.8	2.8	0.50 - 1 mm²	0.5 - 1	1	Partially insulated	Partially insulated	180252	0.5	2.8 x 0.8 mm	180252	2.8 x 0.8 mm	1 unidades
Red	0.5	4.8	0.50 - 1 mm²	0.5 - 1	1	Partially insulated	Partially insulated	180254	0.5	4.8 x 0.5 mm	180254	4.8 x 0.5 mm	1 unidades
Red	0.8	4.8	0.50 - 1 mm²	0.5 - 1	1	Partially insulated	Partially insulated	180256	0.5	4.8 x 0.8 mm	180256	4.8 x 0.8 mm	1 unidades
Blue	0.5	4.8	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Partially insulated	Partially insulated	180258	1.5	4.8 x 0.5 mm	180258	4.8 x 0.5 mm	1 unidades
Blue	0.8	4.8	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Partially insulated	Partially insulated	180260	1.5	4.8 x 0.8 mm	180260	4.8 x 0.8 mm	1 unidades
Yellow	0.5	4.8	4 - 6 mm²	4 - 6	6	Insulated	Fully insulated	180270	4	4.8 x 0.5 mm	180270	4.8 x 0.5 mm	1 unidades
Yellow	0.8	4.8	4 - 6 mm²	4 - 6	6	Insulated	Fully insulated	180272	4	4.8 x 0.8 mm	180272	4.8 x 0.8 mm	1 unidades
Yellow	0.8	6.3	4 - 6 mm²	4 - 6	6	Insulated	Fully insulated	180274	4	6.3 x 0.8 mm	180274	6.3 x 0.8 mm	1 unidades

Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)	Data de envio standard

0.20 € ( 0.24 € )	3 dias úteis
0.20 € ( 0.24 € )	3 dias úteis
0.24 € ( 0.29 € )	3 dias úteis
0.32 € ( 0.38 € )	3 dias úteis
0.29 € ( 0.35 € )	3 dias úteis
0.33 € ( 0.39 € )	3 dias úteis
0.28 € ( 0.33 € )	3 dias úteis
0.43 € ( 0.51 € )	3 dias úteis
0.32 € ( 0.38 € )	3 dias úteis
0.41 € ( 0.49 € )	3 dias úteis
0.41 € ( 0.49 € )	3 dias úteis
0.41 € ( 0.49 € )	3 dias úteis
0.41 € ( 0.49 € )	3 dias úteis
0.41 € ( 0.49 € )	3 dias úteis
0.41 € ( 0.49 € )	3 dias úteis
0.41 € ( 0.49 € )	3 dias úteis
0.32 € ( 0.38 € )	3 dias úteis
0.32 € ( 0.38 € )	3 dias úteis
0.29 € ( 0.35 € )	13 dias úteis
0.29 € ( 0.35 € )	3 dias úteis
0.29 € ( 0.35 € )	3 dias úteis
0.31 € ( 0.37 € )	3 dias úteis
0.49 € ( 0.58 € )	3 dias úteis
0.49 € ( 0.58 € )	3 dias úteis
0.32 € ( 0.38 € )	3 dias úteis

Informações detalhadas

Informações básicas

Informações básicas

[Features]
・Material: CuZn (brass)
・Surface: galvanically tin-coated
・Insulated PA (polyamide, nylon), halogen-free
・Temperature resistance –60°C to +105°C
・600 V max.
・Colour: Blue, Red, Yellow

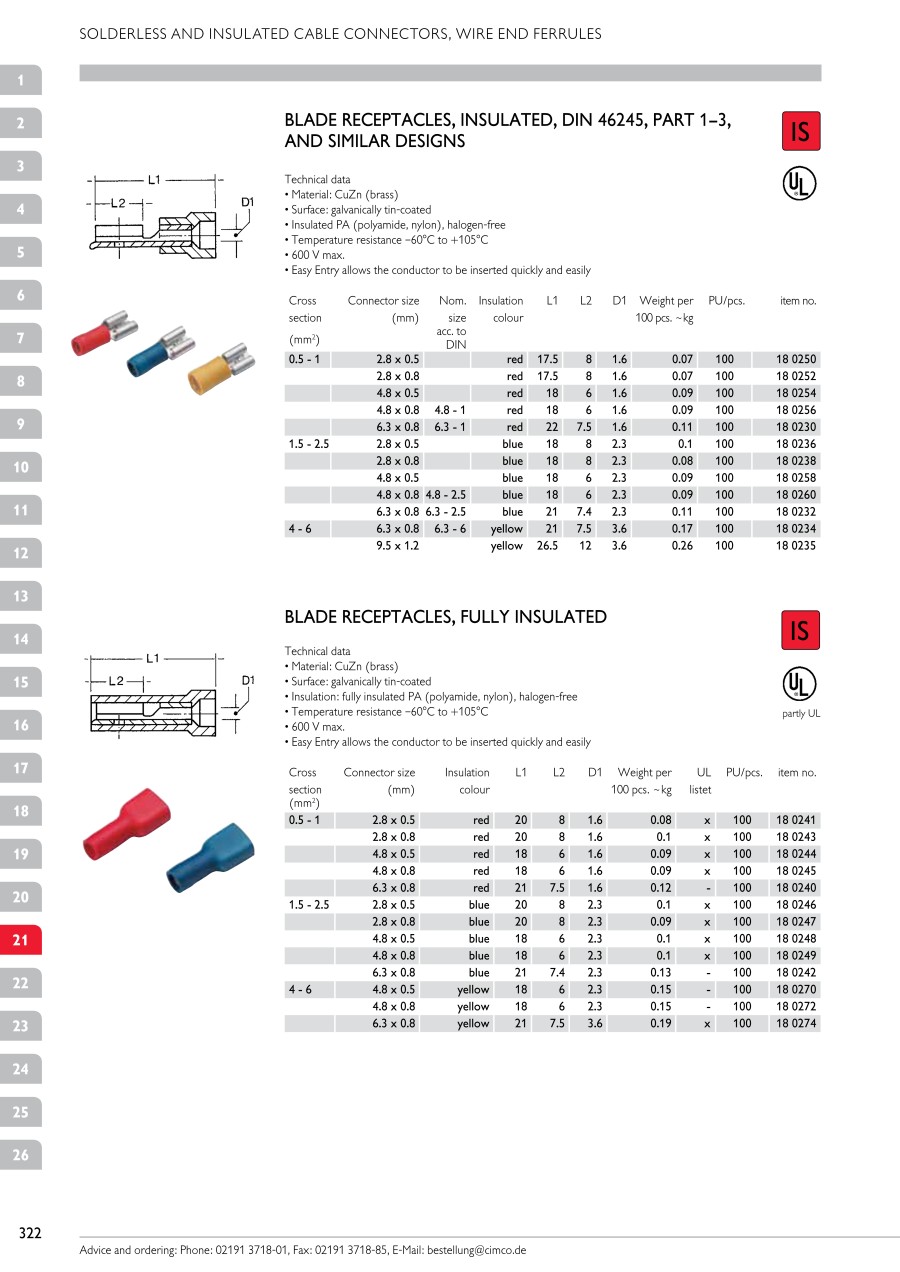

Catálogo
