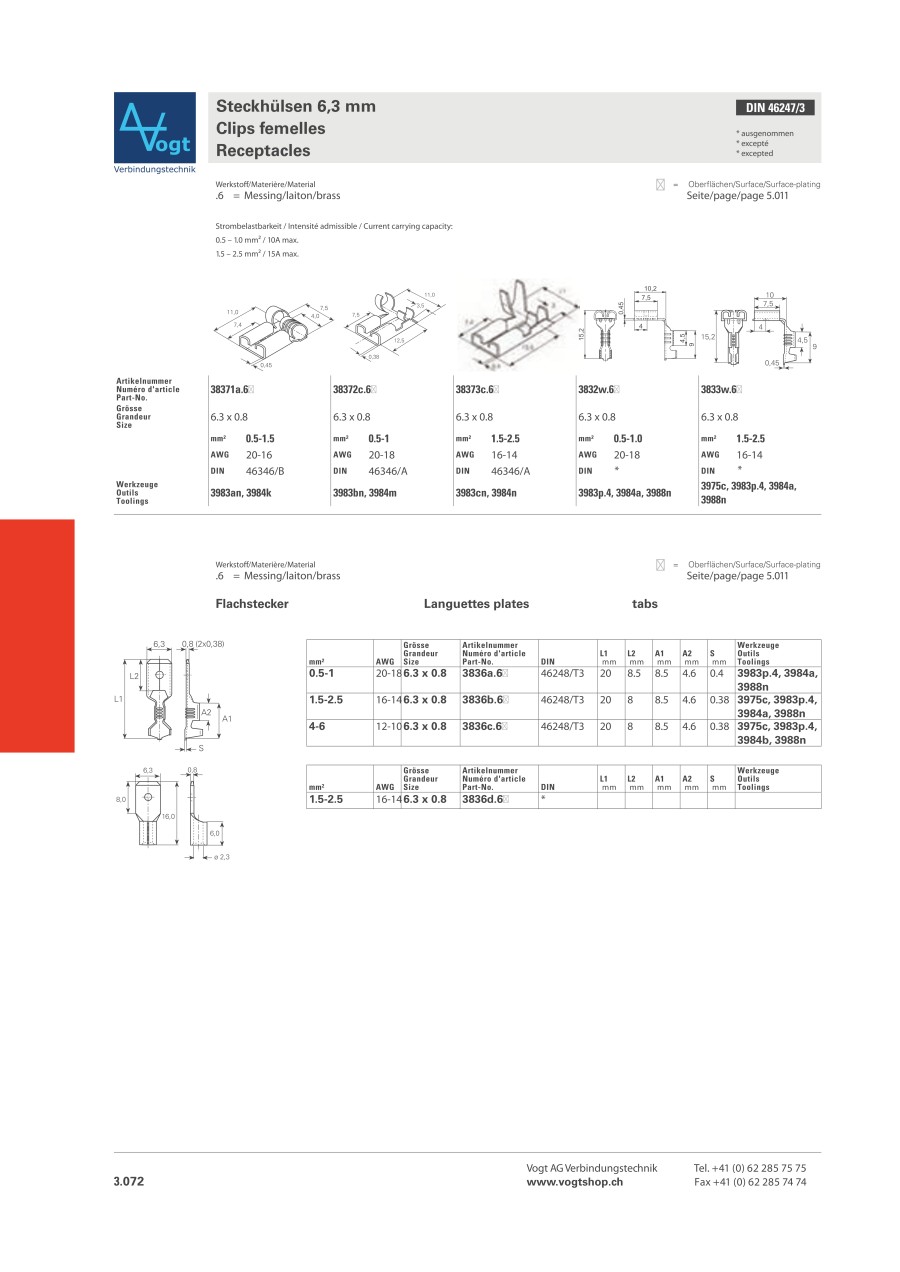

Blade terminal

Volume Discount

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Numbers

Data to be displayed: 30; 45; 60

Part Number
3836A.67
3836B.67
3910
3910S
3911
3911S
3912S
391305
391305S
391308
391308S
392805
392805S
392808
392808S
393405
393405S
393408
393408S
3959
3959S
3970
3970S
3972S

Standard Unit Price	Minimum order quantity	Volume Discount	Standard Shipping Days ?	Colour	Connector thickness (mm)	Connector width (mm)	Cross-section range	Cross section (mm²)	Cross section (max.) (mm²)	Insulation type	Insulation material	Insulation (material)	Manufacturer part #	Material (details)	Min. cross section (mm²)	Size	Support sleeve	Surface properties	Type	Type (manufacturer type)	Type (misc.)
0.19 €	1	Available	3 Days	Metal	0.8	6.3	0.50 - 1 mm²	0.5 - 1.0	1	Not insulated	-	-	3836A.67	Brass	0.5	6.3 x 0.8 mm	No	Tin plated	-	3836A.67	6.3 x 0.8 mm
0.17 €	1	Available	3 Days	Metal	0.8	6.3	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Not insulated	-	-	3836B.67	Brass	1.5	6.3 x 0.8 mm	No	Tin plated	-	3836B.67	6.3 x 0.8 mm
0.32 €	1	Available	3 Days	Red	0.8	6.3	0.50 - 1 mm²	0.5 - 1.0	1	Partially insulated	PVC	PVC part-insulation	3910	Brass. tin-plated	0.5	6.3 x 0.8 mm	Yes	-	connector	3910	6.3 x 0.8
0.12 €	1	Available	3 Days	Red	0.8	6.3	0.50 - 1 mm²	0.5 - 1.0	1	Partially insulated	PVC	PVC part-insulation	3910S	Brass. tin-plated	0.5	6.3 x 0.8 mm	No	-	connector	3910S	6.3 x 0.8 mm
0.32 €	1	Available	3 Days	Blue	0.8	6.3	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Partially insulated	PVC	PVC part-insulation	3911	Brass. tin-plated	1.5	6.3 x 0.8 mm	Yes	-	connector	3911	6.3 x 0.8
0.13 €	1	Available	3 Days	Blue	0.8	6.3	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Partially insulated	PVC	PVC part-insulation	3911S	Brass. tin-plated	1.5	6.3 x 0.8 mm	No	-	connector	3911S	6.3 x 0.8 mm
0.15 €	1	Available	3 Days	Yellow	0.8	6.3	4 - 6 mm²	4 - 6	6	Partially insulated	PVC	PVC part-insulation	3912S	Brass. tin-plated	4	6.3 x 0.8 mm	No	-	connector	3912S	6.3 x 0.8 mm
0.19 €	1	Available	3 Days	Red	0.5	2.8	0.50 - 1 mm²	0.5 - 1.0	1	Partially insulated	PVC	PVC part-insulation	391305	Brass. tin-plated	0.5	2.8 x 0.5 mm	Yes	-	connector	391305	2.8 x 0.5 mm
0.13 €	1	Available	3 Days	Red	0.5	2.8	0.50 - 1 mm²	0.5 - 1.0	1	Partially insulated	PVC	PVC part-insulation	391305S	Brass. tin-plated	0.5	2.8 x 0.5 mm	No	-	connector	391305S	4.8 x 0.5 mm
0.28 €	1	Available	3 Days	Red	0.8	2.8	0.50 - 1 mm²	0.5 - 1.0	1	Partially insulated	PVC	PVC part-insulation	391308	Brass. tin-plated	0.5	2.8 x 0.8 mm	Yes	-	connector	391308	2.8 x 0.8 mm
0.11 €	1	Available	3 Days	Red	0.8	2.8	0.50 - 1 mm²	0.5 - 1.0	1	Partially insulated	PVC	PVC part-insulation	391308S	Brass. tin-plated	0.5	2.8 x 0.8 mm	No	-	connector	391308S	2.8 x 0.8 mm
0.24 €	1	Available	3 Days	Red	0.5	4.8	0.50 - 1 mm²	0.5 - 1.0	1	Partially insulated	PVC	PVC part-insulation	392805	Brass. tin-plated	0.5	4.8 x 0.5 mm	Yes	-	connector	392805	4.8 x 0.5 mm
0.11 €	1	Available	3 Days	Red	0.5	4.8	0.50 - 1 mm²	0.5 - 1.0	1	Partially insulated	PVC	PVC part-insulation	392805S	Brass. tin-plated	0.5	4.8 x 0.5 mm	No	-	connector	392805S	4.8 x 0.5 mm
0.24 €	1	Available	3 Days	Red	0.8	4.8	0.50 - 1 mm²	0.5 - 1.0	1	Partially insulated	PVC	PVC part-insulation	392808	Brass. tin-plated	0.5	4.8 x 0.8 mm	Yes	-	connector	392808	4.8 x 0.8 mm
0.17 €	1	Available	3 Days	Red	0.8	4.8	0.50 - 1 mm²	0.5 - 1.0	1	Partially insulated	PVC	PVC part-insulation	392808S	Brass. tin-plated	0.5	4.8 x 0.8 mm	No	-	connector	392808S	4.8 x 0.8 mm
0.29 €	1	Available	3 Days	Blue	0.5	4.8	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Partially insulated	PVC	PVC part-insulation	393405	Brass. tin-plated	1.5	4.8 x 0.5 mm	Yes	-	connector	393405	4.8 x 0.5 mm
0.15 €	1	Available	3 Days	Blue	0.8	4.8	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Partially insulated	PVC	PVC part-insulation	393405S	Brass. tin-plated	1.5	4.8 x 0.8 mm	No	-	connector	393405S	4.8 x 0.8 mm
0.23 €	1	Available	3 Days	Blue	0.8	4.8	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Partially insulated	PVC	PVC part-insulation	393408	Brass. tin-plated	1.5	4.8 x 0.8 mm	Yes	-	connector	393408	4.8 x 0.8 mm
0.16 €	1	Available	85 Days	Blue	0.8	4.8	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Partially insulated	PVC	PVC part-insulation	393408S	Brass. tin-plated	1.5	4.8 x 0.8 mm	No	-	connector	393408S	4.8 x 0.5 mm
0.33 €	1	Available	3 Days	Red	0.8	6.3	0.50 - 1 mm²	0.5 - 1.0	1	Insulated	PA 6.6	Full PA insulation	3959	Brass. tin-plated	0.5	6.3 x 0.8 mm	Yes	-	connector	3959	6.3 x 0.8
0.24 €	1	Available	3 Days	Red	0.8	6.3	0.50 - 1 mm²	0.5 - 1.0	1	Partially insulated	PA 6.6	PA part-insulation	3959S	Brass. tin-plated	0.5	6.3 x 0.8 mm	No	-	connector	3959S	6.3 x 0.8
0.33 €	1	Available	3 Days	Blue	0.8	6.3	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Insulated	PA 6.6	Full PA insulation	3970	Brass. tin-plated	1.5	6.3 x 0.8 mm	Yes	-	connector	3970	6.3 x 0.8
0.24 €	1	Available	3 Days	Blue	0.8	6.3	1.50 - 2.50 mm²	1.5 - 2.5	2.5	Insulated	PA 6.6	Full PA insulation	3970S	Brass. tin-plated	1.5	6.3 x 0.8 mm	No	-	connector	3970S	6.3 x 0.8
0.28 €	1	Available	3 Days	Yellow	0.8	6.3	4 - 6 mm²	4 - 6	6	Insulated	PA 6.6	Full PA insulation	3972S	Brass. tin-plated	4	6.3 x 0.8 mm	No	-	connector	3972S	6.3 x 0.8

Basic information

Connection angle(°)	180	Connection	-	Contact material	Brass tin plated
Product type	Blade terminal	RoHS-compliant	Yes

Configure

24Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.

The part number is completed.

Basic Attributes

Colour
- Blue
- Metal
- Red
- Yellow
Clear
Connector thickness(mm)
- 0.5
- 0.8
Clear
Connector width(mm)
- 2.8
- 4.8
- 6.3
Clear
Cross-section range
- 0.50 - 1 mm²
- 1.50 - 2.50 mm²
- 4 - 6 mm²
Clear
Cross section(mm²)
0.5 - 1.0

1.5 - 2.5

4 - 6
Clear
Cross section (max.)(mm²)
1

2.5

6
Clear
Insulation type
- Insulated
- Not insulated
- Partially insulated
Clear
Insulation material
- PA 6.6
- PVC
Clear
Insulation (material)
- Full PA insulation
- PA part-insulation
- PVC part-insulation
Clear
Manufacturer part #
3836A.67

3836B.67

3910

3910S

3911

3911S

3912S

3959

3959S

3970

3970S

3972S

391305

391305S

391308

391308S

392805

392805S

392808

392808S

393405

393405S

393408

393408S
Clear
Material (details)
Brass

Brass. tin-plated
Clear
Min. cross section(mm²)
0.5

1.5

4
Clear
Size
- 2.8 x 0.5 mm
- 2.8 x 0.8 mm
- 4.8 x 0.5 mm
- 4.8 x 0.8 mm
- 6.3 x 0.8 mm
Clear
Support sleeve
- No
- Yes
Clear
Surface properties
- Tin plated
Clear
Type
- connector
Clear
Type (manufacturer type)
3836A.67

3836B.67

3910

3910S

3911

3911S

3912S

3959

3959S

3970

3970S

3972S

391305

391305S

391308

391308S

392805

392805S

392808

392808S

393405

393405S

393408

393408S
Clear
Type (misc.)
2.8 x 0.5 mm

2.8 x 0.8 mm

4.8 x 0.5 mm

4.8 x 0.8 mm

6.3 x 0.8

6.3 x 0.8 mm
Clear
