Eye-Bolts, U-Bolts for Plumbing（Page 2）
Search by sub-category
?* Information on days to ship and prices
-
Ball Lock Connectors, self-locking, holder / Bushing holder, function Nominal mm / mm / mm
HALDER
Parts can be connected fast and easily with the ball lock connector in combination with the locating bushings.The ball lock connector is maintenancefree, soundless and secured against loss.Configure nowStarting from∗ ： 14.09 € Min. Shipping Days ： 1 Day *Unit price with basic configuration
-

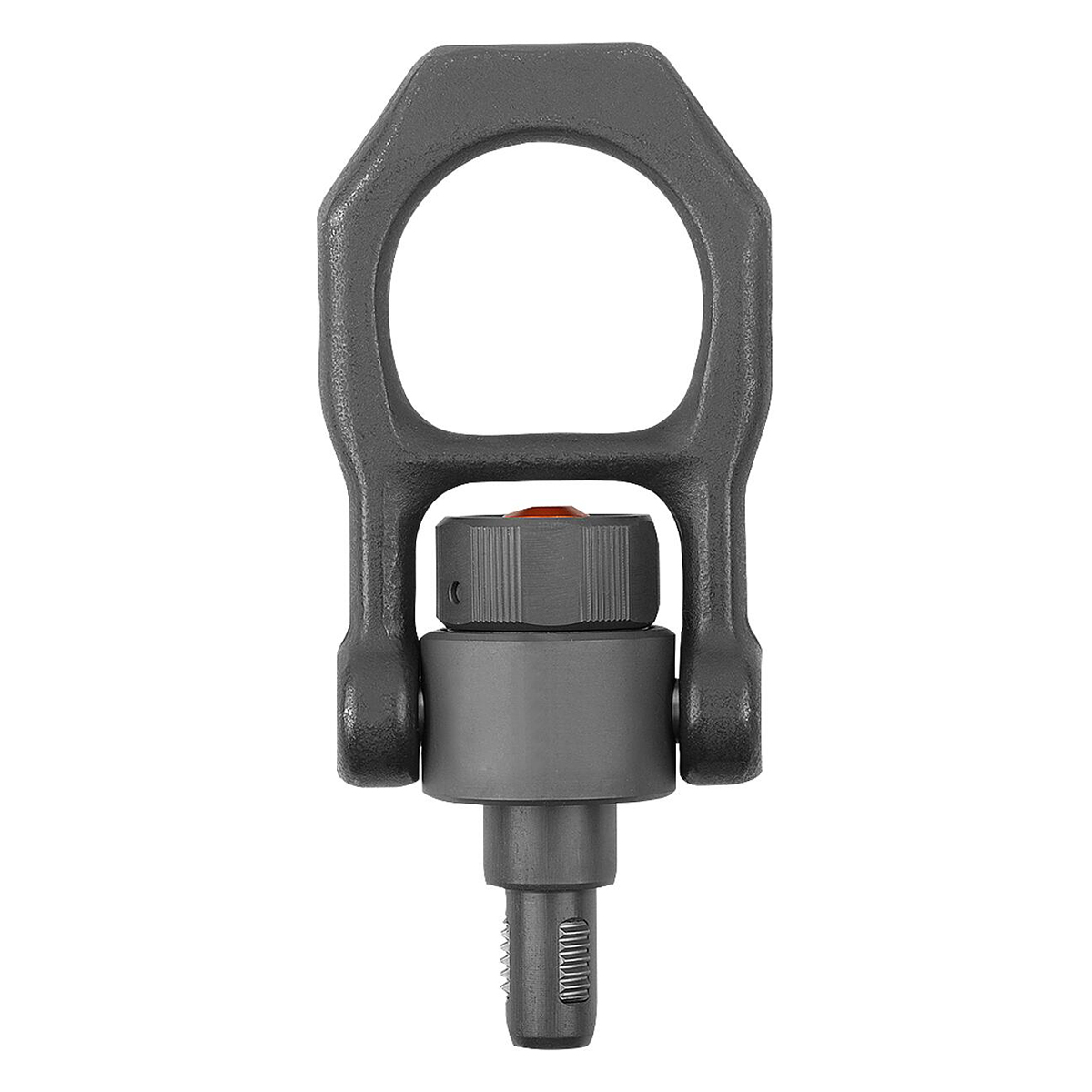

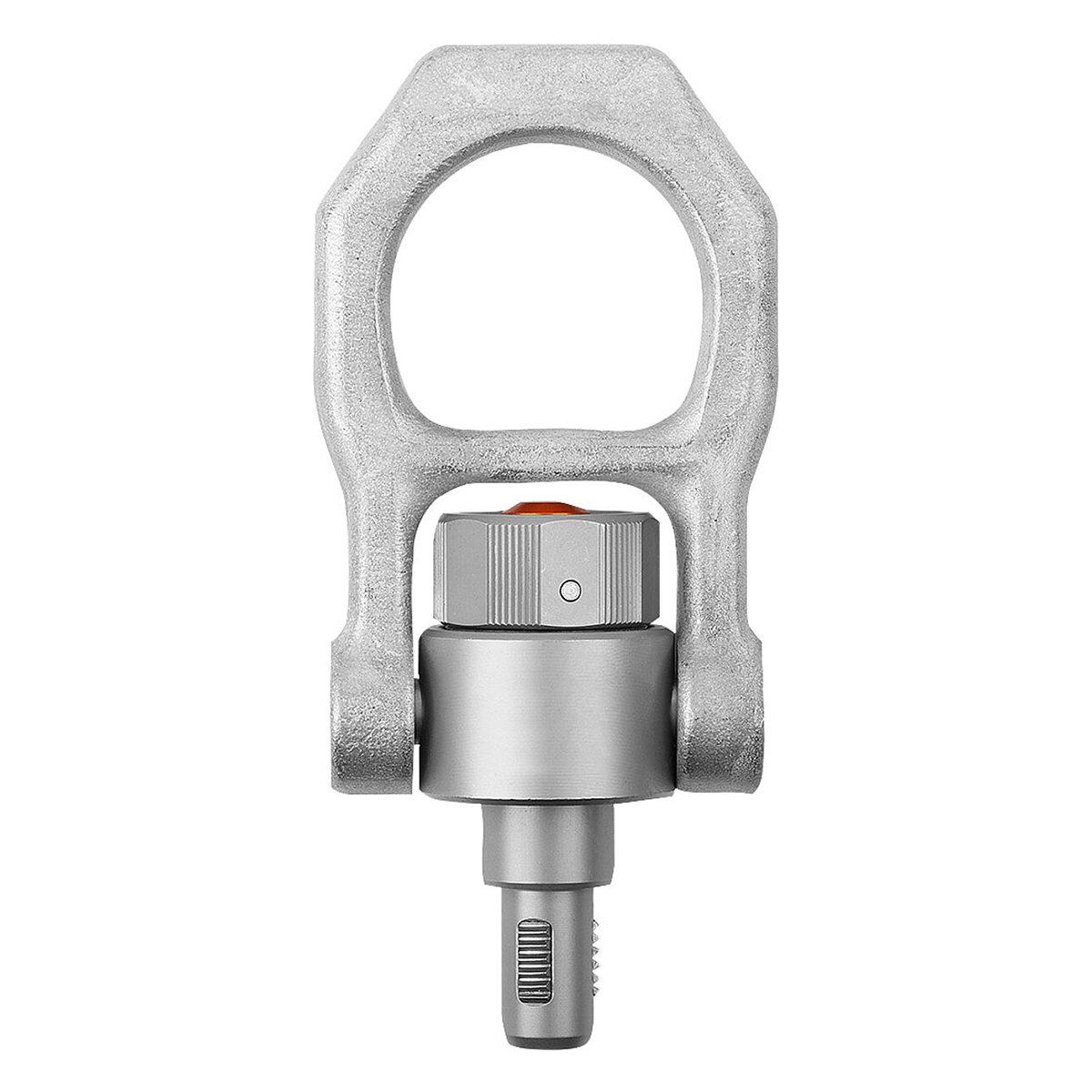

Threaded Lifting Pins, self-locking - INCH
HALDER
MaterialPin part
- • Heat-treated steel, tempered, manganese phosphated
• Stainless steel 1.4542, precipitation-hardenedPress button
- • Aluminium, orange, anodised
Threaded element
- • Stainless steel 1.4542, precipitation-hardened
Shackle
- • Heat-treated steel, tempered, manganese phosphated
• Stainless steel 1.4571Spring
- • Stainless Steel
Assembly
Threaded lifting pins can be mounted into a thread that is true to gauge.
Mounting:
- • Press in the button and hold it down.
• Insert the threaded lifting pin.
• Release the button (The button must be back in its original position.).
• Tighten the threaded lifting pin by hand, until it bears compleately on the bearing surface.
• It must be ensured that the threaded segments are engaged in the mounting thread.Dismantling:
- • Unscrew the threaded lifting pin approx. a quarter of a turn anticlockwise.
• Press in the button and hold it down.
• Remove the threaded lifting pin.
• Release the button.Operation
Each threaded lifting pin contains an instruction manual with an EC Declaration of Conformity.
Notes
- • This product is manufactured in INCH dimensions.
- 3D CAD data available
Configure nowStarting from∗ ： 193.91 € Min. Shipping Days ： 3 Days *Unit price with basic configuration
-

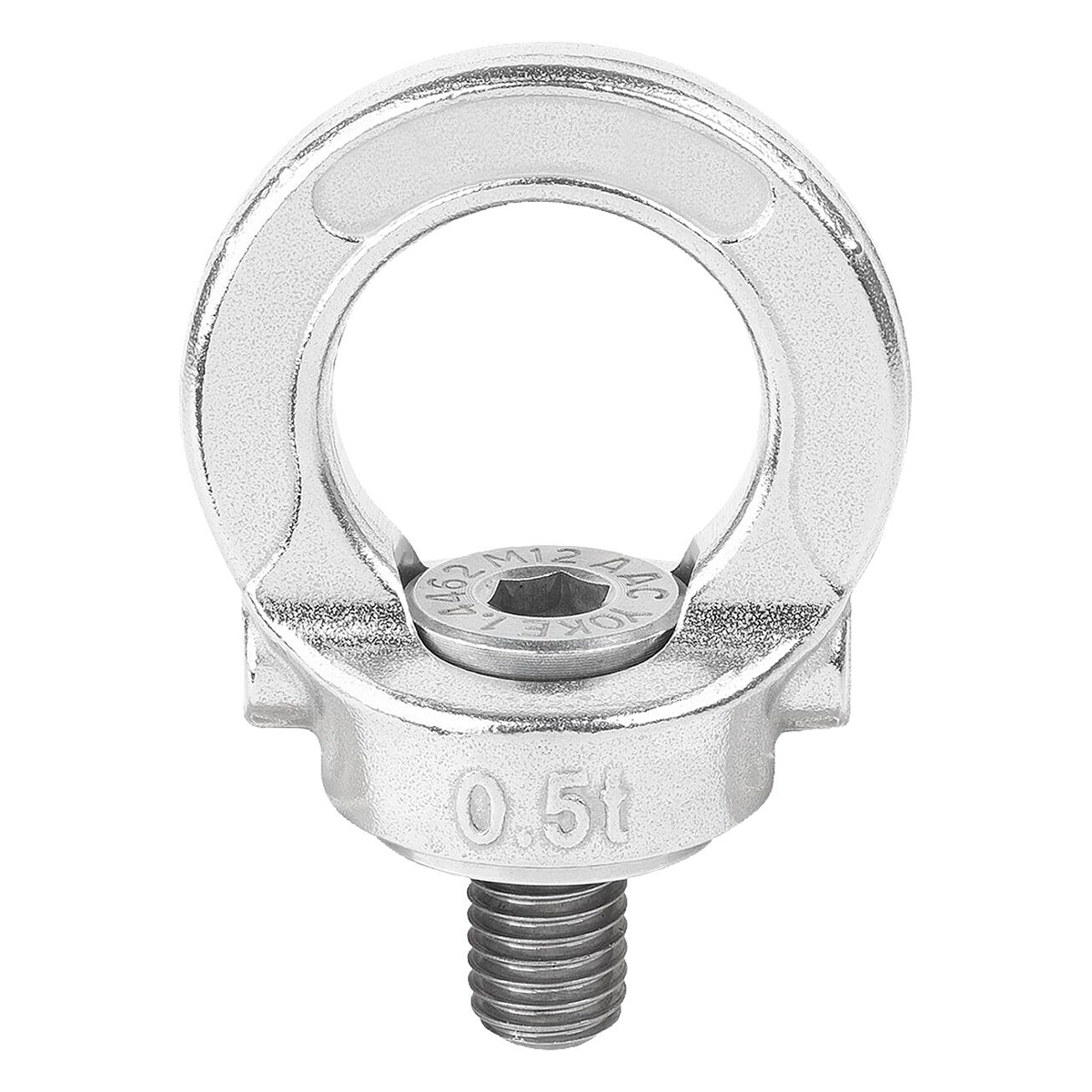

Ring nuts similar to DIN 582 (07690)
NORELEM
· For hoisting and transport tasks
· Application sectors: machine and fixture construction, toolmaking, logistics, material handlingConfigure nowStarting from∗ ： 6.78 € Min. Shipping Days ： 4 Days *Unit price with basic configuration
-
Swing Bolts Similar to DIN 444, Stainless Steel
MAEDLER
Material: Stainless steel 1.4305 (AISI 303).
Precision made, thread rolled.
The thread length l2 is larger than DIN.
The same size stainless steel version is not part of the DIN.- Volume Discount
Configure nowStarting from∗ ： 12.53 € Min. Shipping Days ： 4 Days *Unit price with basic configuration
-
Configure now
Starting from∗ ： 27.63 € Min. Shipping Days ： 4 Days *Unit price with basic configuration
-

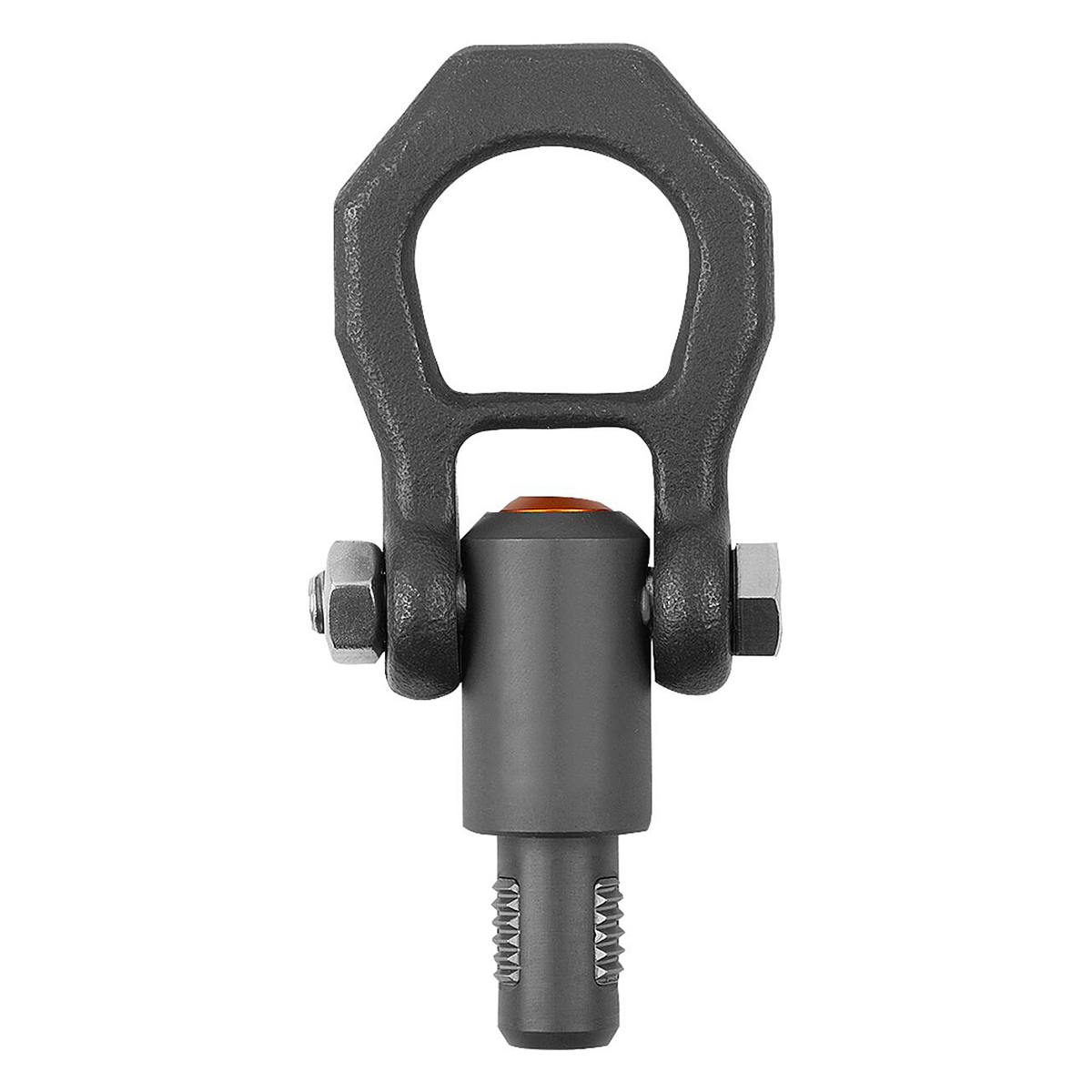

Ball lifting pin, steel mang-phosphated (07780)
NORELEM
· Quick and simple carrier element with movable shackles
· The balls can be released by a push button
· The balls are locked again by releasing the push button
· 5x safety factor
· TÜV testedConfigure nowStarting from∗ ： 84.81 € Min. Shipping Days ： 4 Days *Unit price with basic configuration
-

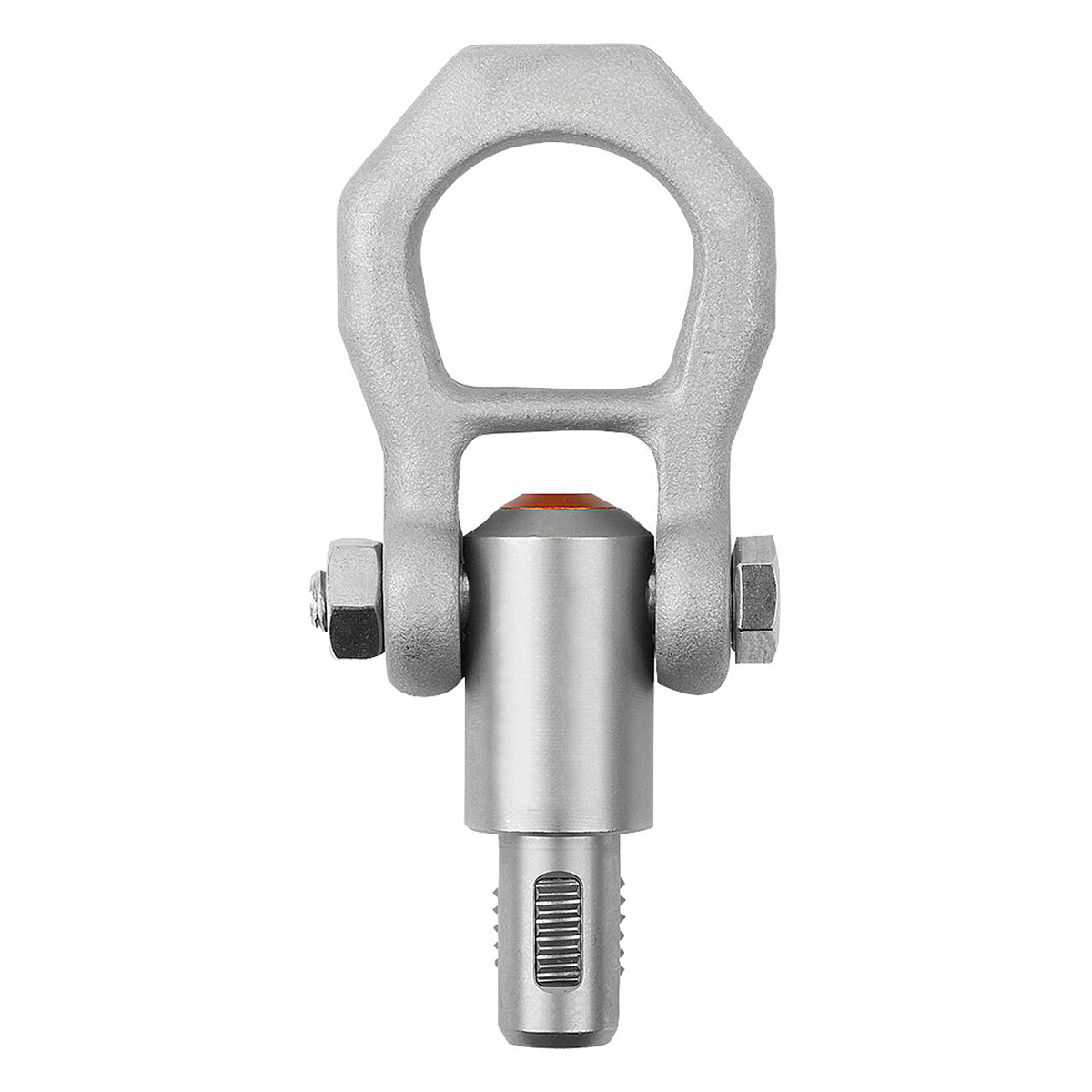

Ball lifting pin, stainless steel (07780)
NORELEM
· Quick and simple carrier element with movable shackles
· The balls can be released by a push button
· The balls are locked again by releasing the push button
· Corrosion protected
· TÜV testedConfigure nowStarting from∗ ： 159.38 € Min. Shipping Days ： 4 Days *Unit price with basic configuration
-
Configure now
Starting from∗ ： 164.80 € Min. Shipping Days ： 4 Days *Unit price with basic configuration
| Brand |
|---|
| Product Series |
| CAD |
| Starting from∗ |
| Min. Shipping Days |
| Screw Nominal (M) |
| Length L (mm) |
| Material |
| Surface Treatment |
| Pitch(mm) |
| Tip Shape |
| Strength Class (Steel) |
| Thread Type |
| Sales Unit |
| Screw Nominal (inch) |
| Application |
| Screw Type |
| Technical Standard |
|
|
|
|
|
|
|
| |
| Brand | HALDER | HALDER | NORELEM | MAEDLER | NORELEM | NORELEM | NORELEM | NORELEM |
| Product Series | Ball Lock Connectors, self-locking, holder / Bushing holder, function Nominal mm / mm / mm | |||||||
| CAD |
| |||||||
| Starting from∗ | 14.09 € *Unit price with basic configuration | 193.91 € *Unit price with basic configuration | 6.78 € *Unit price with basic configuration | 12.53 € *Unit price with basic configuration Volume Discount | 27.63 € *Unit price with basic configuration | 84.81 € *Unit price with basic configuration | 159.38 € *Unit price with basic configuration | 164.80 € *Unit price with basic configuration |
| Min. Shipping Days | 1 Day | 3 Days | 4 Days | 4 Days | 4 Days | 4 Days | 4 Days | 4 Days |
| Screw Nominal (M) | - | - | 8 ～ 20 | M 5 ～ M 20 | - | - | - | - |
| Length L (mm) | - | - | - | - | - | - | - | - |
| Material | - | - | Stainless Steel | Stainless Steel | - | - | - | - |
| Surface Treatment | - | - | - | Not Provided | - | - | - | - |
| Pitch(mm) | - | - | - | - | - | - | - | - |
| Tip Shape | - | - | - | - | - | - | - | - |
| Strength Class (Steel) | - | - | - | - | - | - | - | - |
| Thread Type | - | - | - | - | - | - | - | - |
| Sales Unit | - | - | - | - | - | - | - | - |
| Screw Nominal (inch) | - | - | - | - | - | - | - | - |
| Application | - | - | - | - | - | - | - | - |
| Screw Type | - | - | - | - | - | - | - | - |
| Technical Standard | - | - | - | - | - | - | - | - |
