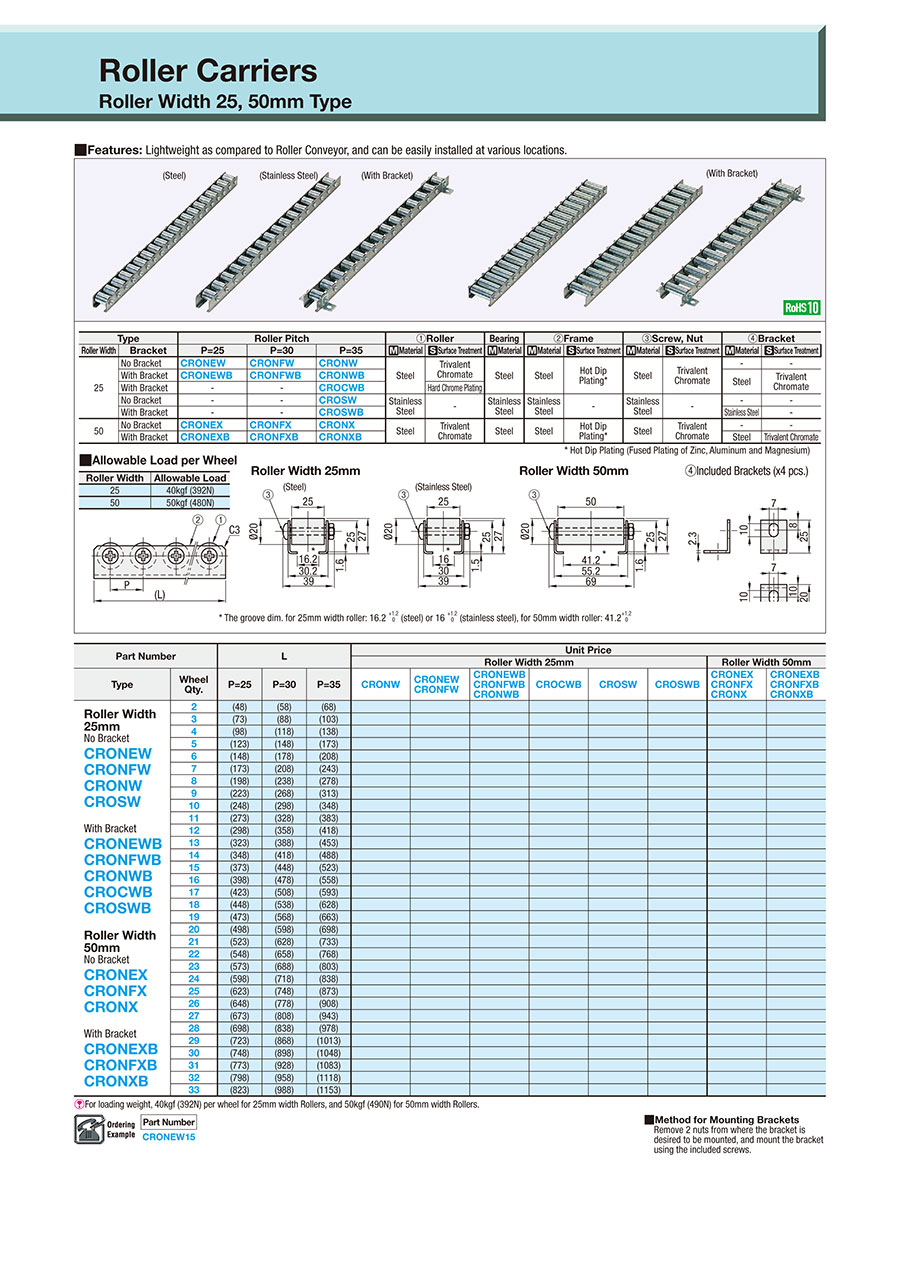

Roller Carriers / 25mm Width(Lista de números de peça: página 2)
Clique na imagem para ver uma imagem ampliada
Número da peça:
candidatos encontrados.Desenho de contorno e tabela de especificações
Dimensional Drawing
■Roller Width 25 mm
[ ! ]Bracket Mounting Method: Remove 2 nuts from where the bracket is desired to be mounted, and use bracket and cross recessed pan head screws included with the bracket to mount together. (Length differs from the screw for rollers)
[ ! ]This product is intended for use at room temperature (5℃ to 35℃).
| ＋1.2 0 | ＋1.2 0 | |||
| *2 The slot dim. for 25 mm width roller: 16.2 | (Steel) or 16 | (Stainless steel). | ||
[ ! ]This product is intended for use at room temperature (5℃ to 35℃).
| Type | ① Roller | ② Frame | ③Cross Recessed Pan Head Screws Hex: 3 Types of Nuts | ④ Bracket (Included Screws: M6×40L) | ||||||||||
| Roller Load Capacity (Per Pc.) | Outer Ring | Bearing | ||||||||||||
| Bracket | P＝25 | P＝30 | P＝35 | [ M ] Material | [ S ] Surface Treatment | [ M ] Material | [ M ] Material | [ S ] Surface Treatment | [ M ] Material | Size | [ S ] Surface Treatment | [ M ] Material | [ S ] Surface Treatment | |
| No Bracket | CRONEWH | CRONFWH | CRONWH | 36kgf(352N) | Steel | Trivalent Chromate | Steel | Steel | Hot Dip Plating*1 | Steel | Screws：M6×35L Nuts：M6 (Coarse)Pitch 1.0 | Trivalent Chromate | − | − |
| With Bracket | CRONEWHB | CRONFWHB | CRONWHB | Steel | Trivalent Chromate | |||||||||
| No Bracket | CRONEW | CRONFW | CRONW | 40kgf(392N) | − | − | ||||||||
| With Bracket | CRONEWB | CRONFWB | CRONWB | Steel | Trivalent Chromate | |||||||||
| With Bracket | − | − | CROCWB | Hard Chrome Plating | ||||||||||
| No Bracket | − | − | CROSW | Stainless Steel | − | Stainless Steel | Stainless Steel | − | Stainless Steel | − | − | − | ||
| With Bracket | − | − | CROSWB | Stainless Steel | − | |||||||||
[ ! ]Heat resistant temperature is 20℃±15℃. (This product is intended for use at room temperature)
[ ! ]Rollers, brackets, etc., are not sold separately as standard parts.
■Roller Width 50 mm
[ ! ]Bracket Mounting Method: Remove 2 nuts from where the bracket is desired to be mounted, and mount the bracket by tightening them together.
(Use the removed roller screws as they are.)
| ＋1.2 0 | |
| *2 The slot dim. for 50 mm width roller: 41.2 | |
(Use the removed roller screws as they are.)
| Type | ① Roller | ② Frame | ③Cross Recessed Pan Head Screws Hex: 3 Types of Nuts | ④ Bracket (Included Screws: M6×40L) | ||||||||||
| Roller Load Capacity (Per Pc.) | Outer Ring | Bearing | ||||||||||||
| Bracket | P＝25 | P＝30 | P＝35 | [ M ] Material | [ S ] Surface Treatment | [ M ] Material | [ M ] Material | [ S ] Surface Treatment | [ M ] Material | Size | [ S ] Surface Treatment | [ M ] Material | [ S ] Surface Treatment | |
| No Bracket | CRONEXH | CRONFXH | CRONXH | 45kgf(440N) | Steel | Trivalent Chromate | Steel | Steel | Hot Dip Plating*1 | Steel | Screws：M6×65L Nuts：M6 (Coarse)Pitch 1.0 | Trivalent Chromate | − | − |
| With Bracket | CRONEXHB | CRONFXHB | CRONXHB | Steel | Trivalent Chromate | |||||||||
| No Bracket | CRONEX | CRONFX | CRONX | 50kgf(480N) | − | − | ||||||||
| With Bracket | CRONEXB | CRONFXB | CRONXB | Steel | Trivalent Chromate | |||||||||
[ ! ]Heat resistant temperature is 20℃±15℃. (This product is intended for use at room temperature)
[ ! ]Rollers, brackets, etc., are not sold separately as standard parts.
Specification Table
| Part Number |
| CRONEWH17 CRONEXH17 |
■Roller Width 25 mm
| Part Number | L | |||
| Type | Rollers Qty. | P = 25 | P = 30 | P = 35 |
| (Medium Load) No Bracket CRONEWH CRONFWH CRONWH With Bracket CRONEWHB CRONFWHB CRONWHB (Standard) No Bracket CRONEW CRONFW CRONW CROSW With Bracket CRONEWB CRONFWB CRONWB CROCWB CROSWB | 2 | (48) | (58) | (68) |
| 3 | (73) | (88) | (103) | |
| 4 | (98) | (118) | (138) | |
| 5 | (123) | (148) | (173) | |
| 6 | (148) | (178) | (208) | |
| 7 | (173) | (208) | (243) | |
| 8 | (198) | (238) | (278) | |
| 9 | (223) | (268) | (313) | |
| 10 | (248) | (298) | (348) | |
| 11 | (273) | (328) | (383) | |
| 12 | (298) | (358) | (418) | |
| 13 | (323) | (388) | (453) | |
| 14 | (348) | (418) | (488) | |
| 15 | (373) | (448) | (523) | |
| 16 | (398) | (478) | (558) | |
| 17 | (423) | (508) | (593) | |
| 18 | (448) | (538) | (628) | |
| 19 | (473) | (568) | (663) | |
| 20 | (498) | (598) | (698) | |
| 21 | (523) | (628) | (733) | |
| 22 | (548) | (658) | (768) | |
| 23 | (573) | (688) | (803) | |
| 24 | (598) | (718) | (838) | |
| 25 | (623) | (748) | (873) | |
| 26 | (648) | (778) | (908) | |
| 27 | (673) | (808) | (943) | |
| 28 | (698) | (838) | (978) | |
| 29 | (723) | (868) | (1013) | |
| 30 | (748) | (898) | (1048) | |
| 31 | (773) | (928) | (1083) | |
| 32 | (798) | (958) | (1118) | |
| 33 | (823) | (988) | (1153) | |
■Roller Width 50 mm
| Part Number | L | |||
| Type | Rollers Qty. | P = 25 | P = 30 | P = 35 |
| (Medium Load) No Bracket CRONEXH CRONEXH CRONFXH With Bracket CRONEXHB CRONFXHB CRONXHB No Bracket CRONEX CRONFX CRONX With Bracket CRONEXB CRONFXB CRONXB | 2 | (48) | (58) | (68) |
| 3 | (73) | (88) | (103) | |
| 4 | (98) | (118) | (138) | |
| 5 | (123) | (148) | (173) | |
| 6 | (148) | (178) | (208) | |
| 7 | (173) | (208) | (243) | |
| 8 | (198) | (238) | (278) | |
| 9 | (223) | (268) | (313) | |
| 10 | (248) | (298) | (348) | |
| 11 | (273) | (328) | (383) | |
| 12 | (298) | (358) | (418) | |
| 13 | (323) | (388) | (453) | |
| 14 | (348) | (418) | (488) | |
| 15 | (373) | (448) | (523) | |
| 16 | (398) | (478) | (558) | |
| 17 | (423) | (508) | (593) | |
| 18 | (448) | (538) | (628) | |
| 19 | (473) | (568) | (663) | |
| 20 | (498) | (598) | (698) | |
| 21 | (523) | (628) | (733) | |
| 22 | (548) | (658) | (768) | |
| 23 | (573) | (688) | (803) | |
| 24 | (598) | (718) | (838) | |
| 25 | (623) | (748) | (873) | |
| 26 | (648) | (778) | (908) | |
| 27 | (673) | (808) | (943) | |
| 28 | (698) | (838) | (978) | |
| 29 | (723) | (868) | (1013) | |
| 30 | (748) | (898) | (1048) | |
| 31 | (773) | (928) | (1083) | |
| 32 | (798) | (958) | (1118) | |
| 33 | (823) | (988) | (1153) | |
Selection Process/Points
| Item | Gravity Conveyor Specifications | ||
|---|---|---|---|
| Roller Pitch | Hard Material | 4 rollers support the conveyed object. | |
| Roller pitch ≈ Length of conveyed object (L)/5 | |||
| Soft Material | 6 rollers support the conveyed object. | ||
| Roller pitch ≈ Length of conveyed object (L)/7 | |||
| Roller Dia.*1 | Hard Material | Load capacity that supports the weight of conveyed objects with 2 rollers | |
| R = weight of conveyed object/2 | |||
| Soft Material | Load capacity that supports the weight of conveyed objects with 6 rollers | ||
| R = weight of conveyed object/6 | |||
| Roller Material | Choose from plastic material or metal. The applied load differs depending on the material. Metal materials have a higher load application. | ||
| Roller Length*2 | Roller length can be specified by frame size. If the roller material is metal, the frame size can be specified as 1,000 mm or less; if it is plastic, it can be specified as 1,300 mm or less. Use it at a pitch of 100 mm. | ||
| Notes * 1 Select the roller diameter so that the load R per roller is less than the supporting load, which varies depending on the roller diameter. Determine the supporting load based on the dynamic load rating of the bearing used in the roller shown in the catalog, taking into account the service life. * 2 The roller length is the length perpendicular to the roller width |
|---|
